TP-Link TL-WA801N WiFi Access Point | 300Mbps 2.4GHz PoE
TP-Link TL-WA801N WiFi Access Point | 300Mbps 2.4GHz PoE
Regular price
7.400 BHD
Regular price
Sale price
7.400 BHD
Shipping calculated at checkout.
The TP-Link TL-WA801N Wireless Access Point delivers fast and stable 300Mbps WiFi on 2.4GHz, making it ideal for homes, offices, and small businesses. It supports Multiple operating modes including Access Point, Client, Bridge, and Range Extender, offering flexible network expansion. With Multi-SSID support, two fixed high-gain antennas, and a passive PoE injector for easy installation, the TL-WA801N ensures reliable wireless coverage with simple setup and efficient performance.
Quantity
Couldn't load pickup availability
Hardware Features

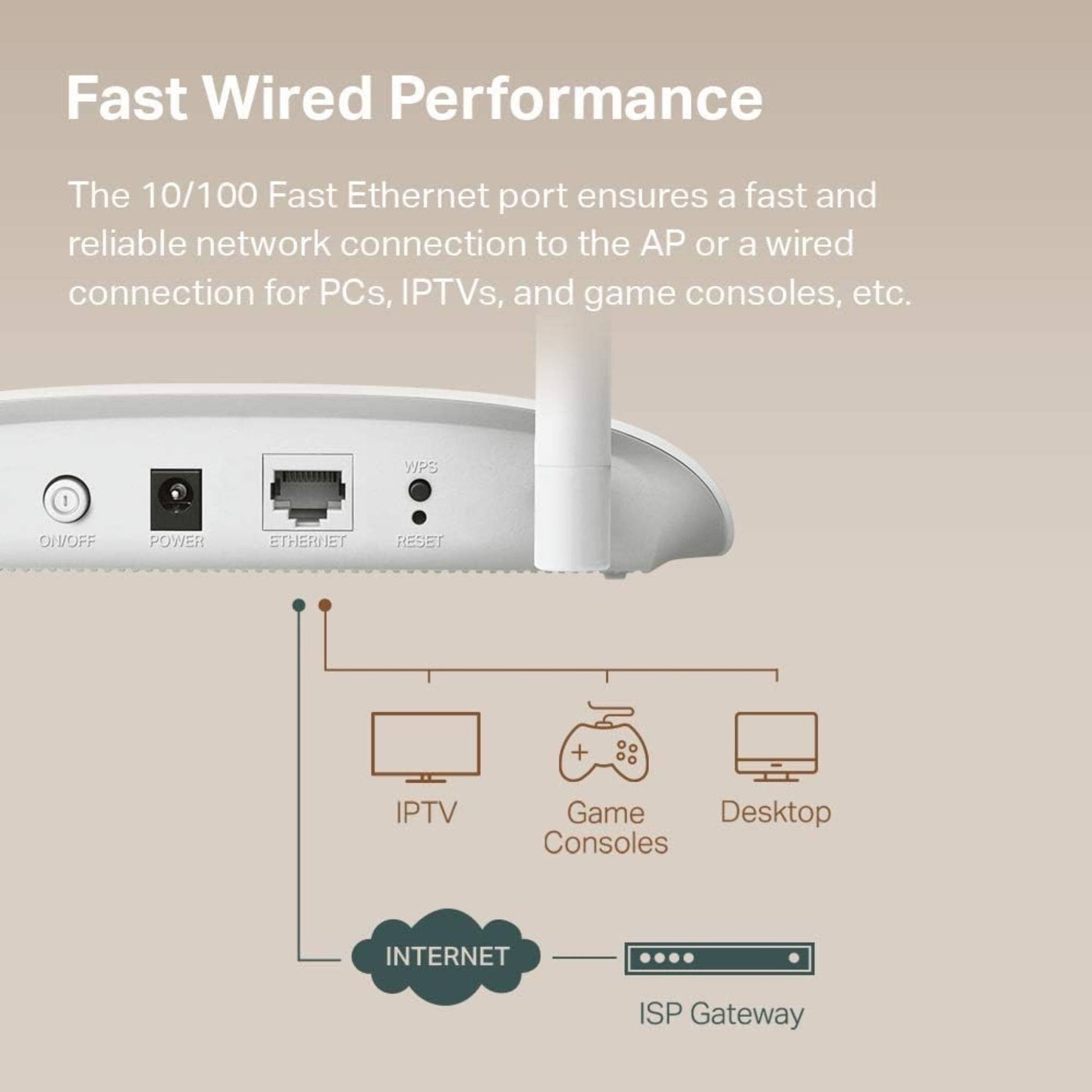

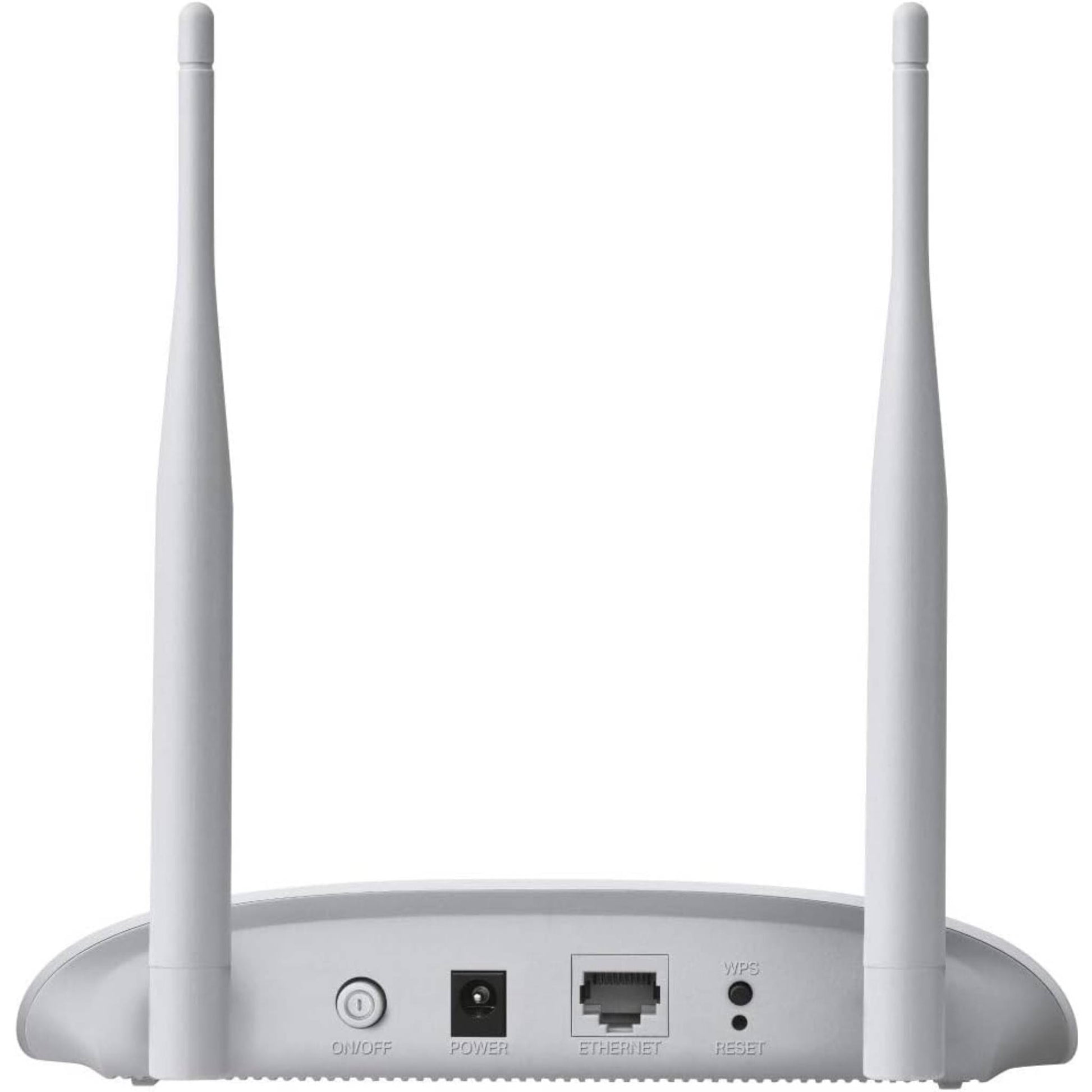

🔌 Interface
1 × 10/100 Mbps Ethernet Port (RJ45)

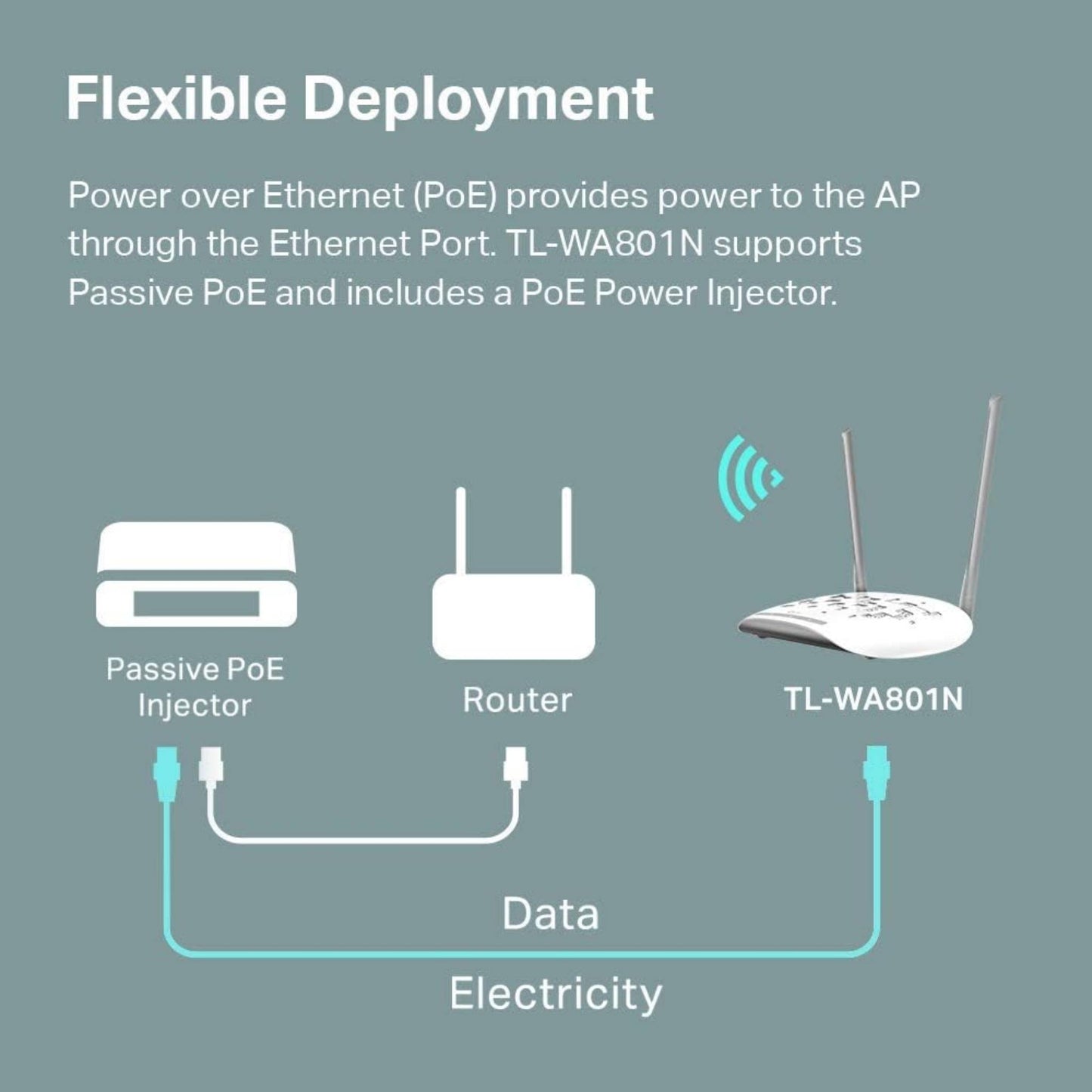

⚡ Passive PoE
Supported
🔘 Buttons
Power On/Off, WPS, Reset
🔋 Power Supply
9V DC / 0.6A
📡 Wireless Standards
IEEE 802.11n / 802.11g / 802.11b
📏 Dimensions
7.1 × 5.1 × 1.4 in
(181.6 × 129.5 × 36.2 mm)
(181.6 × 129.5 × 36.2 mm)
📶 Antenna
2 Fixed Omni-Directional Antennas
Wireless Features
📡 Frequency
2.4 GHz
🚀 Signal Rate
Up to 300 Mbps @ 2.4 GHz
📥 Reception Sensitivity
11g 6Mbps: -90 dBm
11g 54Mbps: -77 dBm
11n HT20 MCS7: -73 dBm
11n HT40 MCS7: -70 dBm
11g 54Mbps: -77 dBm
11n HT20 MCS7: -73 dBm
11n HT40 MCS7: -70 dBm

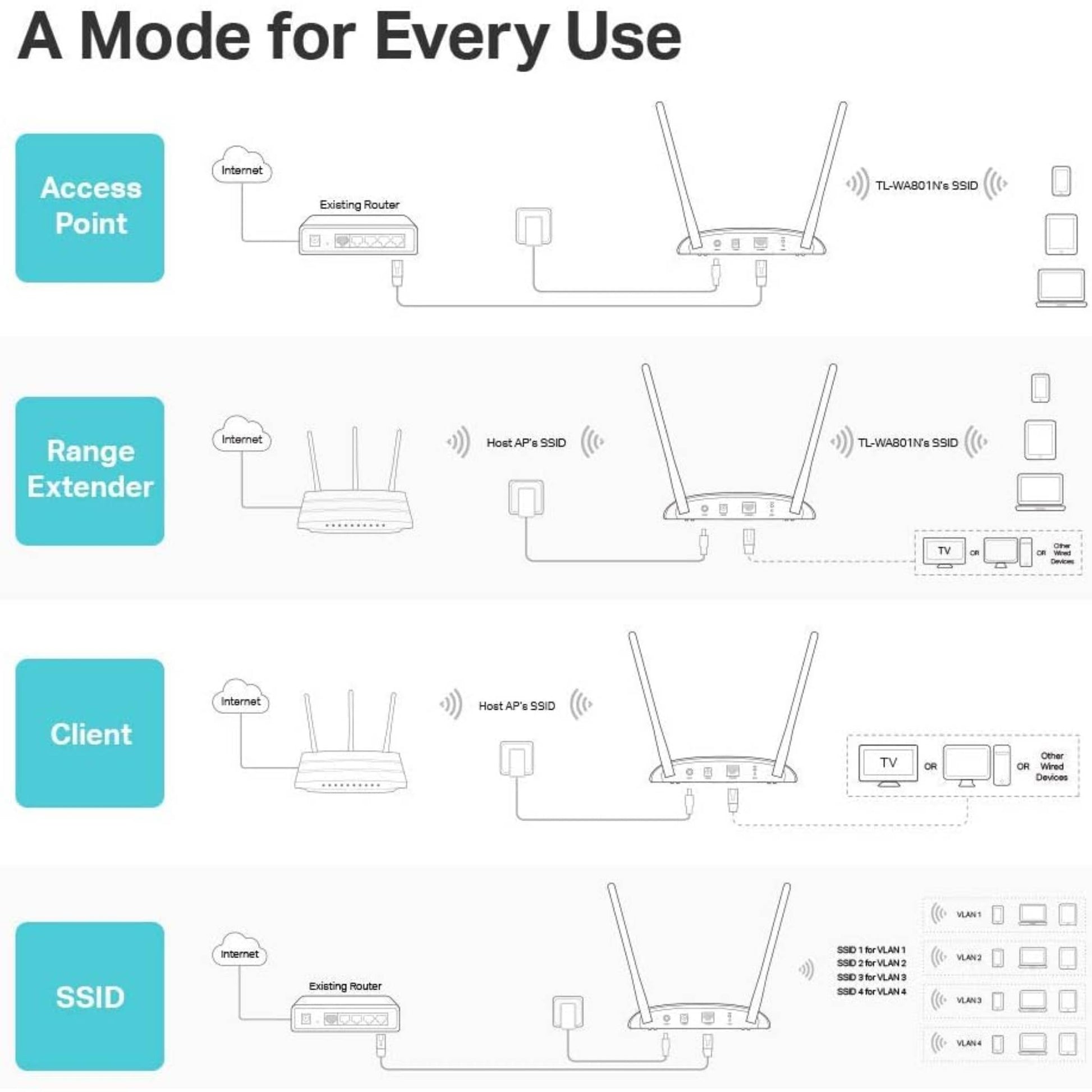

🔁 Wireless Modes
AP • Multi-SSID • Client • Range Extender
🛠️ Wireless Functions
Wireless Radio Control, WMM, Short GI, AP Isolation,
Wireless Statistics, Throughput Monitor
🔐 Wireless Security
WEP, WPA/WPA2, WPA/WPA2-PSK
🎯 Quality of Service
WMM
📊 Management
SNMP
⚙️ Advanced Features
Passive PoE supported up to 30 meters
📡 Transmission Power
CE: <15 dBm • FCC: <20 dBm
Others
📜 Certification
CE, FCC, RoHS
📦 Package Contents
Wireless Access Point TL-WA801N,
Power Adapter,
Passive PoE Power Injector,
RJ45 Ethernet Cable,
Quick Installation Guide
Power Adapter,
Passive PoE Power Injector,
RJ45 Ethernet Cable,
Quick Installation Guide
💻 System Requirements
Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10,
macOS, NetWare, UNIX or Linux
IE 11, Firefox 12+, Chrome 20+, Safari 4+
Cable/DSL Modem & ISP Subscription
macOS, NetWare, UNIX or Linux
IE 11, Firefox 12+, Chrome 20+, Safari 4+
Cable/DSL Modem & ISP Subscription
🌡️ Environment
Operating: 0°C ~ 40°C (32°F ~ 104°F)
Storage: -40°C ~ 70°C (-40°F ~ 158°F)
Humidity (Operating): 10% ~ 90% RH
Humidity (Storage): 5% ~ 90% RH
Storage: -40°C ~ 70°C (-40°F ~ 158°F)
Humidity (Operating): 10% ~ 90% RH
Humidity (Storage): 5% ~ 90% RH
