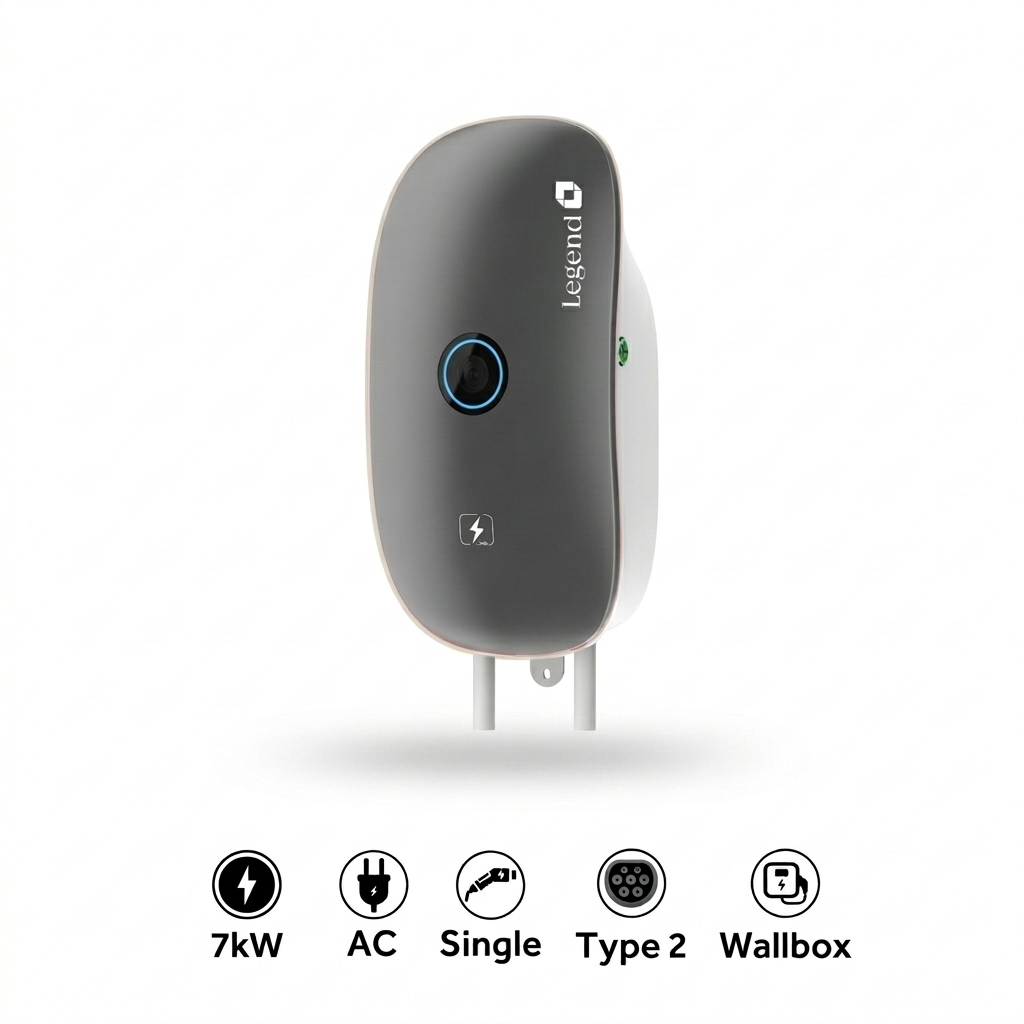

Legend 7kW EV Charger Type 2 Wall Box | Fast AC Charging Station
Legend 7kW EV Charger Type 2 Wall Box | Fast AC Charging Station
Regular price
200.000 BHD
Regular price
Sale price
200.000 BHD
Shipping calculated at checkout.
The 7kW AC Type 2 Cable Wallbox EV Charger is a compact and efficient solution for daily electric vehicle charging. Designed for homes and businesses, it offers reliable performance, universal compatibility with Type 2 EVs, and advanced safety protection. Ideal for overnight charging, this wall-mounted charger ensures convenient and cost-effective EV power delivery.
Quantity
Couldn't load pickup availability
Legend 7kW EV Charger Type 2 Wall Box | Fast AC Charging Station
7kW AC Chargers | GB/EURO Standard | Home & Commercial Use
Overview
Power Rating
Max. 7.0kW
Charger Type
Type 2 Wall Box | Fast AC Charging Station
Application
Home / Commercial
Smart Features
APP Control | Display Screen
Electrical Specification
Input Voltage
230V +/-10% 1Ph +N+E
Input Frequency
50 Hz / 60Hz
Max. Output Power
7.0kW
Output Current Range
0-32A
Output Voltage
230V +/-10% 1Ph+N+E
Working Environment
Operating Temperature
-30°C ~ +55°C
Working Humidity
5% - 95% RH (non-condensation)
Working Altitude
<2000m
IP Rating
IP 55
Solar PV Compatibility
✓ YES
Cooling Method
Natural air cooling
Protection Features
Over/Under Voltage
✓ Supported
Short Circuit Protection
✓ Supported
Surge Protection
✓ Supported
Function & Accessory
OCPP 1.6
✓ Supported
4G
✓ Supported
WiFi
✓ Supported
RFID
✓ Supported
Ethernet Port
✓ Supported
Bluetooth
✓ Supported
Safety Standards
Active Load Management
✓ Supported
Dynamic Load Management
✓ Supported
Earth Leakage Protection
✓ Supported
Additional Features
LCD Display
✓ Included
APP Control
✓ Supported
Authentication
RFID / APP
