TP-Link

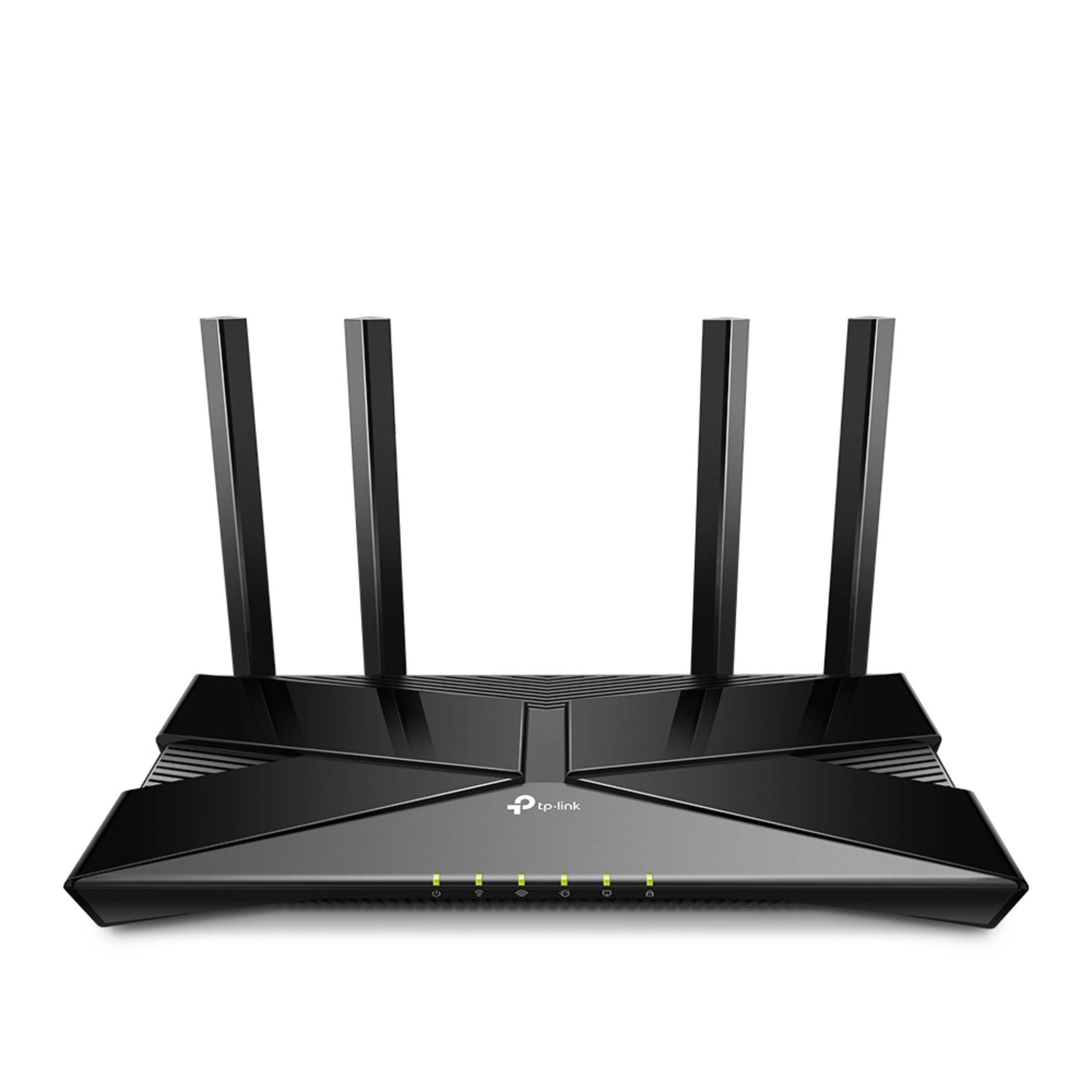

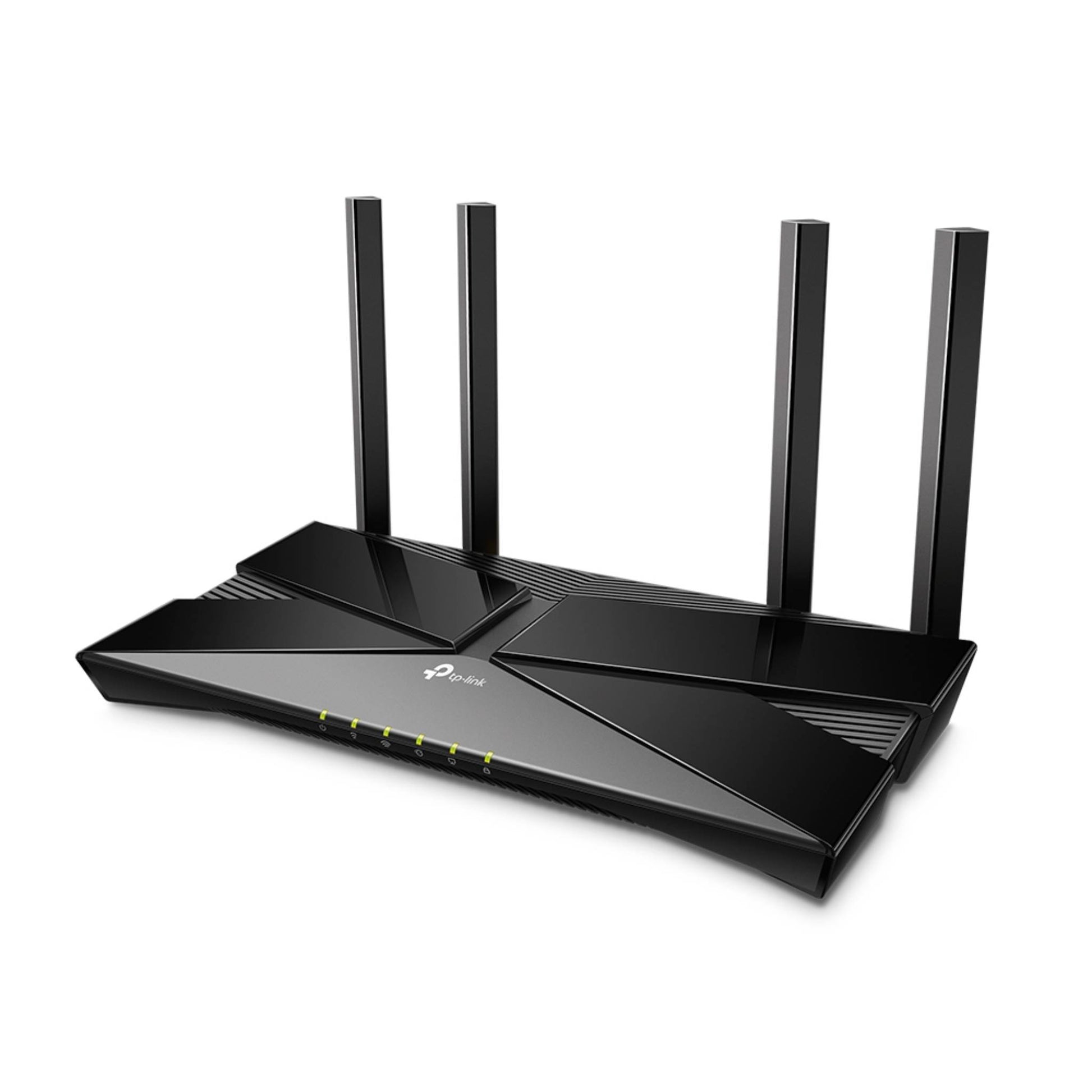

TP-Link Archer AX53 AX3000 Wi-Fi 6 Router | Dual-Band Gigabit, OFDMA
TP-Link Archer AX53 AX3000 Wi-Fi 6 Router | Dual-Band Gigabit, OFDMA
Regular price
24.000 BHD
Regular price
29.900 BHD
Sale price
24.000 BHD
Shipping calculated at checkout.
The TP-Link Archer AX53 AX3000 is a powerful Wi-Fi 6 dual-band gigabit router delivering speeds up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. Built with OFDMA for connecting more devices at once, ultra-low latency for gaming and video calls, four high-gain antennas with Beamforming for wider coverage, HomeShield security, EasyMesh support, and Alexa voice control, it’s the ideal future-ready router for smart homes.
Quantity
Couldn't load pickup availability
TP-Link Archer AX53 AX3000 Dual Band Gigabit Wi-Fi 6 Router Specifications
Dual-Band Gigabit Wi-Fi 6 Router
WIRELESS
Standards and Protocols
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds
AX3000
5 GHz: 2402 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range
2-3 Bedroom Houses
- 4× Fixed High-Performance Antennas - Multiple antennas form a signal-boosting array
- Beamforming - Concentrates wireless signal strength towards clients
- High-Power FEM - Improves transmission power
WiFi Capacity
- Dual-Band - Allocate devices to different bands
- OFDMA - Simultaneously communicates with multiple Wi-Fi 6 clients
- Airtime Fairness - Improves network efficiency
- DFS - Access an extra band to reduce congestion
- 4 Streams - Connect devices to more bandwidth
Working Modes
Router Mode
Access Point Mode
SECURITY
Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
HomeShield Security
- Real-Time IoT Protection
- Malicious Site Blocker
- Intrusion Prevention System
- DDoS Attack Prevention
- Home Network Scanner
△HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan.
Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server
OpenVPN Server
PPTP VPN Server
WireGuard VPN Server
VPN Client
OpenVPN Client
PPTP VPN Client
WireGuard VPN Client
(Only V2 Support)
WiFi Encryption
WPA
WPA2
WPA3
WPA/WPA2-Enterprise
*Use of WPA3 requires clients to support WPA3.
HARDWARE

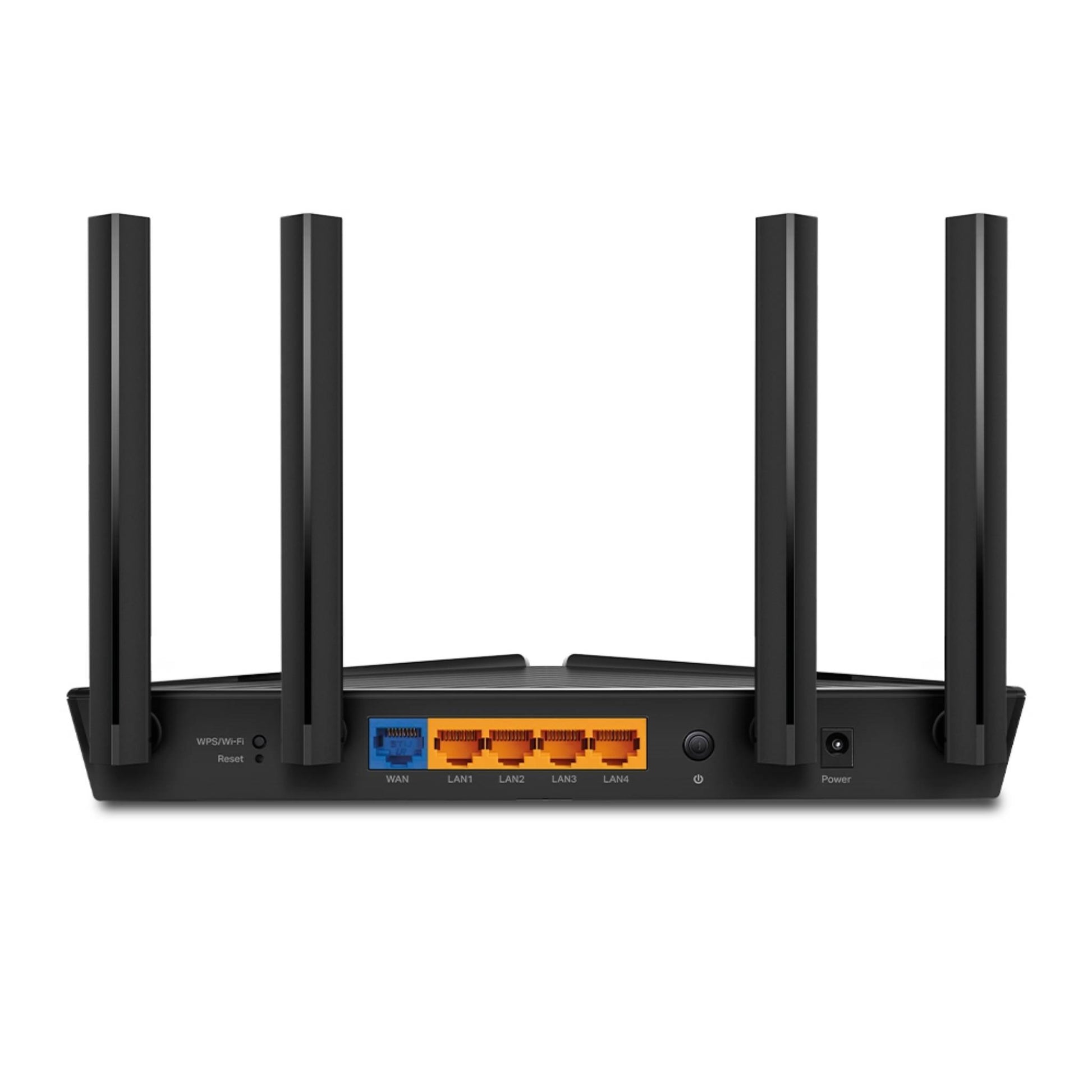

Ethernet Ports
1× Gigabit WAN Port
4× Gigabit LAN Ports
Buttons
Wi-Fi/WPS Button
Power On/Off Button
Reset Button
Power
12 V ⎓ 1 A
SOFTWARE
Protocols
IPv4
IPv6
Service Kits
HomeShield Learn More>
EasyMesh
Mesh networking creates smooth, fast, stable roaming. Archer AX53 can build an EasyMesh network with EasyMesh-Compatible devices.
◇EasyMesh-Compatible function is still being developed on some models.
Parental Controls
HomeShield Parental Controls
- Custom Profiles
- Professional Content Filter Library
- Family Time, Bedtime, Off Time
- Time Rewards
- Family Online Time Ranking
- Pause the Internet
- Weekly and Monthly Reports
WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service
QoS by Device
Cloud Service
Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP
Address Reservation
DHCP Client List
Server
DDNS
TP-Link
NO-IP
DynDNS
Management Features
Tether App
Webpage
Check Web Emulator>
OTHER
Network Services Enabled by Default
Web Server - Manage via web (HTTP/HTTPS) • Port: 80/443
DNS • Port: 53
DHCP Server - IP assignment • Port: 67
App management • Ports: 20001, 30001 (TCP), 20002 (UDP)
System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+
Cable or DSL Modem (if needed)
Subscription with an internet service provider
Certifications
CE, RoHS
Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
TEST DATA
WiFi Transmission Power
CE:
<20dBm (2.4GHz)
<23dBm (5.15GHz~5.35GHz)
<30dBm (5.47GHz~5.725GHz)
WiFi Reception Sensitivity
2.4GHz:
11ac VHT20_MCS0: -96dBm
11ac VHT20_MCS8: -74dB
11ac VHT40_MCS0: -94dBm
11ac VHT40_MCS9: -70dB
11ax HE20_MCS0: -96dBm
11ax HE20_MCS11: -66dBm
11ax HE40_MCS0: -93dBm
11ax HE40_MCS11: -63dBm
5GHz:
11ac VHT20_MCS0: -97dBm
11ac VHT20_MCS8: -75dBm
11ac VHT40_MCS0: -94dBm
11ac VHT40_MCS9: -70dBm
11ac VHT80_MCS0: -91dBm
11ac VHT80_MCS9: -67dBm
11ac VHT160_MCS0: -88dBm
11ac VHT160_MCS9: -63dBm
11ax HE20_MCS0: -97dBm
11ax HE20_MCS11: -66dBm
11ax HE40_MCS0: -94dBm
11ax HE40_MCS11: -63dBm
11ax HE80_MCS0: -91dBm
11ax HE80_MCS11: -61dBm
11ax HE160_MCS0: -87dBm
11ax HE160_MCS11: -58dBm
PHYSICAL
Dimensions (W×D×H)
10.2 × 5.3 × 1.6 in
(260.2 × 135 × 41.6 mm)
Package Content
Wireless Router Archer AX53
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Important Notes:
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications.
‡Use of 802.11ax (Wi-Fi 6) and its features including OFDMA, HE160, and TWT requires clients to also support corresponding features.
§The 802.11ax white paper defines standardized modifications to both the IEEE 802.11 physical layers (PHY) and the IEEE 802.11 Medium Access Control (MAC) layer.
☆Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
**This router may not support all the mandatory features as ratified in IEEE 802.11ax specification.
***Further software upgrade for feature availability may be required.
