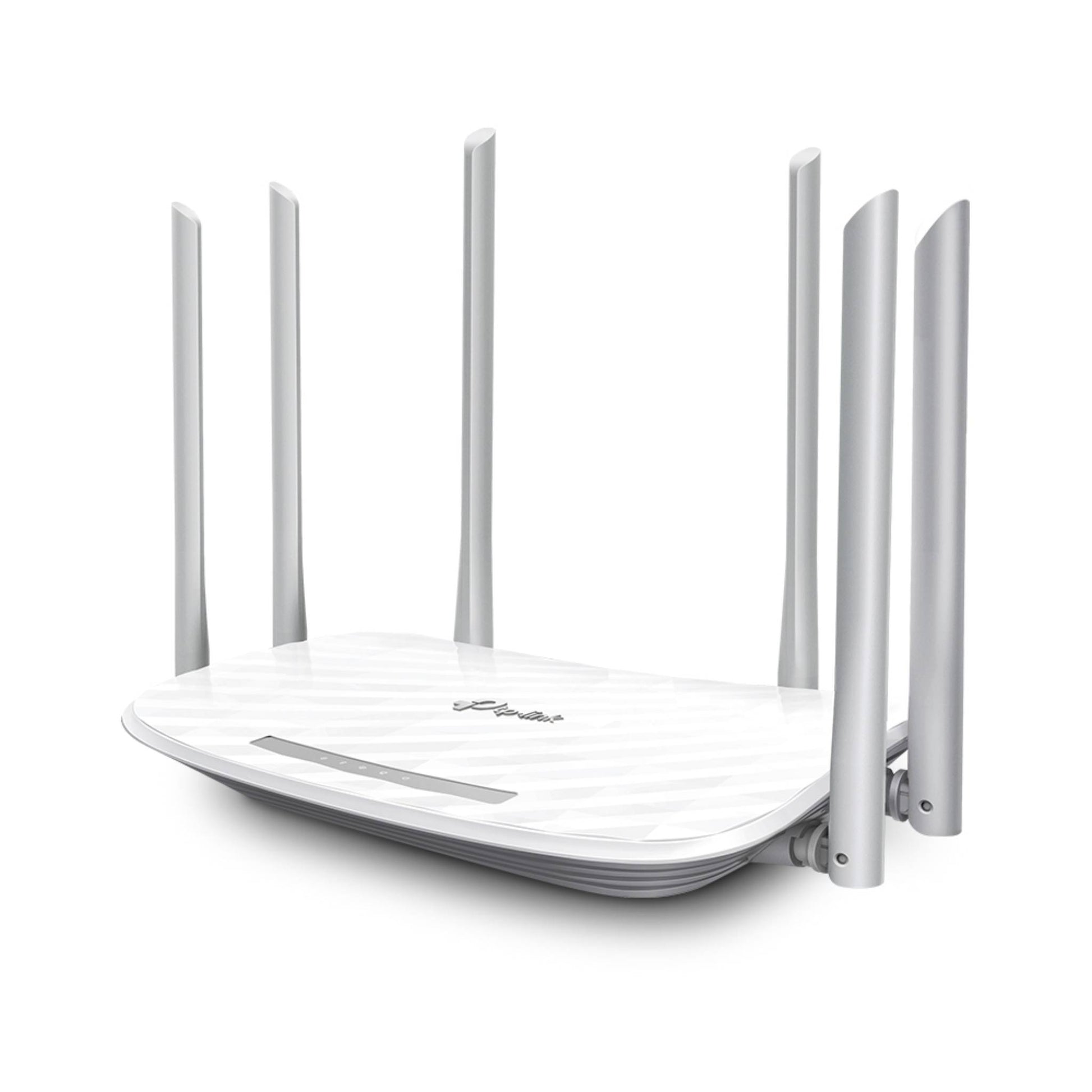

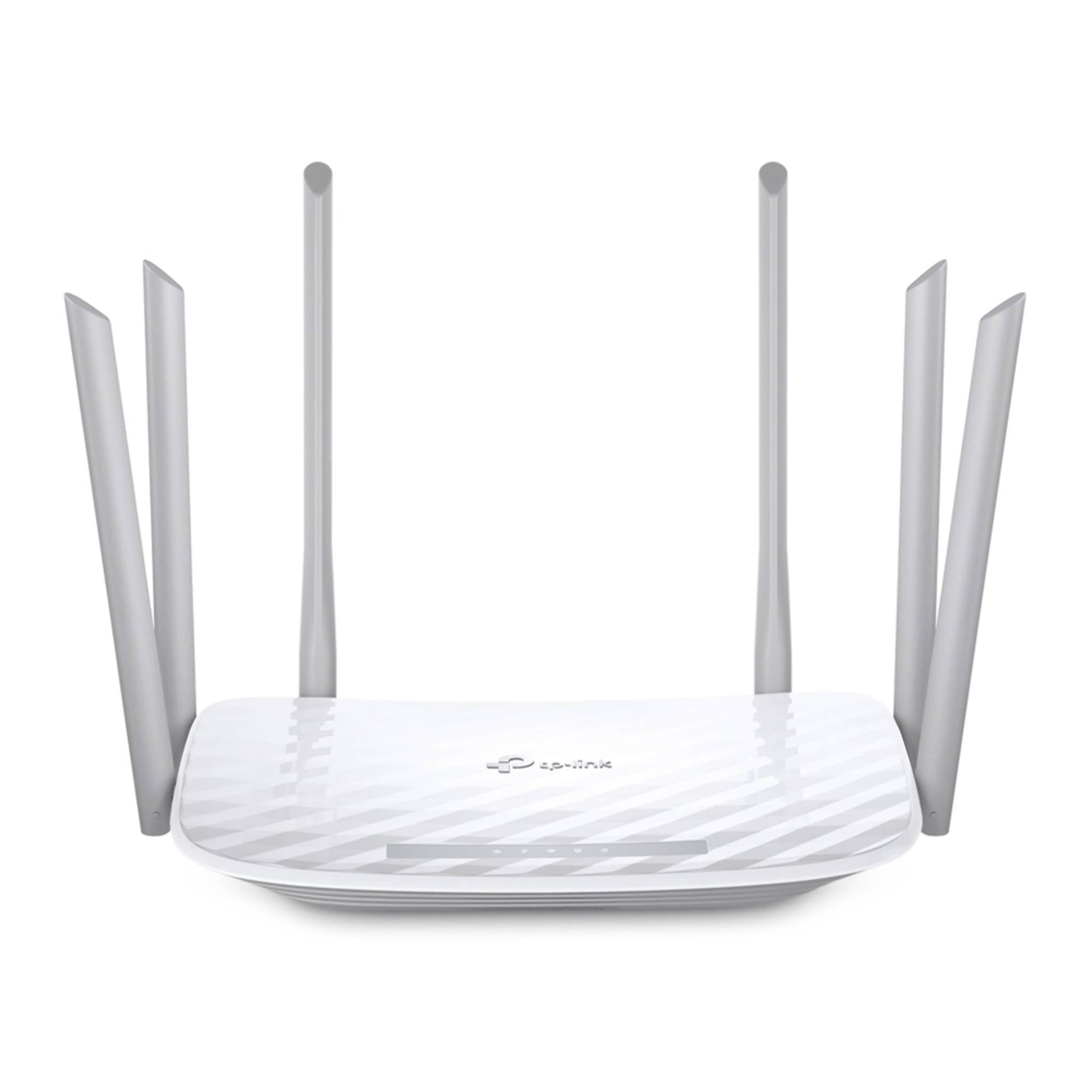

TP-Link Archer C86 AC1900 Wi-Fi Router | Dual Band Gigabit MU-MIMO

TP-Link Archer C86 AC1900 Wi-Fi Router | Dual Band Gigabit MU-MIMO

17.000 BHD
17.000 BHD
Sale Sold out
Shipping calculated at checkout.

TP-Link Archer C86 AC1900 delivers powerful dual-band Wi-Fi speeds up to 1900 Mbps with 3×3 MU-MIMO and Beamforming for wider coverage and stable connections. Featuring Gigabit ports, OneMesh support, and advanced parental controls, it’s ideal for streaming, gaming, and smart homes.
Accepted payment methods: Visa, MasterCard, PayPal, and more

TP-Link Archer C86 AC1900 Wi-Fi Router Specifications

Detailed technical specifications and features
Wireless
📶 Standards and Protocols
Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
⚡ WiFi Speeds
AC1900
5 GHz: 1300 Mbps (802.11ac)
2.4 GHz: 600 Mbps (802.11n)
📡 WiFi Range
3 Bedroom Houses
6× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array
Beamforming technology
👥 WiFi Capacity
Medium
Dual-Band allocation
3×3 MU-MIMO‡
Airtime Fairness
🔄 Working Modes
Router Mode Access Point Mode
Security
🛡️ Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
👥 Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
🔒 WiFi Encryption
WPA WPA2 WPA3 WPA/WPA2-Enterprise
Hardware

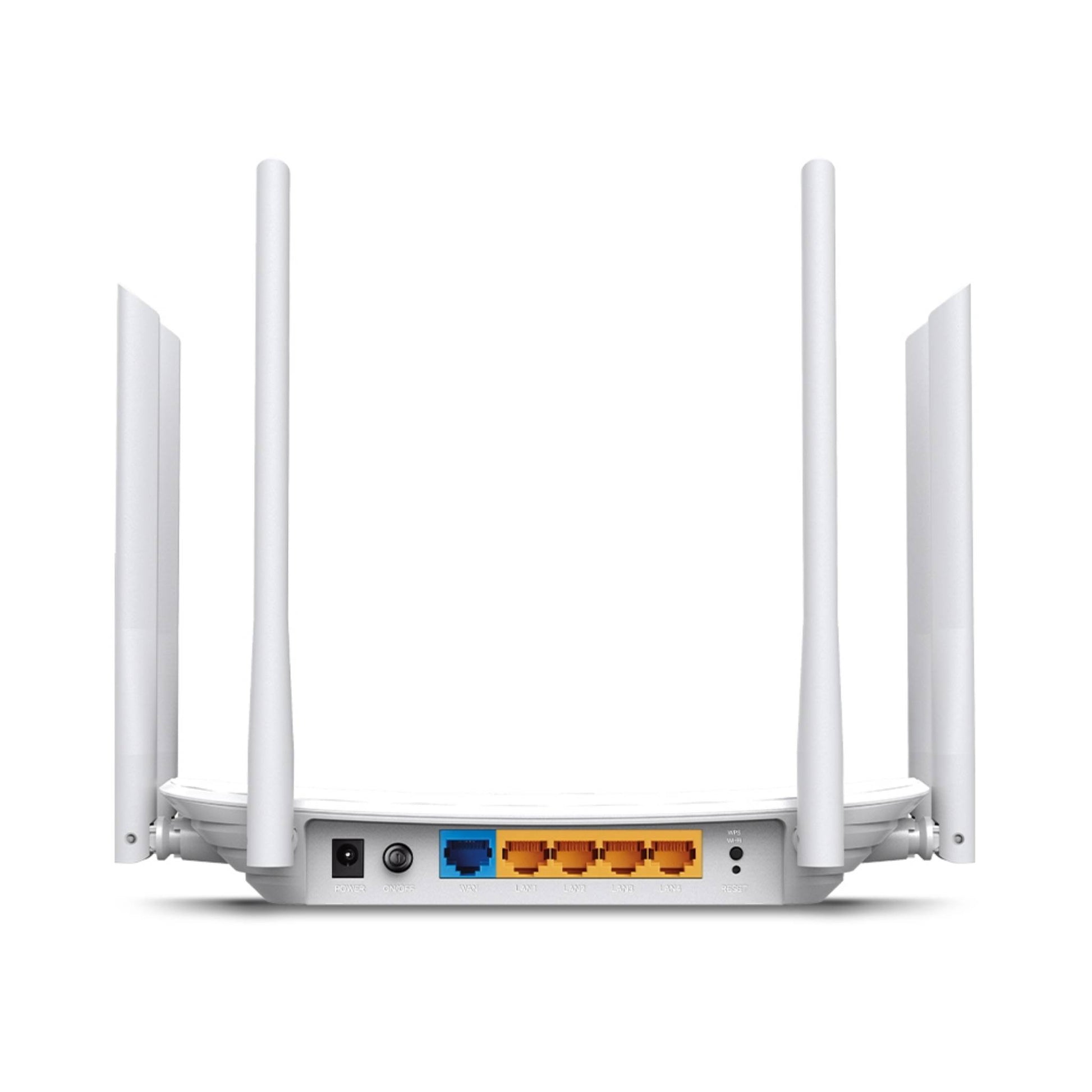

🔌 Ethernet Ports
1× Gigabit WAN Port
4× Gigabit LAN Ports
🔘 Buttons
WPS/Wi-Fi Button
Power On/Off Button
Reset Button
⚡ Power
US Version: 12 V ⎓ 1.5 A
EU Version: 12 V ⎓ 1 A
Software
🌐 Protocols
IPv4 IPv6
🕸️ OneMesh™
OneMesh™ Supported
Create flexible network with TP-Link OneMesh™ products
🕸️ EasyMesh
Supported
Build EasyMesh network with compatible devices
👨‍👩‍👧‍👦 Parental Controls
URL Filtering
Time Controls
🌍 WAN Types
Dynamic IP Static IP PPPoE PPTP L2TP
Advanced Features
📊 Quality of Service
QoS by Device
☁️ Cloud Service
OTA Firmware Upgrade
TP-Link ID
DDNS
🔀 NAT Forwarding
Port Forwarding
Port Triggering
DMZ
UPnP
📺 IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
🏠 DHCP
Address Reservation
DHCP Client List
Server
🔗 DDNS
TP-Link NO-IP DynDNS
📱 Management Features
Tether App
Webpage
Other
💻 System Requirements
  • Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+
  • Cable or DSL Modem (if needed)
  • Subscription with an internet service provider
📜 Certifications
FCC CE RoHS
🌡️ Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Test Data
📶 WiFi Transmission Power
CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz)
FCC: <30dBm(2.4GHz & 5GHz)
🎯 WiFi Reception Sensitivity
5GHz: 11a 6Mbps:-98dBm, 11ac VHT80_MCS9:-64dBm
2.4GHz: 11g 6Mbps:-97dBm, 11n VHT40_MCS9:-67dBm
Physical
📏 Dimensions
9.1 × 5.1 × 1.5 in
(229.9 × 144.2 × 37.2 mm)
📦 Package Content
  • Wi-Fi Router Archer C86
  • Power Adapter
  • RJ45 Ethernet Cable
  • Quick Installation Guide

Notes:

†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

‡Use of MU-MIMO requires clients to also support MU-MIMO.

For additional version information, please go to the support page.
