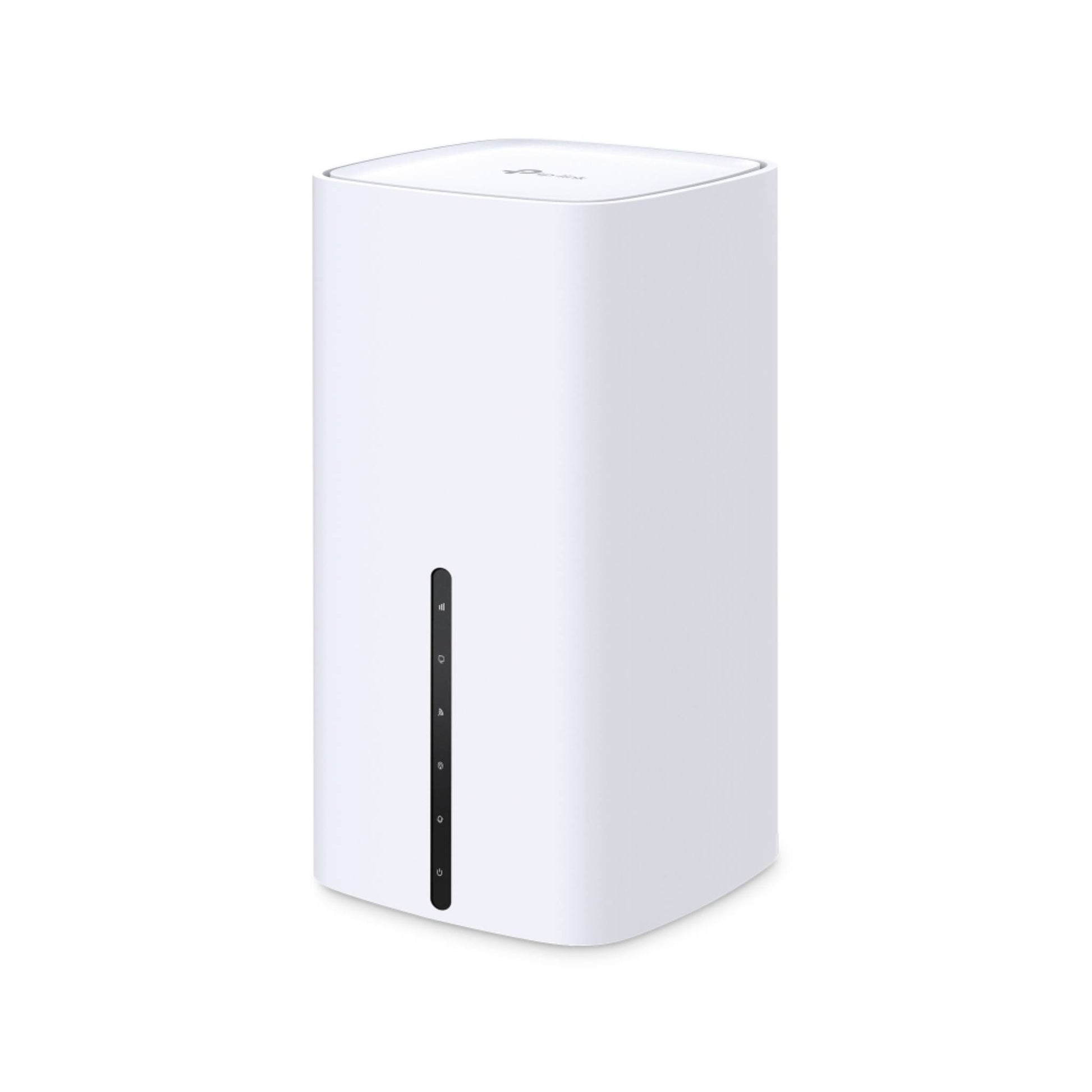

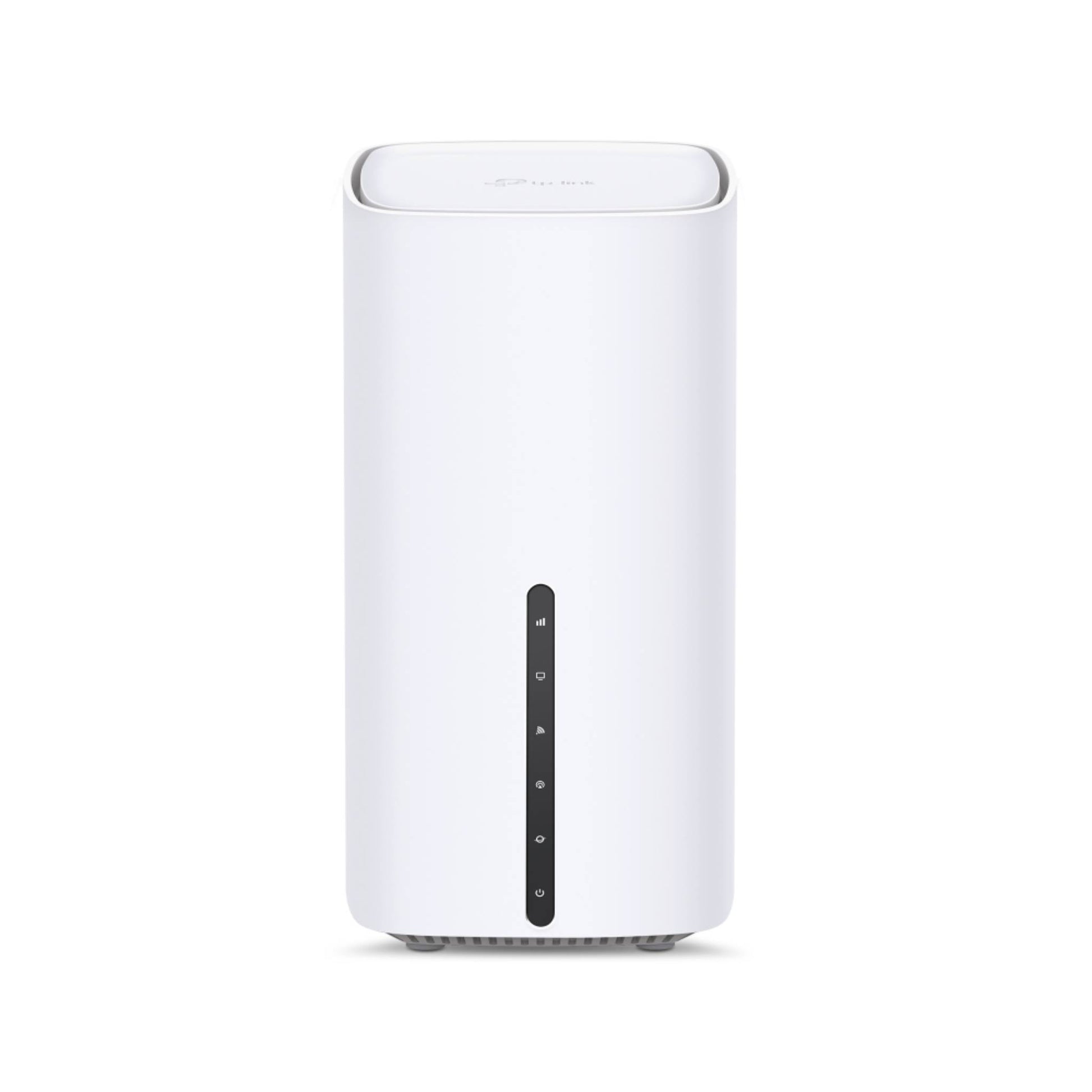

TP-Link Archer NX500 5G AX3000 Wi-Fi 6 Dual-Band Router
TP-Link Archer NX500 5G AX3000 Wi-Fi 6 Dual-Band Router
Regular price
95.000 BHD
Regular price
105.000 BHD
Sale price
95.000 BHD
Shipping calculated at checkout.
The TP-Link Archer NX500 is a powerful 5G AX3000 Wi-Fi 6 router delivering blazing-fast speeds up to 4.67 Gbps. Simply insert a SIM card for instant 5G connectivity, enjoy smooth streaming and gaming, EasyMesh whole-home coverage, and versatile Gigabit WAN/LAN support.
Quantity
Couldn't load pickup availability
TP-Link Archer NX5001-1 5G AX3000 Router Specifications
Wireless Dual-Band Gigabit Router with 5G support
Hardware Features

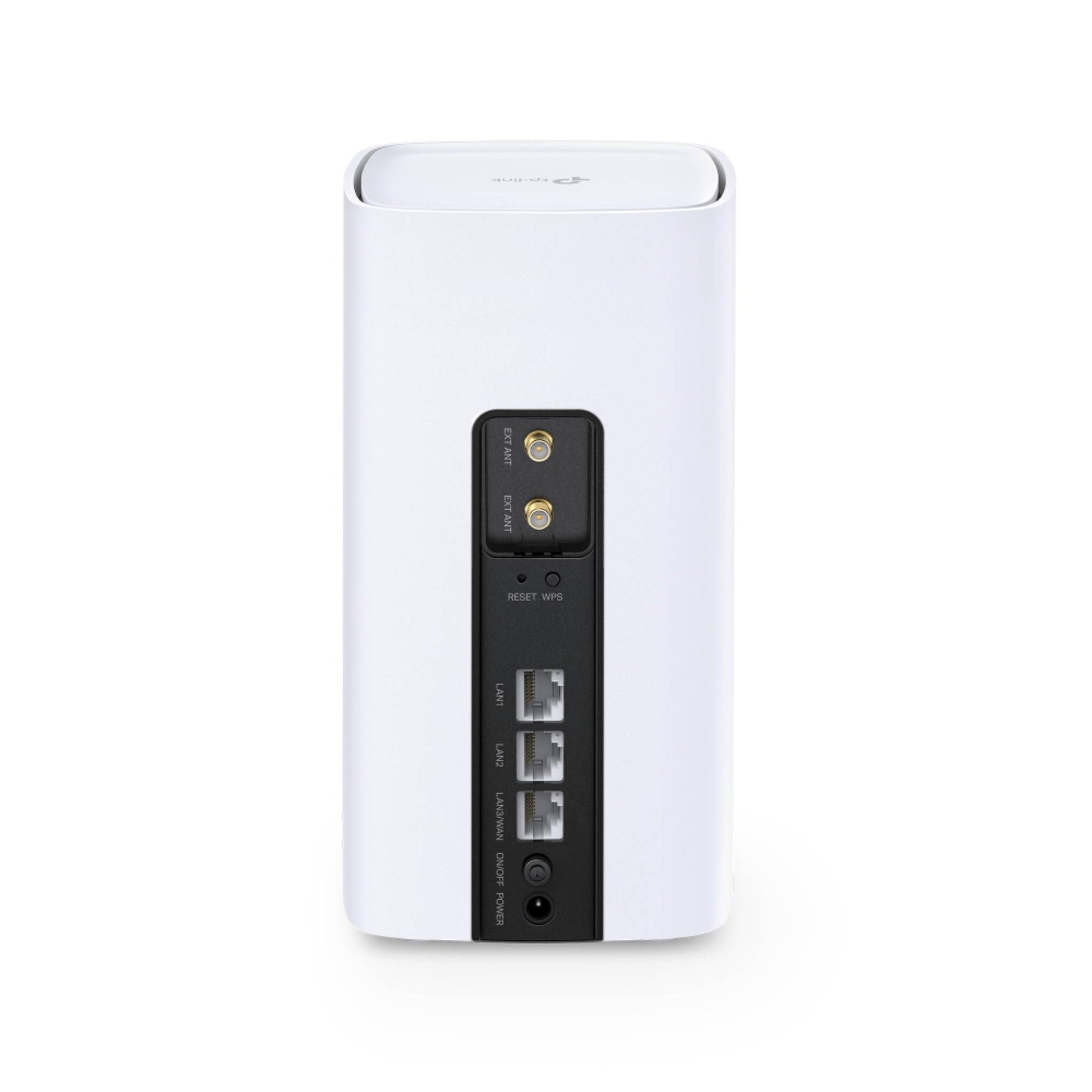

Interfaces
- 1 ร 10/100/1000 Mbps LAN/WAN Port
- 2 ร 10/100/1000 Mbps LAN Ports
- 1 ร Nano SIM Card Slot
- 2 ร External SMA-F Antenna Interface
Buttons
WPS, Reset, Power On/Off, Wi-Fi On/Off
Power Supply
Input: 100-240V~50/60 Hz 0.6A
Output: 12VDC 2A
Output: 12VDC 2A
Dimensions
3.9" ร 3.9" ร 7.5" (99 ร 99 ร 190 mm)
Antennas
8 ร 5G/LTE Internal Antennas
3 ร Wi-Fi Internal Antennas
3 ร Wi-Fi Internal Antennas
Wireless Features
Wireless Standards
IEEE 802.11ax/ac/n/a (5 GHz)
IEEE 802.11ax/n/b/g (2.4 GHz)
IEEE 802.11ax/n/b/g (2.4 GHz)
Frequency
2.4 GHz & 5 GHz Dual-Band
Signal Rate
574 Mbps (2.4 GHz)
2402 Mbps (5 GHz)
2402 Mbps (5 GHz)
Reception Sensitivity
5GHz:
11a 54M: -80 dBm
11a 54M: -80 dBm
11ax HE20: -68 dBm
11ax HE40: -65 dBm
11ax HE80: -62 dBm
11ac VHT20: -76 dBm
11ac VHT40: -72 dBm
11ac VHT80: -68 dBm
11n HT20: -79 dBm
11n HT40: -75 dBm
2.4GHz:
11g 54M: -78 dBm
11g 54M: -78 dBm
11ax HE20: -65 dBm
11ax HE40: -62 dBm
11ac VHT20: -73 dBm
11ac VHT40: -68 dBm
11n HT20: -75 dBm
11n HT40: -72 dBm
Wireless Functions
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
WAN Failover
Yes
Wireless Security
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Power
<23dBm (5.15GHz~5.35GHz)
<30dBm (5.47GHz~5.71GHz)
<20dBm (2.4GHz)
<30dBm (5.47GHz~5.71GHz)
<20dBm (2.4GHz)
Network Type
- 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78
- FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32
- TDD-LTE: B38/B40/B41/B42/B43
- DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8
Software Features
Quality of Service
Prioritizes network traffic by device or application
Security
DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control
WAN Type
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management
TP-Link Cloud, Local Management, Remote Management
DHCP
Server, DHCP Client List, Address Reservation
Port Forwarding
ALG, Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS
TP-Link, DynDns, NO-IP
VPN
PPTP VPN, IPSec VPN, OpenVPN
Access Control
Parental Control, Local Management Control
Firewall Security
DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
Protocols
IPv4, IPv6
Guest Network
2.4 GHz Guest Network ร 1
5 GHz Guest Network ร 1
5 GHz Guest Network ร 1
Network Services (Enabled by Default)
Web Server
Manage via web (HTTP/HTTPS)
Port: 80/443 (TCP)
Port: 80/443 (TCP)
DHCP Server
IP address assignment
Port: 67 (UDP)
Port: 67 (UDP)
IPv6 DHCP Server
IP address assignment
Port: 547 (UDP)
Port: 547 (UDP)
DNS
DNS Service
Port: 53 (TCP)
Port: 53 (TCP)
App Management
Manage via app
Port: 22, 20002 (TCP)
Port: 22, 20002 (TCP)
Others
Certification
CE, RoHS
Package Content
5G AX3000 Wireless Dual-Band Gigabit Router Archer NX500
1.5m Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
1.5m Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
System Requirements
System Requirements
Environment
Operating: 0โ~40โ (32โ ~104โ)
Storage: -40โ~70โ (-40โ ~158โ)
Humidity: 10%~90% non-condensing (Operating)
Humidity: 5%~90% non-condensing (Storage)
Storage: -40โ~70โ (-40โ ~158โ)
Humidity: 10%~90% non-condensing (Operating)
Humidity: 5%~90% non-condensing (Storage)
*Note: Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors.
