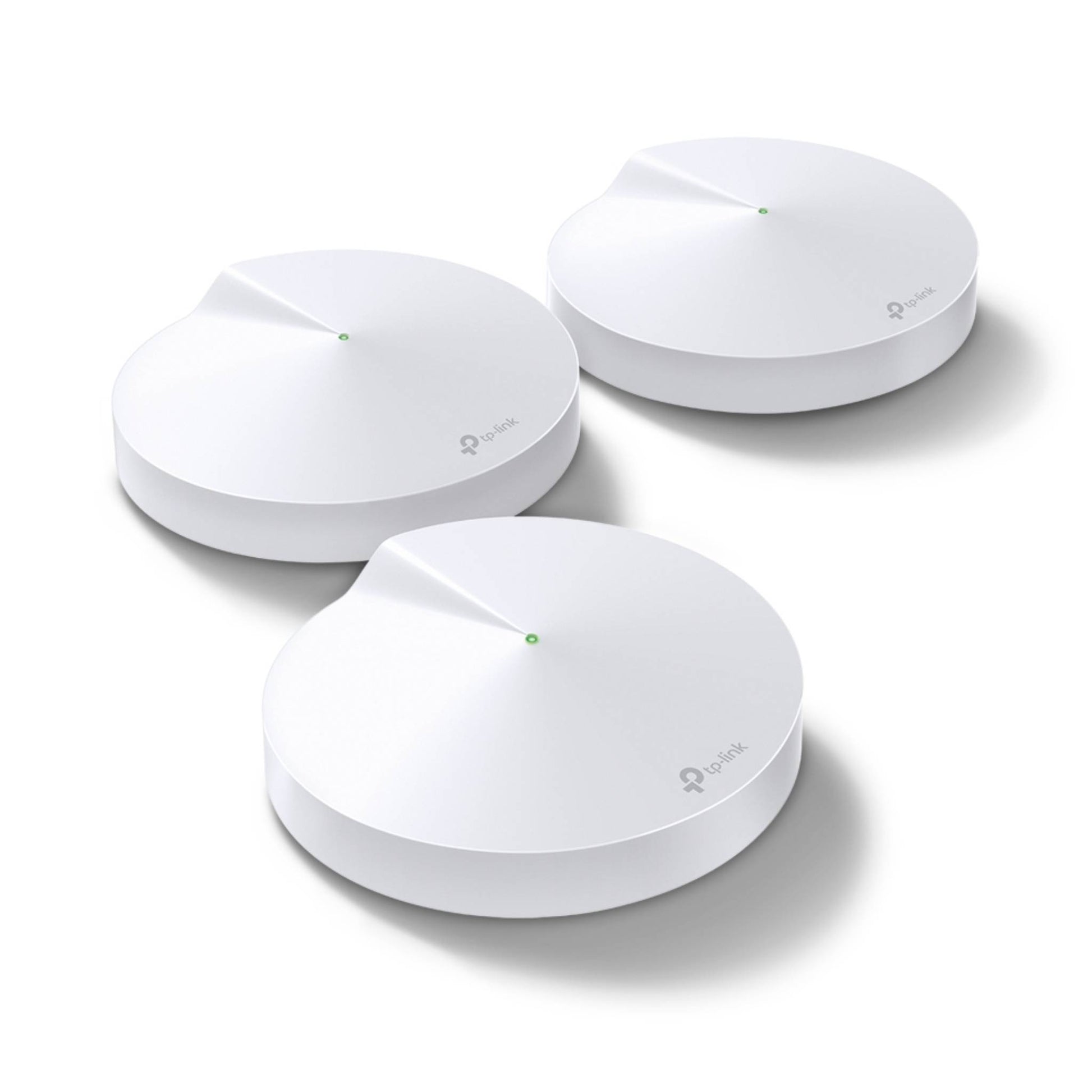

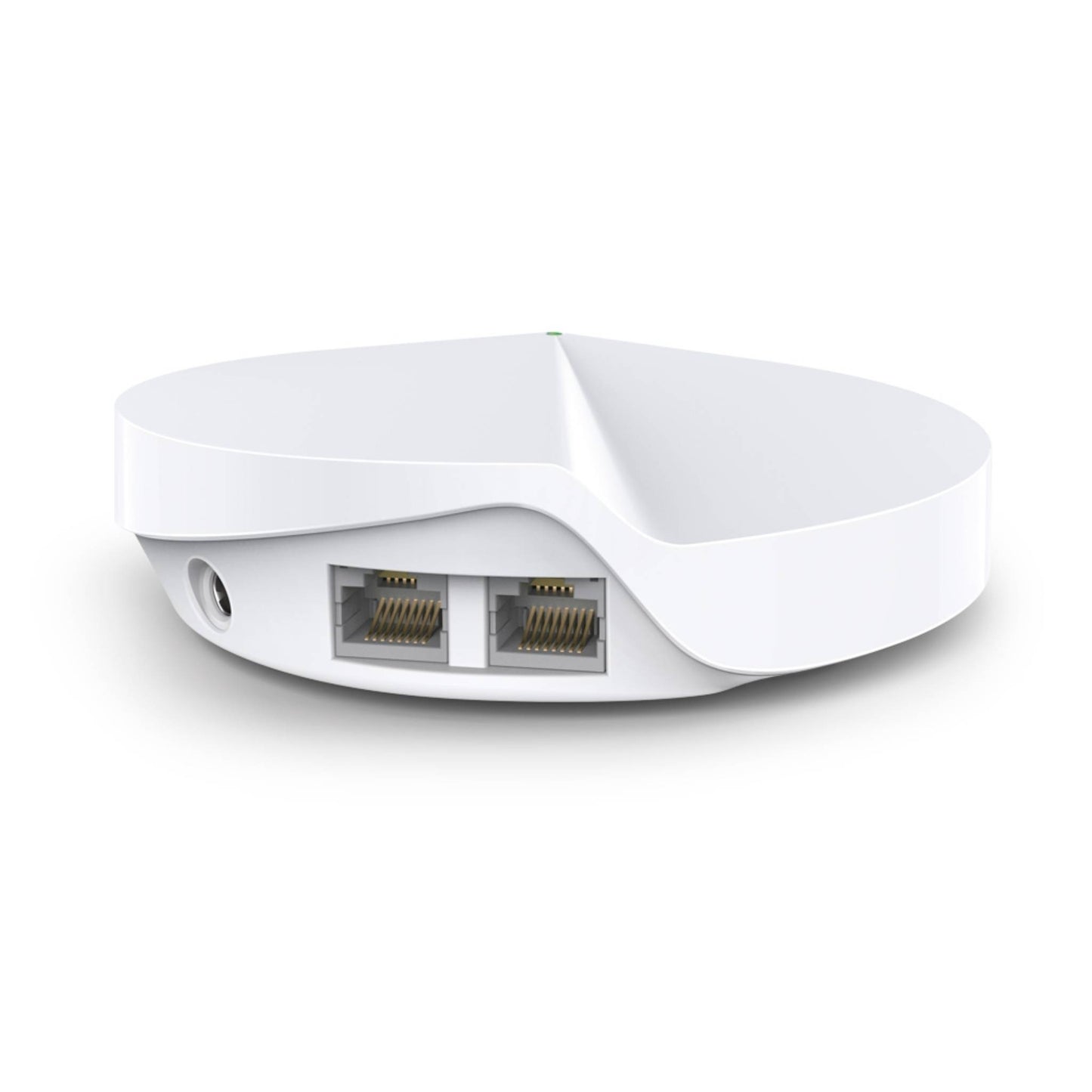

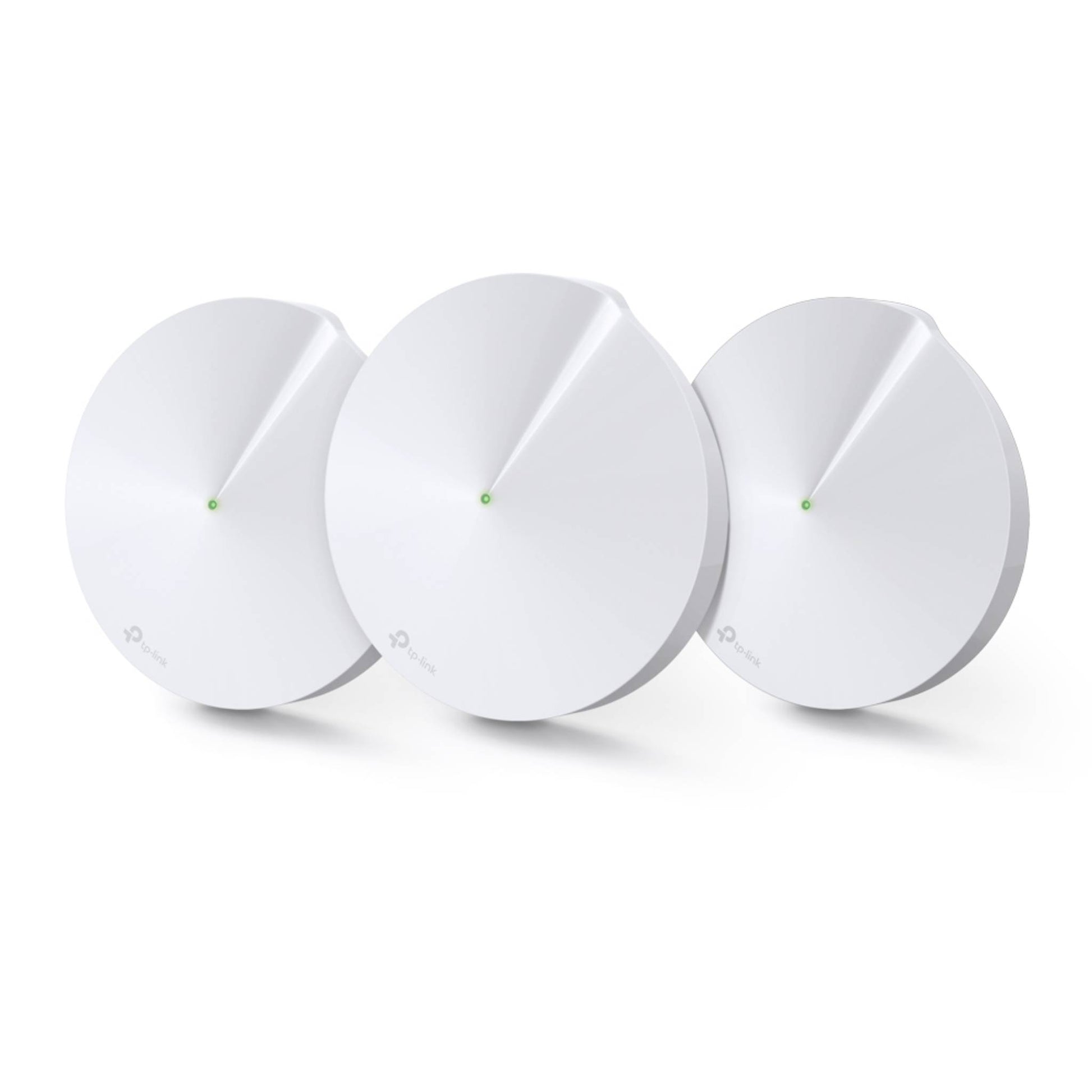

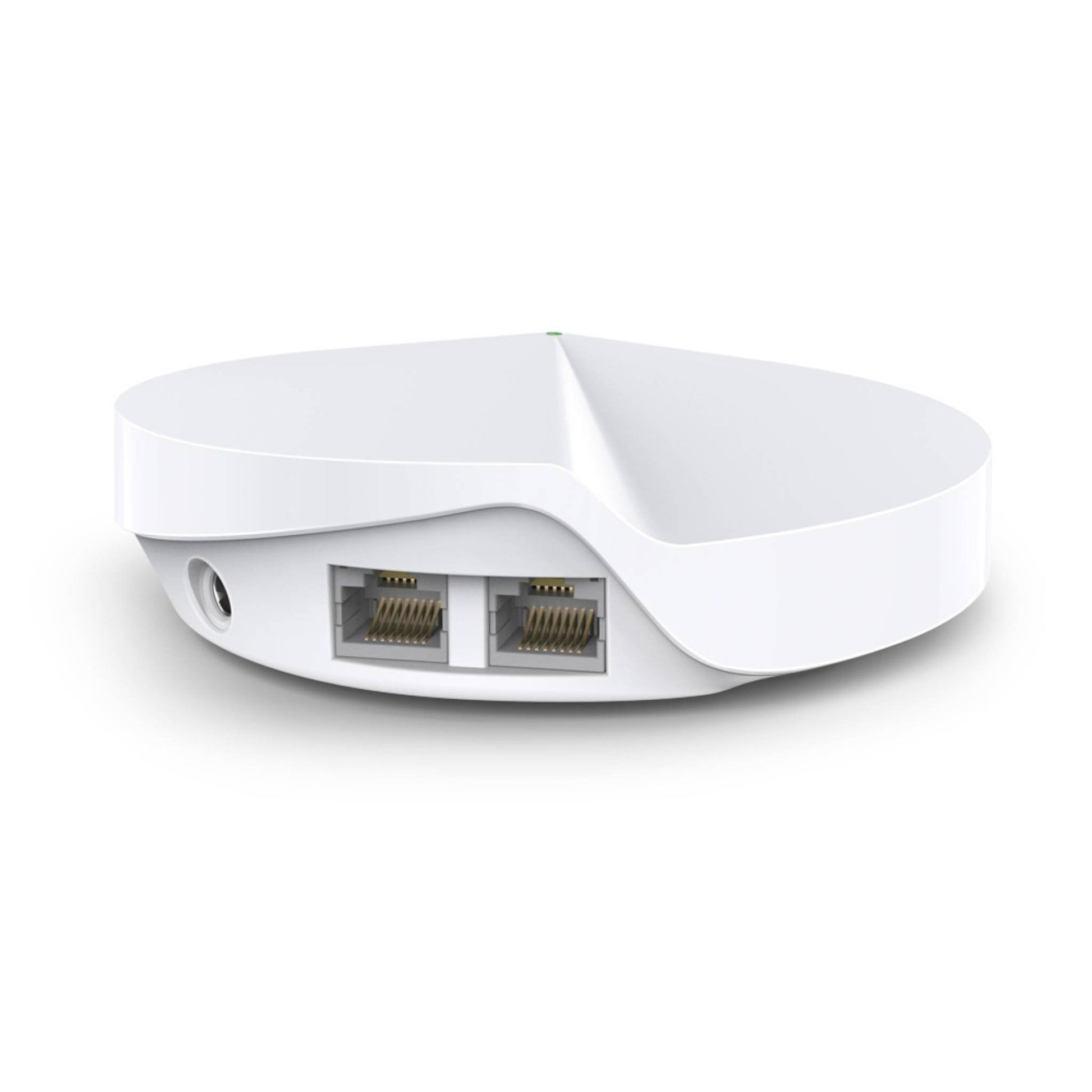

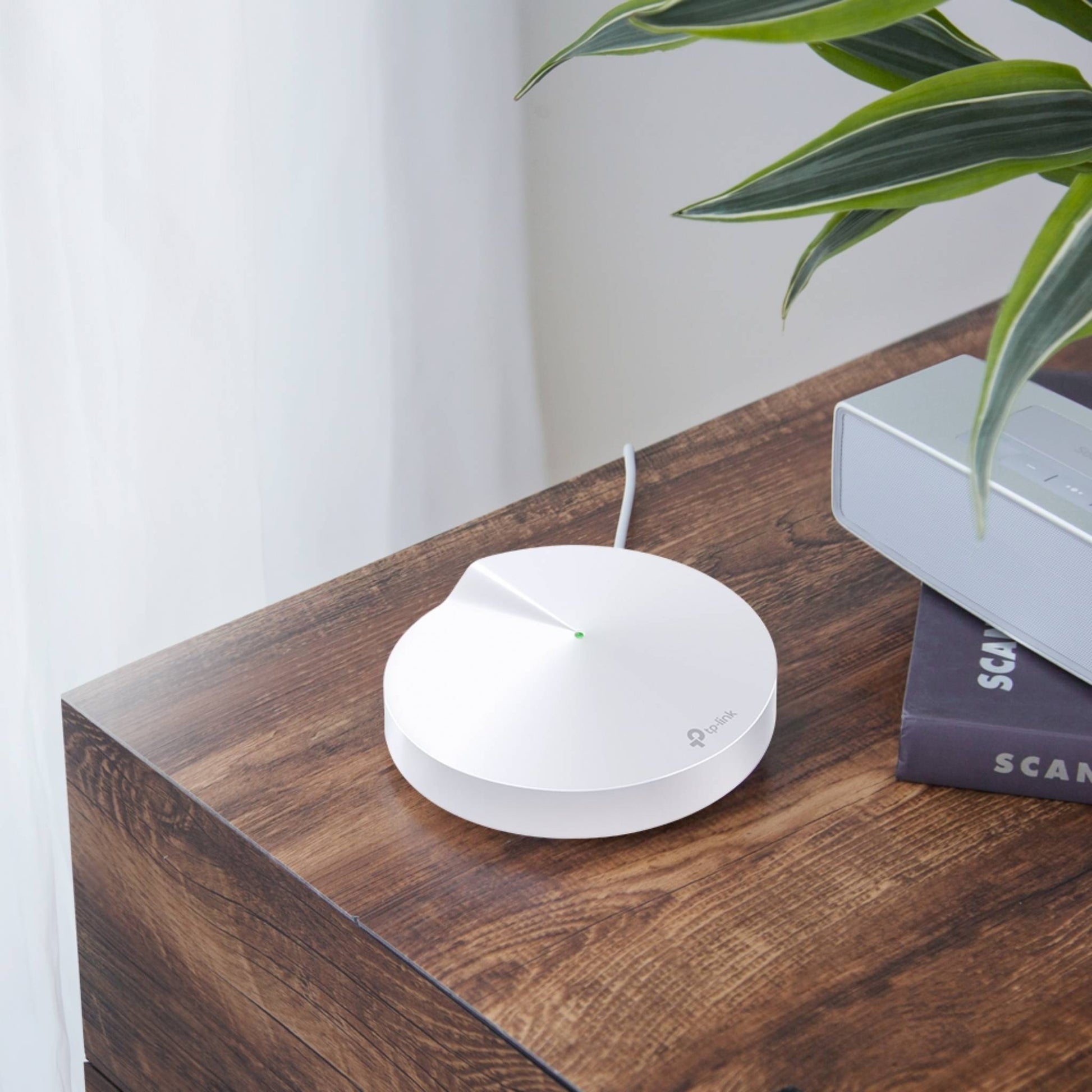

TP-Link Deco M5 AC1300 Whole Home Mesh Wi-Fi System | Seamless Coverage
TP-Link Deco M5 AC1300 Whole Home Mesh Wi-Fi System | Seamless Coverage

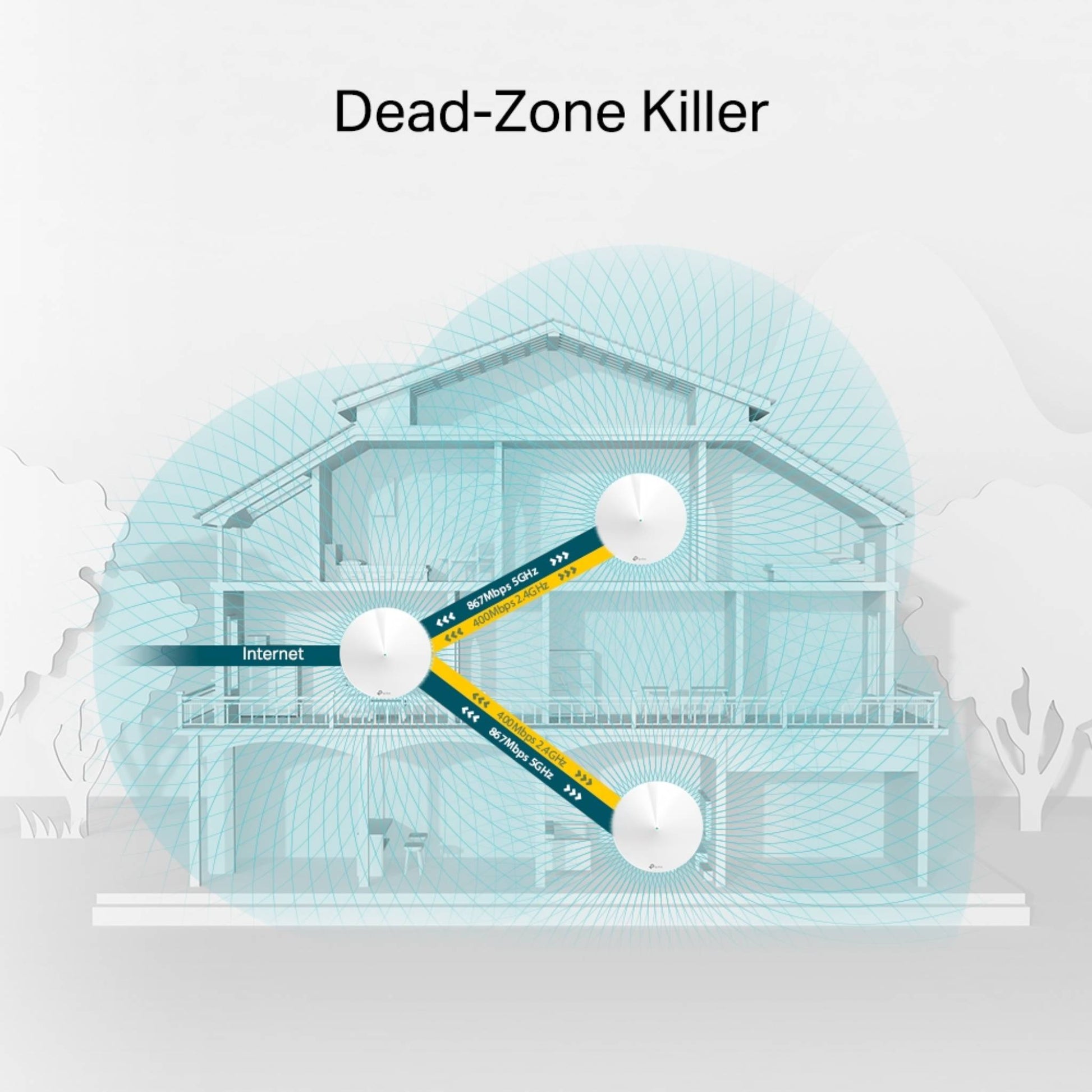

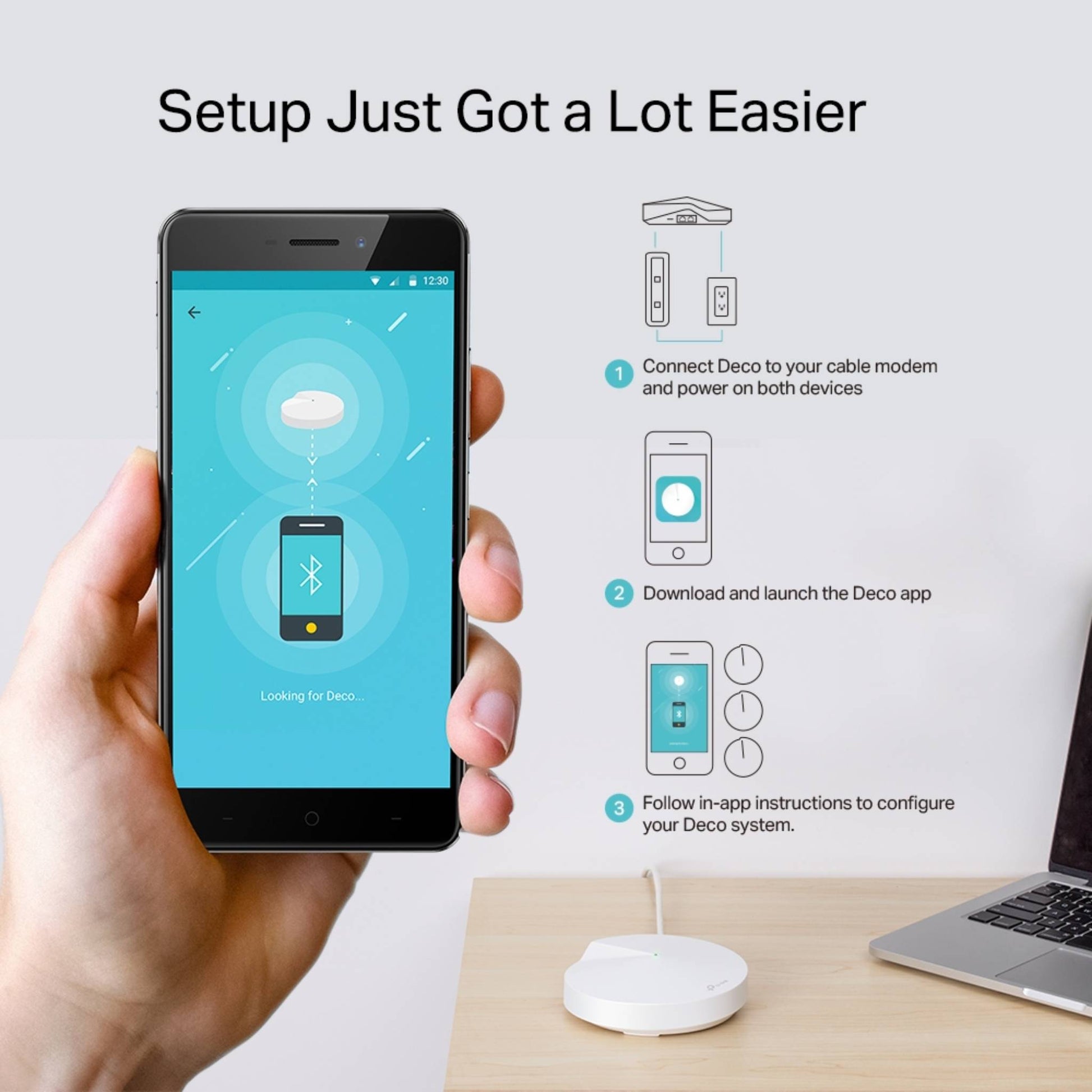

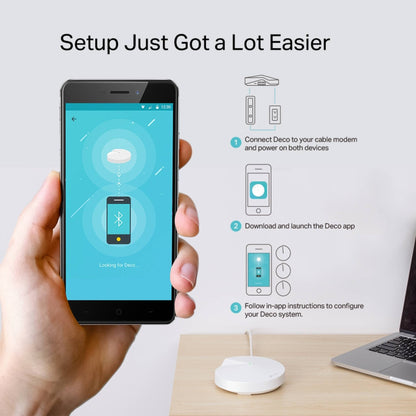

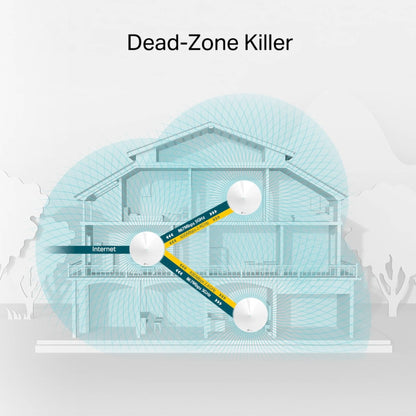

TP-Link Deco M5 AC1300 Whole Home Mesh Wi-Fi System provides fast, reliable, and seamless Wi-Fi coverage for your entire home. Using advanced Deco Mesh Technology, multiple units work together as one unified network, automatically connecting your devices to the strongest signal. Covering up to 5500 sq. ft. and supporting over 100 devices, Deco M5 ensures smooth streaming, gaming, and browsing. With TP-Link HomeCare™, enjoy built-in antivirus, parental controls, QoS, and simple setup through the Deco mobile app.
Couldn't load pickup availability
TP-Link Deco M5 Mesh WiFi System Specifications
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 400 Mbps (802.11n)
- TP-Link Mesh Technology
- Optional Ethernet backhaul
- 4× Antennas (Internal)
- Beamforming technology
- Dual-Band
- MU-MIMO
Access Point Mode
- SPI Firewall
- Access Control
- HomeCare™ Antivirus
- Malicious Site Checker
- Port Intrusion Prevention
- Infected Device Isolation
1× 2.4 GHz Guest Network
WPA2-Personal
Supports WAN/LAN auto-sensing
- Custom Profiles
- Content Filtering
- URL Filtering
- Time Limit
- Time Schedule (Bed Time)
- Usage Monitor
- Monthly Reports
QoS by Device
QoS by Application
TP-Link ID
DDNS
UPnP
IGMP Snooping
Bridge
Tag VLAN
DHCP Client List
Server
DNS: TCP & UDP (Port: 53)
DHCP Server: UDP (Port: 67)
App management:
• Port: 22 (TCP)
• Port: 20001 (TCP)
• Port: 30001 (TCP)
• Port: 20002 (UDP)
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
FCC:
<30 dBm
(120 × 120 × 38 mm)

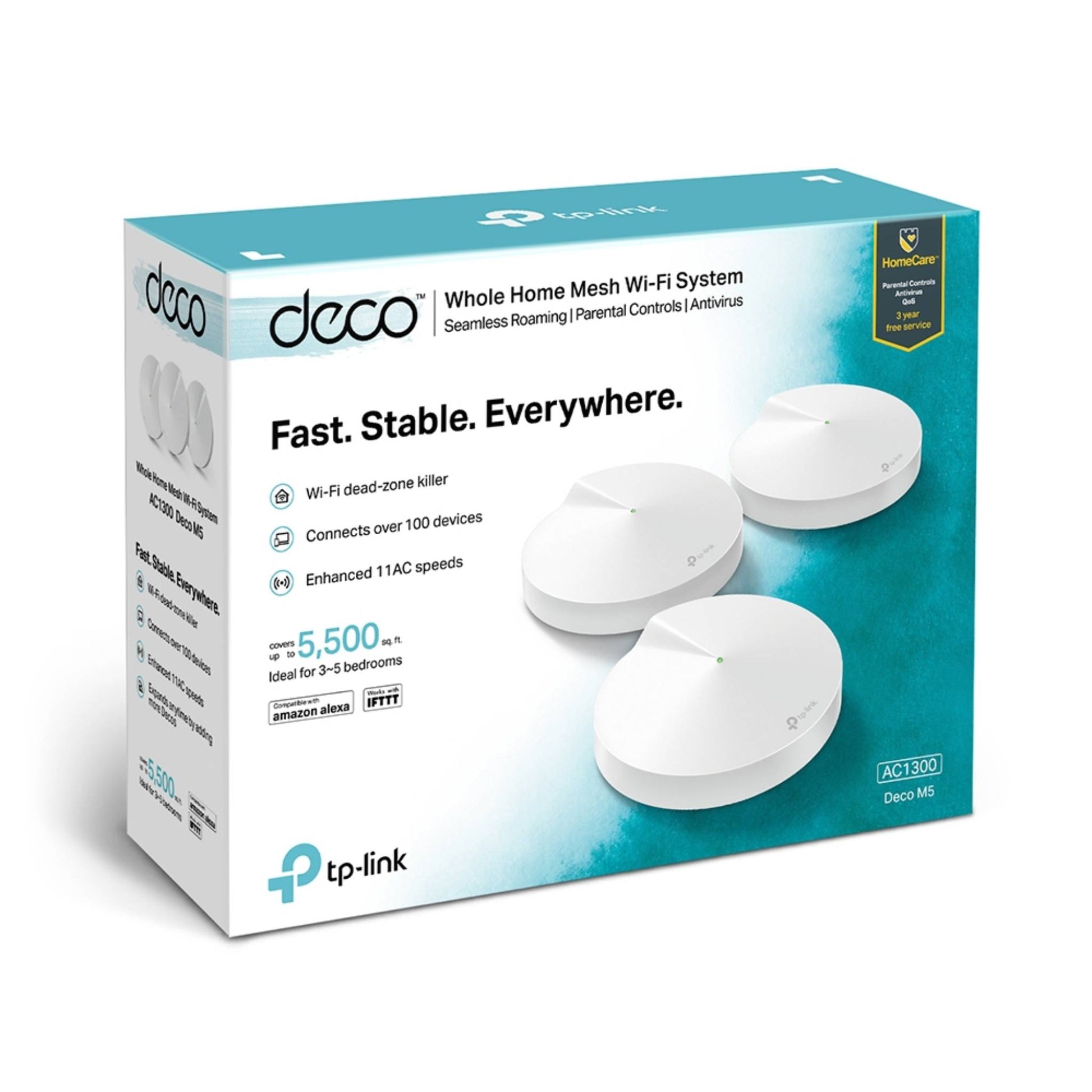

3 Deco M5 Units, 1 RJ45 Ethernet Cable,
3 Power Adapters, 1 Quick Installation Guide
Deco M5 (2-pack):
2 Deco M5 Units, 1 RJ45 Ethernet Cable,
2 Power Adapters, 1 Quick Installation Guide
Deco M5 (1-pack):
1 Deco M5 Unit, 1 RJ45 Ethernet Cable,
1 Power Adapter, 1 Quick Installation Guide
iOS 9.0 or later
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
†Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and maximum quantity of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.
‡Clients need to support 802.11k/v/r and may require additional set up. Performance may vary depending on the client device.
For HomeCare™ service, TP-Link reserves the right to modify the service and feature at any time.
*Deco M3/ E3 is comprised of a router (Deco M4R/ E4R) and one or two satellites (Deco M3W), while Deco M4/ E4 is comprised of two or three Deco M4R/ E4R units. And Deco M3W will be released soon.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
