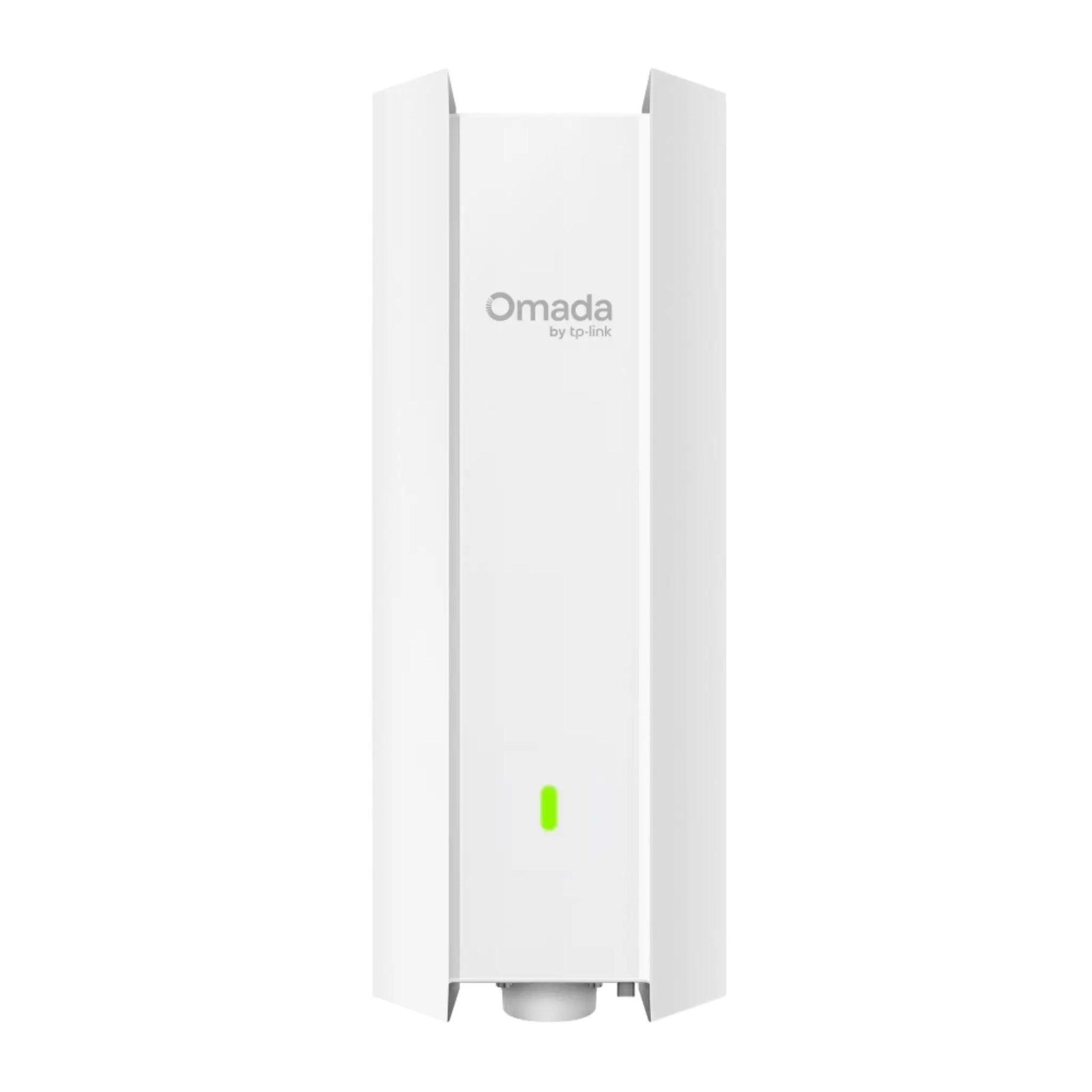

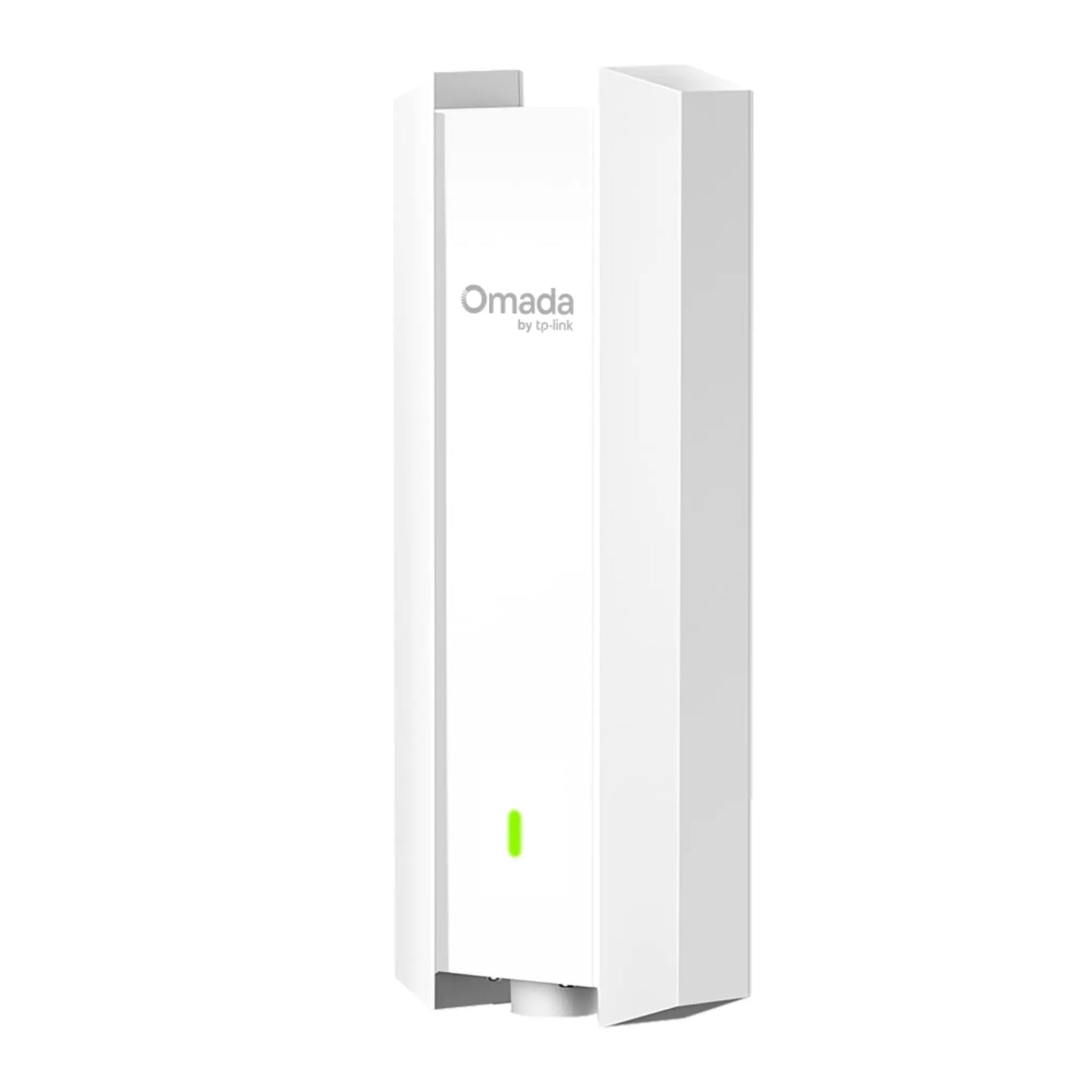

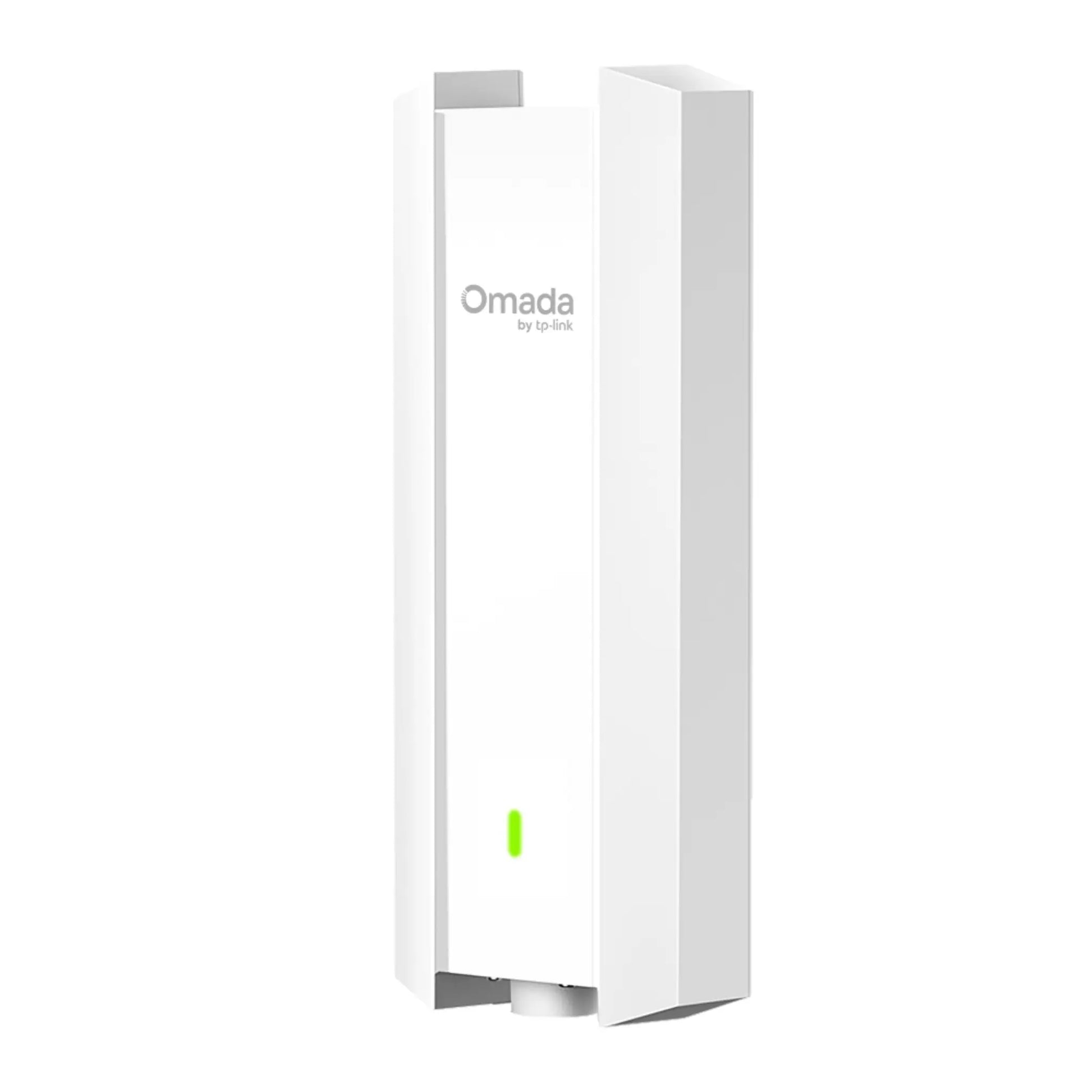

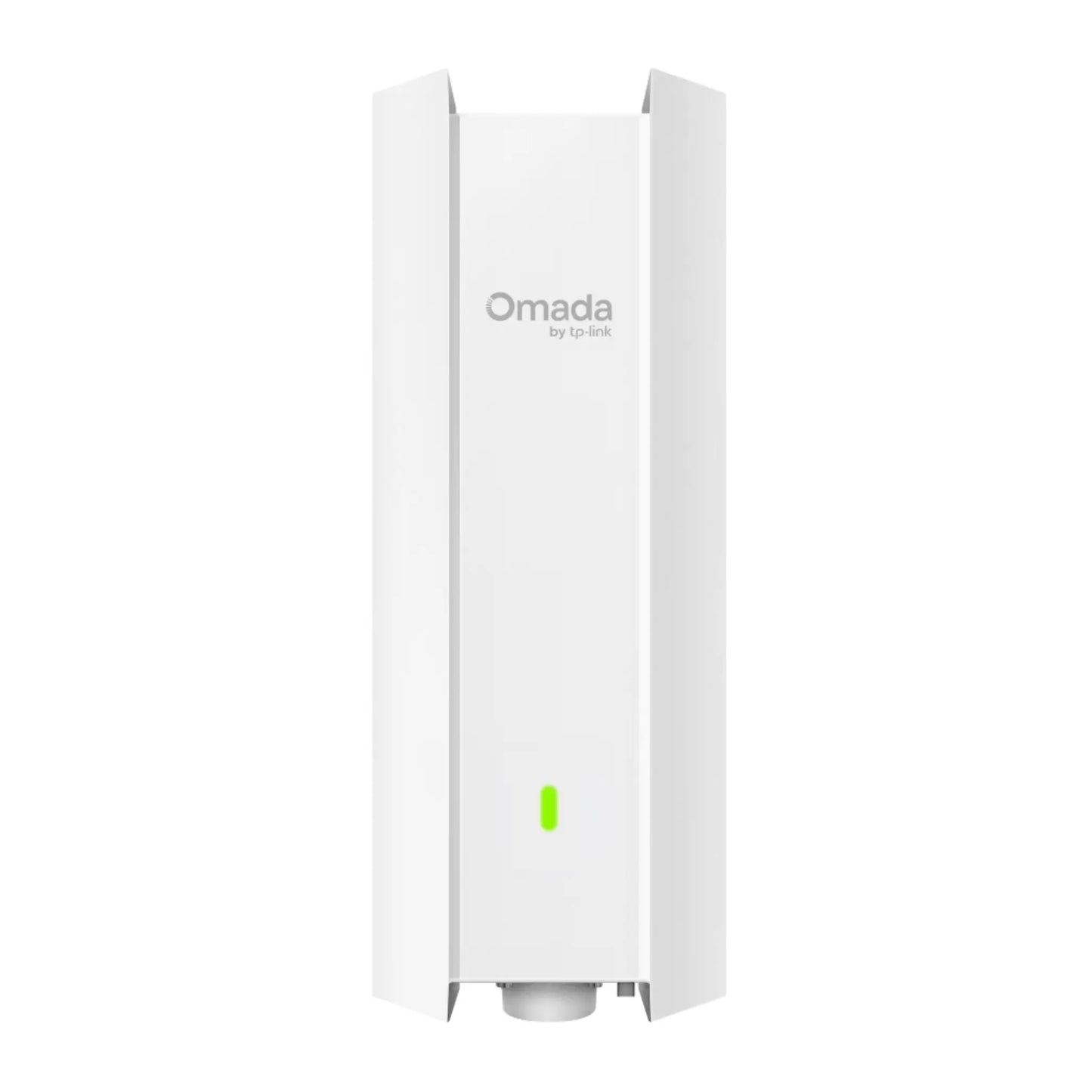

TP-Link Omada EAP610 AX1800 Indoor/Outdoor WiFi 6 Access Point
TP-Link Omada EAP610 AX1800 Indoor/Outdoor WiFi 6 Access Point
TP-Link Omada EAP610 AX1800 Indoor/Outdoor WiFi 6 Access Point delivers dual-band wireless speeds up to 1.8Gbps with OFDMA and MU-MIMO for efficient multi-device connectivity. Built for long-range indoor and outdoor coverage, it features high-power amplification, professional antennas, an IP68 weatherproof enclosure, Omada Mesh, seamless roaming, 802.3at PoE and Passive PoE support, plus centralized Omada SDN cloud management.
Couldn't load pickup availability
AX1800 Indoor/Outdoor WiFi 6 Access Point
• 48V Passive PoE Adapter Included
• US: 14.7W
(106.5 × 57 × 281 mm) without antenna
• 5 GHz: 2× 5 dBi
• Omada Hardware Controller
• Omada Software Controller
• 802.11ac: 6.5 – 867 Mbps (VHT20/40/80)
• 802.11n: 6.5 – 300 Mbps
• 802.11g/a: 6 – 54 Mbps · 802.11b: 1 – 11 Mbps
• OFDMA · MU-MIMO · Beamforming
• Multiple SSIDs (16, 8 per band)
• Band Steering · Load Balance
• Airtime Fairness · Rate Limit
• Seamless Roaming (802.11k/v/r)**
• Omada Mesh** · Reboot/Wireless Schedule
• Captive Portal Authentication**
• 802.1X · SSID to VLAN Mapping
• Rogue AP Detection · MAC Filtering
• FCC: <25 dBm (2.4GHz), <25 dBm (5GHz)
• FCC/CE/NCC/BSMI/WFA
• Passive PoE Adapter · Power Cord
• Mounting Kits · Waterproof Kit
• Installation Guide
Storage: -40–70℃ (-40–158℉)
Humidity: 10–90% RH (non-condensing)
* Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and maximum quantity of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of environmental factors, network conditions, and client limitations.
** Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada SDN controllers. Go to Omada Mesh Product List to find all the models supported by Omada mesh technology and refer to the User Guides of Omada SDN controllers for configuration methods.
△ The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
† Based on field tests. The number listed here is the maximum distance one EAP650-Outdoor can reach and connect the devices. The real transmission range and recommended coverage may vary, according to the environment, receiving device, etc.
For additional version information, please go to the support page.
