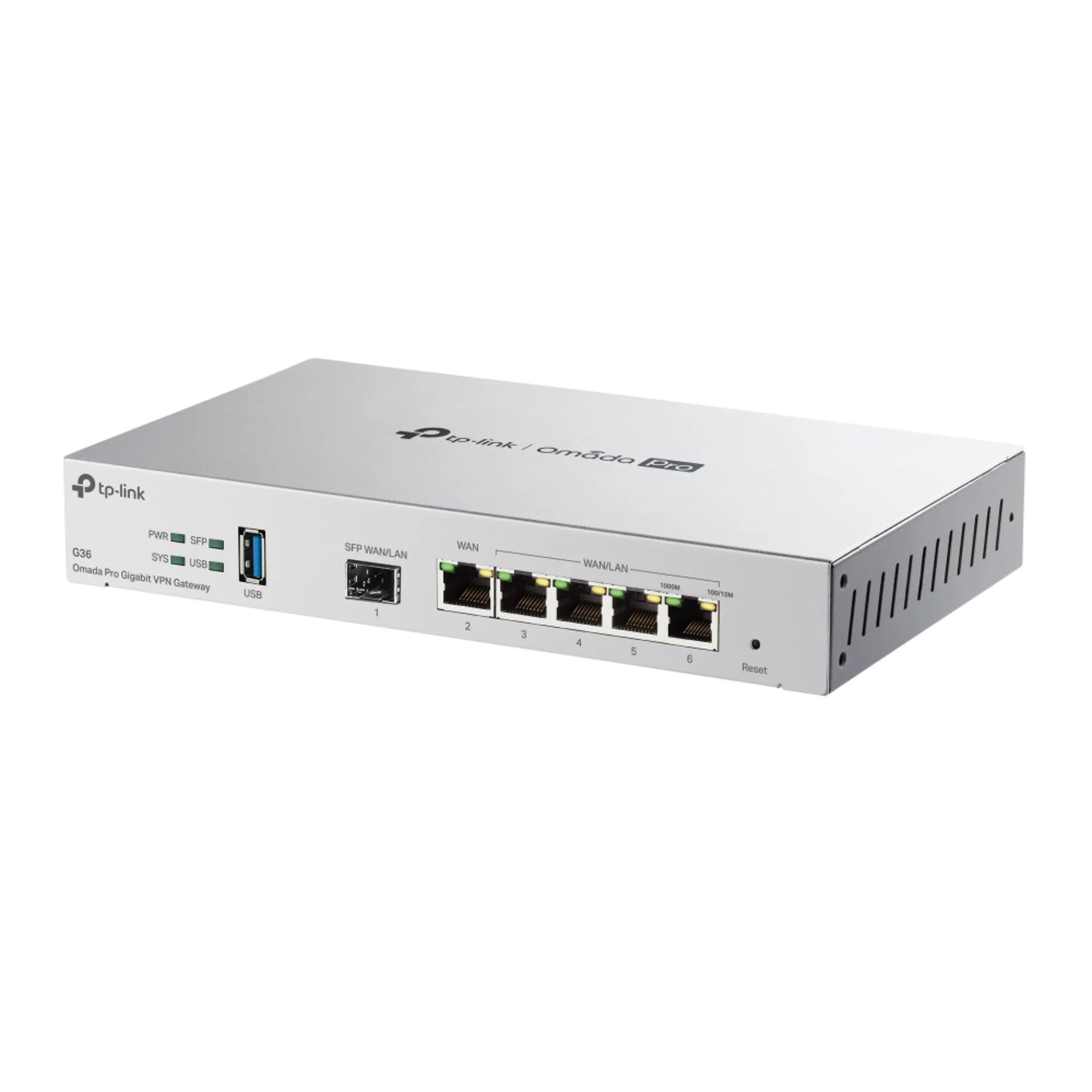

TP-Link Omada Pro G36 Gigabit VPN Router | Multi-WAN Business Router
TP-Link Omada Pro G36 Gigabit VPN Router | Multi-WAN Business Router
The TP-Link Omada Pro G36 Gigabit VPN Router is a high-performance business VPN router designed for secure, reliable, and scalable networking. Featuring 1 Gigabit SFP port, 5 Gigabit RJ45 ports, support for up to 5 WAN connections, advanced VPN protocols including WireGuard, SSL VPN, OpenVPN, IPSec, GRE, PPTP, and L2TP, plus enterprise-grade security with IDS/IPS, DPI, firewall protection, and centralized Omada Pro cloud management, the G36 is the ideal networking solution for offices, retail stores, hotels, schools, and enterprise environments.
G36 Omada Pro
Gigabit VPN Router | High-performance security & VPN gateway — Detailed technical specifications
Security
DPI (Deep Packet Inspection)
Application Control · Traffic Monitor · Application List
IDS/IPS
Block List · Allow List · Signature Suppression
Access Control
Source/Destination IP Based Access Control
Filtering
WEB Group Filtering · URL Filtering · Web Security
ARP Inspection
Sending GARP Packets · ARP Scanning · IP-MAC Binding
Attack Defense
TCP/UDP/ICMP Flood Defense · Block TCP Scan · Block Ping from WAN
Hardware Features
Standards & Protocols
IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1q · TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard, GRE, SNMP
Interface
1x Gigabit SFP WAN/LAN · 1x Gigabit WAN · 4x Gigabit LAN/WAN · 1x USB 3.0
Network Media
10BASE-T: Cat3/4/5 (100m) · 100BASE-TX: Cat5/5e (100m) · 1000BASE-T: Cat5/5e/6 (100m)
Fan Quantity
Fanless
Button
Reset Button
Power Supply
12V DC / 1A Power Adapter
Flash / DRAM
128 MB NAND · 512 MB DDR4
LED Indicators
PWR, SYS, SFP, USB, WAN(1000M/100/10M), WAN/LAN (1000M/100/10M)
Dimensions (W x D x H)
8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Protection / Enclosure
4 kV surge protection · Steel
Mounting
Desktop / Wall-Mounting
Max. Power Consumption
7.5W (with USB 3.0) · 4.5W (without USB 3.0)
Performance
GRE (Unencrypted / Encrypted)
611.9 Mbps / 325.0 Mbps
WireGuard VPN
341.3 Mbps
Concurrent Sessions
150,000
New Sessions / Second
5,300
NAT (Static IP / DHCP / PPPoE)
945.3/940.5 · 939.6/940.9 · 943.6/940.9 Mbps
NAT (L2TP / PPTP)
880.1/859.0 · 855.0/907.2 Mbps
IPsec VPN Throughput
ESP-SHA1-AES256: 617.1 · ESP-SHA256-AES256: 592.8 · ESP-SHA384-AES256: 592.4 · ESP-SHA512-AES256: 604.5 Mbps
OpenVPN / SSL VPN
OpenVPN: 139.1 Mbps · SSL VPN: 131.6 Mbps
L2TP VPN (Unencrypted / Encrypted)
977.4 Mbps / 334.6 Mbps
PPTP VPN (Unencrypted / Encrypted)
1064.1 Mbps / 206.8 Mbps
Packet Forwarding Rate
66 Byte: 1,453,489 pps · 1,518 Byte: 81,279 pps
Basic Functions
WAN Connection Type
Static IP · Dynamic IP · PPPoE (MRU) · PPTP · L2TP
MAC Clone
Modify WAN/LAN MAC Address (Standalone only)
DHCP
DHCP Server · DHCPv6 PD · DHCP Options Customization · Address Reservation · Multi-IP · Multi-Net
IPv6
StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address
VLAN
802.1Q VLAN
IPTV
IGMP v2/v3 Proxy · Custom Mode · Bridge Mode
Advanced Features
Access Control
IP/Port/Protocol/Domain Name Filtering
Advanced Routing
Static Routing · Policy Routing · RIP · OSPF
Bandwidth Control
IP-based Bandwidth Control
Load Balance
Intelligent Load Balance · Application Optimized Routing · Link Backup · Online Detection
NAT
One-to-One NAT · Multi-Net NAT · Virtual Server · Port Triggering · NAT-DMZ · ALG · UPnP
Session Limit
IP-based Session Limit
VPN
GRE
Standalone Mode only
SSL VPN
50 Tunnels
IPsec VPN
100 Tunnels · LAN-to-LAN/Client-to-LAN · IKE v1/v2 · AES/DES/3DES · MD5/SHA1/SHA2 · NAT-T · DPD · PFS
PPTP VPN
Server · Client (10) · 50 Tunnels · MPPE Encryption
L2TP VPN
Server · Client (10) · 50 Tunnels · L2TP over IPSec
OpenVPN
Server · Client (5) · 55 Tunnels · Certificate+Account Mode · Full Mode
Authentication & Management
Web Authentication
No Auth · Simple Password · Hotspot (Local/Voucher/SMS/Radius) · External Radius · External Portal · LDAP
Omada App
Yes (requires Omada Pro Controller)
Cloud Access
Yes (requires Omada Pro Controller)
Dynamic DNS
Dyndns · No-IP · Peanuthull · Comexe · Custom
Maintenance
Web UI · Remote Management · Import/Export Config · SNMP v1/v2c/v3 · Diagnostics · NTP · Port Mirroring · CLI · Syslog · Gateway Detection · Packet Capture
Zero-Touch Provisioning
Yes (requires Omada Pro Cloud Controller)
Management Features
Auto Discovery · Intelligent Monitoring · Event Warnings · Unified Config · Reboot Schedule · Captive Portal
Others
Certification
CE, FCC, RoHS
Package Content
G611 · Power Adapter · Quick Installation Guide
System Requirements
Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10 · macOS · NetWare · UNIX · Linux
Environment
Operating: 0°C to 40°C · Storage: -40°C to 70°C · Humidity: 10% to 90% non-condensing
