TP-Link Omada Pro G36W-4G 4G+ AX3000 VPN Router
TP-Link Omada Pro G36W-4G 4G+ AX3000 VPN Router

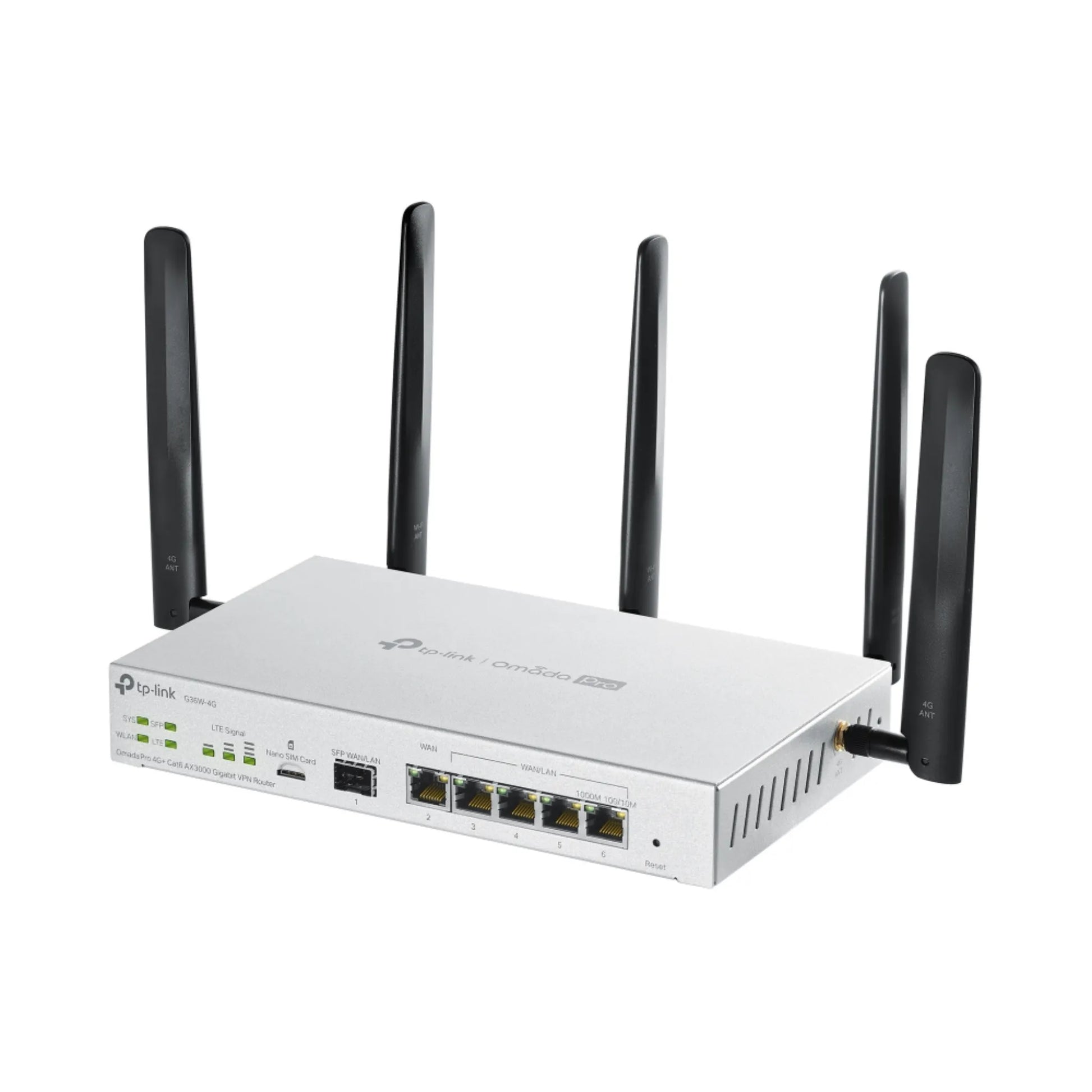

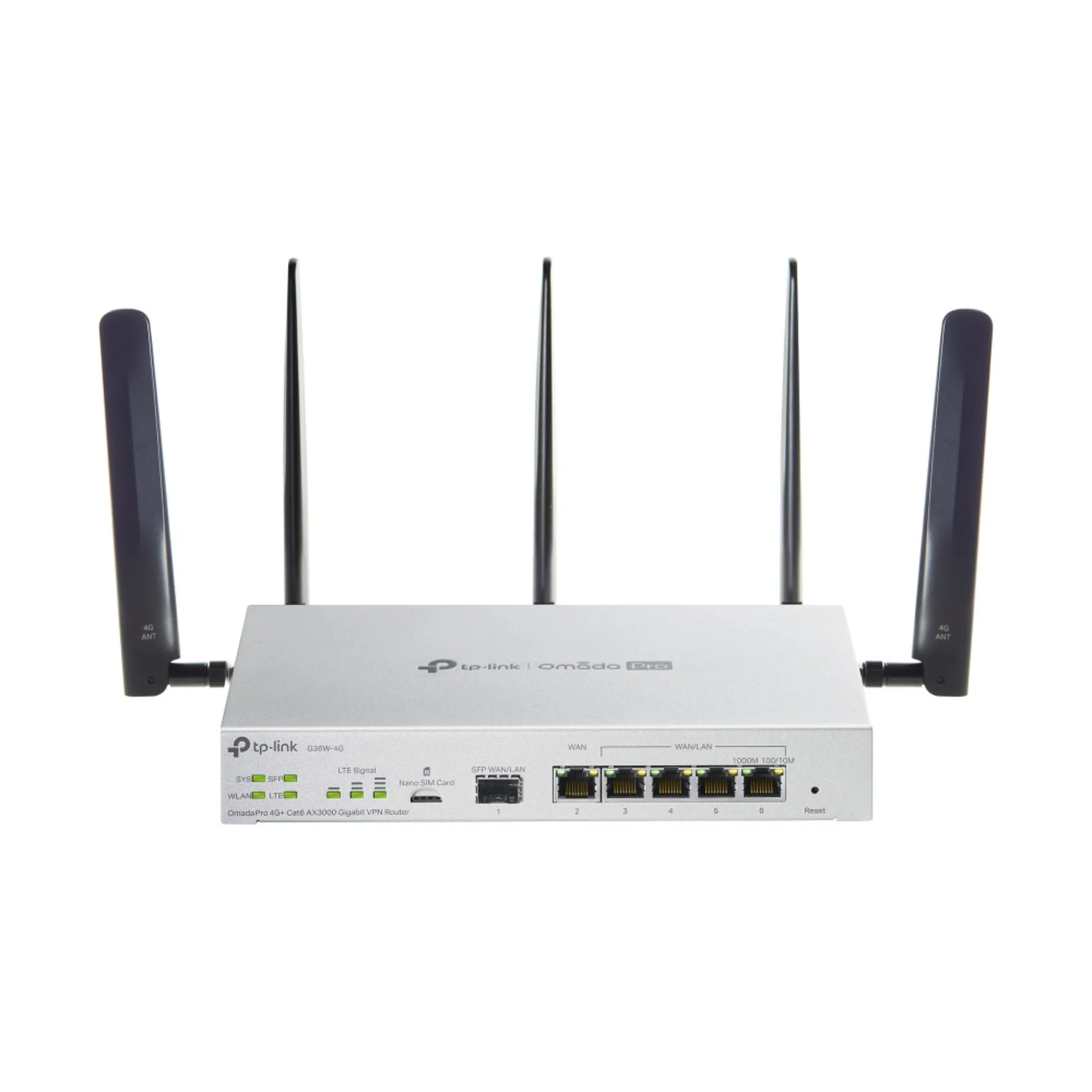

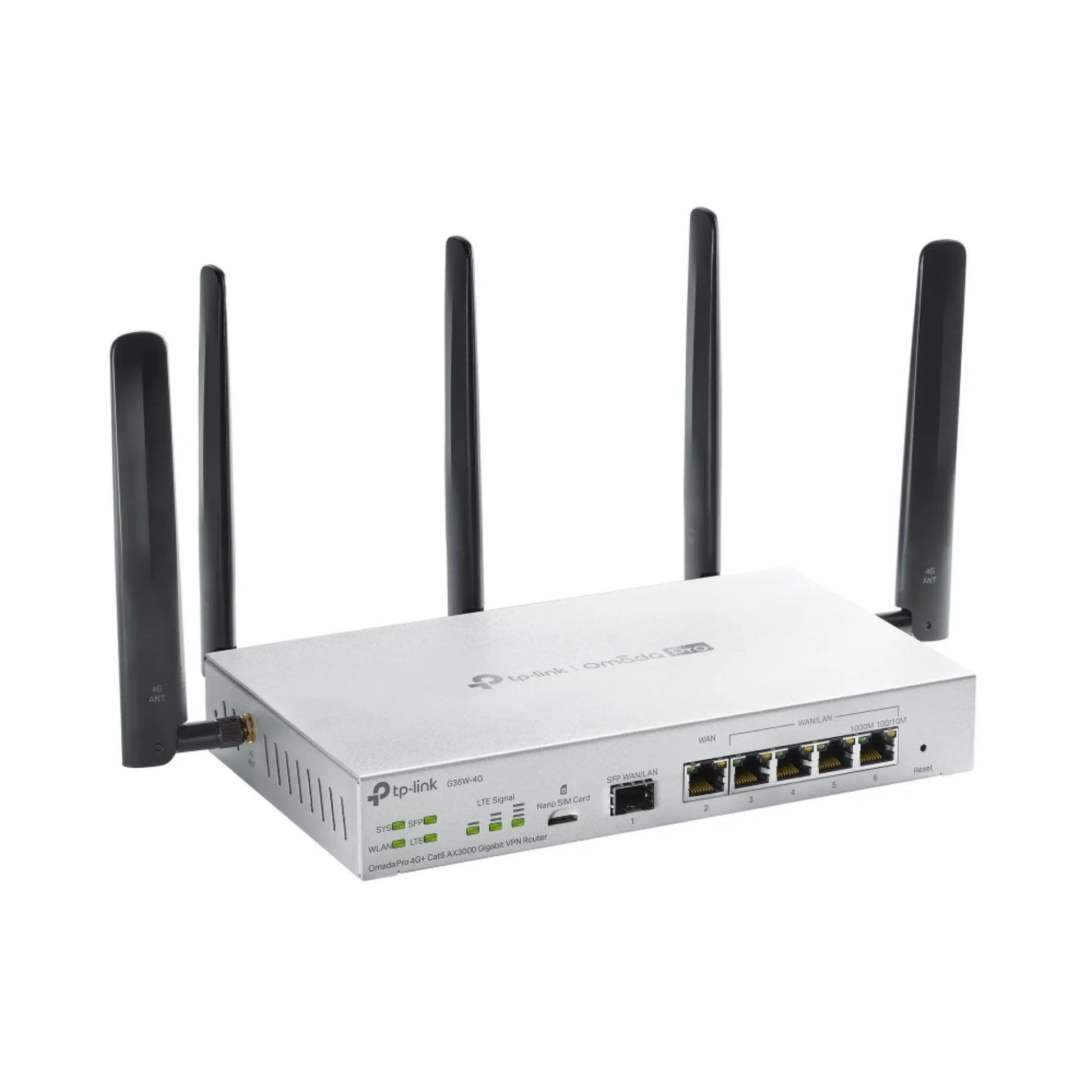

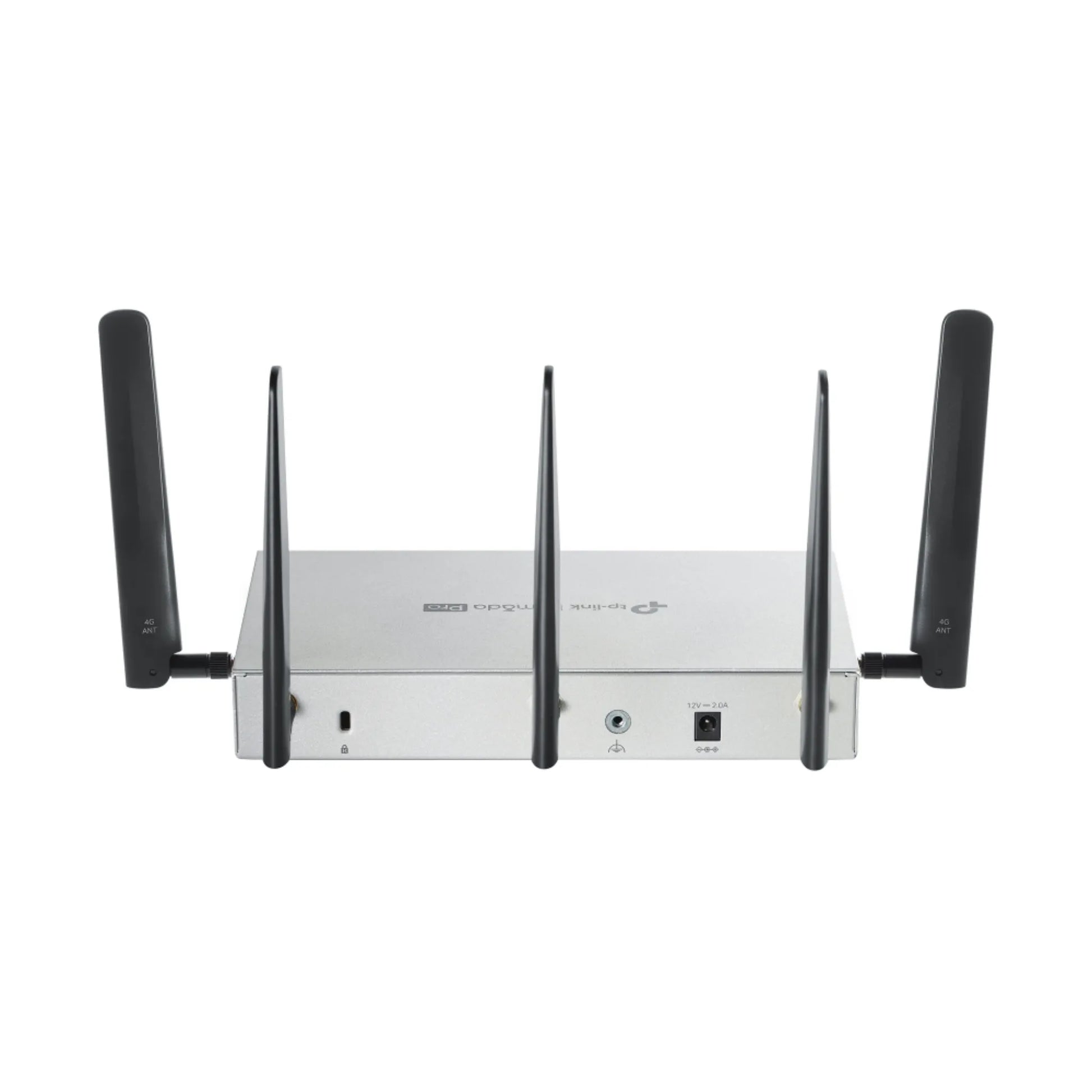

TP-Link Omada Pro G36W-4G is a powerful 4G+ Cat6 AX3000 WiFi 6 Gigabit VPN Router featuring up to 300 Mbps 4G+ connectivity, dual-band WiFi speeds up to 3000 Mbps, 6 Gigabit Ethernet ports and 5 high-gain detachable antennas. It supports Omada Pro centralized cloud management, Omada Pro Mesh and multiple secure VPN protocols including IPSec, SSL, WireGuard, OpenVPN, PPTP, L2TP and GRE.
G36W-4G Omada Pro
4G+ Cat6 AX3000 Gigabit VPN Router | Wi-Fi 6 & LTE Integrated — Detailed technical specifications
4G LTE
Network Type (EU)
LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 · LTE-TDD: B38/B40/B41 · 3G: B1/B3/B5/B8
Network Type (US)
LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71 · LTE-TDD: B41/B48
Carrier Aggregation (EU)
B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 · B3+B3/B5/B7/B8/B20/B28/B38/B40/B41 · B5+B5/B7/B38/B40/B41 · B7+B7/B8/B20/B28/B32 · B8+B32/B38/B40/B41 · B20+B32/B38/B40 · B28+B32/B38/B40/B41 · B38+B38 · B40+B40 · B41+B41
Carrier Aggregation (US)
B2+B2/B4/B5/B7/B12/B13/B14/B29/B30/B48/B66/B71 · B4+B4/B5/B7/B12/B13/B29/B30/B71 · B5+B5/B7/B25/B30/B41/B66 · B7+B7/B12/B66 · B12+B12/B25/B30/B66 · B13+B66 · B14+B30/B66 · B25+B25/B26/B41 · B26+B41 · B29+B30/B66 · B30+B66 · B41+B41 · B48+B48 · B66+B66/B71
SIM Type
1× Nano SIM Card
Frequency Speed
Downlink: 300 Mbps · Uplink: 50 Mbps
Security
DPI
Application Control · Traffic Monitor · Application List
IDS/IPS
Block List · Allow List · Signature Suppression
Access Control
Source/Destination IP Based Access Control
Filtering
Web Group Filtering · URL Filtering · Web Security
ARP Inspection
Sending GARP Packets · ARP Scanning · IP-MAC Binding
Attack Defense
TCP/UDP/ICMP Flood Defense · Block TCP Scan · Block Ping from WAN
Hardware Features
Interface
1x Gigabit SFP WAN/LAN · 1x Gigabit WAN · 4x Gigabit LAN/WAN
Network Media
10BASE-T: Cat3/4/5 (100m) · 100BASE-TX: Cat5/5e (100m) · 1000BASE-T: Cat5/5e/6 (100m)
Button
Reset Button
Power Supply
12VDC / 2A Power Adapter
Wi-Fi Speed
2.4 GHz: 574 Mbps · 5 GHz: 2402 Mbps (HE160)
Flash / DRAM
128 MB NAND · 512 MB DDR4
LED Indicators
SYS, WLAN, SFP, LTE Signal, WAN (1000M/100/10M), WAN/LAN (1000M/100/10M)
Dimensions (W x D x H)
8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Antenna
Wi-Fi: 3× 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable · LTE: 2× 4.0dBi omnidirectional detachable
Mounting
Desktop / Wall-Mounting
Max. Power Consumption
EU: 15.4W · US: 17.3W
Performance
GRE (Unencrypted / Encrypted)
545.3 Mbps / 282.6 Mbps
WireGuard VPN
387.7 Mbps
Concurrent Sessions
150,000
New Sessions / Second
5,100
NAT (Static IP / DHCP / PPPoE)
947.1/940.1 · 949.2/941.1 · 942.6/941.1 Mbps
NAT (L2TP / PPTP)
875.4/892.0 · 881.2/895.8 Mbps
IPsec VPN Throughput
ESP-SHA1-AES256: 652.2 · ESP-SHA256-AES256: 654.4 · ESP-SHA384-AES256: 646.5 · ESP-SHA512-AES256: 670.5 Mbps
OpenVPN / SSL VPN
OpenVPN: 115.5 Mbps · SSL VPN: 122.5 Mbps
L2TP VPN (Unencrypted / Encrypted)
990.0 Mbps / 475.0 Mbps
PPTP VPN (Unencrypted / Encrypted)
1177.9 Mbps / 177.4 Mbps
Packet Forwarding Rate
66 Byte: 1,453,489 pps · 1,518 Byte: 81,274 / 91,275 pps
Wireless Features
Advanced Features
Seamless Roaming · Mesh · OFDMA · Beamforming · MU-MIMO · Rate Limit (SSID/Client) · Airtime Fairness · WPA/WPA2/WPA3 Personal/Enterprise · 16 SSIDs (8 per radio)
Guest Network
Support
Basic Functions
WAN Connection Type
Static IP · Dynamic IP · PPPoE (MRU) · PPTP · L2TP
MAC Clone
Modify WAN Address
DHCP
DHCP Server · DHCPv6 PD · DHCP Options Customization · Address Reservation · Multi-IP · Multi-Net
SMS
Receive / Send SMS
IPv6
StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address
VLAN
802.1Q VLAN
IPTV
IGMP v2/v3 Proxy · Custom Mode · Bridge Mode
Advanced Features
Access Control
IP/Port/Protocol/Domain Name Filtering
Advanced Routing
Static Routing · Policy Routing · RIP · OSPF
Bandwidth Control
IP-based Bandwidth Control
Load Balance
Intelligent Load Balance · Application Optimized Routing · Link Backup · Online Detection
NAT
One-to-One NAT · Multi-Net NAT · Virtual Server · Port Triggering · NAT-DMZ · ALG · UPnP
Session Limit
IP-based Session Limit
VPN
GRE
Standalone Mode only
SSL VPN
50 Tunnels
IPsec VPN
100 Tunnels · LAN-to-LAN/Client-to-LAN · IKE v1/v2 · AES/DES/3DES · MD5/SHA1/SHA2 · NAT-T · DPD · PFS
PPTP VPN
Server · Client (10) · 50 Tunnels · MPPE Encryption
L2TP VPN
Server · Client (10) · 50 Tunnels · L2TP over IPSec
OpenVPN
Server · Client (5) · 55 Tunnels · Certificate+Account Mode · Full Mode
Authentication & Management
Web Authentication
No Auth · Simple Password · Hotspot (Local/Voucher/SMS/Radius) · External Radius · External Portal · LDAP
Omada App
Yes (requires Omada Pro Controller)
Cloud Access
Yes (requires Omada Pro Controller)
Dynamic DNS
Dyndns · No-IP · Peanuthull · Comexe · Custom
Maintenance
Web UI · Remote Management · Import/Export Config · SNMP v1/v2c/v3 · Diagnostics · NTP · Port Mirroring · CLI (Standalone) · Syslog
Zero-Touch Provisioning
Yes (requires Omada Pro Cloud Controller)
Management Features
Auto Discovery · Intelligent Monitoring · Event Warnings · Unified Config · Reboot Schedule · Captive Portal
Others
Certification
CE, FCC, RoHS
Package Content

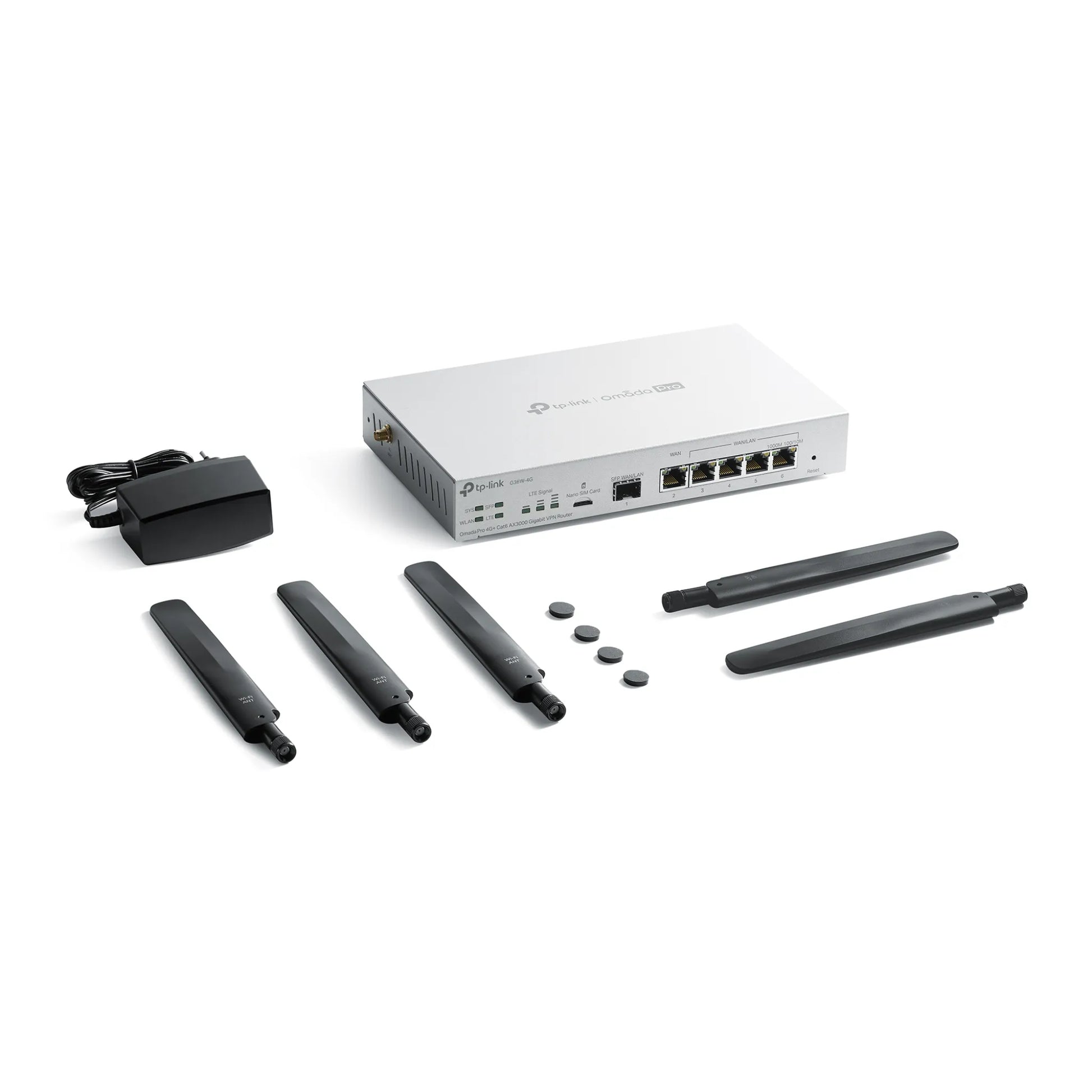

G36W-4G · Power Adapter · Quick Installation Guide
System Requirements
Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10/11 · macOS · NetWare · UNIX · Linux
Environment
Operating: 0°C to 40°C · Storage: -40°C to 70°C · Humidity: 10% to 90% non-condensing
Network Services (Default)
Web Server (80/443 TCP) · TDP Server (20003 UDP) · DHCP Server (67 UDP) · DNS (53 TCP/UDP)
