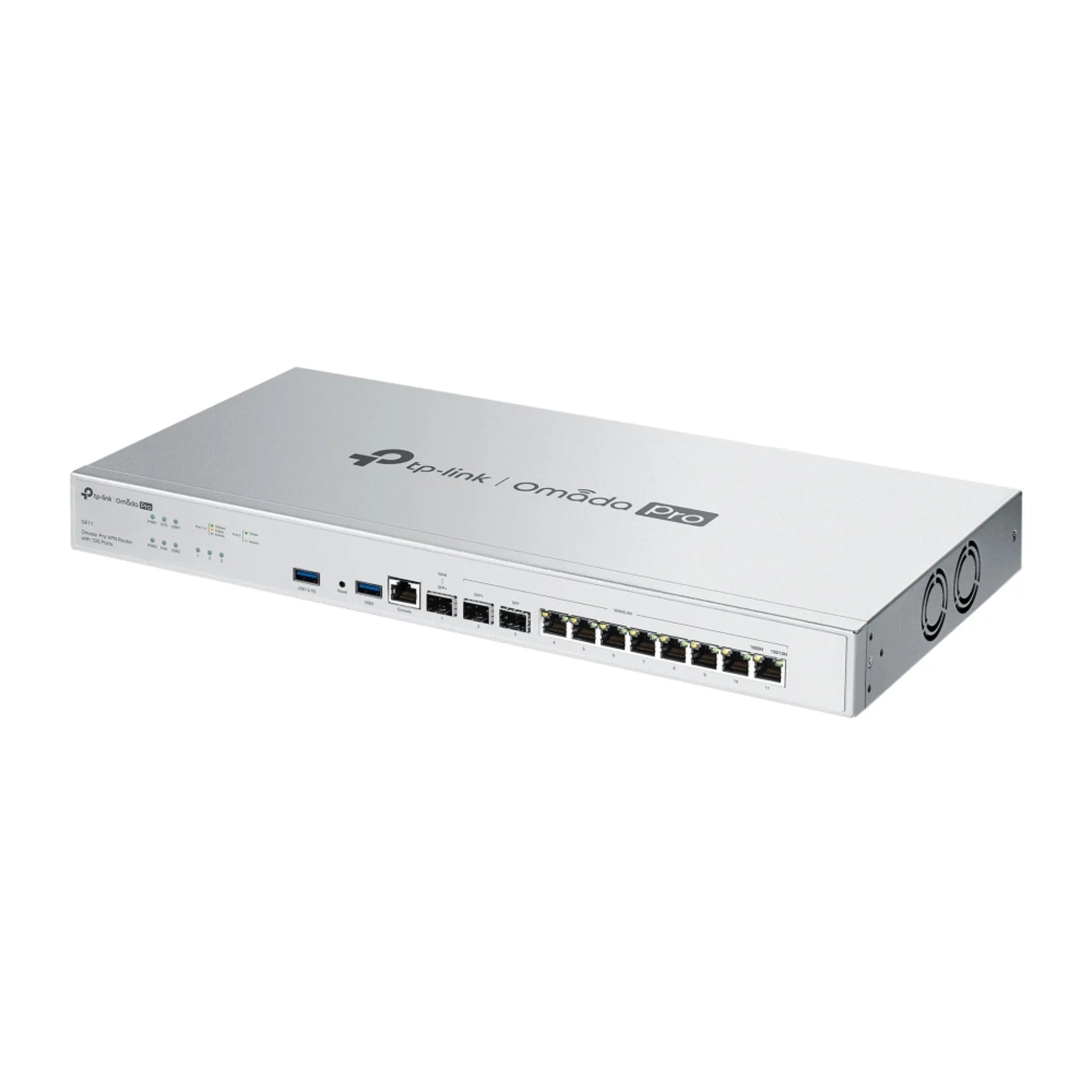

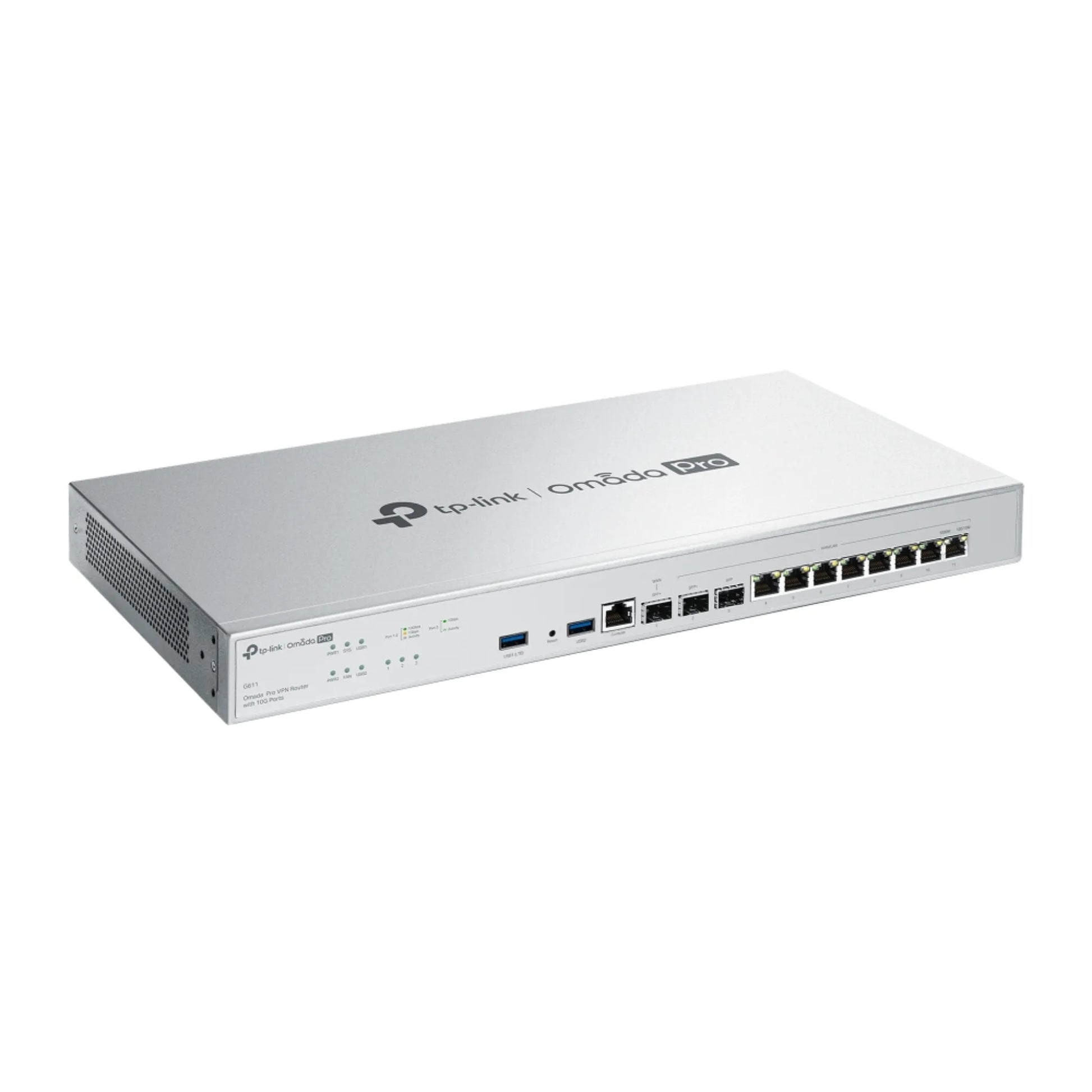

TP-Link Omada Pro G611 10G VPN Router
TP-Link Omada Pro G611 10G VPN Router
The TP-Link Omada Pro G611 is an enterprise 10G VPN router featuring dual 10GE SFP+ ports, up to 10 WAN connections, load balancing, Omada SDN centralized cloud management, Zero-Touch Provisioning and advanced firewall security. It supports SSL, IPSec, WireGuard, OpenVPN, PPTP and L2TP VPN technologies, making it ideal for businesses, offices and multi-branch enterprise networks in Bahrain.
G611 Omada Pro
VPN Router with 10G Ports | High-performance 10G security gateway — Detailed technical specifications
Security
IDS/IPS
Block List · Allow List · Signature Suppression
Access Control
Source/Destination IP Based Access Control
Filtering
WEB Group Filtering · URL Filtering · Web Security
ARP Inspection
Sending GARP Packets · ARP Scanning · IP-MAC Binding
Attack Defense
TCP/UDP/ICMP Flood Defense · Block TCP Scan · Block Ping from WAN
Hardware Features

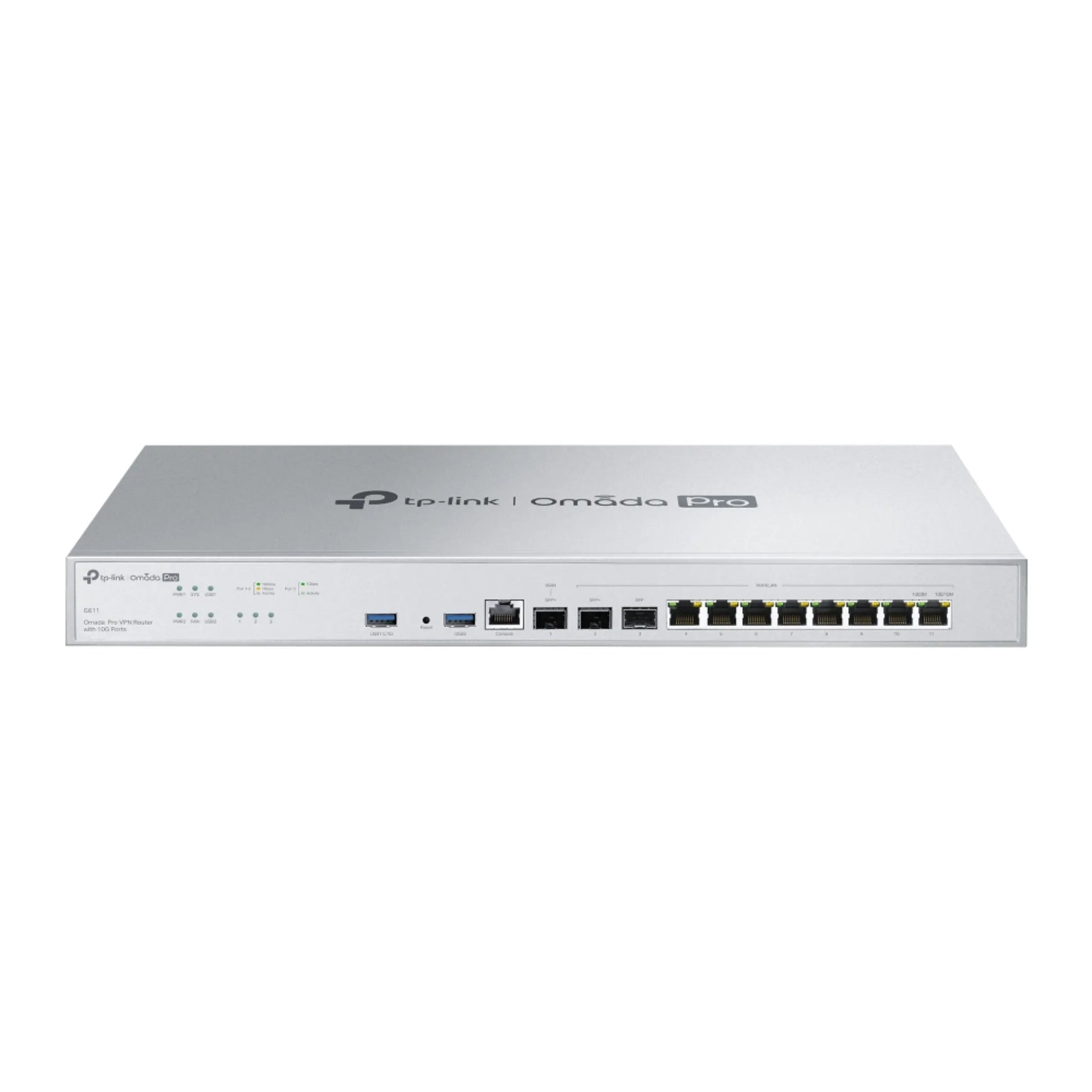

Interface
1× 10G SFP+ WAN · 1× 10G SFP+ WAN/LAN · 1× Gigabit SFP WAN/LAN · 8× Gigabit RJ45 WAN/LAN
Network Media
10BASE-T: Cat3/4/5 (100m) · 100BASE-TX: Cat5/5e (100m) · 1000BASE-T: Cat5e/6 (100m)
Fan Quantity
2
Button
Reset Button

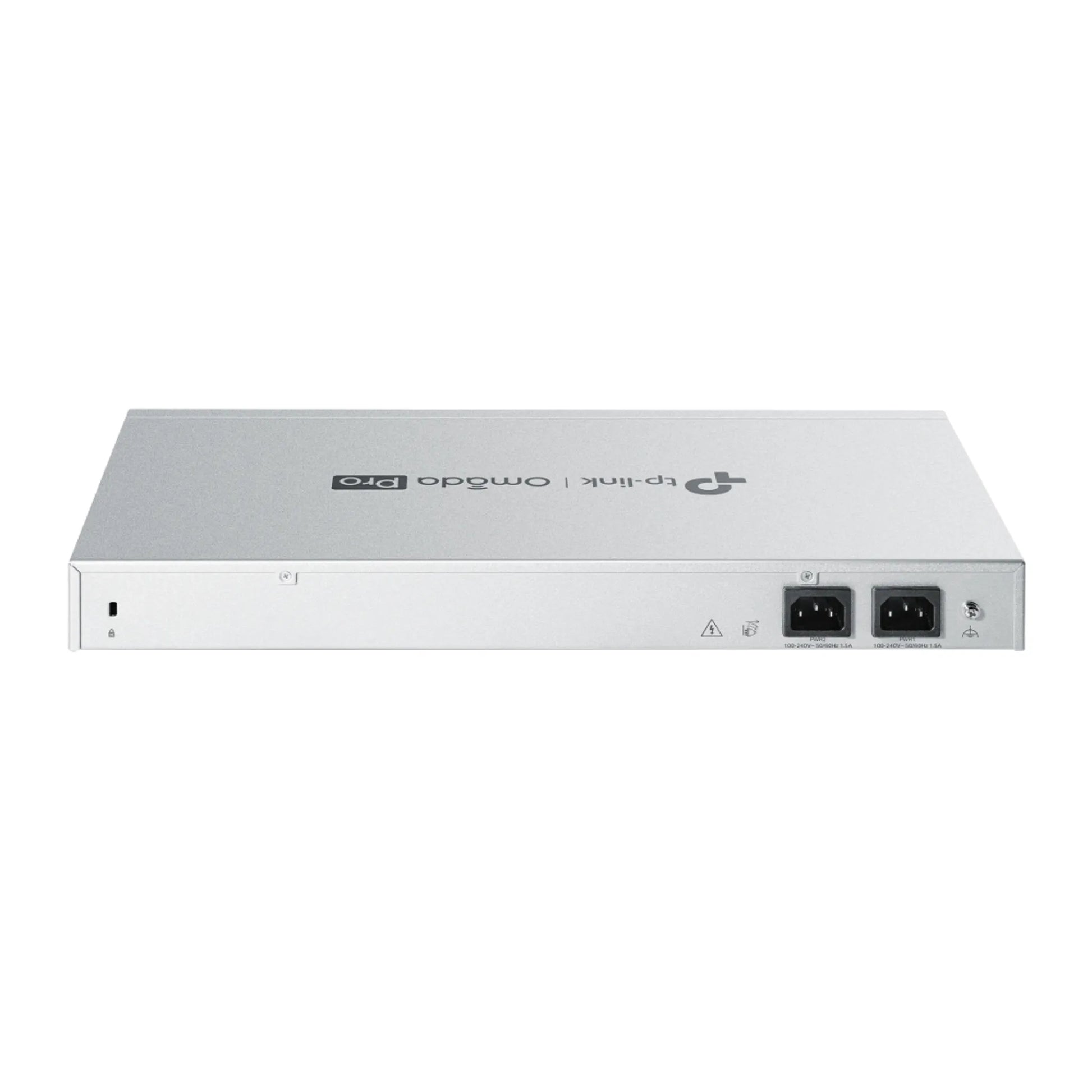

Power Supply
Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz)
Flash / DRAM
4MB SPI NOR + 256 MB NAND · 4 GB DDR4
Dimensions (W x D x H)
17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Protection / Enclosure
4 kV surge protection · Steel
Mounting
Rack Mountable
Max. Power Consumption
26.36W (with USB 3.0) · 19.12W (without USB 3.0)
Performance
Concurrent Sessions
2,300,000
New Sessions / Second
20,000
NAT (Static IP / DHCP / PPPoE)
9445.82/9449.26 · 9426.83/9426.20 · 9413.96/9102.01 Mbps
NAT (L2TP / PPTP)
9064.66/8587.57 · 8712.11/8505.61 Mbps
64 Byte Packet Forwarding
Upload: 1080 Mbps · Download: 1030 Mbps
IPsec VPN Throughput
ESP-SHA1-AES256: 3099.4 · ESP-SHA256-AES256: 2928.4 · ESP-SHA384-AES256: 2935.7 · ESP-SHA512-AES256: 2878 Mbps
OpenVPN / SSL VPN
OpenVPN: 4424.1 Mbps · SSL VPN: 4486 Mbps
L2TP VPN (Unencrypted / Encrypted)
10497 Mbps / 3178.5 Mbps
PPTP VPN (Unencrypted / Encrypted)
10497 Mbps / 3178 Mbps
1,518 Byte Packet Forwarding
Upload: 9970 Mbps · Download: 9970 Mbps
Basic Functions
WAN Connection Type
Static/Dynamic IP · PPPoE · PPTP · L2TP · 6to4 Tunnel · IPv6 Pass-Through · Mobile Broadband (4G/3G USB backup)
MAC Clone
Modify WAN/LAN MAC Address (Standalone only)
DHCP
DHCP Server/Client · Address Reservation · Multi-IP Interfaces · Multi-Net DHCP
IPv6
WAN Connection
VLAN
802.1Q VLAN
IPTV
IGMP v2/v3 Proxy
Advanced Features
Advanced Routing
Static Routing · Policy Routing
Bandwidth Control
IP/Port-based Bandwidth Control · Guarantee & Limited Bandwidth
Load Balance
Intelligent Load Balance · Application Optimized Routing · Link Backup · Online Detection
NAT
One-to-One NAT · Multi-Net NAT · Virtual Server · Port Triggering · NAT-DMZ · ALG · UPnP
Session Limit
IP-based Session Limit
VPN
SSL VPN
Server · Client · 500 Tunnels
IPsec VPN
300 Tunnels · LAN-to-LAN/Client-to-LAN · IKE v1/v2 · AES/DES/3DES · MD5/SHA1 · NAT-T · DPD · PFS
PPTP VPN
Server · Client (32) · 300 Tunnels (shared with L2TP) · MPPE Encryption
L2TP VPN
Server · Client (32) · 300 Tunnels (shared with PPTP) · L2TP over IPSec
OpenVPN
Server · Client (10) · 110 Tunnels
Authentication & Management
Web Authentication
No Auth · Simple Password · Hotspot (Local/Voucher/SMS/Radius) · External Radius · External Portal
Omada App
Yes (requires Omada Pro Controller)
Cloud Access
Yes (requires Omada Pro Controller)
Dynamic DNS
Dyndns · No-IP · Peanuthull · Comexe
Maintenance
Web UI · Remote Management · Import/Export Config · SNMP v1/v2c/v3 · Diagnostics · NTP · Syslog · Gateway Detection · Remote Packet Capture
Zero-Touch Provisioning
Yes (requires Omada Pro Cloud Controller)
Management Features
Auto Discovery · Intelligent Monitoring · Event Warnings · Unified Config · Reboot Schedule · Captive Portal · ZTP
Others
Certification
CE, FCC, RoHS
Package Content
G611 · Power Cord · Rackmount Kit · Quick Installation Guide · RJ45 Console Cord
System Requirements
Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10 · macOS · NetWare · UNIX · Linux
Environment
Operating: 0°C to 40°C · Storage: -40°C to 70°C · Humidity: 10% to 90% non-condensing
