TP-Link Omada Pro S4500-16G2F 16-Port Gigabit Switch
TP-Link Omada Pro S4500-16G2F 16-Port Gigabit Switch

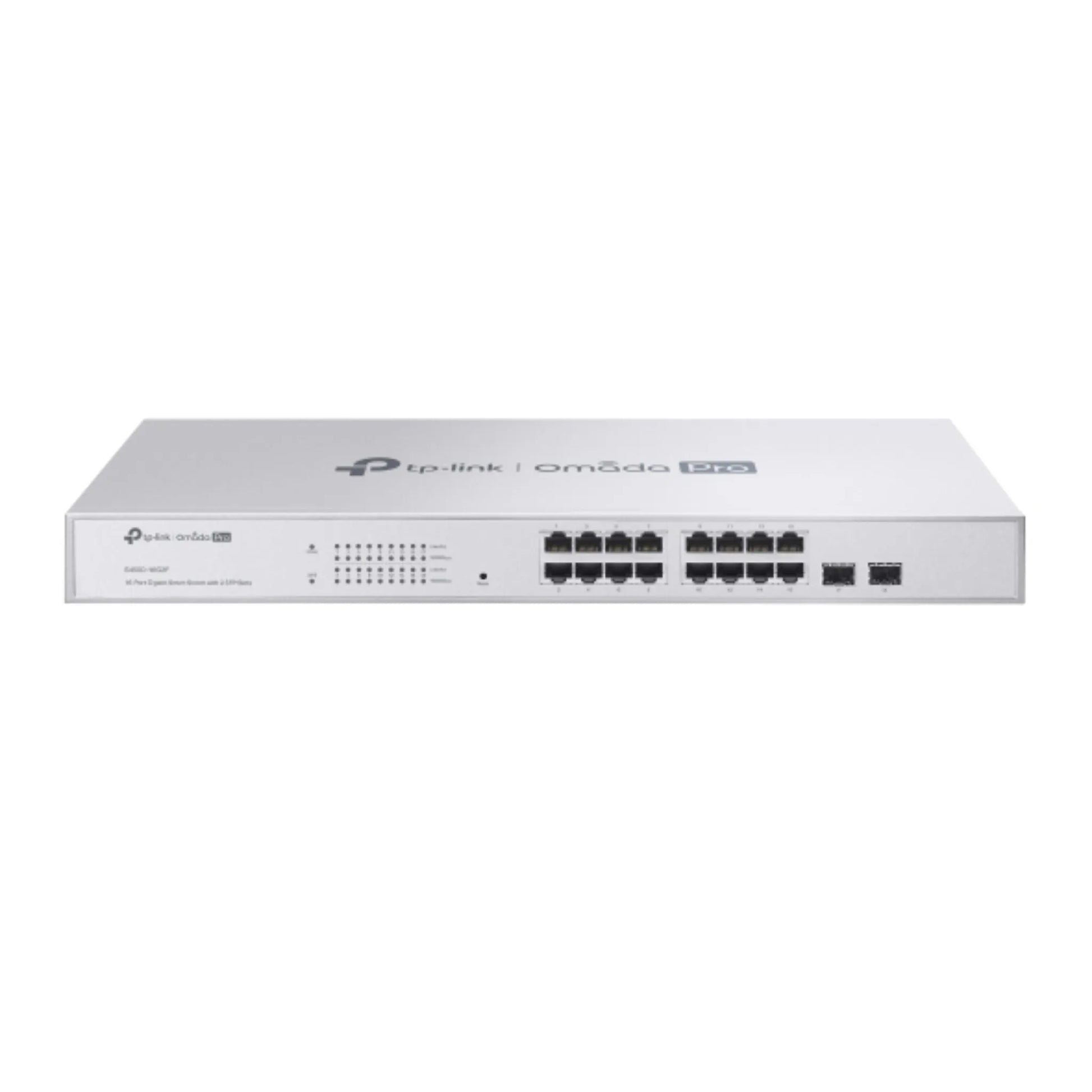

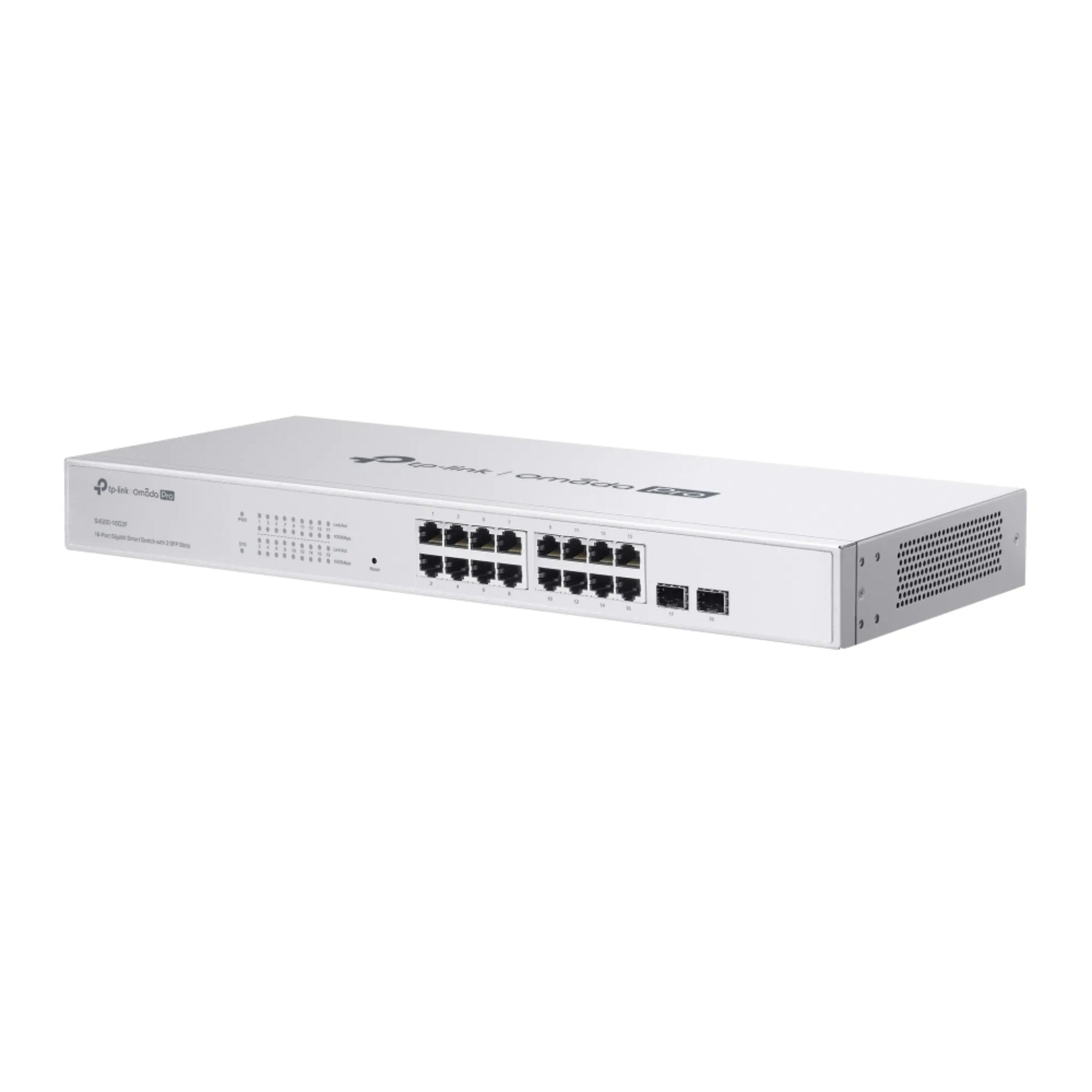

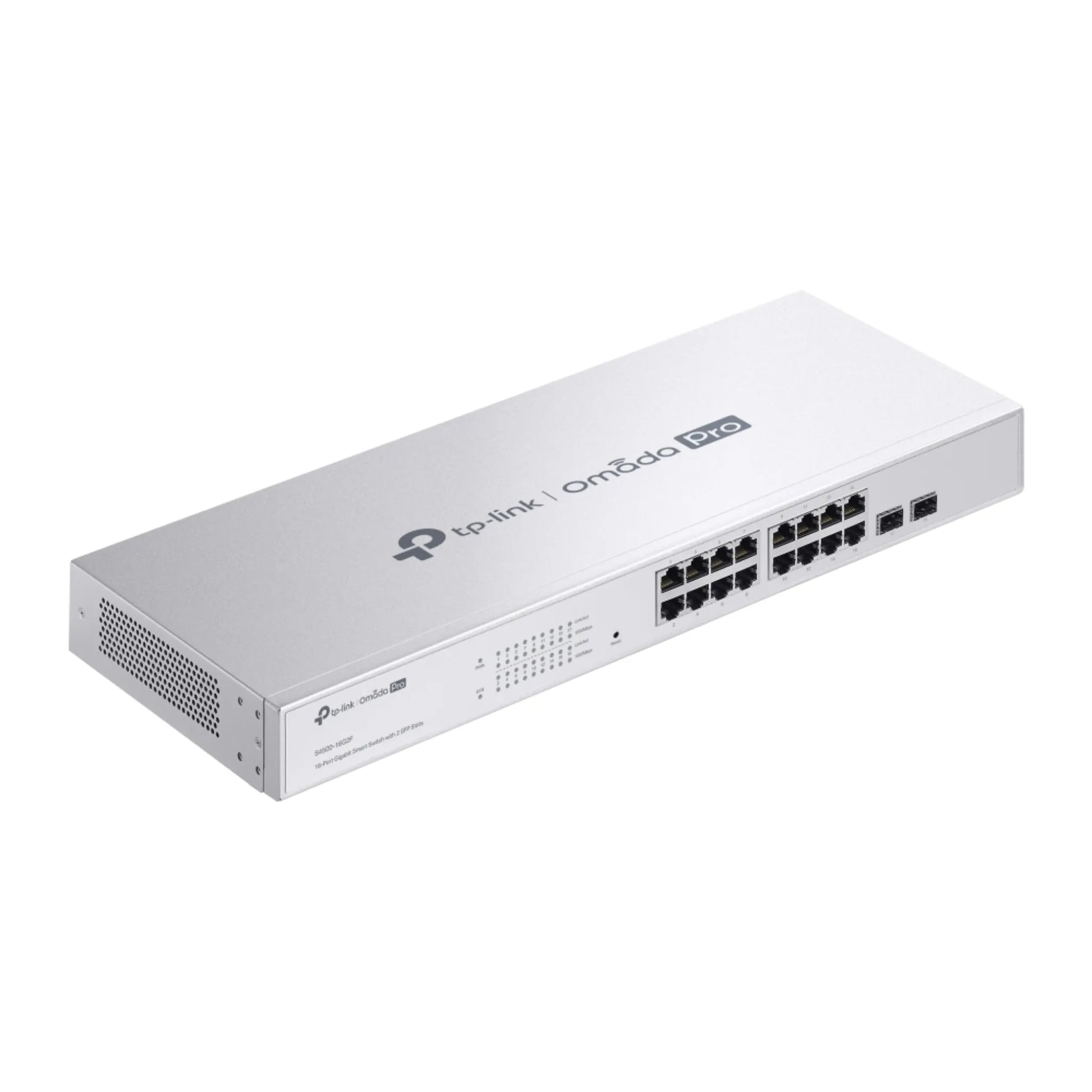

The TP-Link Omada Pro S4500-16G2F is an enterprise 16-port Gigabit Smart Switch with 16× Gigabit RJ45 ports and 2× Gigabit SFP slots. Designed for enterprise access-layer networking, it supports Omada Pro centralized cloud management, static routing, Web GUI, CLI, SNMP, RMON, and features a fanless design for silent operation with rack-mount installation.
S4500-16G2F
Omada Pro 16-Port Gigabit Smart Switch with 2 SFP Slots | Fanless · Rackmount · Advanced L2+ Features
Hardware Features
Interface
16× 10/100/1000 Mbps RJ45 Ports · 2× Gigabit SFP Slots
Fan Quantity
Fanless
Physical Security Lock
✓

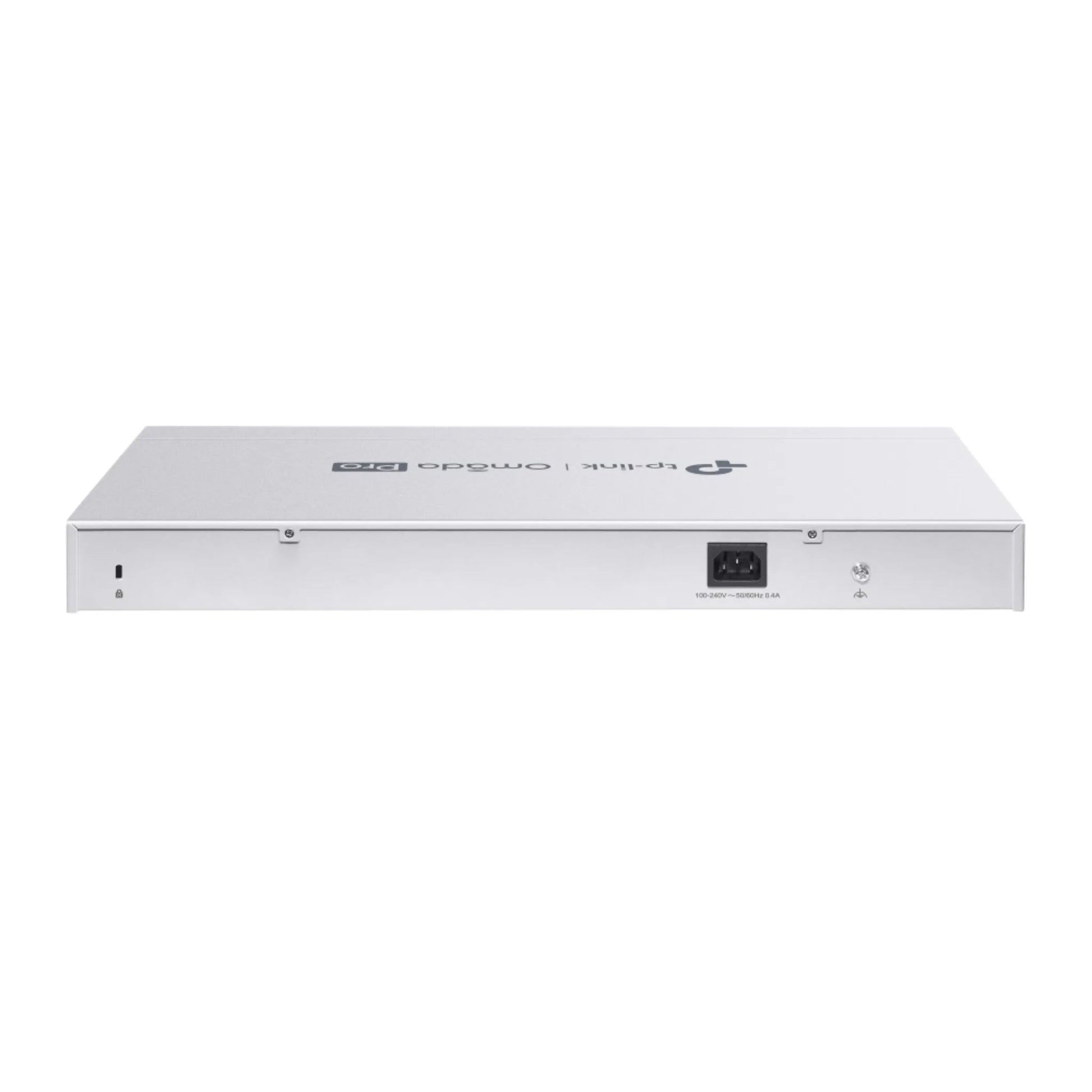

Power Supply
100-240 V AC ~ 50/60 Hz
Dimensions (W x D x H)
17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting
Rack Mountable
Max. Power Consumption
12.3 W (220 V/50 Hz)
Max. Heat Dissipation
41.97 BTU/hr (220 V/50 Hz)
Performance
Switching Capacity
36 Gbps
Packet Forwarding Rate
26.8 Mpps
MAC Address Table
8K
Packet Buffer Memory
4.1 Mbit
Jumbo Frame
9 KB
QoS & L2 Features
Quality of Service
802.1p CoS/DSCP · 8 Queues · SP/WRR · Bandwidth Control · Storm Control
L2 & L2+ Features
16 IP Interfaces · Static Routing (32 IPv4/IPv6) · DHCP Server/Relay · Link Aggregation · STP/RSTP/MSTP · Loopback Detection · Flow Control · Mirroring · DLDP · LLDP/LLDP-MED
L2 Multicast
511 IPv4/IPv6 Groups · IGMP Snooping · MVR · Multicast Filtering · Limited IP Multicast
VLAN
4K VLAN Groups · 802.1Q Tag · MAC VLAN (12) · Protocol VLAN · GVRP · Voice VLAN
Advanced Features & ACL
Advanced Features
Intelligent Anomaly Detection† · Auto Discovery · Batch Config/Upgrade · Network Monitoring · Event Warnings · Reboot Schedule
Access Control List (ACL)
230 Entries · Time-based · MAC/IP/IPv6 ACL · Combined ACL · Permit/Deny · Mirror/Redirect/Rate Limit/QoS Remark · Port/VLAN Binding
Security
AAA & 802.1X
AAA · 802.1X (Port/MAC-based) · PAP/EAP-MD5 · MAB · Guest VLAN · RADIUS
IP-MAC Binding & Security
IP-MAC-Port Binding · IP/IPv6-MAC Binding (512) · DHCP Snooping · ARP Inspection · ND Detection · IP Source Guard (253) · IPv6 Source Guard (183) · DoS Defend · Port Security (64 MACs/port) · Storm Control · Port Isolation · HTTPS/SSL · SSHv1/v2 · IP/Port/MAC Access Control
IPv6 & Management
IPv6 Features
IPv6 Static Routing/ACL · Dual IPv4/IPv6 · MLD Snooping · ND · MTU Discovery · ICMPv6 · DHCPv6 Client · IPv6 Applications (Ping/Telnet/SNMP/SSH/SSL/HTTP/HTTPS/TFTP)
MIBs
MIB II (RFC1213) · Bridge MIB · P/Q-Bridge MIB · RADIUS MIBs · Remote Ping/Traceroute MIB · TP-Link Private MIBs · RMON (1,2,3,9)
Management Features
Omada App & Controller
Omada App · Omada Pro Cloud/Software Controller · Cloud Access · Zero-Touch Provisioning
Management Interfaces
Web GUI · CLI (Telnet) · SNMPv1/v2c/v3 · RMON · SDM Template · DHCP/BOOTP · Dual Image/Config · CPU Monitoring · Cable Diagnostics · EEE · SNTP · System Log · Remote Packet Capture
Others
Certification
CE, FCC, RoHS
Package Content

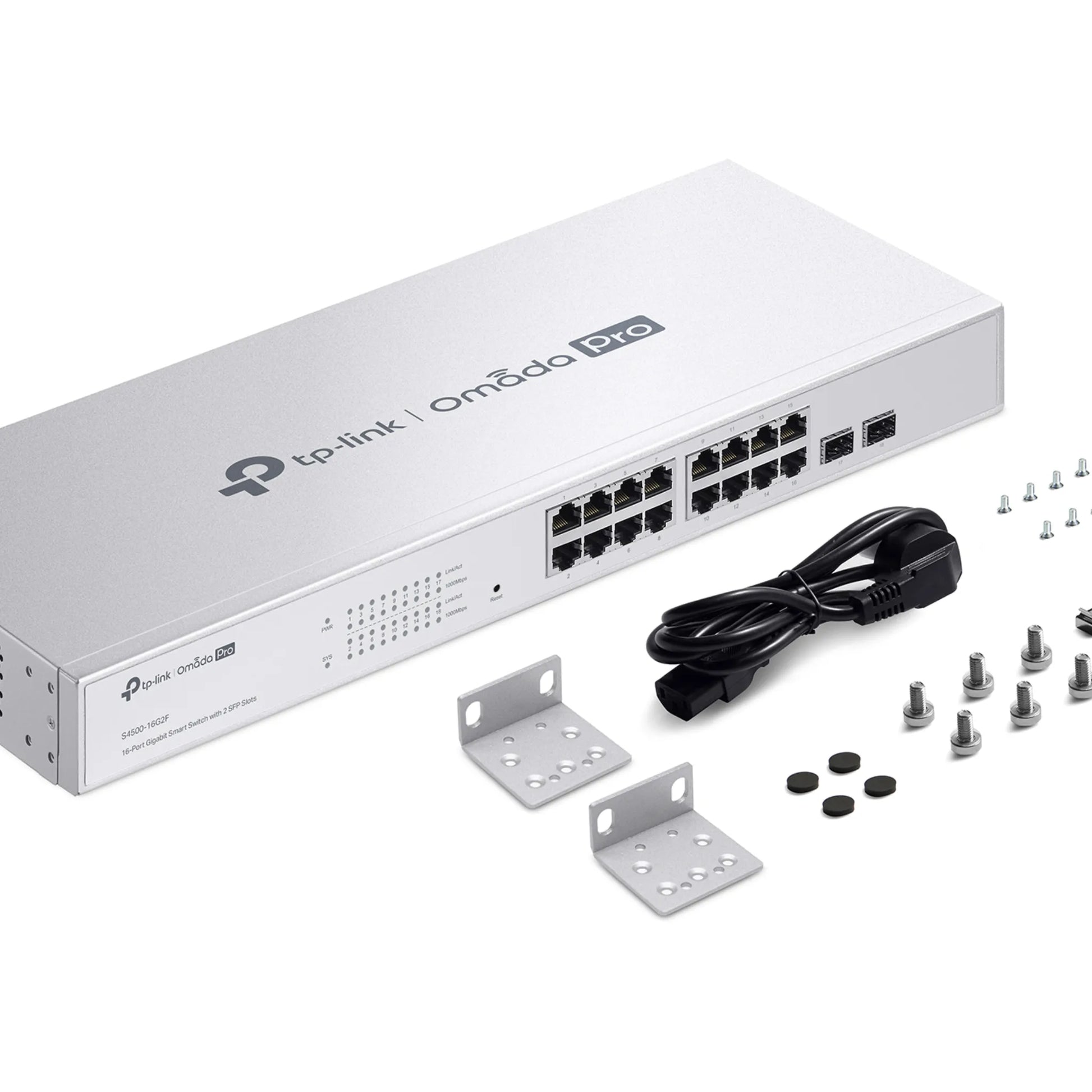

S4500-16G2F Switch · Power Cord · Quick Installation Guide · Rackmount Kit · Rubber Feet
System Requirements
Windows 98SE/NT/2000/XP/Vista/7/8/10/11 · macOS · NetWare · UNIX · Linux
Environment
Operating: 0–40°C (32–104°F) · Storage: -40–70°C (-40–158°F) · Humidity: 10–90% RH non-condensing
