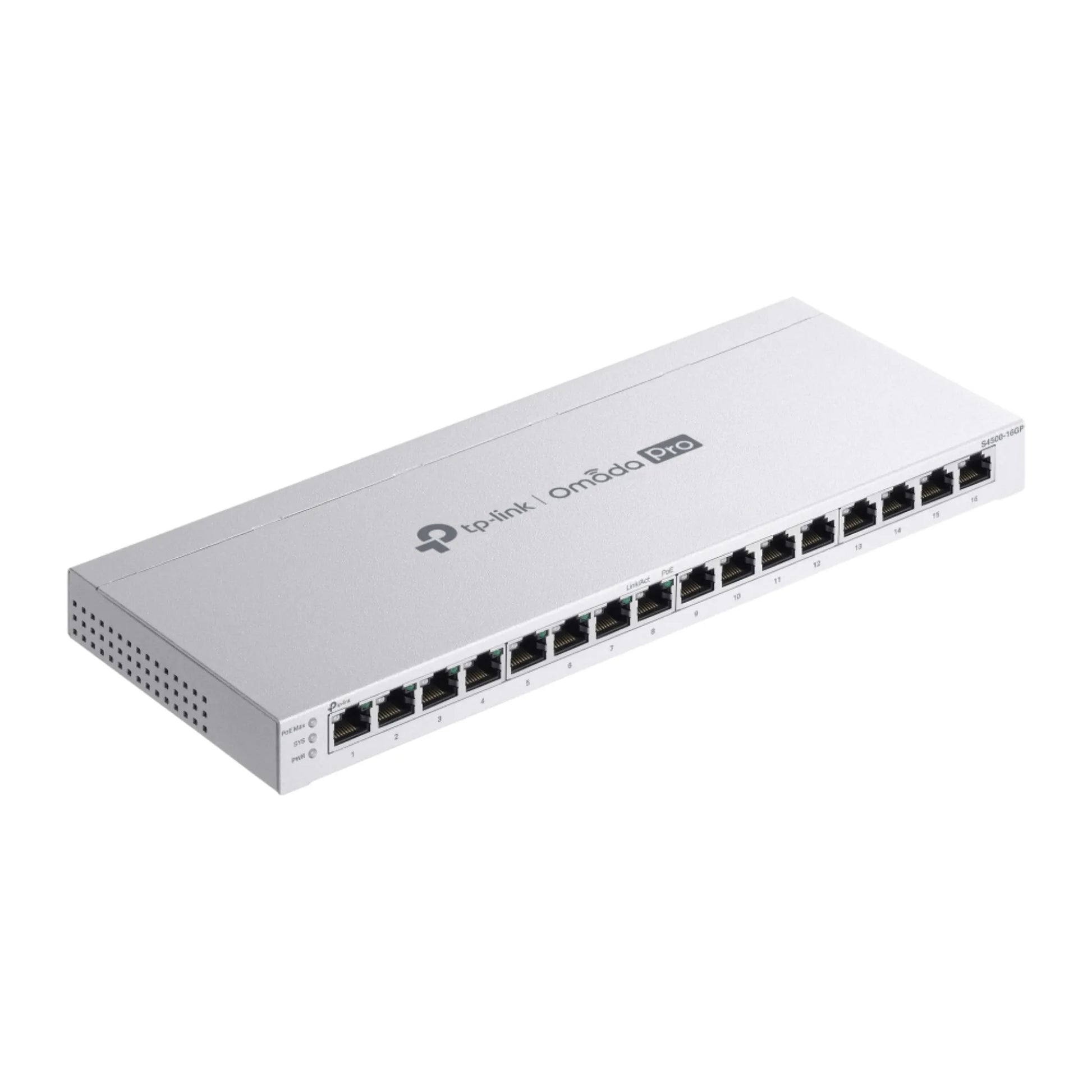

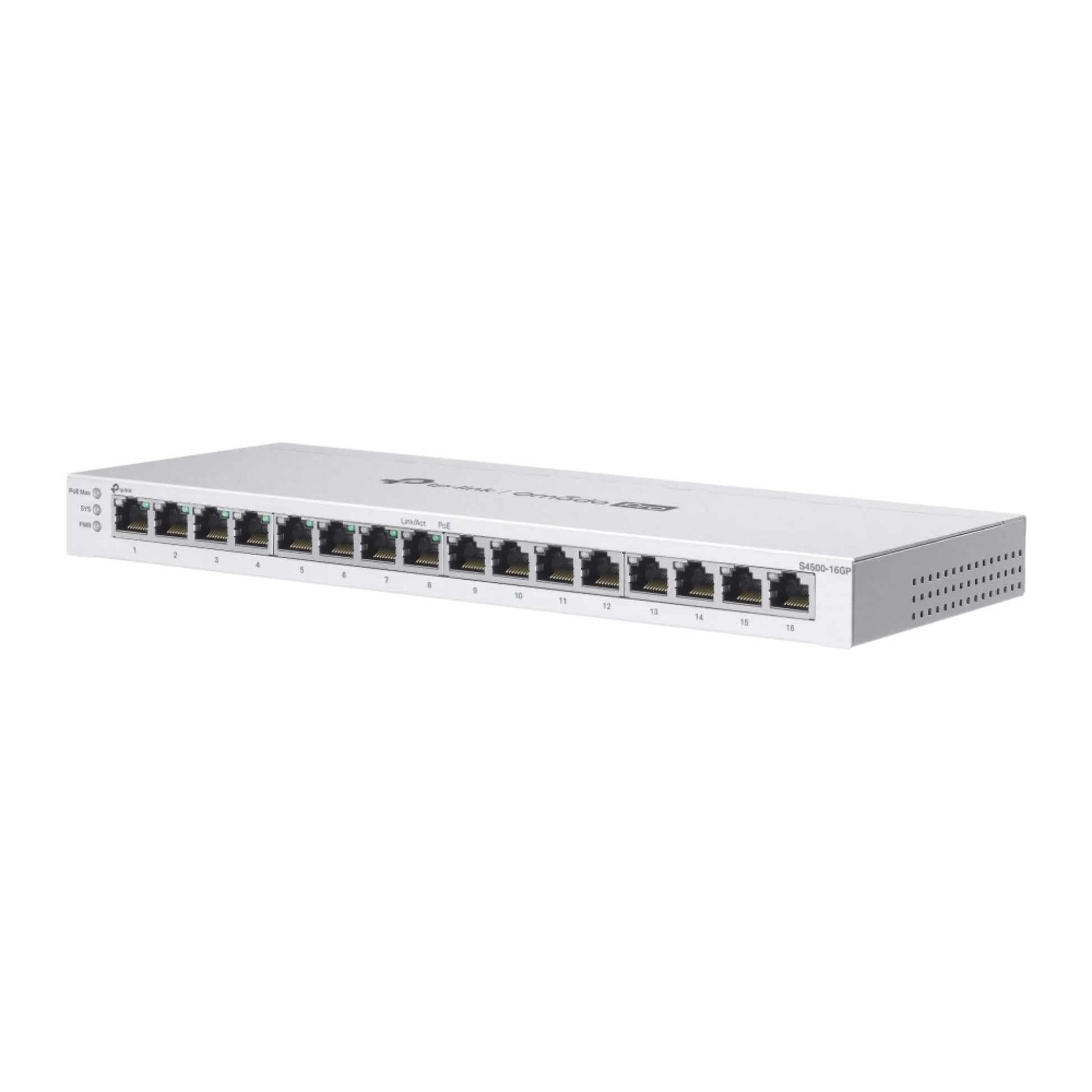

TP-Link Omada Pro S4500-16GP 16-Port Gigabit PoE+ Switch
TP-Link Omada Pro S4500-16GP 16-Port Gigabit PoE+ Switch
The TP-Link Omada Pro S4500-16GP is an enterprise 16-port Gigabit Smart Switch featuring 8× PoE+ ports with a 120W total PoE budget and up to 30W output per port. Designed for enterprise access-layer networking, it supports Omada Pro centralized cloud management, static routing, Web GUI, CLI, SNMP, RMON, and features a fanless design for silent operation with flexible desktop or wall mounting.
S4500-16GP
Omada Pro 16-Port Gigabit Smart Switch with 8-Port PoE+ | Fanless · 120W PoE Budget · Advanced L2+ Features
Hardware Features

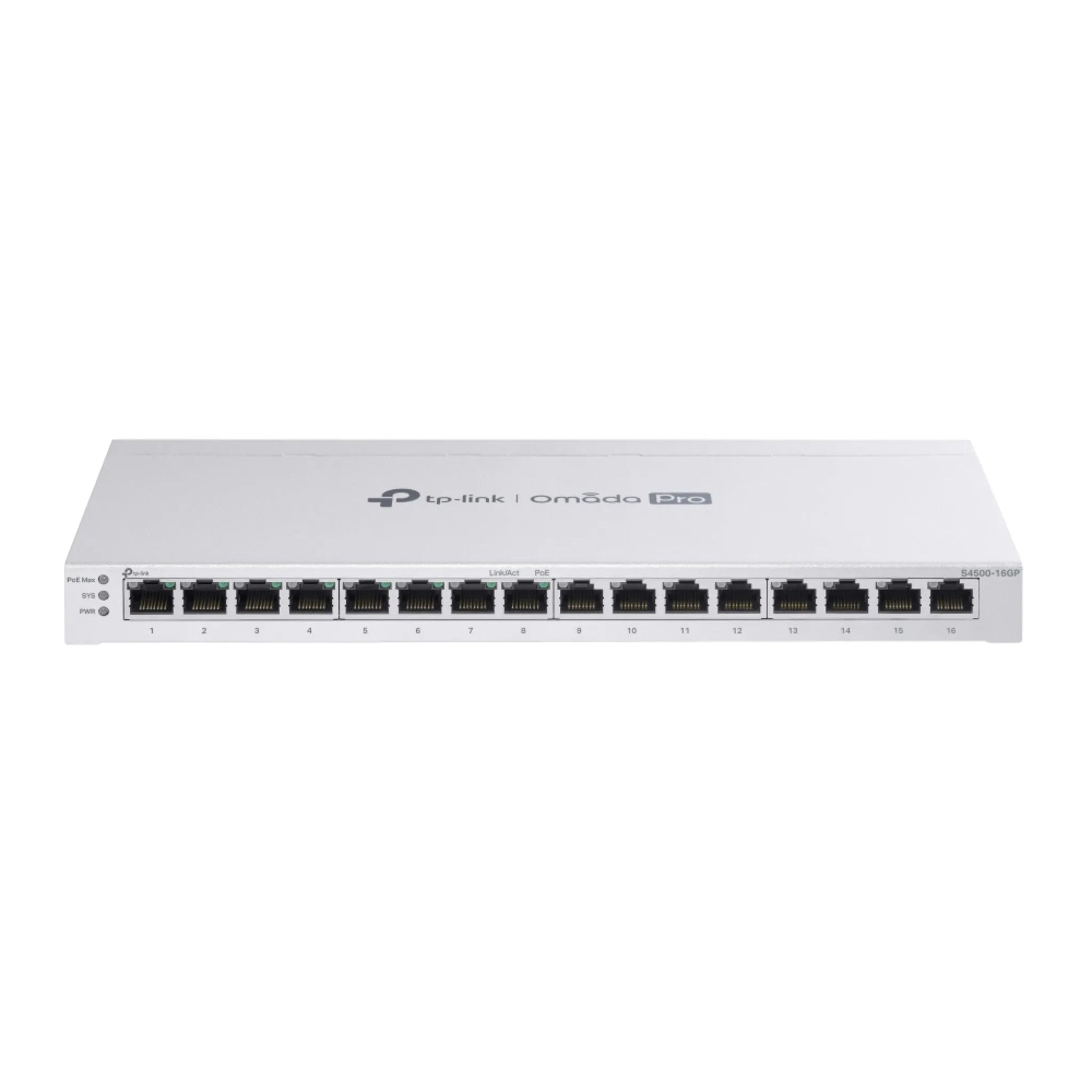

Interface
16× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 PoE+) · Auto-Negotiation/Auto MDI/MDIX
Fan Quantity
Fanless
Physical Security Lock
✓

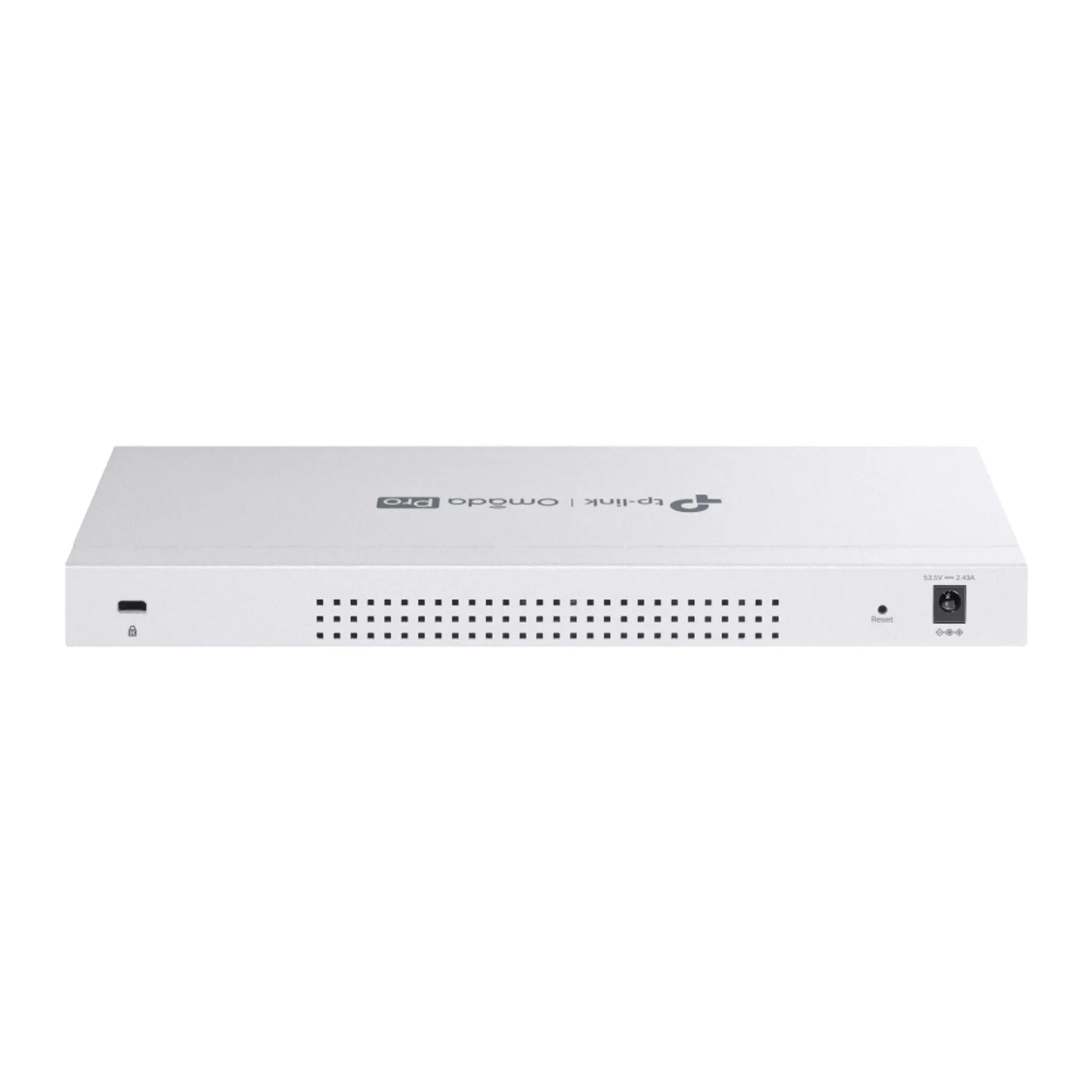

Power Supply
External Adapter (53.5 VDC / 2.43 A)
PoE Ports / Budget
8× PoE+ Ports (802.3af/at) · 120W PoE Budget*
Dimensions (W x D x H)
11.3 × 4.4 × 1.0 in (286 × 111.7 × 25.4 mm)

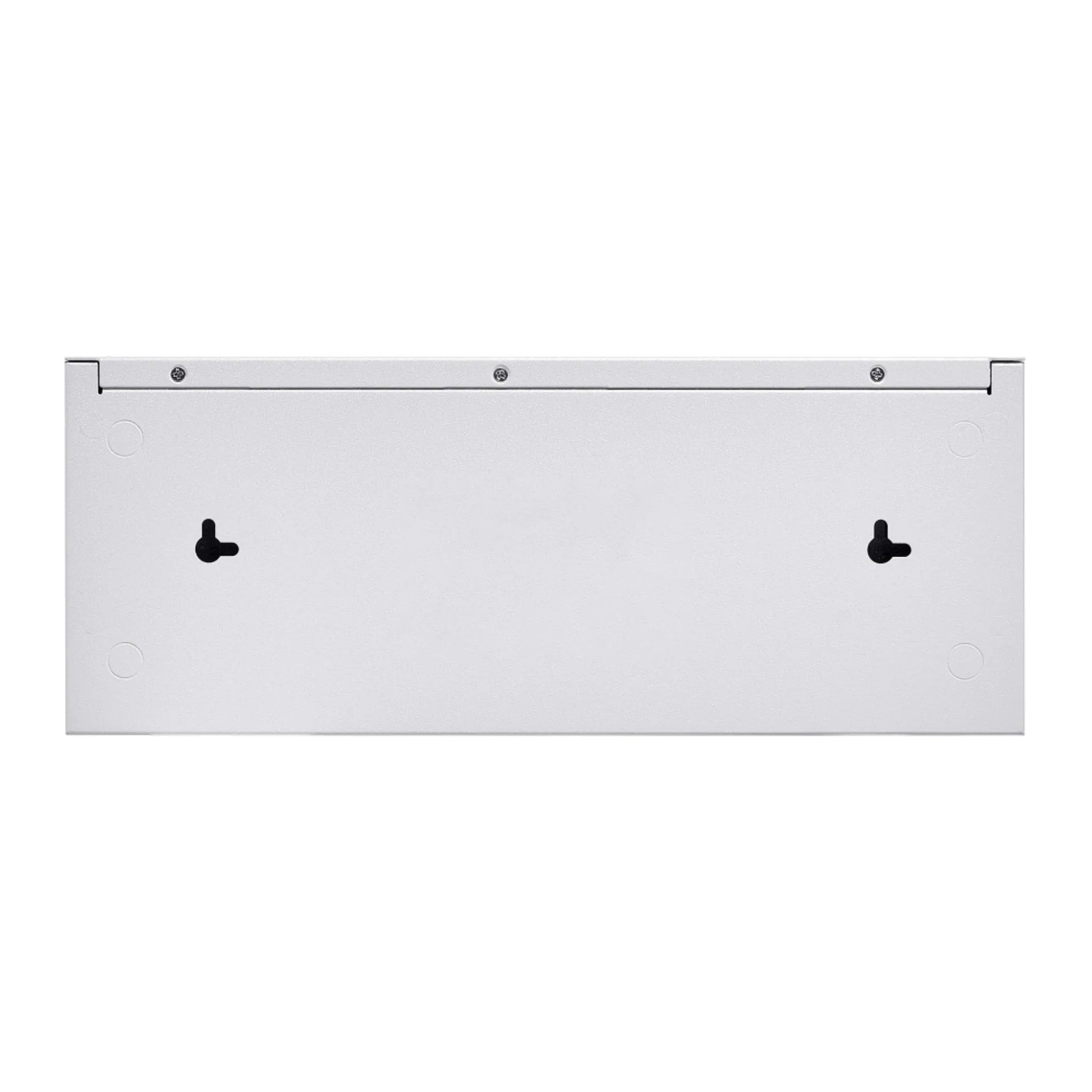

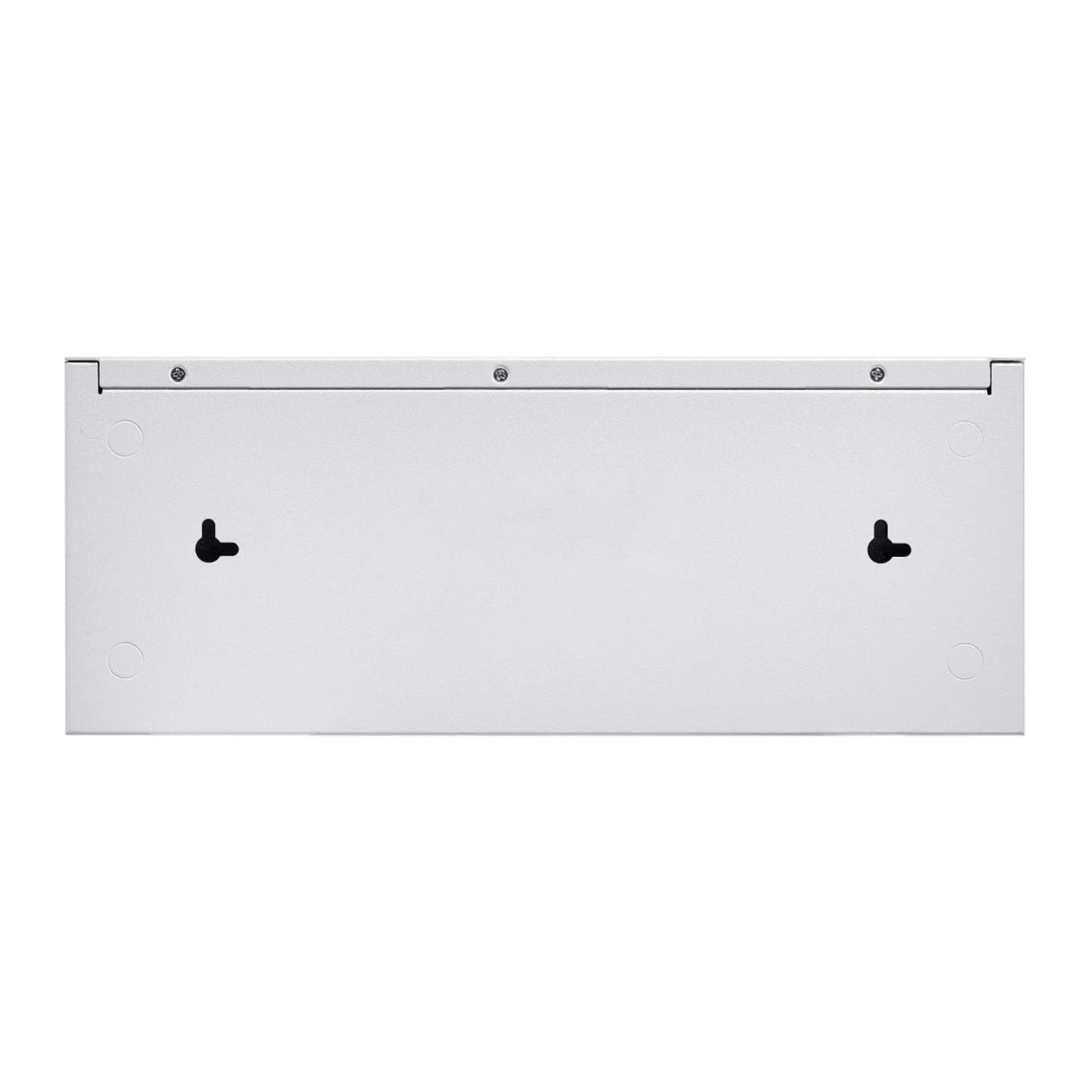

Mounting
Desktop / Wall-Mounting
Max. Power Consumption
146.5 W (110V/60Hz with 120W PD)
Max. Heat Dissipation
499.98 BTU/hr (110V/60Hz with 120W PD)
Performance
Switching Capacity
32 Gbps
Packet Forwarding Rate
23.81 Mpps
MAC Address Table
8K
Packet Buffer Memory
4.1 Mbit
Jumbo Frame
9 KB
QoS & L2 Features
Quality of Service
802.1p CoS/DSCP · 8 Queues · SP/WRR · Bandwidth Control · Storm Control
L2 & L2+ Features
16 IP Interfaces · Static Routing (32 IPv4/IPv6) · DHCP Server/Relay · Link Aggregation · STP/RSTP/MSTP · Loopback Detection · Mirroring · DLDP · LLDP/LLDP-MED
L2 Multicast
511 IPv4/IPv6 Groups · IGMP Snooping · MVR · Multicast Filtering · Limited IP Multicast (256 profiles)
VLAN
4K VLAN Groups · 802.1Q Tag · MAC VLAN (12) · Protocol VLAN · GVRP · Voice VLAN
Access Control List (ACL)
ACL Features
230 Entries · Time-based · MAC/IP/IPv6 ACL · Combined ACL · Permit/Deny · Mirror/Redirect/Rate Limit/QoS Remark · Port/VLAN Binding
Security
AAA & 802.1X
AAA · 802.1X (Port/MAC-based) · PAP/EAP-MD5 · MAB · Guest VLAN · RADIUS
IP-MAC Binding & Security
IP-MAC-Port Binding · IP/IPv6-MAC Binding (512) · DHCP Snooping · ARP Inspection · IP Source Guard (253) · IPv6 Source Guard (183) · DoS Defend · Port Security (64 MACs/port) · Storm Control · Port Isolation · HTTPS/SSL · SSHv1/v2 · IP/Port/MAC Access Control
IPv6 & Management
IPv6 Features
IPv6 Static Routing/ACL · Dual IPv4/IPv6 · MLD Snooping · ND · MTU Discovery · ICMPv6 · DHCPv6 Client · IPv6 Applications (Ping/Telnet/SSH/SSL/HTTP/HTTPS/TFTP)
MIBs
MIB II (RFC1213) · Bridge MIB · P/Q-Bridge MIB · RADIUS MIBs · Remote Ping/Traceroute MIB · TP-Link Private MIBs · RMON (1,2,3,9)
Advanced & Management
Advanced Features†
Intelligent Anomaly Detection · Auto Discovery · Batch Config/Upgrade · Network Monitoring · Event Warnings · Reboot Schedule
Omada App & Controller
Omada App · Omada Pro Cloud/Software Controller · Cloud Access · Zero-Touch Provisioning
Management Interfaces
Web GUI · CLI (Telnet) · SNMPv1/v2c/v3 · RMON · SDM Template · DHCP/BOOTP · Dual Image/Config · CPU Monitoring · Cable Diagnostics · EEE · SNTP · System Log · Remote Packet Capture
Others
Certification
CE, FCC, RoHS

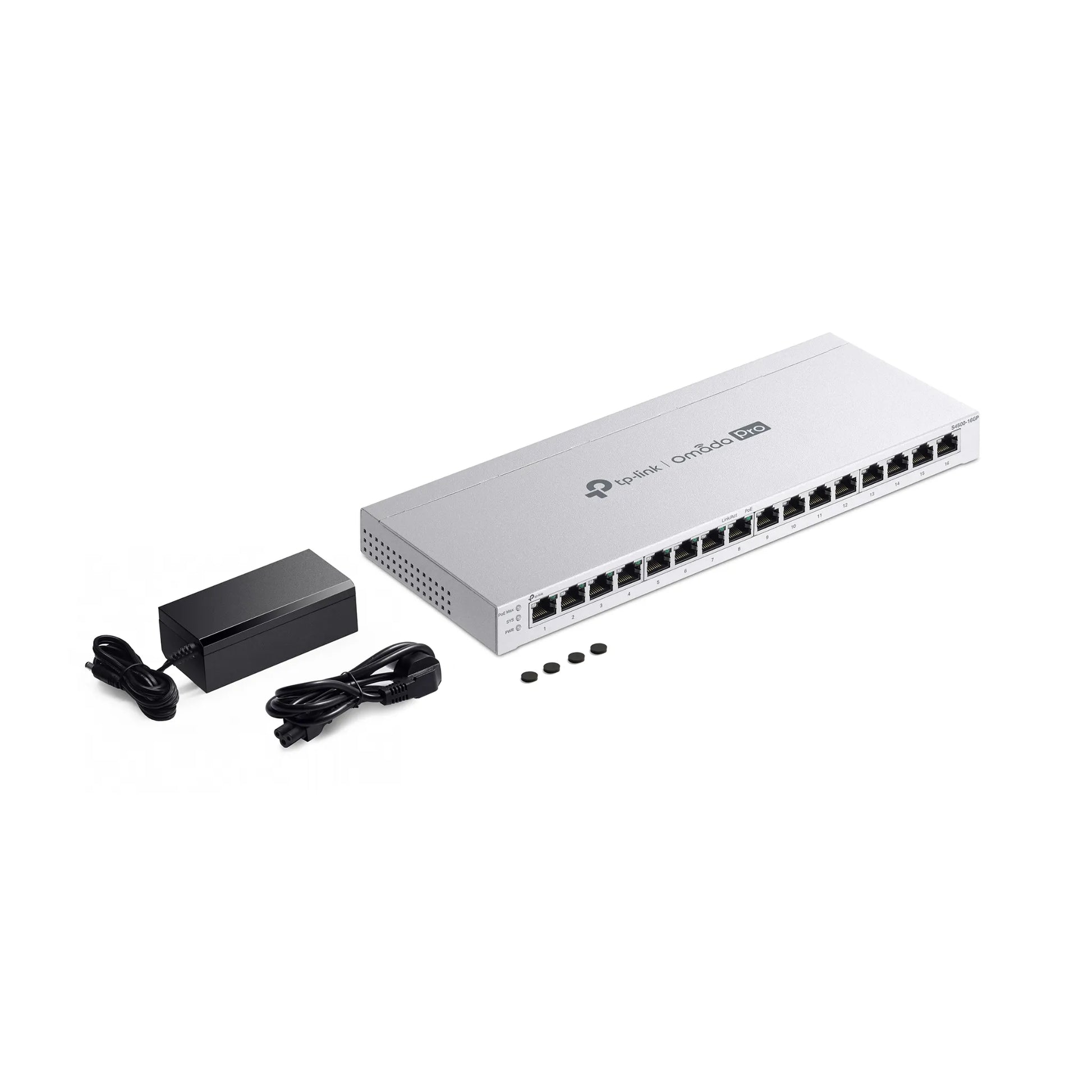

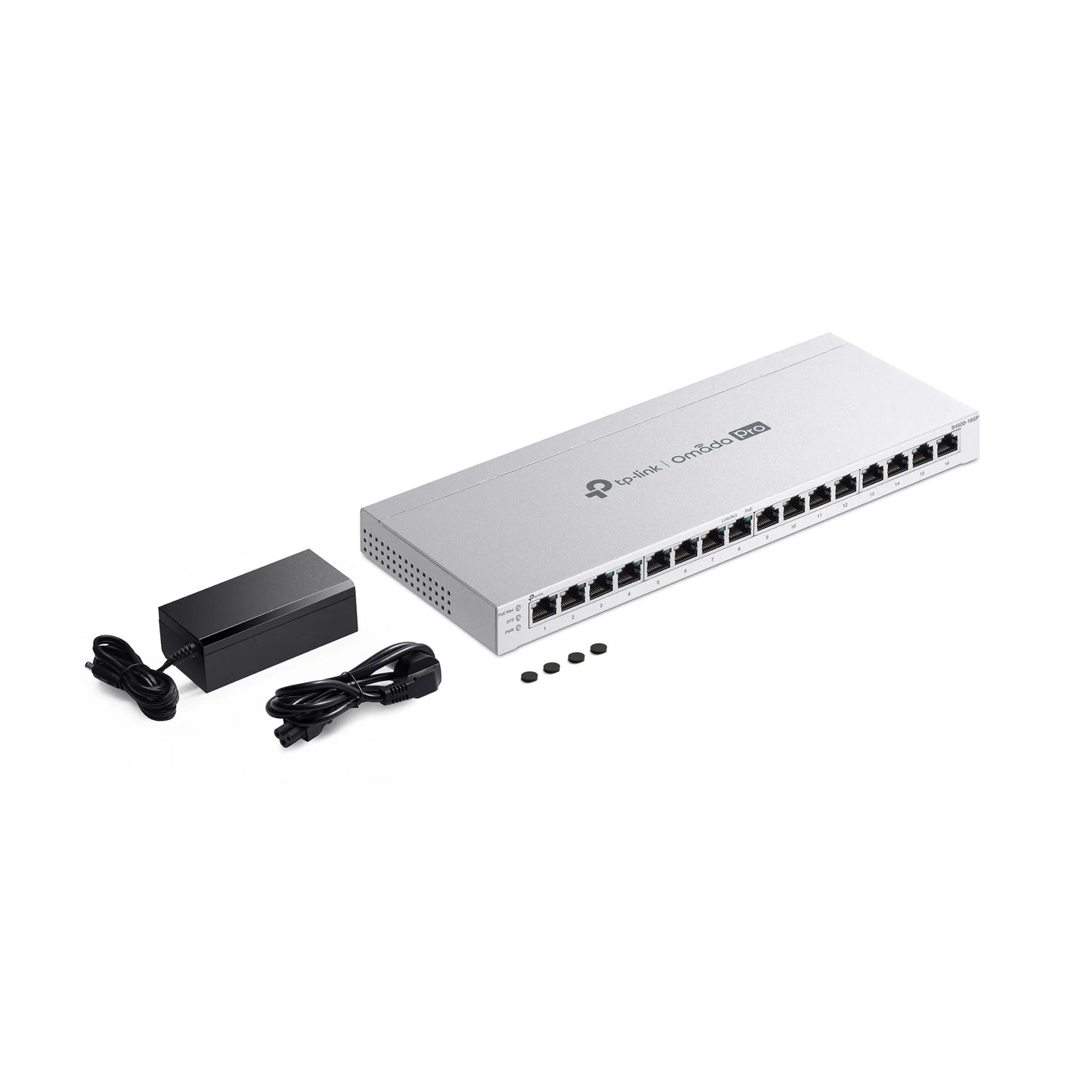

Package Content
S4500-16GP · Power Adapter · Installation Guide · Rubber Feet
System Requirements
Windows 98SE/NT/2000/XP/Vista/7/8/10/11 · macOS · NetWare · UNIX · Linux
Environment
Operating: 0–40°C (32–104°F) · Storage: -40–70°C (-40–158°F) · Humidity: 10–90% RH non-condensing
