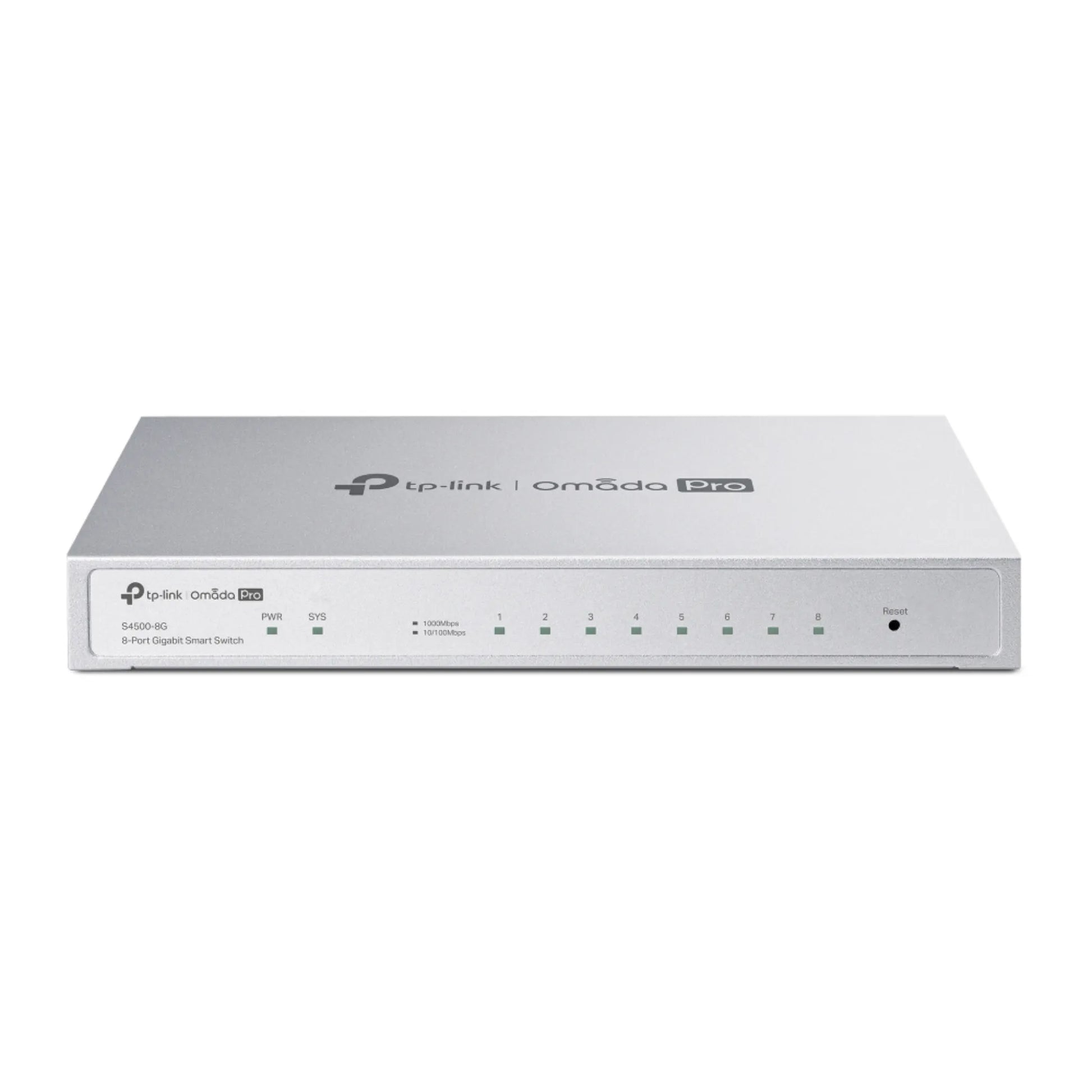

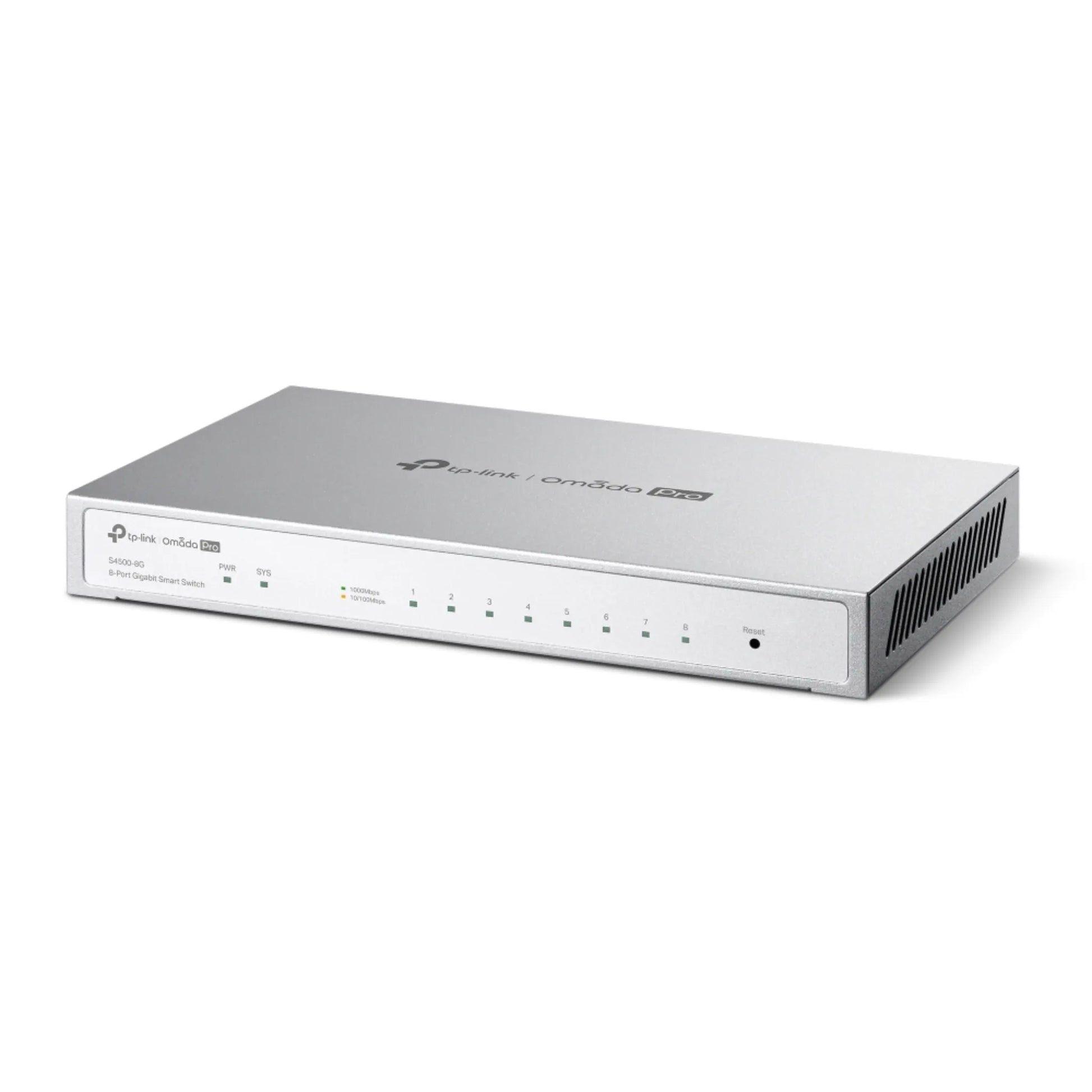

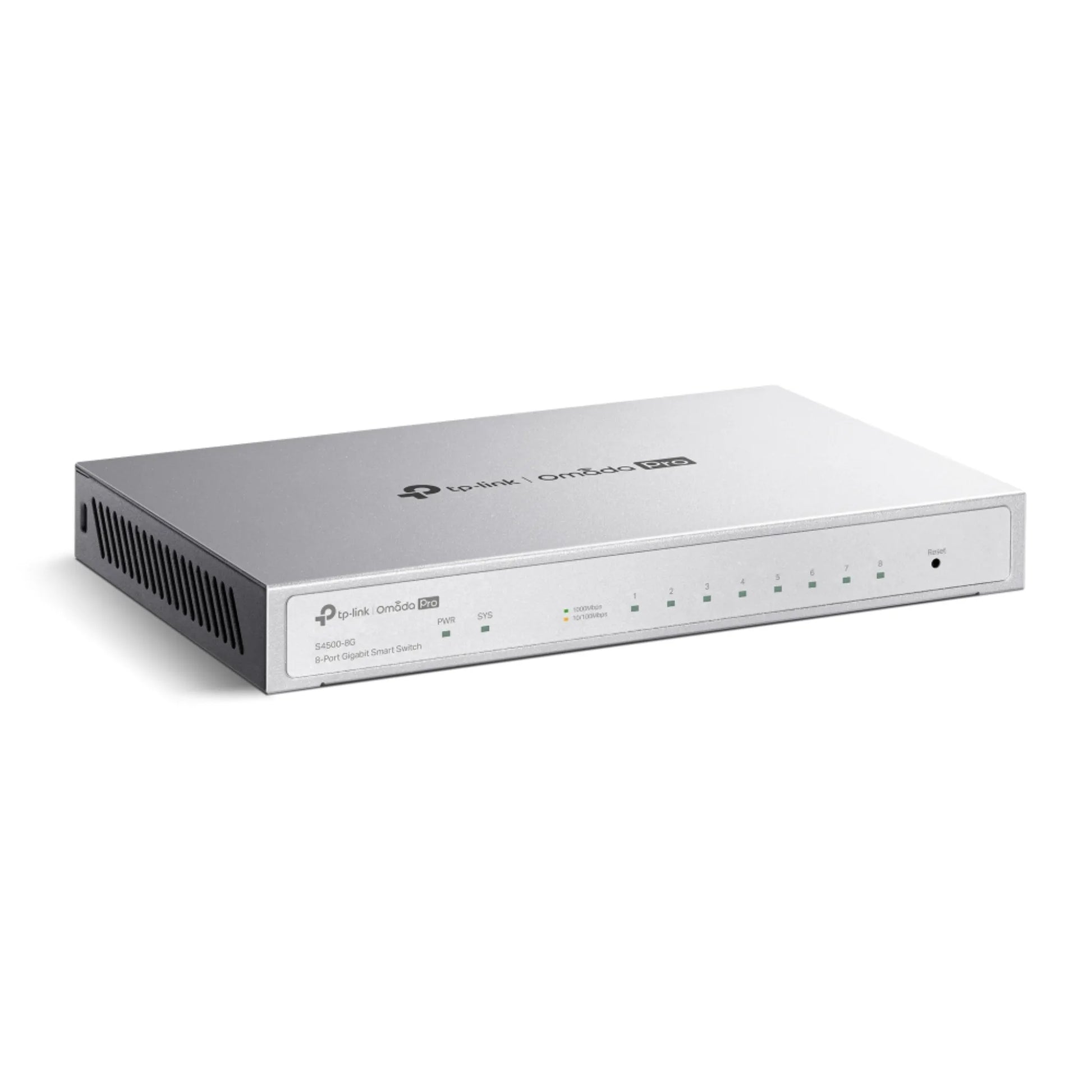

TP-Link Omada Pro S4500-8G 8-Port Gigabit Smart Switch
TP-Link Omada Pro S4500-8G 8-Port Gigabit Smart Switch
The TP-Link Omada Pro S4500-8G is an 8-port Gigabit Smart Switch designed for enterprise access-layer networking. It supports Omada Pro SDN, centralized cloud and standalone management, static routing, and flexible desktop or wall mounting.
S4500-8G Omada Pro
8-Port Gigabit Smart Switch | Fanless design with advanced L2+ features — Detailed technical specifications
Hardware Features
Standards & Protocols
IEEE 802.3i, 802.3u, 802.3ab, 802.3ad, 802.3x, 802.1d, 802.1s, 802.1w, 802.1q, 802.1p, 802.1x
Interface

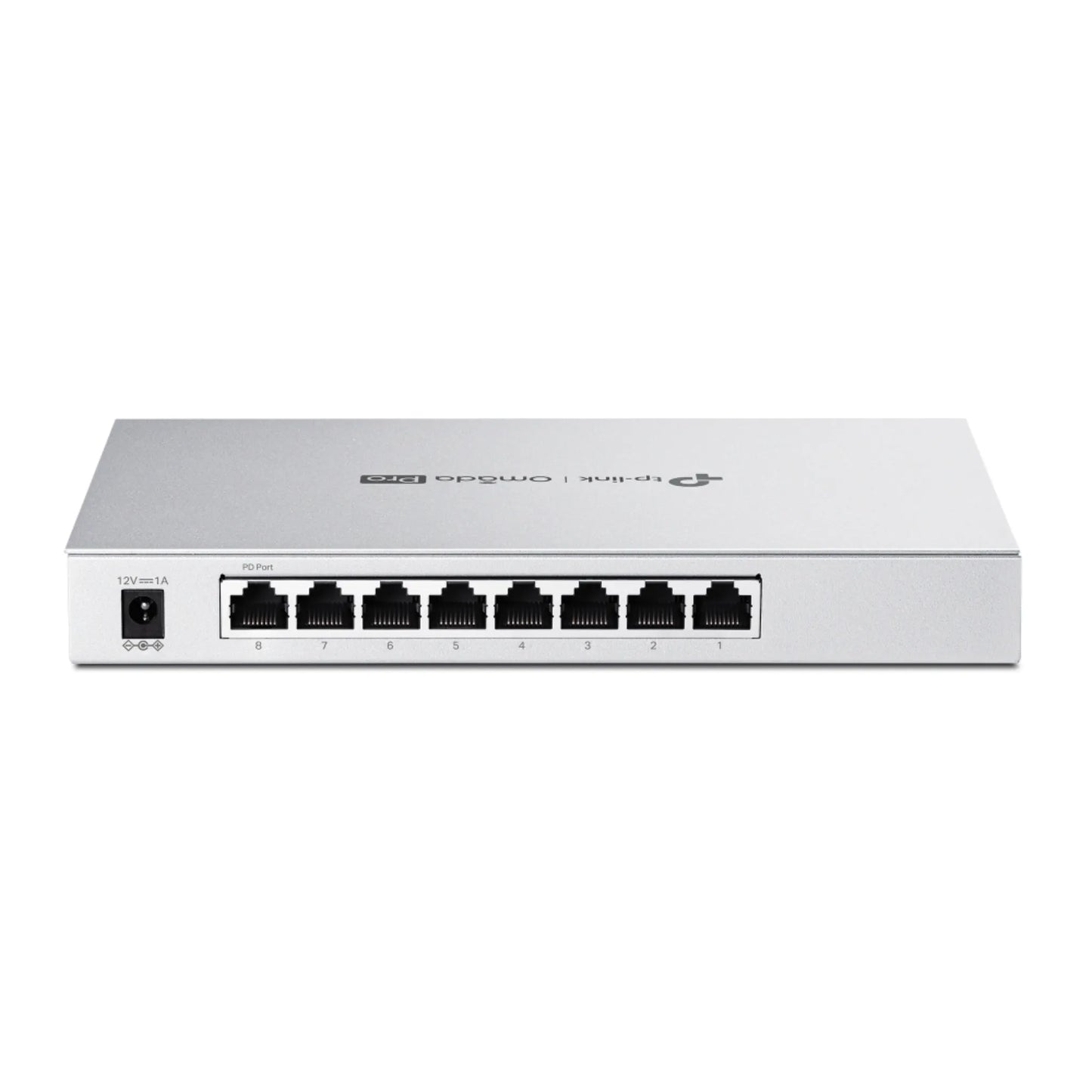

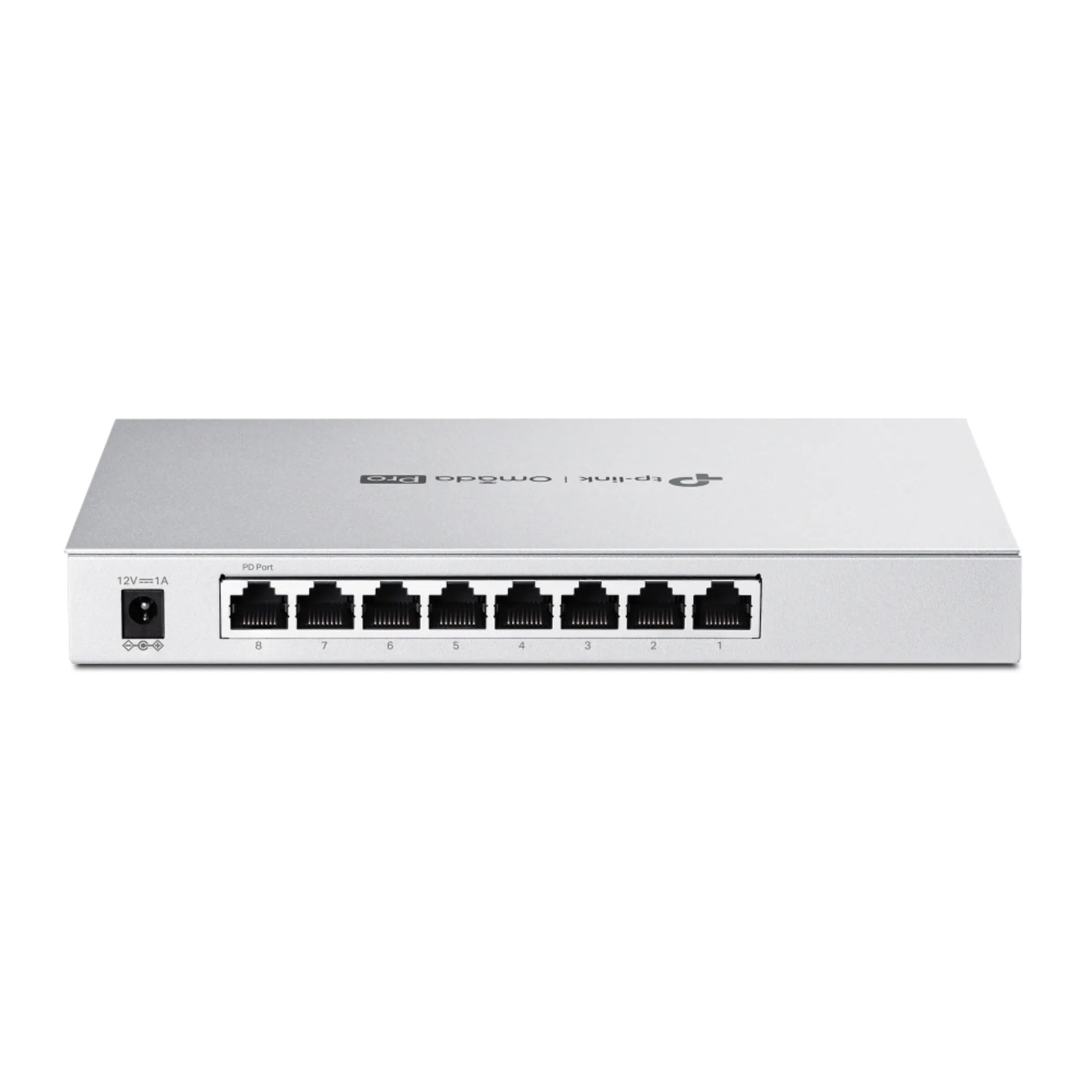

8× 10/100/1000 Mbps RJ45 Ports · Auto-Negotiation/Auto MDI/MDIX
Network Media
10BASE-T: Cat3/4/5 (100m) · 100BASE-TX/1000Base-T: Cat5/5e or above (100m)
Fan Quantity
Fanless
Physical Security Lock
Yes
Power Supply
External Power Adapter (12 VDC / 1 A)
Dimensions (W x D x H)
8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Mounting

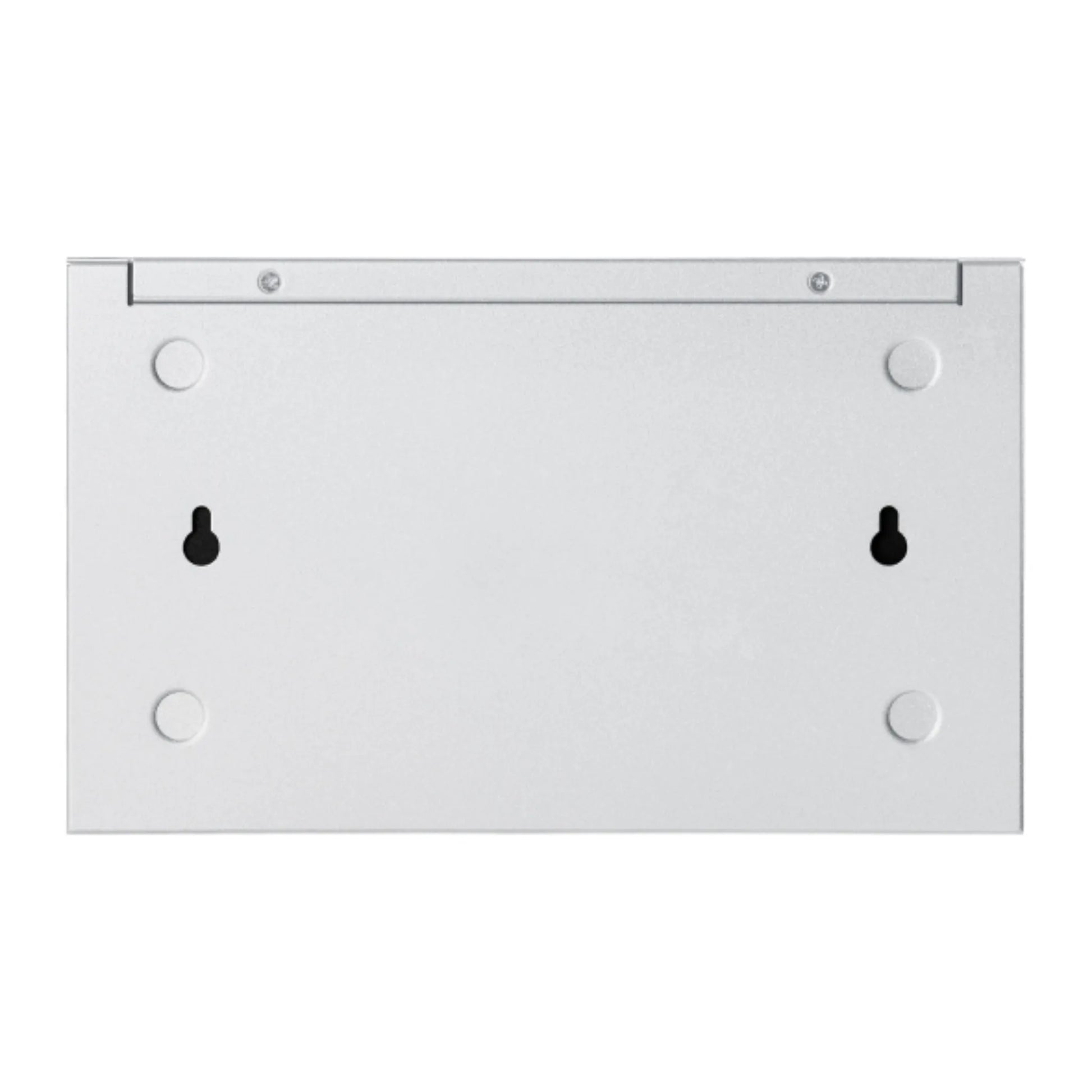

Desktop / Wall-Mounting
Max. Power Consumption
6.4 W (220 V/50 Hz)
Max. Heat Dissipation
21.84 BTU/hr (220 V/50 Hz)
Performance
Switching Capacity
16 Gbps
Packet Forwarding Rate
11.90 Mpps
MAC Address Table
8K
Packet Buffer Memory
4.1 Mbit
Jumbo Frame
9 KB
Software Features
Quality of Service
802.1p CoS/DSCP · 8 priority queues · SP/WRR · Queue Weight · Bandwidth Control · Storm Control
L2 & L2+ Features
16 IP Interfaces · Static Routing (32 routes) · DHCP Server/Relay · Static ARP · Proxy ARP · Link Aggregation (LACP) · STP/RSTP/MSTP · Loopback Detection · Flow Control · Mirroring · DLDP
Advanced Features
Intelligent Anomaly Detection · Auto Discovery · Batch Config/Firmware · Network Monitoring · Event Warnings · Unified Config · Reboot Schedule
VLAN
4K VLAN Groups · 802.1Q tag VLAN · MAC VLAN (12 entries) · Protocol VLAN · GVRP · Voice VLAN · OUI-based VLAN
Access Control List
230 entries · Time-Range · MAC ACL · IP ACL · IPv6 ACL · Combined ACL · Permit/Deny · Mirror/Rate Limit/Redirect/QoS Remark
Security
AAA · 802.1X · IP/IPv6-MAC Binding (512 entries) · DHCP Snooping · ARP Inspection · IP Source Guard · DoS Defend · Port Security (64 MACs/port) · Storm Control · Port Isolation · HTTPS/SSL · SSH · Access Control
IPv6
IPv6 Static Routing/ACL · Dual Stack · MLD Snooping · ND · ICMPv6 · DHCPv6 Client · Ping6/Tracert6 · IPv6 SNMP/SSH/SSL/HTTP/TFTP
MIBs
MIB II · Bridge MIB · P/Q-Bridge MIB · Radius Accounting/Authentication MIB · TP-Link private MIBs · RMON (1,2,3,9)
Management Features
Omada App
Yes (through Omada Pro Controller)
Centralized Management
Omada Pro Cloud-Based Controller · Omada Pro Software Controller
Cloud Access
Yes (through Omada Pro Controller)
Zero-Touch Provisioning
Yes (requires Omada Pro Cloud-Based Controller)
Management Features
Web GUI · CLI (console/telnet) · SNMPv1/v2c/v3 · RMON · SDM Template · DHCP/BOOTP Client · Dual Image/Config · CPU Monitoring · Cable Diagnostics · EEE · SNTP · System Log · Remote Packet Capture
Others
Certification
CE, FCC, RoHS
Package Content

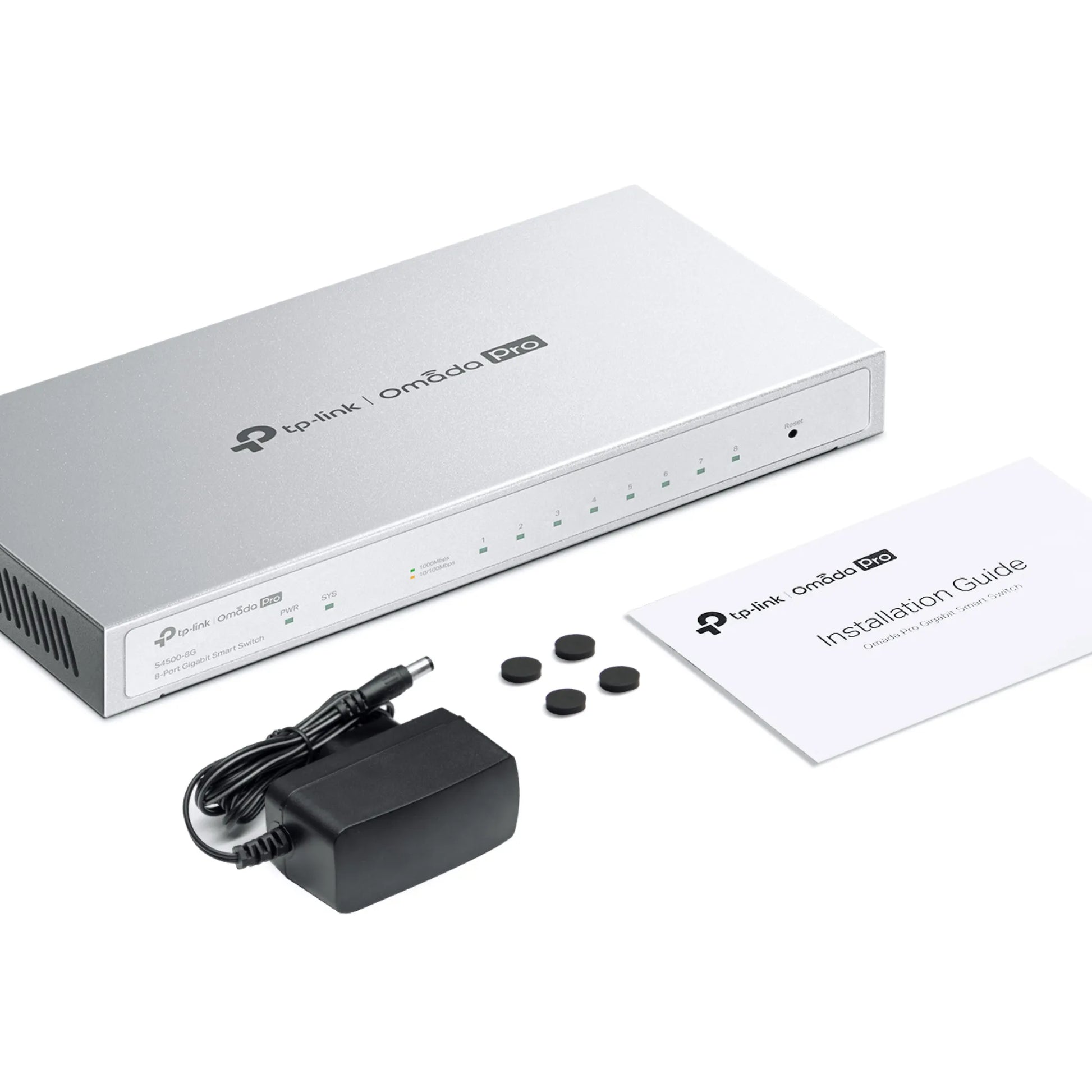

S4500-8G · Power Adapter · Installation Guide · Rubber Feet
System Requirements
Windows XP/Vista/7/8/10/11 · macOS · NetWare · UNIX · Linux
Environment
Operating: 0–40℃ (32–104℉) · Storage: -40–70℃ (-40–158℉) · Humidity: 10–90% RH non-condensing
