TP-Link Omada Pro S4500-8GHP2F 8-Port PoE+ Switch
TP-Link Omada Pro S4500-8GHP2F 8-Port PoE+ Switch

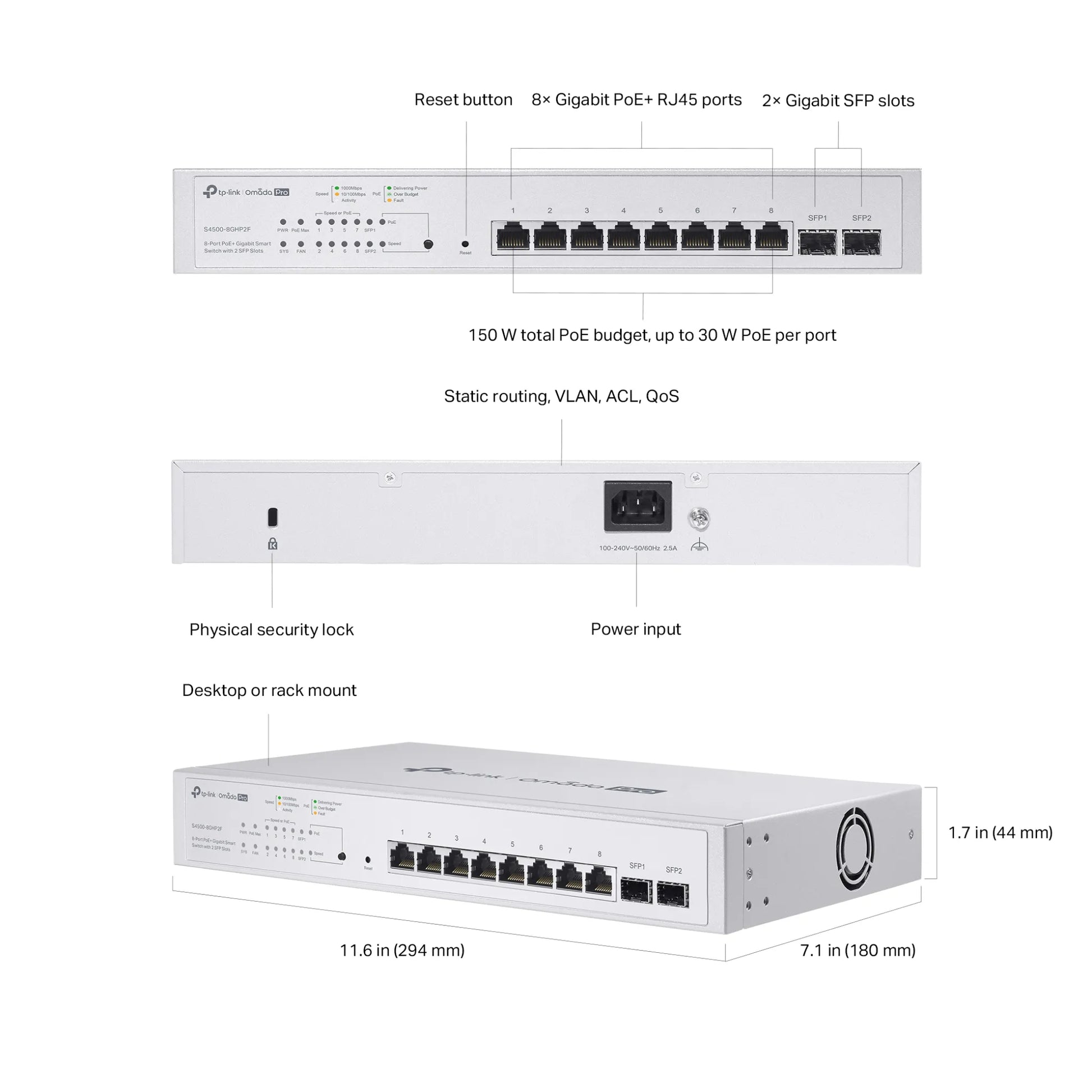

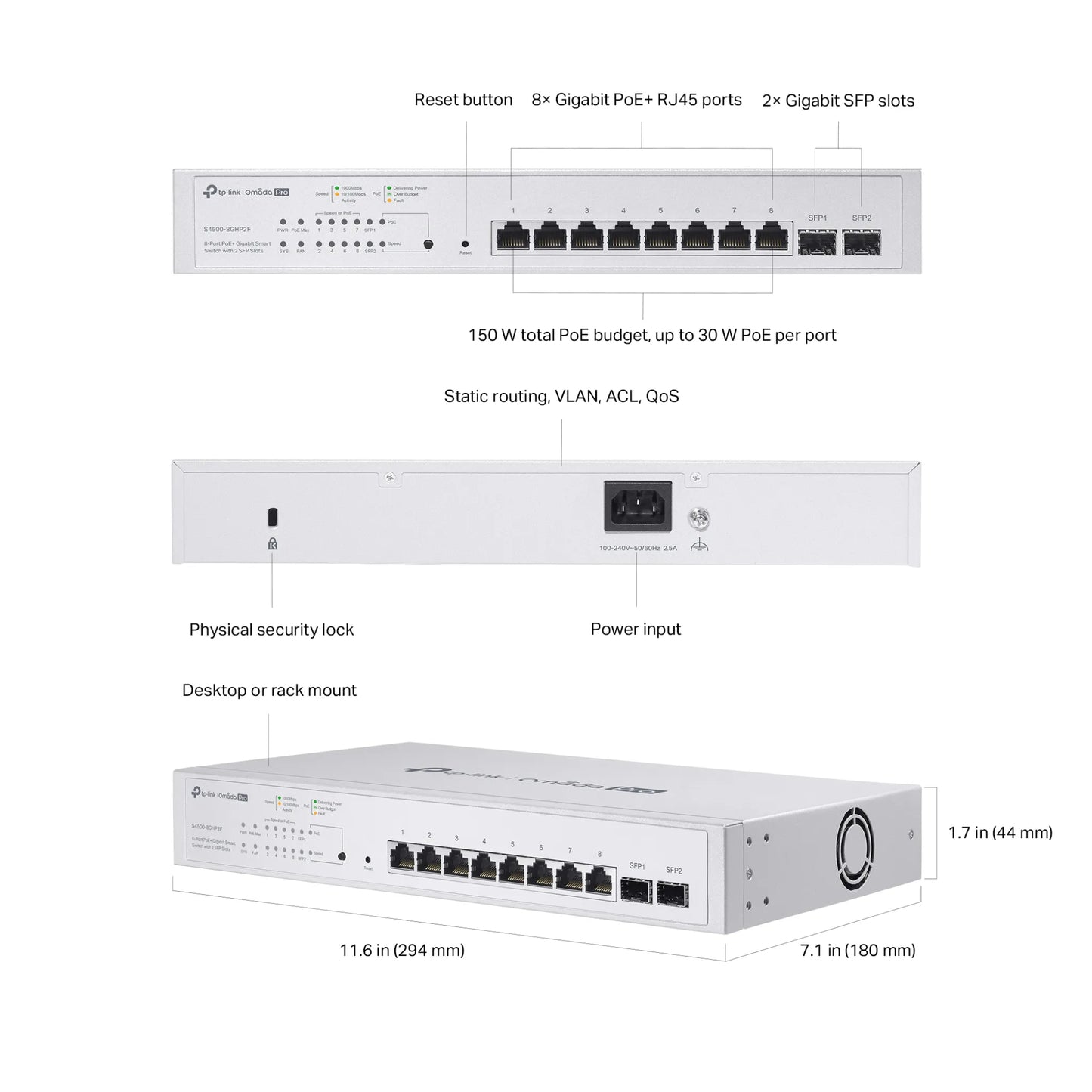

The TP-Link Omada Pro S4500-8GHP2F is an enterprise 8-port Gigabit PoE+ Smart Switch with 2× Gigabit SFP slots and a powerful 150W PoE budget. It delivers up to 30W PoE output per port and supports Omada Pro centralized cloud management, static routing, Web GUI, CLI, SNMP, RMON, and flexible desktop or rack mounting.
S4500-8GHP2F
Omada Pro 8-Port PoE+ Gigabit Smart Switch with 2 SFP Slots | 150W PoE Budget · Rackmount · Advanced L2+ Security
Hardware Features
Interface
8× 10/100/1000 Mbps PoE+ RJ45 Ports · 2× 100/1000 Mbps SFP Slots
Fan Quantity
1
Physical Security Lock
✓
Power Supply
100-240V AC, 50/60Hz
PoE Ports / Budget
8× PoE+ Ports (802.3at/af) · 150W PoE Budget*
Dimensions (W x D x H)
11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)
Mounting
Rackmount / Desktop
Max. Power Consumption
174.2 W (110V/60Hz with 150W PD)
Max. Heat Dissipation
594.46 BTU/hr (110V/60Hz with 150W PD)
Performance
Switching Capacity
20 Gbps
Packet Forwarding Rate
14.9 Mpps
MAC Address Table
8K
Packet Buffer Memory
4.1 Mbit
Jumbo Frame
9 KB
QoS & L2 Features
Quality of Service
802.1p CoS/DSCP · 8 Queues · SP/WRR · Bandwidth Control · Storm Control
L2 & L2+ Features
16 IP Interfaces · Static Routing (32 IPv4/IPv6) · DHCP Server/Relay · Link Aggregation · STP/RSTP/MSTP · Loopback Detection · Flow Control · Mirroring · DLDP · LLDP/LLDP-MED
L2 Multicast
511 IPv4/IPv6 Groups · IGMP Snooping · MVR · Multicast Filtering · Limited IP Multicast
VLAN
4K VLAN Groups · 802.1Q Tag · MAC VLAN (12) · Protocol VLAN · GVRP · Voice VLAN
Advanced Features†
Intelligent Anomaly Detection · Auto Discovery · Batch Config/Upgrade · Network Monitoring · Event Warnings · Reboot Schedule
ACL & Security
Access Control List (ACL)
230 Entries · Time-based · MAC/IP/IPv6 ACL · Combined ACL · Permit/Deny · Mirror/Redirect/Rate Limit/QoS Remark · Port/VLAN Binding
Security
IP-MAC-Port Binding · AAA · 802.1X (Port/MAC-based) · PAP/EAP-MD5 · MAB · Guest VLAN · RADIUS · IP/IPv6-MAC Binding (512) · DHCP Snooping · ARP Inspection · ND Detection · IP Source Guard (253) · IPv6 Source Guard (183) · DoS Defend · Port Security (64 MACs/port) · Storm Control · Port Isolation · HTTPS/SSL · SSHv1/v2 · IP/Port/MAC Access Control
IPv6 & Management
IPv6 Features
IPv6 Static Routing/ACL · Dual IPv4/IPv6 · MLD Snooping · ND · MTU Discovery · ICMPv6 · DHCPv6 Client · IPv6 Applications (Ping/Telnet/SSH/SSL/HTTP/HTTPS/TFTP)
MIBs
MIB II (RFC1213) · Bridge MIB · P/Q-Bridge MIB · RADIUS MIBs · Remote Ping/Traceroute MIB · TP-Link Private MIBs · RMON (1,2,3,9)
Management Features
Omada App & Controller
Omada App · Omada Pro Cloud/Software Controller · Cloud Access · Zero-Touch Provisioning†
Management Interfaces
Web GUI · CLI (Telnet) · SNMPv1/v2c/v3 · RMON · SDM Template · DHCP/BOOTP · Dual Image/Config · CPU Monitoring · Cable Diagnostics · EEE · SNTP · System Log · Remote Packet Capture
Others
Certification
CE, FCC, RoHS
Package Content
S4500-8GHP2F · Power Cord · Installation Guide · Rackmount Kit · Rubber Feet
System Requirements
Windows 98SE/NT/2000/XP/Vista/7/8/10/11 · macOS · NetWare · UNIX · Linux
Environment
Operating: 0–50°C (32–122°F) · Storage: -40–70°C (-40–158°F) · Humidity: 10–90% RH non-condensing
