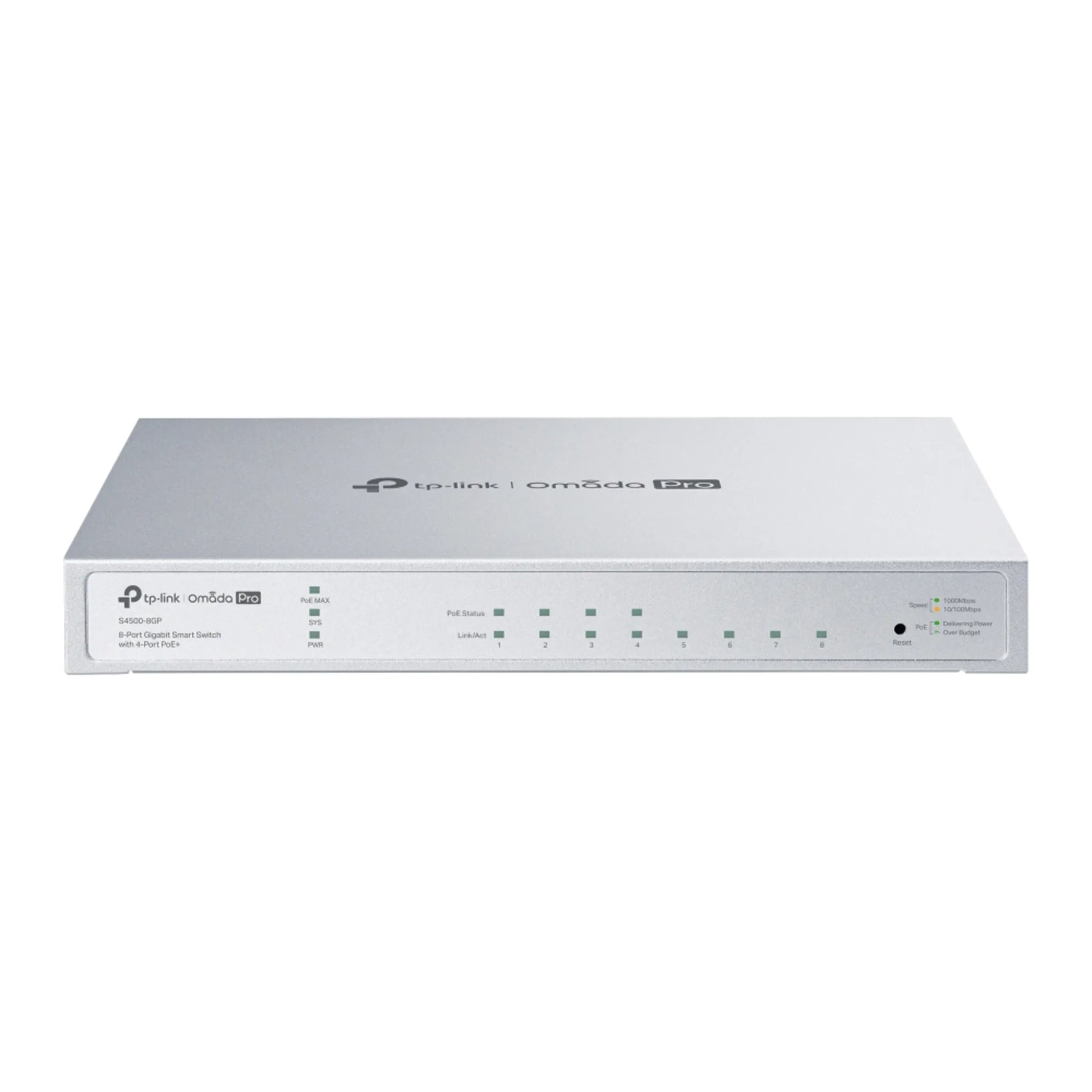

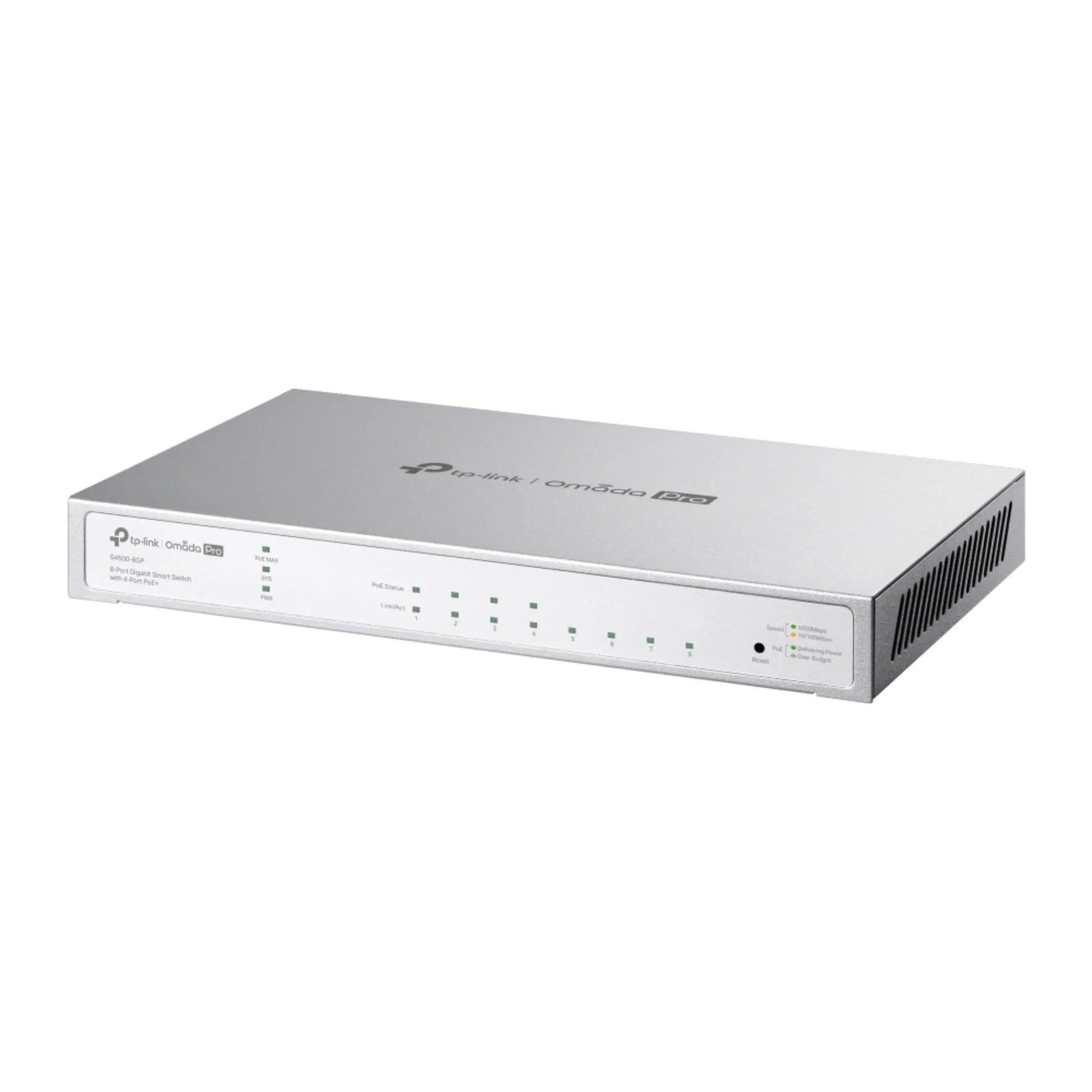

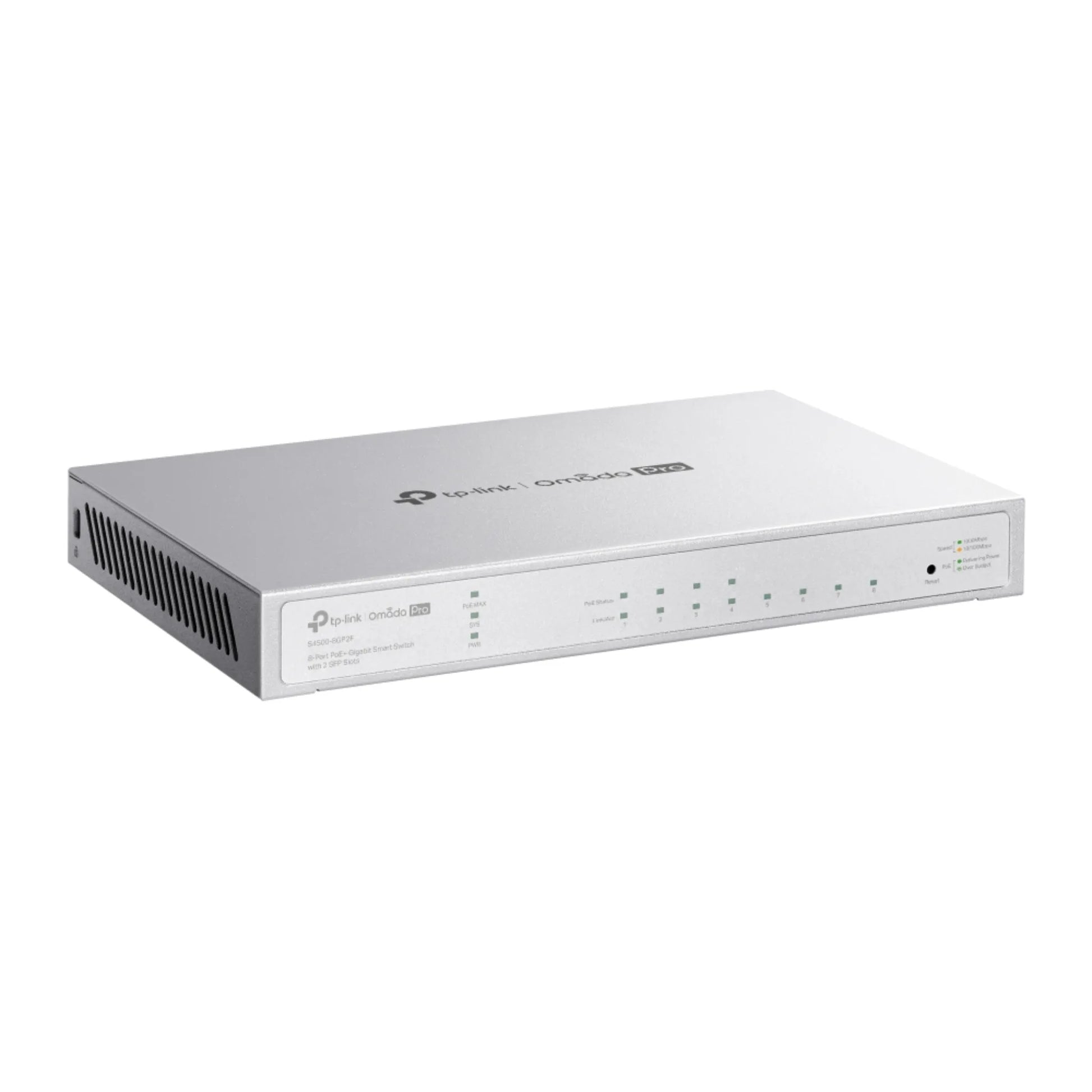

TP-Link Omada Pro S4500-8GP 8-Port Gigabit PoE+ Switch
TP-Link Omada Pro S4500-8GP 8-Port Gigabit PoE+ Switch
The TP-Link Omada Pro S4500-8GP is an 8-port Gigabit Smart Switch featuring 4× PoE+ ports with a 62W PoE budget and 4× non-PoE Gigabit ports. Designed for professional and enterprise networks, it supports Omada Pro centralized cloud management, Zero-Touch Provisioning, static routing, VLAN, QoS, IGMP Snooping, advanced security features, CLI, Web GUI, and SNMP management.
S4500-8GP
Omada Pro 8-Port Gigabit Smart Switch with 4-Port PoE+ | Enterprise-grade L2+ managed switch — Detailed technical specifications
Hardware Features
Standards & Protocols
IEEE 802.3i, 802.3u, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3x, 802.1d, 802.1s, 802.1w, 802.1q, 802.1p, 802.1x
Interface

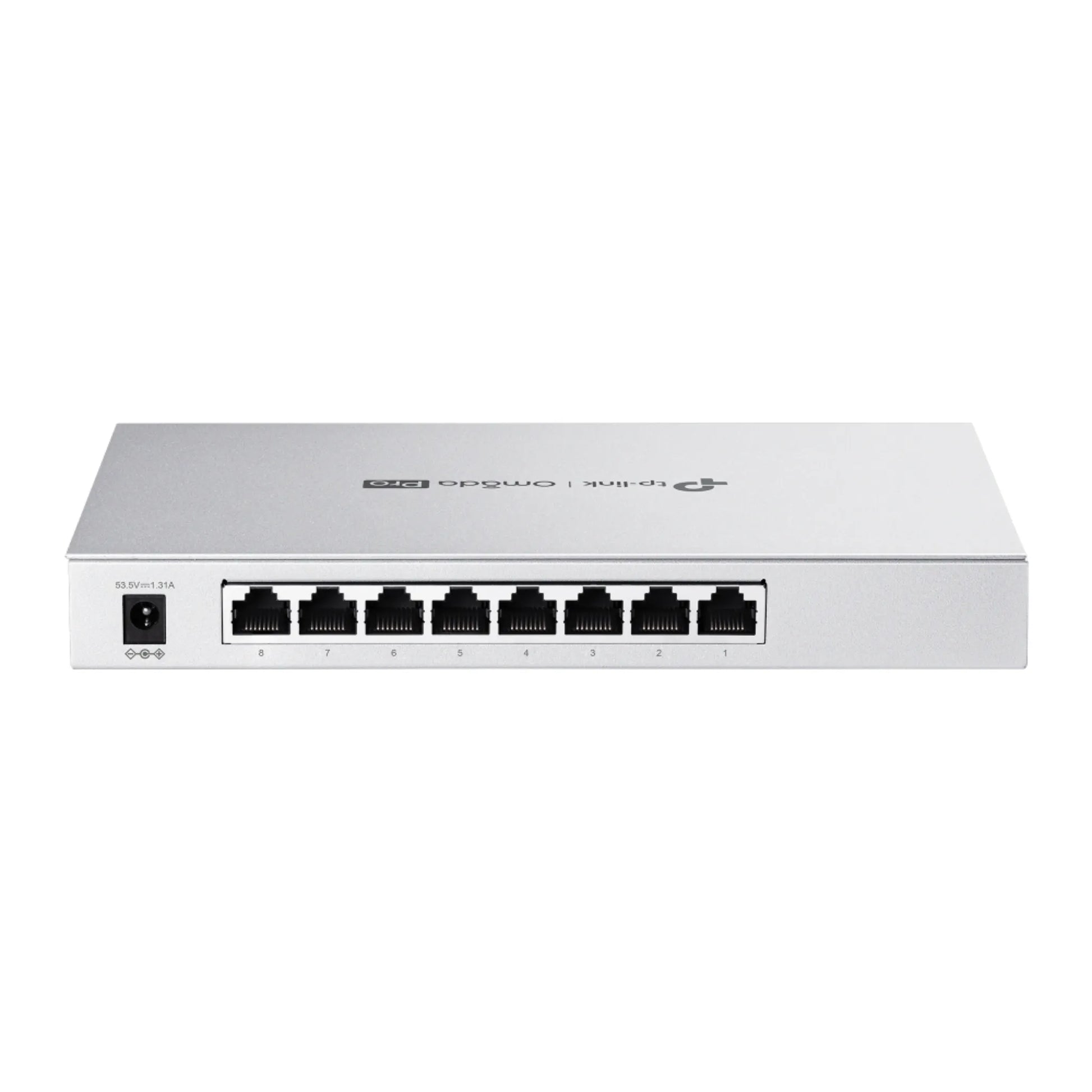

8x 10/100/1000 Mbps RJ45 (Ports 1–4 support 802.3at/af PoE+) · Auto-Negotiation/Auto MDI/MDIX
Network Media
10BASE-T: Cat3/4/5 (100m) · 100BASE-TX/1000Base-T: Cat5/5e+ (100m)
Fan Quantity
Fanless
Power Supply
External Power Adapter (53.5 VDC / 1.31 A)
PoE+ Ports / Budget
4 Ports (802.3at/af) · PoE Power Budget: 62 W
Dimensions (W x D x H)
8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Mounting

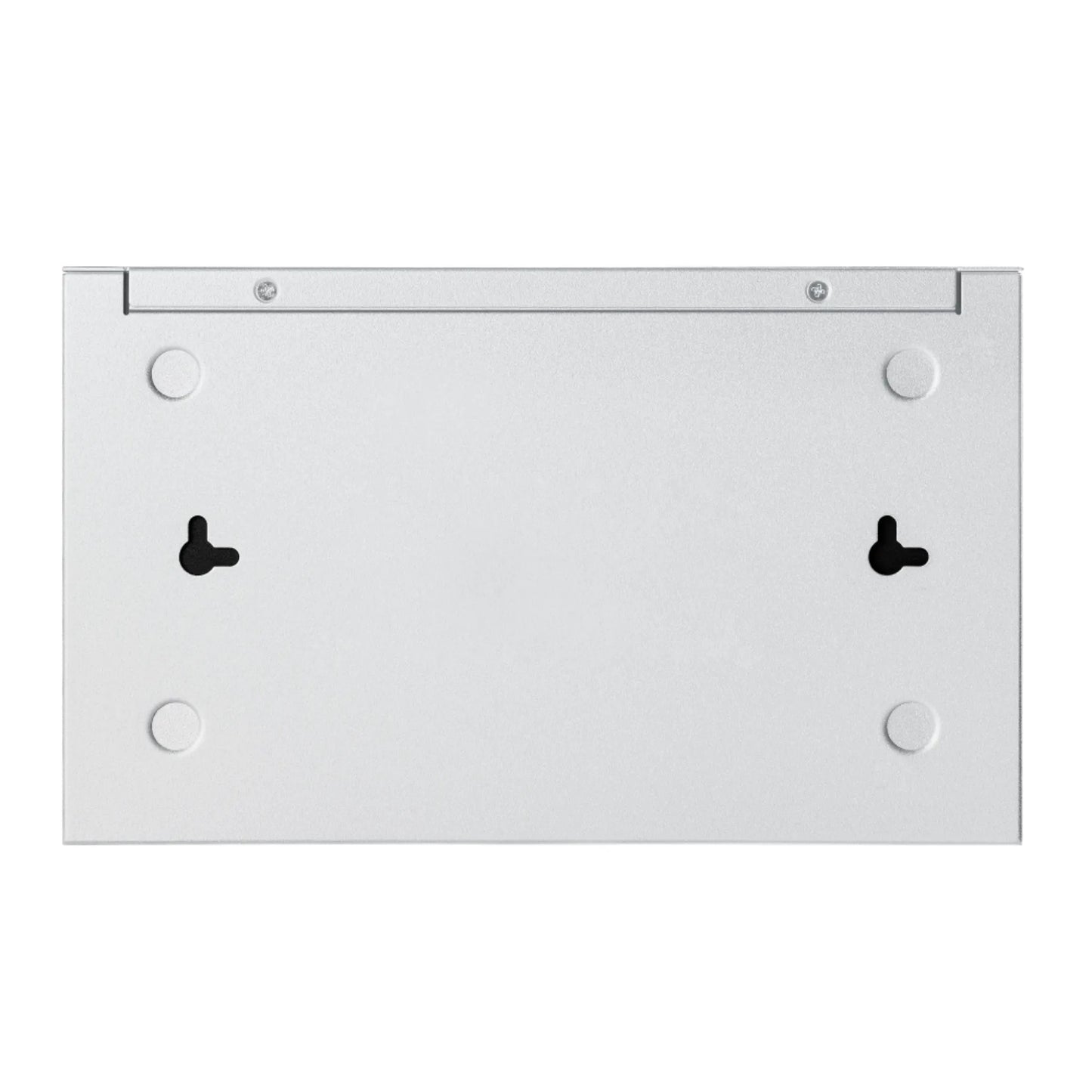

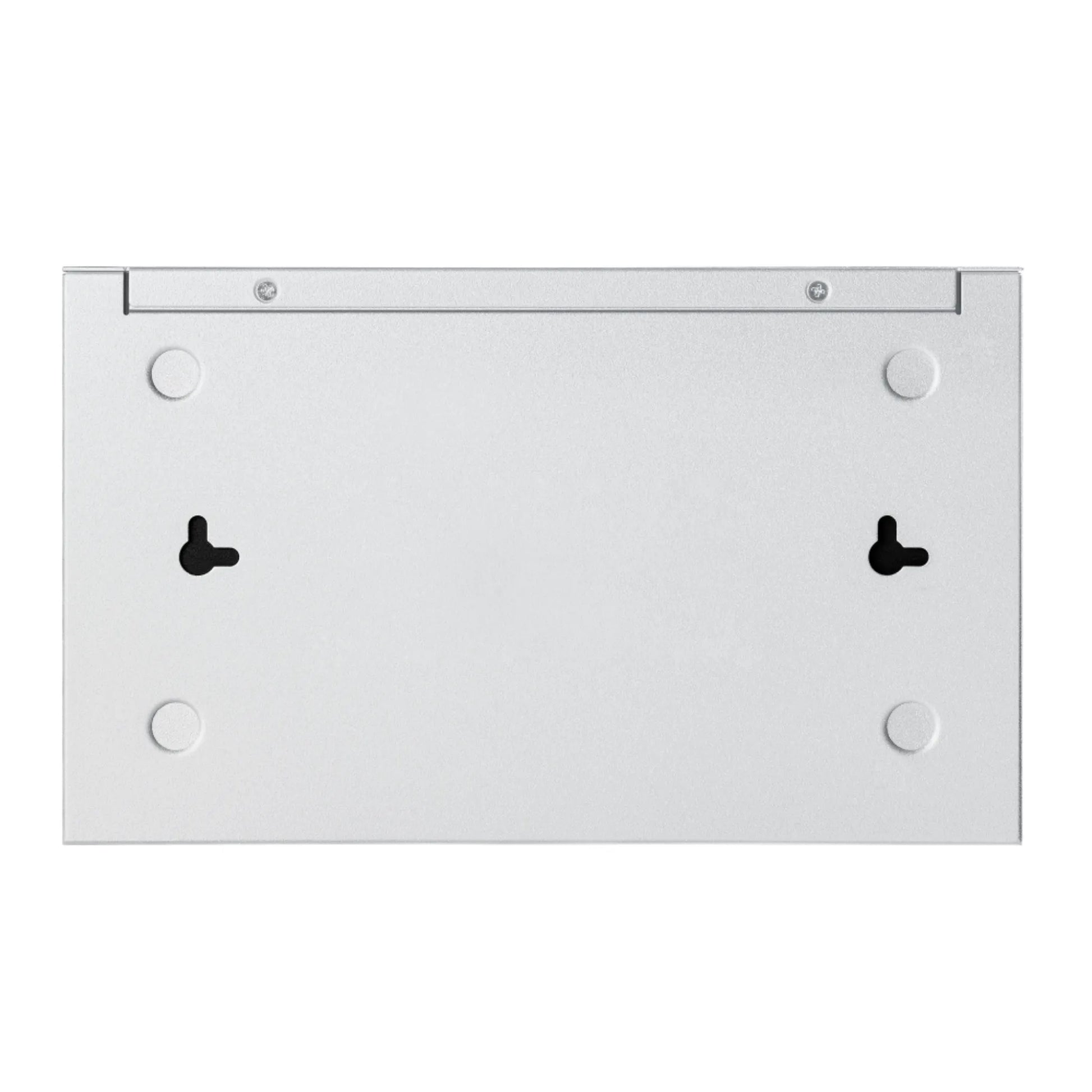

Desktop / Wall-Mounting
Max. Power Consumption
77.3 W (110V/60Hz with 62 W PD connected)
Max. Heat Dissipation
263.6 BTU/h (110V/60Hz with 62 W PD connected)
Performance
Switching Capacity
16 Gbps
Packet Forwarding Rate
11.90 Mpps
MAC Address Table
8K
Packet Buffer Memory
4.1 Mbit
Jumbo Frame
9 KB
Quality of Service (QoS)
Priority & Queues
802.1p CoS/DSCP · 8 priority queues · SP/WRR scheduling · Queue Weight Config
Bandwidth Control
Port/Flow based Rating Limit · Smoother Performance
Storm Control
Multiple Control Modes (kbps/ratio) · Broadcast/Multicast/Unknown-Unicast
L2 & L2+ Features
IP Interfaces
16 IP Interfaces (IPv4/IPv6)
Static Routing
32 IPv4/IPv6 Static Routes
DHCP Services
DHCP Server · DHCP Relay (Interface/VLAN) · DHCP L2 Relay
ARP
Static ARP · Proxy ARP · Gratuitous ARP
Link Aggregation
Static · 802.3ad LACP · Up to 8 groups, 8 ports/group
Spanning Tree Protocol
802.1D STP · 802.1w RSTP · 802.1s MSTP · STP Security (TC Protect, BPDU Filter/Protect, Root Protect)
Loopback Detection
Yes
Mirroring
Port Mirroring · CPU Mirroring · One-to-One · Many-to-One · Flow-Based · Ingress/Egress/Both
DLDP
Device Link Detect Protocol
Advanced Features
Intelligent Anomaly Detection
Yes (requires Omada Pro Controller)
Auto Discovery
Automatic Device Discovery
Batch Configuration
Batch Config · Batch Firmware Upgrading
Network Monitoring
Intelligent Network Monitoring · Abnormal Event Warnings
Reboot Schedule
Yes
VLAN
VLAN Groups
Max. 4K VLAN Groups · 802.1Q tag VLAN
VLAN Types
MAC VLAN (12 Entries) · Protocol VLAN · GVRP · Voice VLAN · OUI-based VLAN
Access Control List (ACL)
ACL Entries
Support up to 230 entries
Time-Range
Time Slice · Week Time-Range · Absolute Time-Range · Holiday
ACL Types
MAC ACL · IP ACL · IPv6 ACL · Combined ACL
Policy Actions
Permit/Deny · Mirror · Rate Limit · Redirect · QoS Remark
ACL Binding
Port Binding · VLAN Binding
Security
AAA / 802.1X
AAA · 802.1X (Port/MAC based) · PAP/EAP-MD5 · MAB · Guest VLAN · RADIUS
IP-MAC Binding
512 Entries · DHCP Snooping · DHCPv6 Snooping · ARP Inspection · ND Detection
IP Source Guard
253 Entries (IPv4) · 183 Entries (IPv6) · Source IP+Source MAC
DoS Defend
Yes
Port Security
Static/Dynamic/Permanent · Up to 64 MACs per port
Secure Management
HTTPS (SSLv3/TLS 1.2) · SSHv1/SSHv2 · IP/Port/MAC based access control
IPv6
IPv6 Features
IPv6 Static Routing · Dual IPv4/IPv6 · IPv6 Interface · MLD Snooping · ND · MTU Discovery · ICMPv6 · TCPv6/UDPv6
IPv6 Applications
DHCPv6 Client · Ping6 · Tracert6 · Telnet(v6) · IPv6 SNMP · IPv6 SSH · IPv6 SSL · Http/Https · IPv6 TFTP
Management Features
Omada App
Yes (through Omada Pro Controller)
Centralized Management
Omada Pro Cloud-Based Controller · Omada Pro Software Controller
Zero-Touch Provisioning
Yes (requires Omada Pro Cloud-Based Controller)
Management Interfaces
Web-based GUI · CLI (console/telnet) · SNMPv1/v2c/v3 · RMON · SDM Template · DHCP/BOOTP Client
MIBs Support
MIB II (RFC1213) · Bridge MIB · P/Q-Bridge MIB · Radius MIBs · TP-Link Private MIBs · RMON (1,2,3,9)
Maintenance
Dual Image/Config · CPU Monitoring · Cable Diagnostics · EEE · SNTP · System Log · Remote Packet Capture
Others
Certification
CE, FCC, RoHS
Package Content
S4500-8GP · Power Cord · Installation Guide · Rubber Feet
System Requirements
Windows XP/Vista/7/8/10/11 · macOS · NetWare · UNIX · Linux
Environment
Operating: 0–40°C · Storage: -40–70°C · Humidity: 10–90% RH non-condensing
