TP-Link Omada Pro S4500-8GP2F 8-Port PoE+ Gigabit Switch
TP-Link Omada Pro S4500-8GP2F 8-Port PoE+ Gigabit Switch

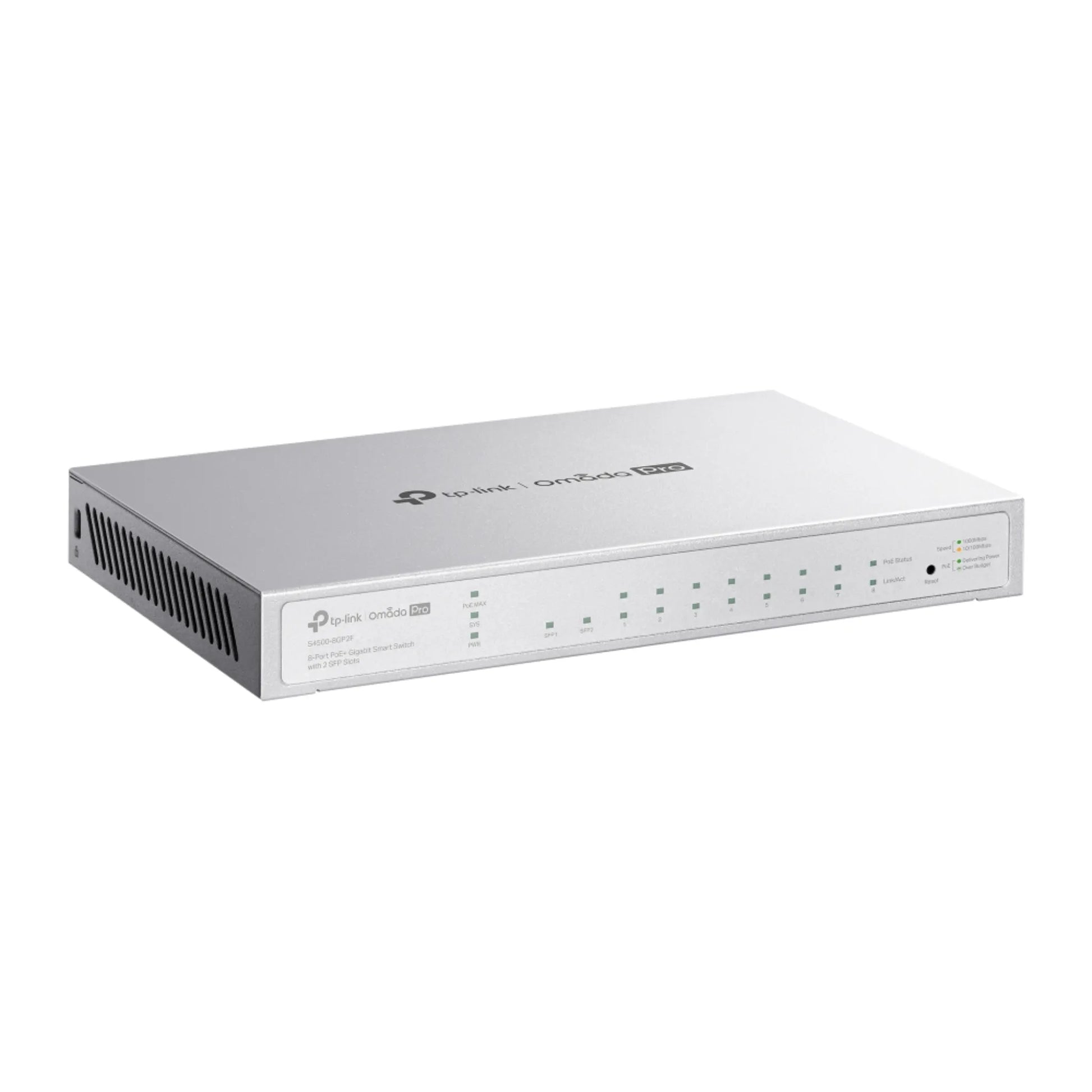

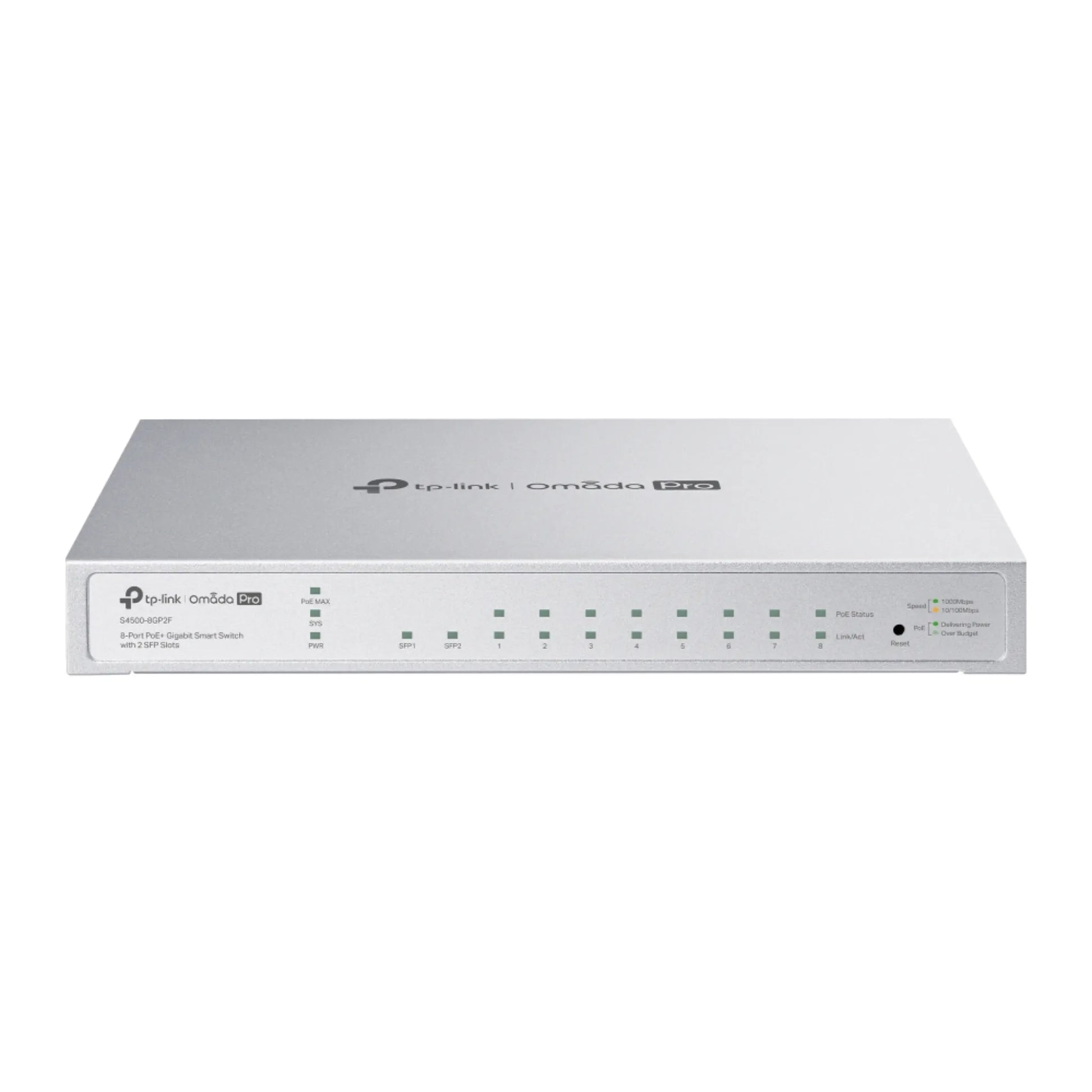

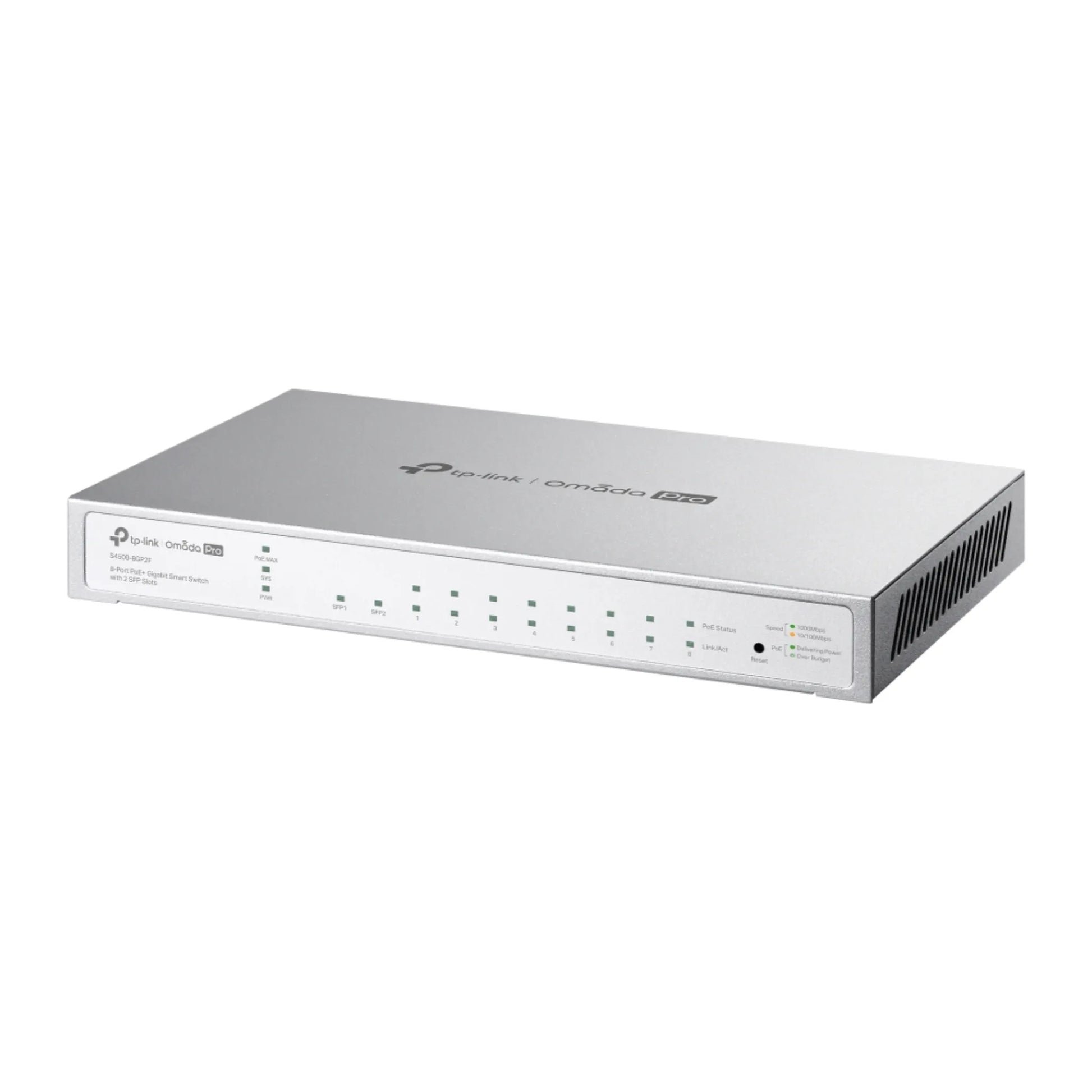

The TP-Link Omada Pro S4500-8GP2F is an 8-port Gigabit PoE+ Smart Switch with 2× Gigabit SFP slots and a 61W PoE budget. Built for professional and enterprise networks, it supports Omada Pro centralized cloud management, Zero-Touch Provisioning, static routing, VLAN, QoS, IGMP Snooping, advanced security features, CLI, Web GUI, and SNMP management.
S4500-8GP2F
Omada Pro 8-Port PoE+ Gigabit Smart Switch with 2 SFP Slots | Fanless · 61W PoE Budget · Advanced L2+ Features
Hardware Features
Standards & Protocols
IEEE 802.3i, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.3az, 802.1d, 802.1s, 802.1w, 802.1q, 802.1p, 802.1x
Interface

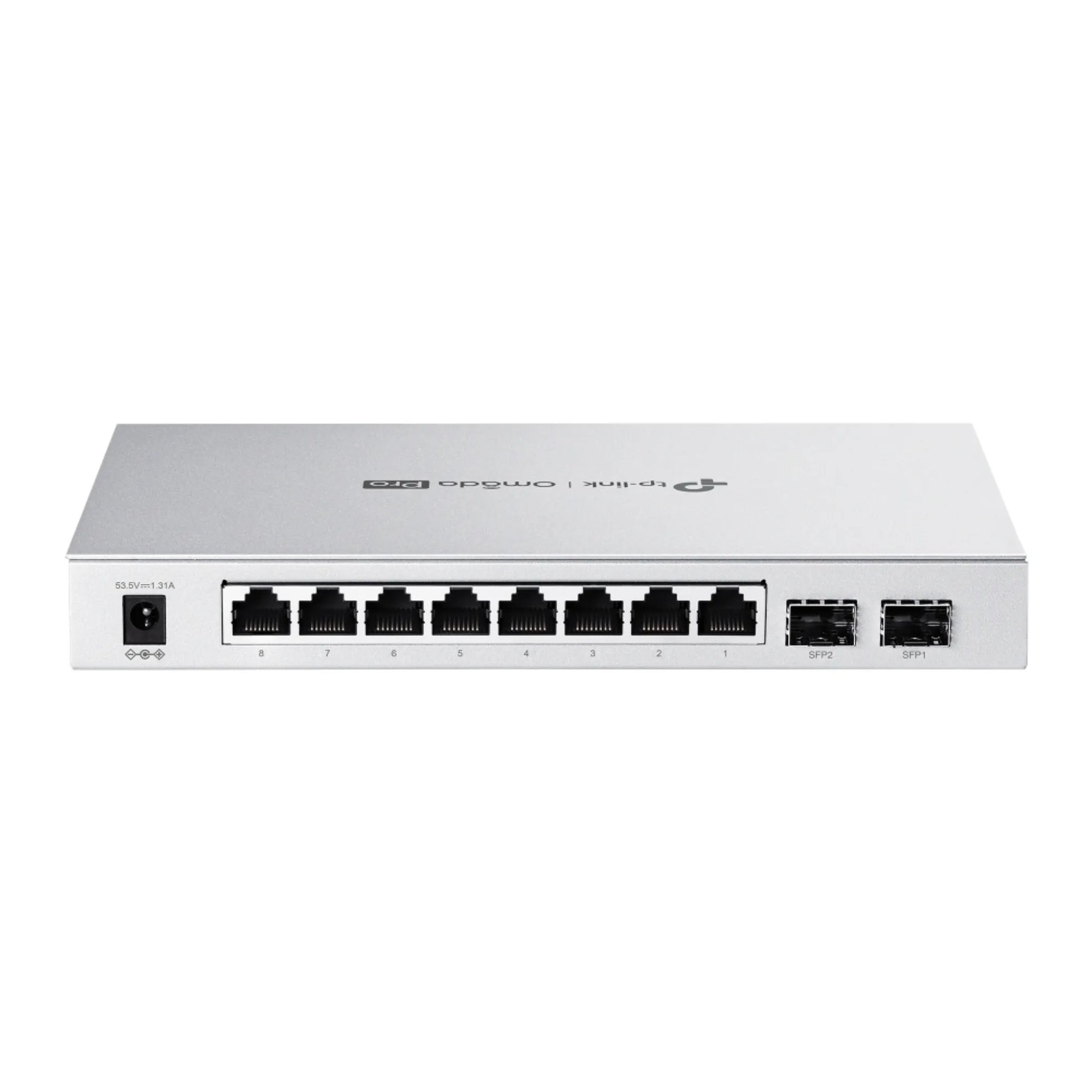

8× 10/100/1000 Mbps RJ45 Ports · 2× Gigabit SFP Slots
Network Media
10BASE-T: Cat3/4/5 (100m) · 100BASE-TX/1000Base-T: Cat5/5e+ (100m) · 1000BASE-X: MMF, SMF
Fan Quantity
Fanless
Power Supply
External Adapter (53.5 VDC / 1.31 A)
PoE Ports / Budget
8× PoE+ Ports (802.3at/af) · 61W PoE Budget*
Dimensions (W x D x H)
8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Mounting

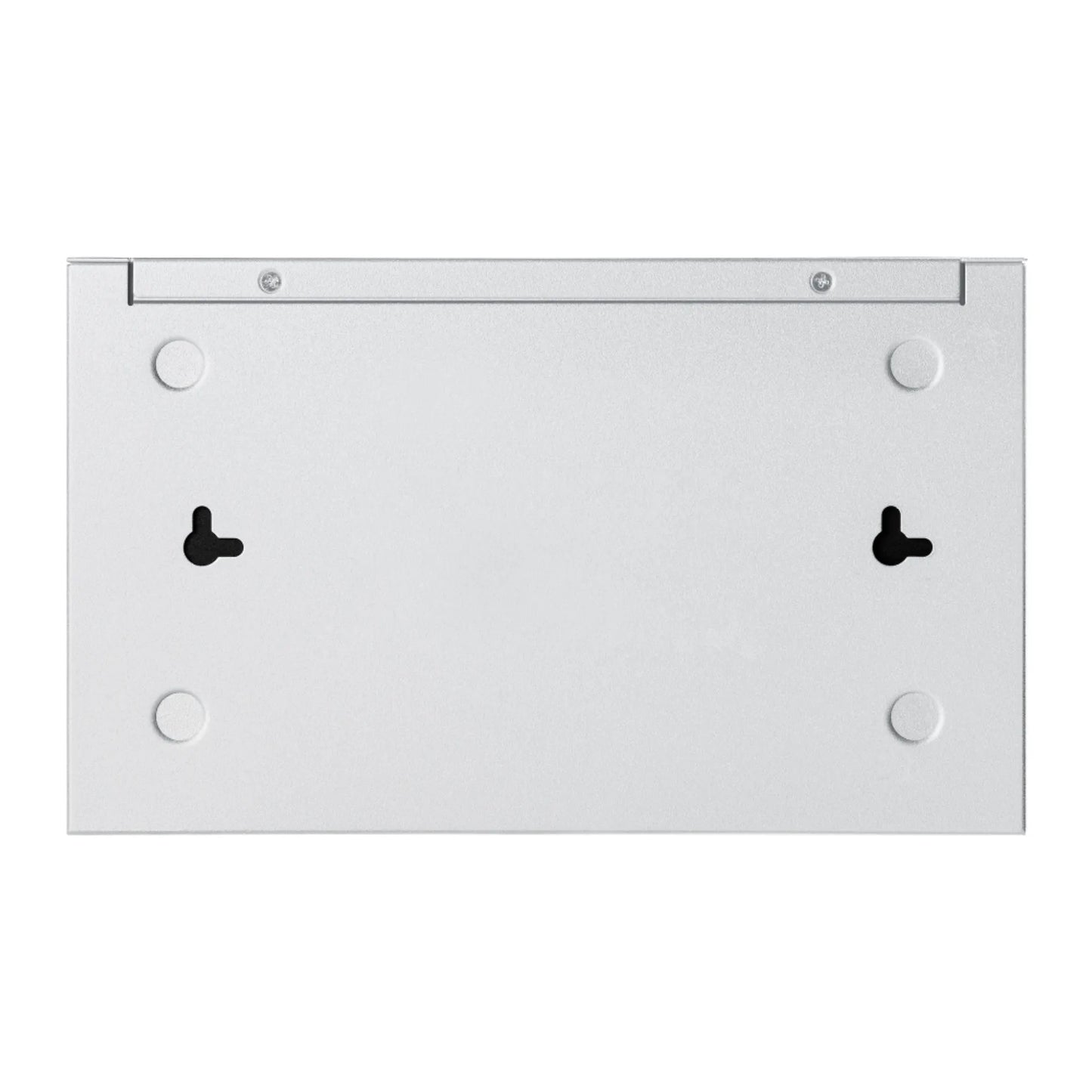

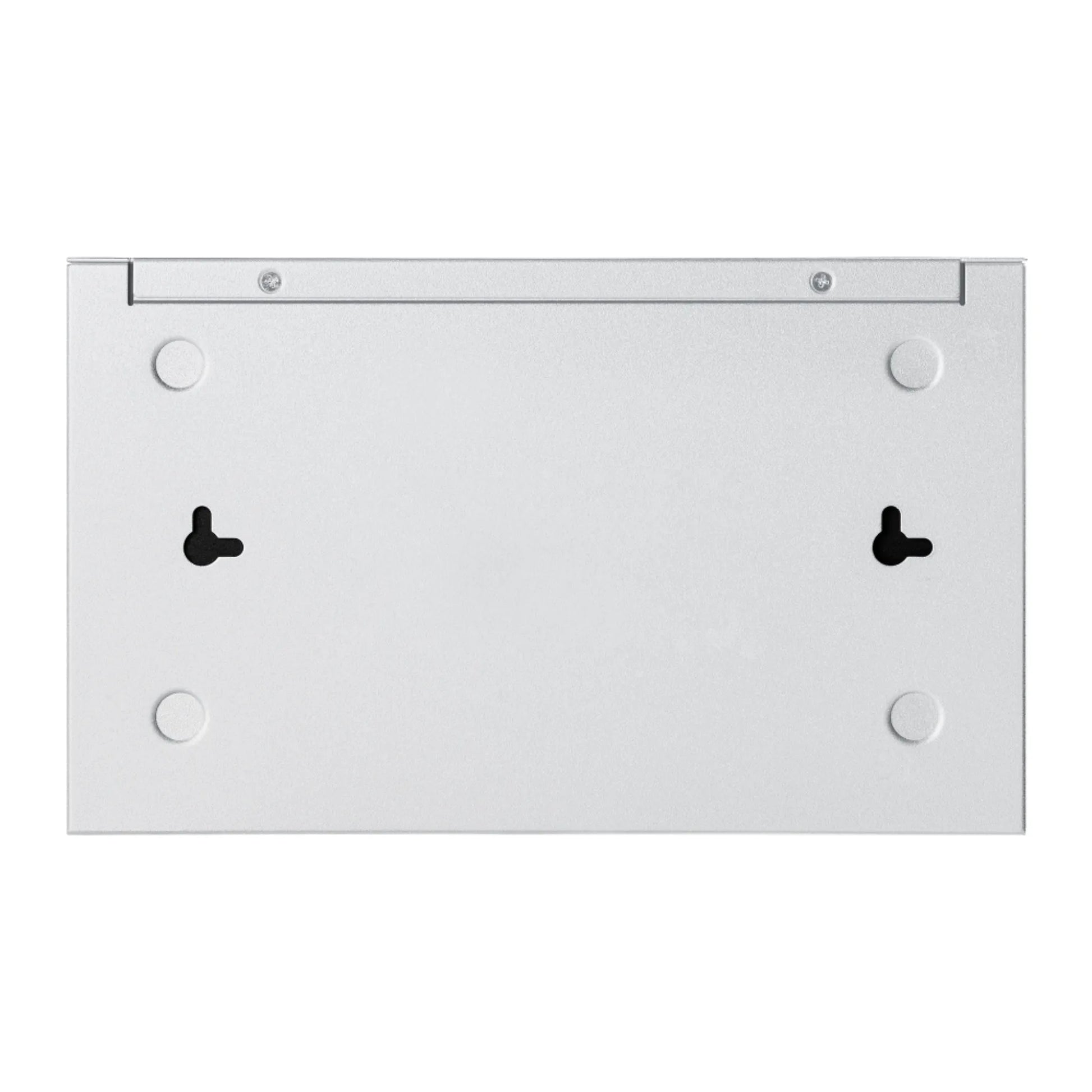

Desktop / Wall-Mounting
Max. Power Consumption
77.8 W (110V/60Hz with 61W PD)
Max. Heat Dissipation
265.3 BTU/h (110V/60Hz with 61W PD)
Performance
Switching Capacity
20 Gbps
Packet Forwarding Rate
14.88 Mpps
MAC Address Table
8K
Packet Buffer Memory
4.1 Mbit
Jumbo Frame
9 KB
QoS & L2 Features
Quality of Service
802.1p CoS/DSCP · 8 Queues · SP/WRR · Bandwidth Control · Storm Control
L2 & L2+ Features
16 IP Interfaces · Static Routing (32 IPv4/IPv6) · DHCP Server/Relay · Link Aggregation (LACP) · STP/RSTP/MSTP · Loopback Detection · Mirroring · DLDP
VLAN
4K VLAN Groups · 802.1Q Tag · MAC VLAN (12) · Protocol VLAN · GVRP · Voice VLAN · OUI-based
Advanced Features & ACL
Advanced Features
Intelligent Anomaly Detection** · Auto Discovery · Batch Config/Upgrade · Network Monitoring · Event Warnings · Reboot Schedule
Access Control List (ACL)
230 Entries · Time-based · MAC/IP/IPv6 ACL · Combined ACL · Permit/Deny · Mirror/Redirect/Rate Limit/QoS Remark · Port/VLAN Binding
Security
AAA & 802.1X
AAA · 802.1X (Port/MAC-based) · PAP/EAP-MD5 · MAB · Guest VLAN · RADIUS
IP-MAC Binding & Security
IP/IPv6-MAC Binding (512) · DHCP Snooping · ARP Inspection · ND Detection · IP Source Guard (253) · IPv6 Source Guard (183) · DoS Defend · DHCP Filter · Port Security (64 MACs/port) · Storm Control · Port Isolation · HTTPS/SSL · SSHv1/v2 · IP/Port/MAC Access Control
IPv6 & Management
IPv6 Features
IPv6 Static Routing/ACL · Dual IPv4/IPv6 · MLD Snooping · ND · MTU Discovery · ICMPv6 · DHCPv6 Client · IPv6 Applications (Ping/Telnet/SSH/SSL/HTTP/HTTPS/TFTP)
MIBs
MIB II (RFC1213) · Bridge MIB · P/Q-Bridge MIB · RADIUS MIBs · Remote Ping/Traceroute MIB · TP-Link Private MIBs · RMON (1,2,3,9)
Management Features
Omada App & Controller
Omada App · Omada Pro Cloud/Software Controller · Cloud Access · Zero-Touch Provisioning
Management Interfaces
Web GUI · CLI (Console/Telnet) · SNMPv1/v2c/v3 · RMON · SDM Template · DHCP/BOOTP · Dual Image/Config · CPU Monitoring · Cable Diagnostics · EEE · SNTP · System Log · Remote Packet Capture
Others
Certification
CE, FCC, RoHS
Package Content
S4500-8GP2F · Power Cord · Installation Guide · Rubber Feet
System Requirements
Windows XP/Vista/7/8/10/11 · macOS · NetWare · UNIX · Linux
Environment
Operating: 0–40°C (32–104°F) · Storage: -40–70°C (-40–158°F) · Humidity: 10–90% RH non-condensing
