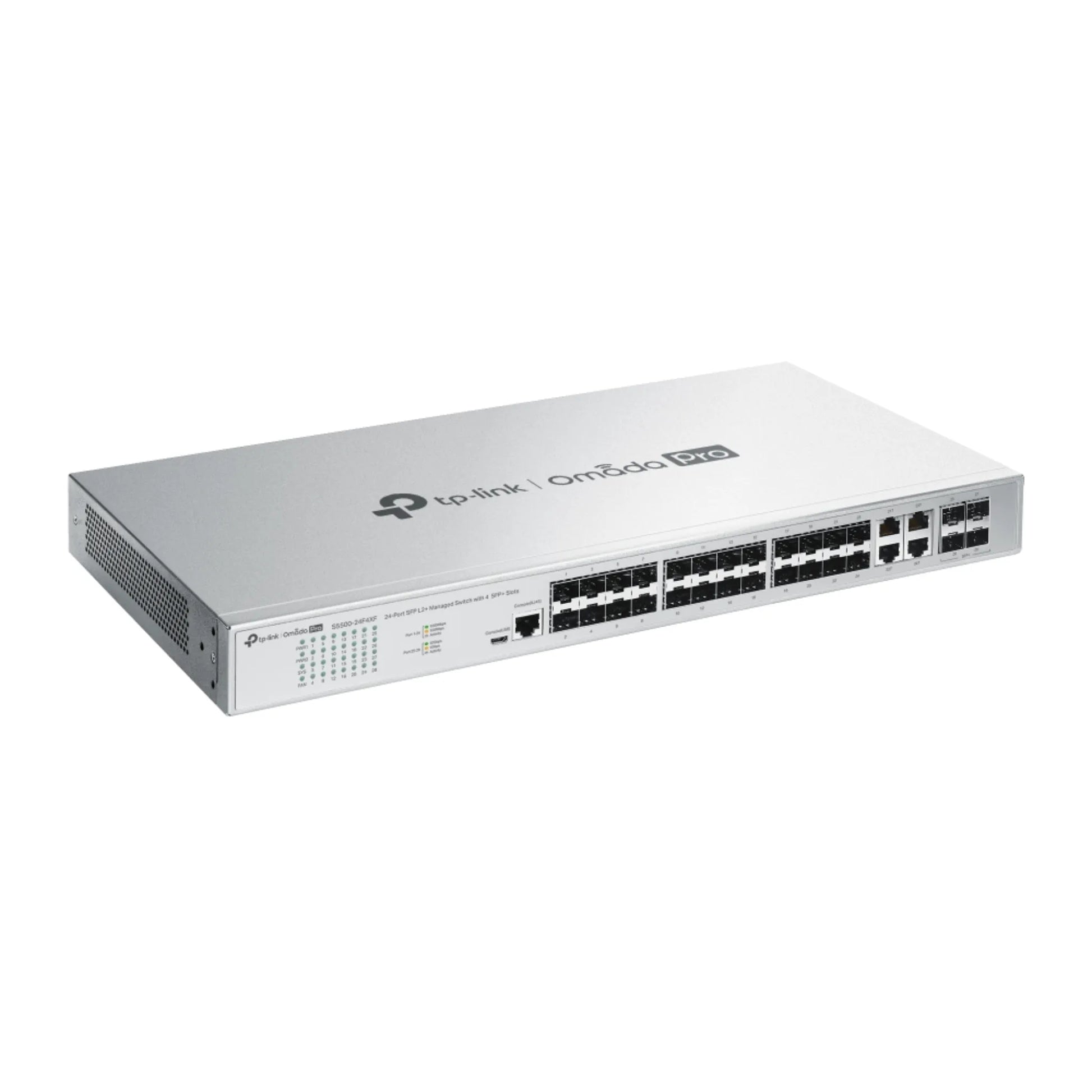

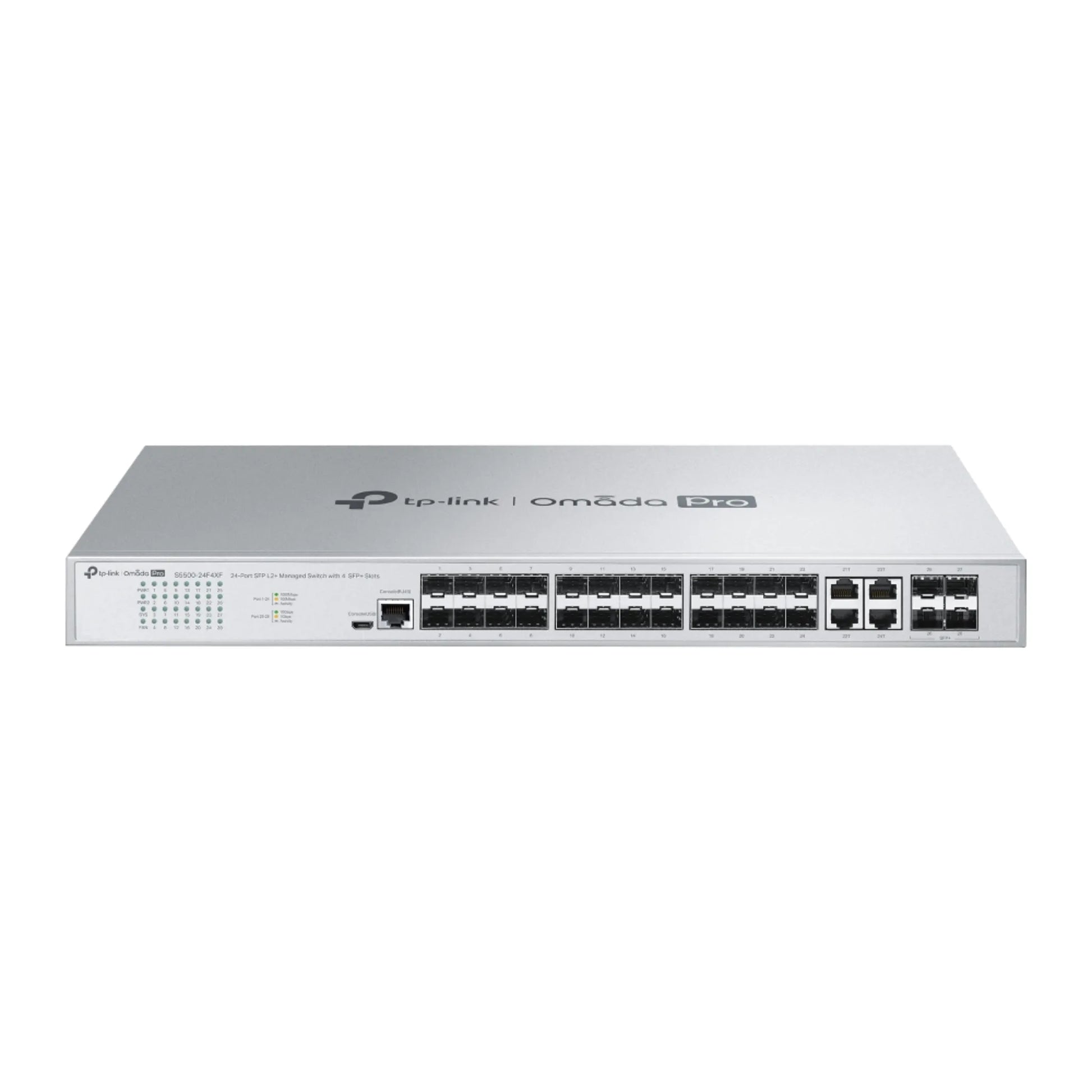

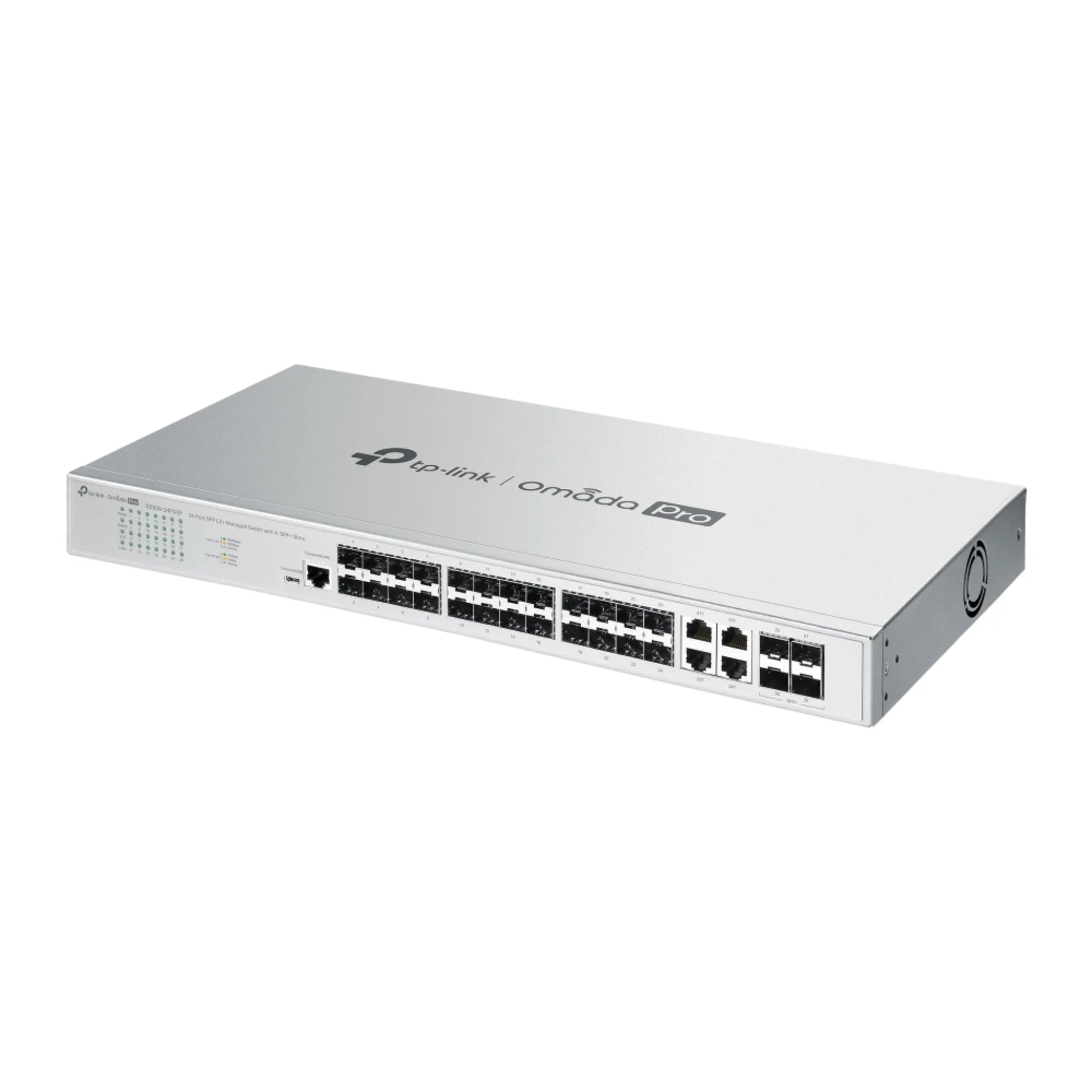

TP-Link Omada Pro S5500-24F4XF 24-Port SFP Managed Switch
TP-Link Omada Pro S5500-24F4XF 24-Port SFP Managed Switch
The TP-Link Omada Pro S5500-24F4XF is an enterprise L2+ Managed Fiber Switch featuring 20× Gigabit SFP ports, 4× Gigabit SFP/RJ45 combo ports, and 4× 10Gbps SFP+ uplink slots. It supports Omada Pro centralized cloud management, Zero-Touch Provisioning (ZTP), ERPS, static routing, VLAN, QoS, IGMP Snooping, advanced network security, CLI, Web GUI, and SNMP management.
S5500-24F4XF
Omada Pro 24-Port SFP L2+ Managed Switch with 4 SFP+ Slots | 128 Gbps · Dual Redundant PSU · Advanced L3 Features
Hardware Features
Interface
20× Gigabit SFP · 4× Gigabit SFP/RJ45 Combo · 4× 10G SFP+ · 1× RJ45 Console · 1× Micro-USB Console
Fan Quantity
1 Fan
Power Supply

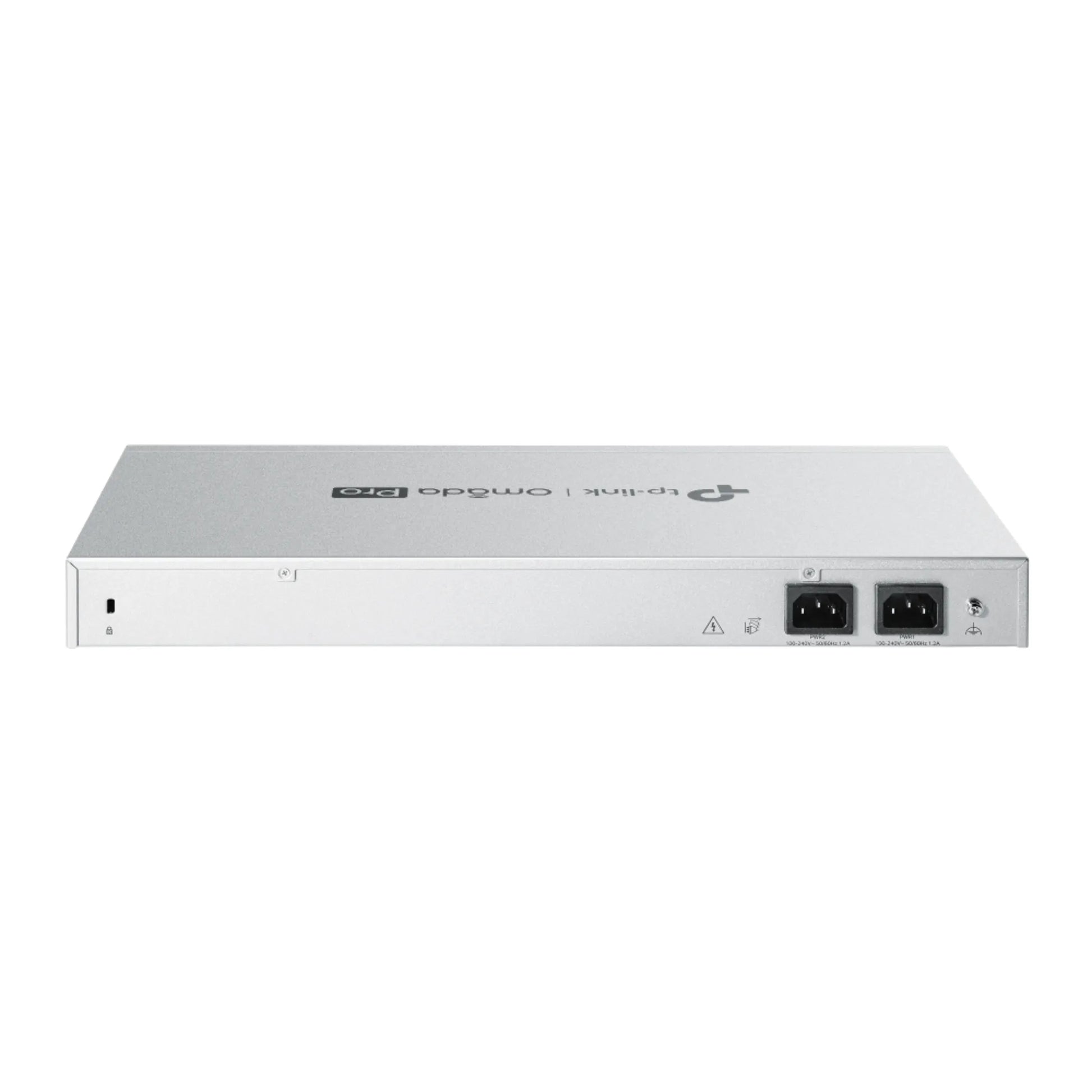

Dual Redundant · 100-240V AC~50/60Hz
Dimensions (W x D x H)
17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Mounting
Rack Mountable
Max. Power Consumption
35.7 W (110 V/60 Hz)
Max. Heat Dissipation
121.81 BTU/hr (110 V/60 Hz)
Performance
Switching Capacity
128 Gbps
Packet Forwarding Rate
95.23 Mpps
MAC Address Table
16 K
Packet Buffer Memory
12 Mbit
Jumbo Frame
9 KB
QoS & L3 Features
Quality of Service
8 Queues · 802.1p CoS/DSCP · SP/WRR/SP+WRR · Bandwidth Control · Mirror/Redirect/Rate Limit/QoS Remark
L3 Features
16 IPv4/IPv6 Interfaces · Static Routing (48 routes) · Static ARP (128 Entries) · 512 ARP Entries · Proxy/Gratuitous ARP · DHCP Server/Relay · DHCP L2 Relay
L2 & L2+ Features
Link Aggregation & STP
LACP (8 groups, 8 ports/group) · STP/RSTP/MSTP · STP Security (TC Protect, BPDU Filter, Root Protect)
Loopback & Flow Control
Loopback Detection (Port/VLAN based) · 802.3x Flow Control · HOL Blocking Prevention · Port/CPU Mirroring
L2 Multicast
IGMP v1/v2/v3 Snooping · Fast Leave · Querier · MVR · MLD v1/v2 Snooping · Multicast Filtering (256 profiles)
Advanced Features & VLAN
ISP Features
802.3ah Ethernet Link OAM · L2PT · DLDP · PPPoE ID Insertion · ERPS · Intelligent Anomaly Detection*
VLAN
4K VLAN Groups · 802.1Q Tag · MAC VLAN (30) · Protocol VLAN (16) · Private VLAN · GVRP · QinQ (Port/Selective) · Voice VLAN · OUI-Based
ACL & Security
Access Control List
Time-based · MAC/IP/IPv6 ACL · Combined ACL · Mirror/Redirect/Rate Limit/QoS Remark · Port/VLAN Apply
Security Features
IP-MAC-Port Binding (512) · DHCP Snooping · ARP Inspection · IPv4/IPv6 Source Guard · DoS Defend · DHCP Filter · Port Security (64 MACs/port) · Storm Control · 802.1X (Port/MAC-based) · MAB · Guest VLAN · RADIUS · AAA (TACACS+) · Port Isolation · HTTPS/SSL · SSHv1/v2 · IP/Port/MAC Access Control
IPv6 & Management
IPv6 Features
Dual IPv4/IPv6 · MLD Snooping · IPv6 ACL · IPv6 Interface · Static IPv6 Routing · ND · MTU Discovery · ICMPv6 · DHCPv6 Client · IPv6 Applications (Ping/Telnet/SNMP/SSH/SSL/HTTP/HTTPS/TFTP)
MIBs
MIB II (RFC1213) · Interface MIB · Ethernet Interface MIB · Bridge MIB · P/Q-Bridge MIB · RMON (1,2,3,9) · RMON2 · RADIUS MIBs · Remote Ping/Traceroute MIB · TP-Link Private MIB
Management Features
Omada App & Controller
Omada App · Omada Pro Cloud/Software Controller · Cloud Access · Zero-Touch Provisioning
Management Interfaces
Web GUI · CLI (Console/Telnet) · SNMPv1/v2c/v3 · RMON · SDM Template · DHCP/BOOTP · LLDP/LLDP-MED · DHCP Auto Install · Dual Image/Config · CPU Monitoring · Cable Diagnostics · EEE · Password Recovery · SNTP · System Log · Remote Packet Capture
Others
Certification
CE, FCC, RoHS
Package Content
S5500-24F4XF Switch · 2× Power Cords · Quick Installation Guide · Rackmount Kit · Rubber Feet
System Requirements
Windows 98SE/NT/2000/XP/Vista/7/8/10/11 · macOS · NetWare · UNIX · Linux
Environment
Operating: 0–45°C (32–113°F) · Storage: -40–70°C (-40–158°F) · Humidity: 10–90% RH non-condensing
