TP-Link Omada Pro S5500-24MPP4XF 24-Port 2.5G PoE++ Switch
TP-Link Omada Pro S5500-24MPP4XF 24-Port 2.5G PoE++ Switch

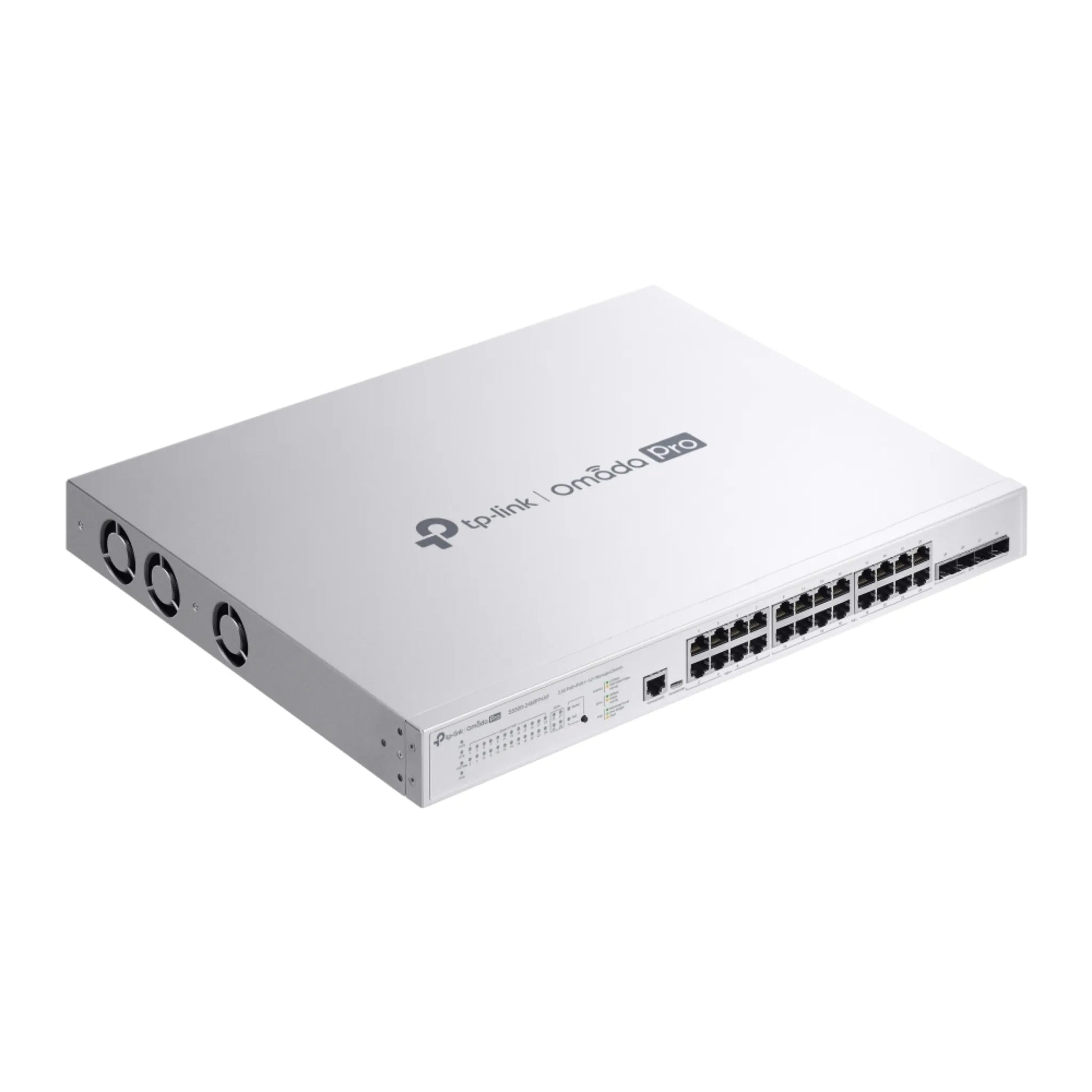

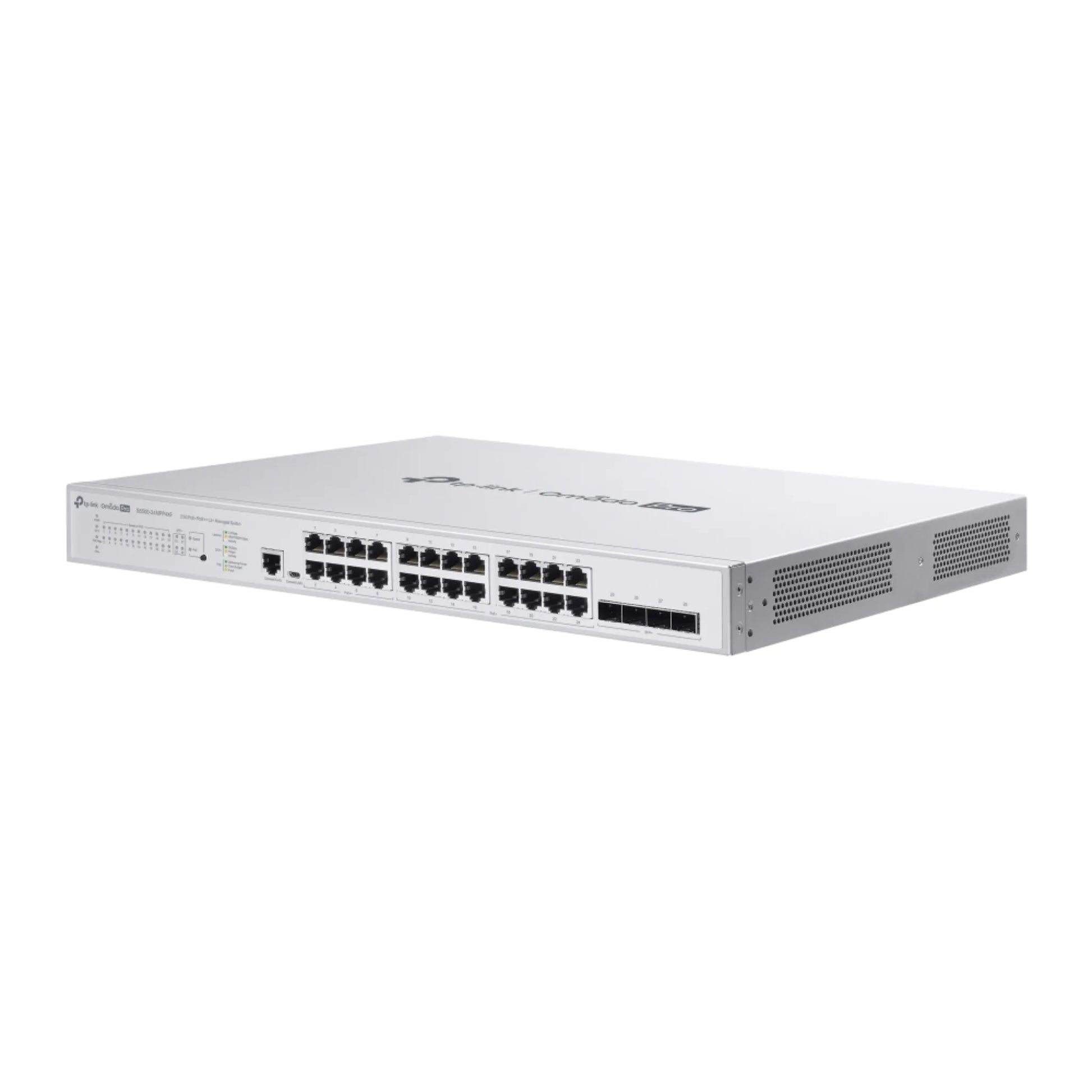

The TP-Link Omada Pro S5500-24MPP4XF is an enterprise 24-port 2.5G L2+ Managed PoE Switch featuring 8× 2.5G PoE++ ports with up to 60W output per port, 16× 2.5G PoE+ ports with up to 30W per port, 4× 10G SFP+ uplink slots, and a powerful 500W total PoE budget. It supports Omada Pro centralized cloud management, static routing, ERPS, VLAN, ACL, QoS, IGMP Snooping, OAM, DDM, CLI, SNMP, RMON, and Web management.
S5500-24MPP4XF
Omada Pro 24-Port PoE+ 2.5G L2+ Managed Switch with 4 SFP+ Slots | 500W PoE Budget · 200 Gbps · Multi-Gigabit
Hardware Features
Interface

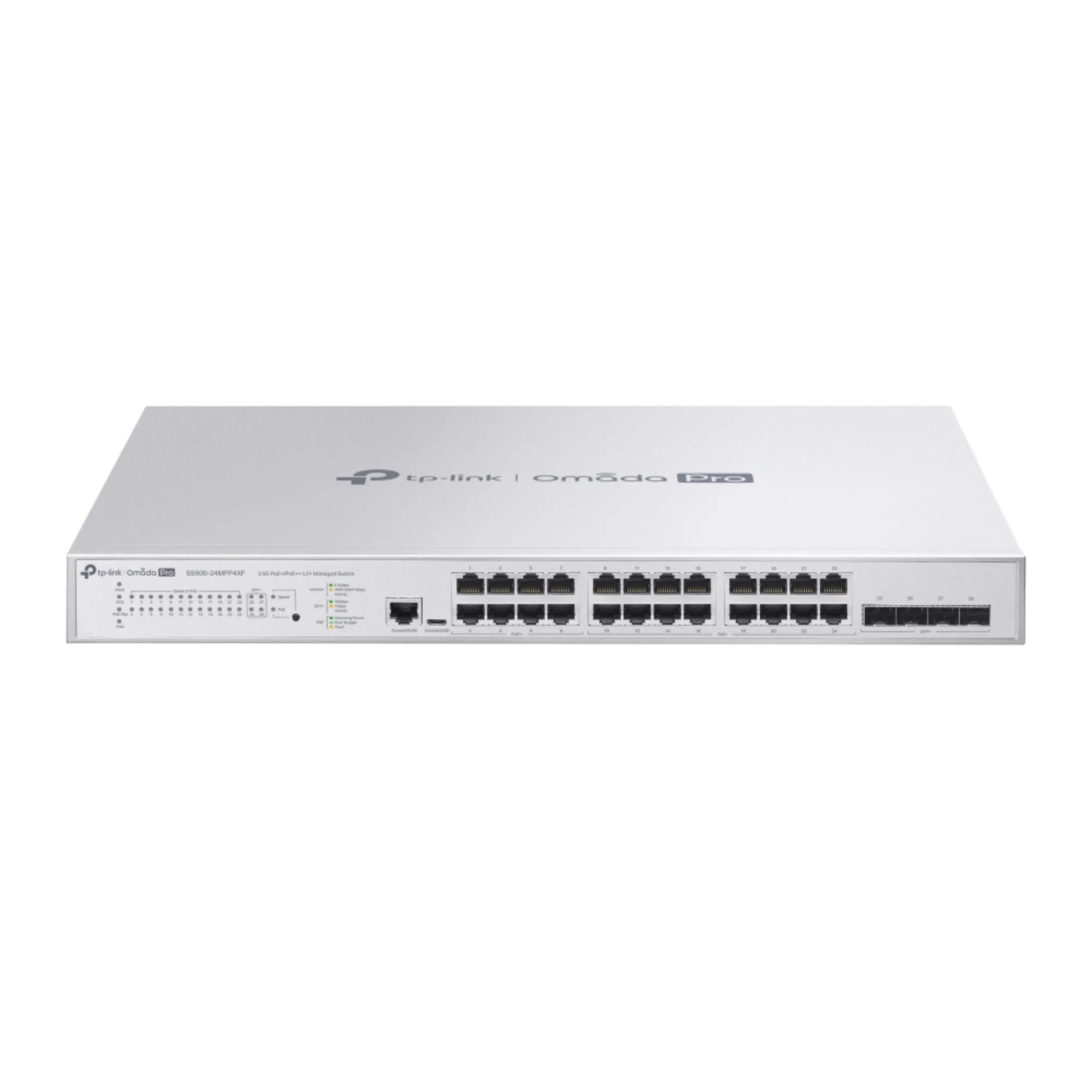

24× 2.5G RJ45 (8× PoE++, 16× PoE+) · 4× 10G SFP+ · 1× RJ45 Console · 1× Micro-USB Console
Fan Quantity / Lock

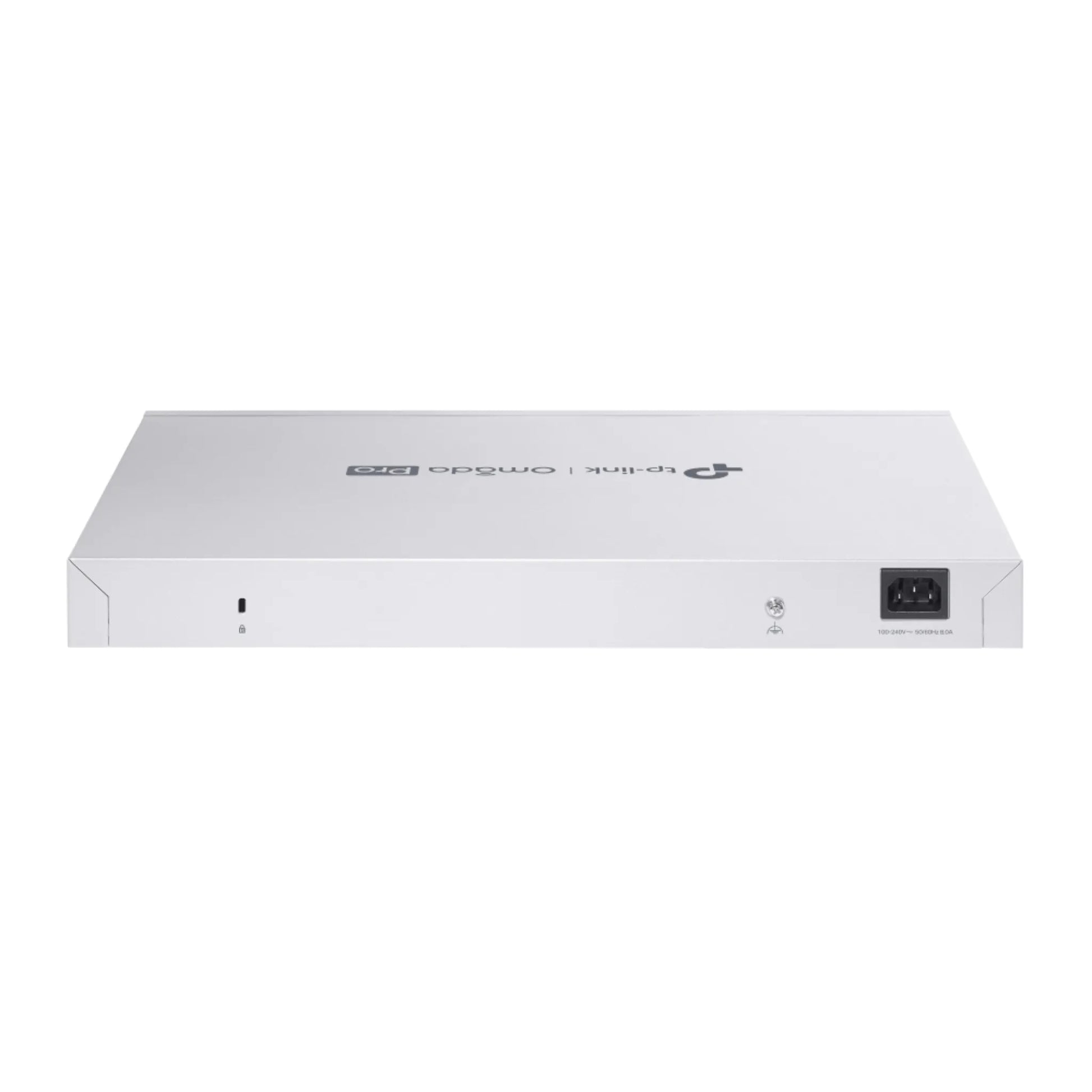

3 Fans · Physical Security Lock
Power Supply
100-240V AC~50/60 Hz
PoE Ports / Budget
8× PoE++ (802.3bt, up to 60W) · 16× PoE+ (802.3at, up to 30W) · 500W Budget*
Dimensions (W x D x H)
17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Mounting
Rack Mountable
Max. Power Consumption
629.1 W (110V/60Hz with 500W PD)
Max. Heat Dissipation
2153.45 BTU/h (110V/60Hz with 500W PD)
Performance
Switching Capacity
200 Gbps
Packet Forwarding Rate
148.80 Mpps
MAC Address Table
32K
Packet Buffer Memory
16 Mbit
Jumbo Frame
9 KB
QoS & L3 Features
Quality of Service
8 Queues · 802.1p CoS/DSCP · SP/WRR/SP+WRR · Bandwidth Control · QoS Remark (802.1P/DSCP)
L3 Features
32 IPv4/IPv6 Interfaces · Static Routing (48 routes) · Static ARP (128 entries) · 512 ARP Entries · Proxy/Gratuitous ARP · DHCP Server/Relay · DHCP L2 Relay
L2 & L2+ Features
Link Aggregation & STP
LACP (8 groups, 8 ports/group) · STP/RSTP/MSTP · STP Security (TC Protect, BPDU Filter/Protect, Root Protect, Loop Protect)
Loopback & Flow Control
Loopback Detection (Port/VLAN based) · 802.3x Flow Control · HOL Blocking Prevention · Port/CPU Mirroring
L2 Multicast
511 IGMP Groups · IGMP Snooping · MVR · MLD Snooping · Multicast Filtering (256 profiles)
Advanced Features & VLAN
Advanced / ISP Features***
Intelligent Anomaly Detection† · Auto Discovery† · Batch Config/Upgrade† · Network Monitoring† · L2PT · DLDP · PPPoE ID Insertion · ERPS · 802.3ah OAM · DDM
VLAN
4K VLAN Groups · 802.1Q Tag · MAC VLAN (256) · Protocol VLAN (16) · Private VLAN · GVRP · QinQ (Mapping/Replace) · Voice VLAN
ACL & Security
Access Control List
MAC/IP/Packet Content/IPv6 ACL · Combined ACL · Time-based · Mirror/Redirect/Rate Limit/QoS Remark · Port/VLAN Apply
Security Features
IP-MAC-Port Binding (512) · DHCP Snooping · ARP Inspection · IPv4/IPv6 Source Guard · DoS Defend · DHCP Filter · Port Security (64 MACs/port) · Storm Control · 802.1X (Port/MAC-based) · MAB · Guest VLAN · RADIUS · AAA (TACACS+) · Port Isolation · HTTPS/SSL · SSHv1/v2 · IP/Port/MAC Access Control
IPv6 & Management
IPv6 Features
Dual IPv4/IPv6 · MLD Snooping · IPv6 ACL · IPv6 Interface · Static IPv6 Routing · ND · MTU Discovery · ICMPv6 · DHCPv6 Client · IPv6 Applications (Ping/Telnet/SNMP/SSH/SSL/HTTP/HTTPS/TFTP)
MIBs
MIB II · Interface MIB · Ethernet Interface MIB · Bridge MIB · P/Q-Bridge MIB · RMON (1,2,3,9) · RMON2 · RADIUS MIBs · Remote Ping/Traceroute MIB · TP-Link Private MIB
Management Features
Omada App & Controller
Omada App · Omada Pro Cloud/Software Controller · Cloud Access · Zero-Touch Provisioning†
Management Interfaces
Web GUI · CLI (Console/Telnet) · SNMPv1/v2c/v3 · RMON · SDM Template · DHCP/BOOTP · LLDP/LLDP-MED · DHCP AutoInstall · Dual Image/Config · CPU Monitoring · Cable Diagnostics · EEE · Password Recovery · SNTP · System Log · Remote Packet Capture
Others
Certification
CE, FCC, RoHS

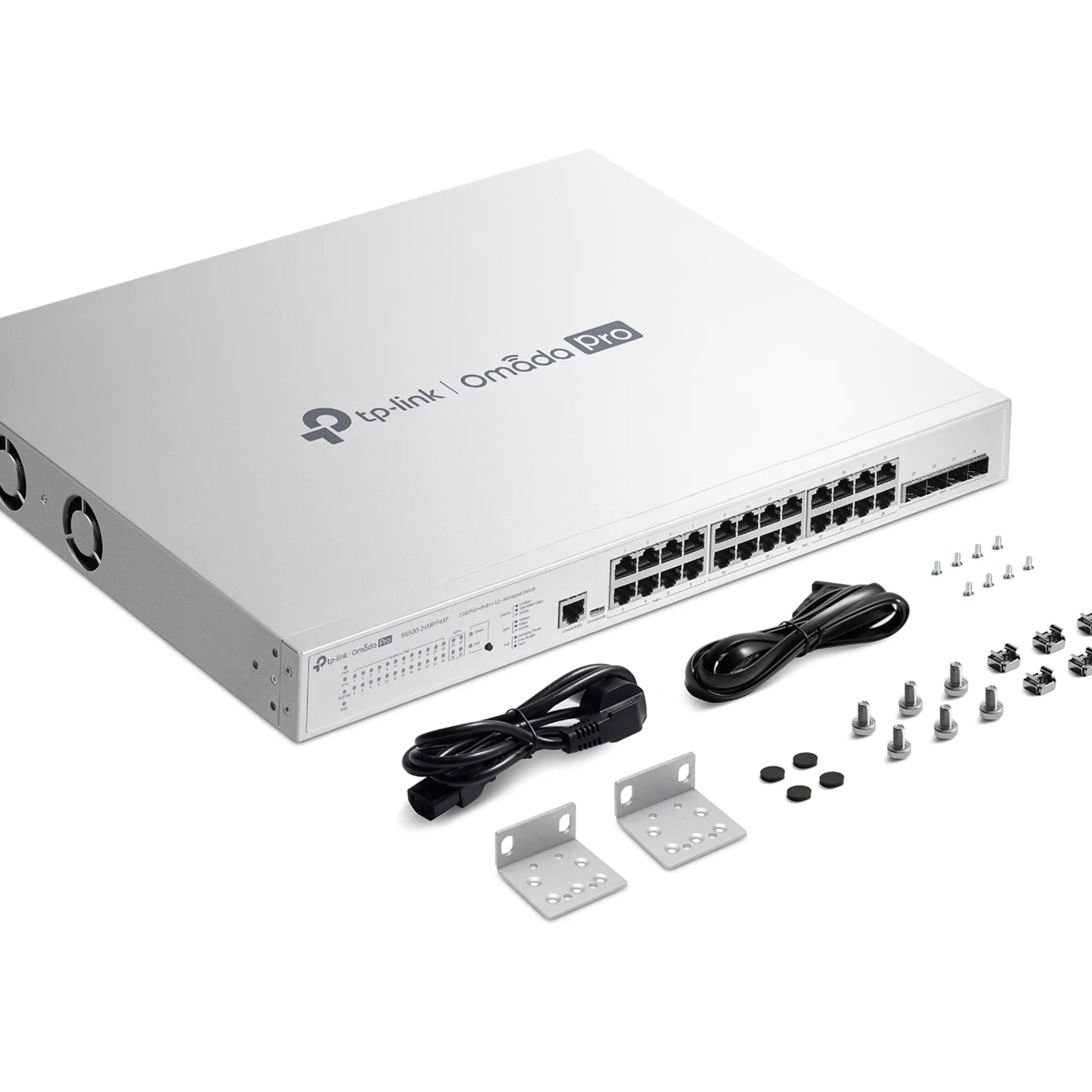

Package Content
S5500-24MPP4XF · Power Cord · Quick Installation Guide · Rackmount Kit · Rubber Feet
System Requirements
Windows 98SE/NT/2000/XP/Vista/7/8/10/11 · macOS · NetWare · UNIX · Linux
Environment
Operating: 0–40°C (32–104°F) · Storage: -40–70°C (-40–158°F) · Humidity: 10–90% RH non-condensing
