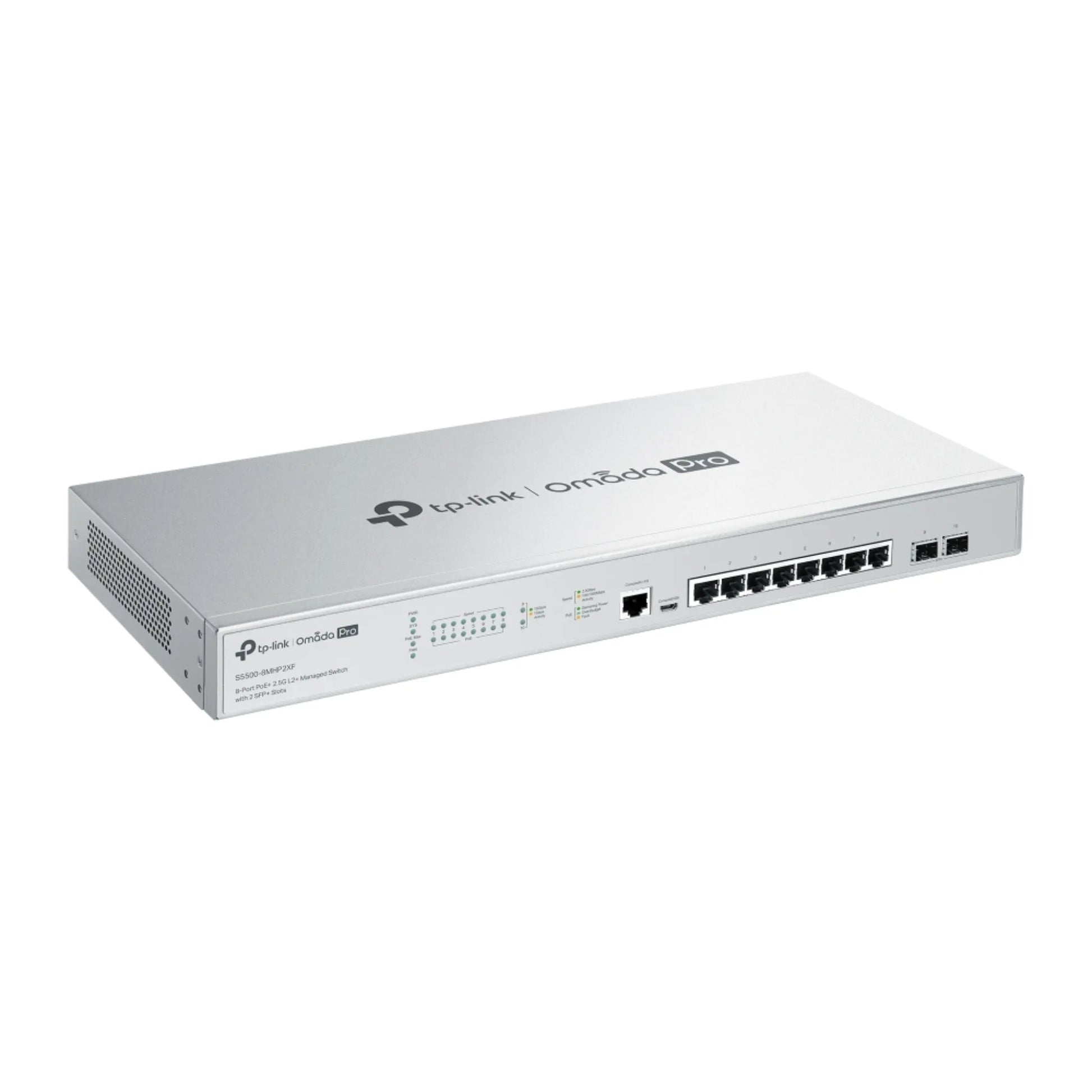

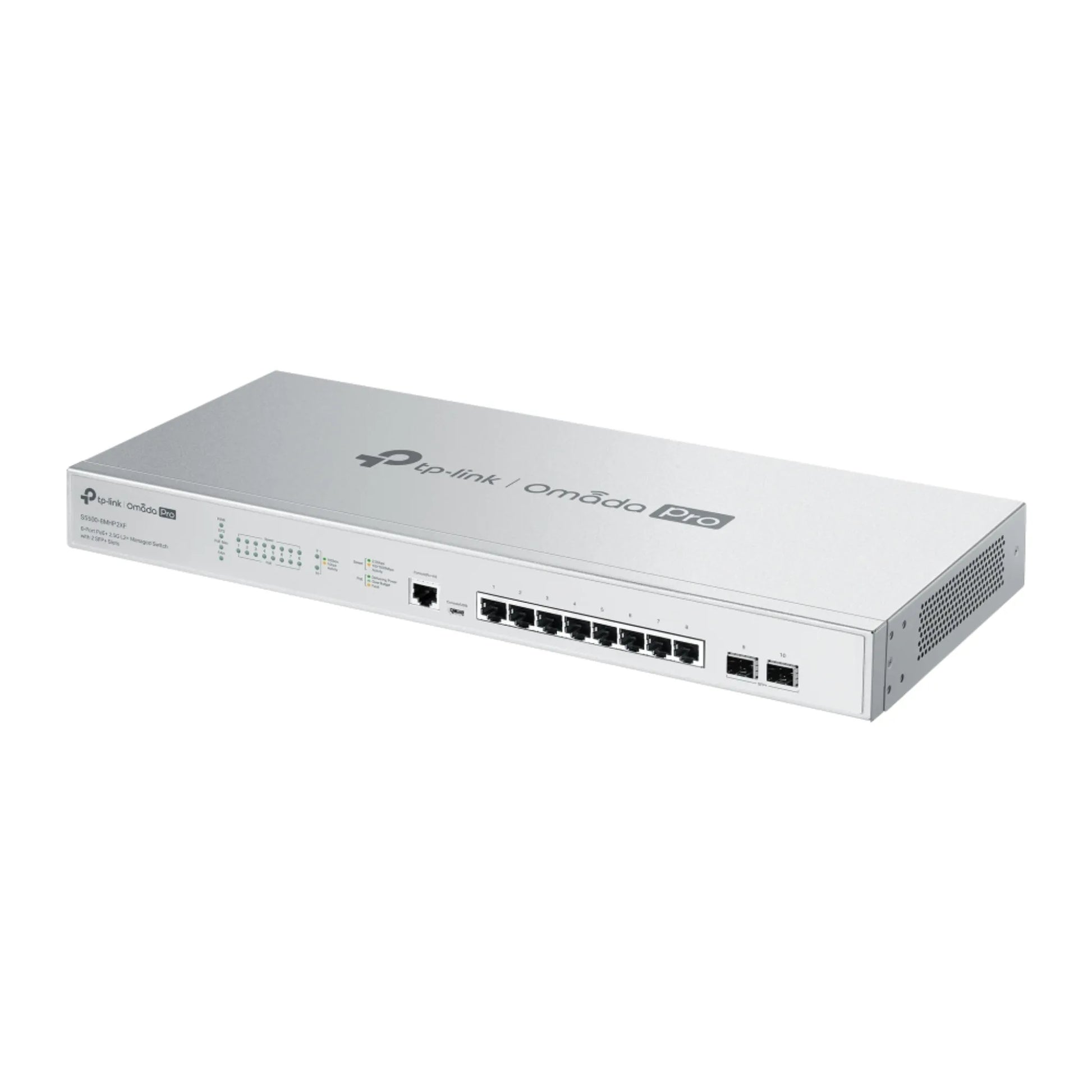

TP-Link Omada Pro S5500-8MHP2XF 2.5G PoE+ Managed Switch
TP-Link Omada Pro S5500-8MHP2XF 2.5G PoE+ Managed Switch
The TP-Link Omada Pro S5500-8MHP2XF is an enterprise 8-port 2.5G PoE+ L2+ Managed Switch featuring a 240W PoE budget and 2× 10Gbps SFP+ uplink slots. Designed for enterprise access-layer networking, it supports Omada Pro SDN centralized cloud management, Ethernet Ring Protection Switching (ERPS), static routing, and rackmount installation for high-performance business networks.
S5500-8MHP2XF
Omada Pro 8-Port PoE+ 2.5G L2+ Managed Switch with 2 SFP+ Slots | 240W PoE Budget · 80Gbps Switching Capacity · Rackmount
Hardware Features
Interface

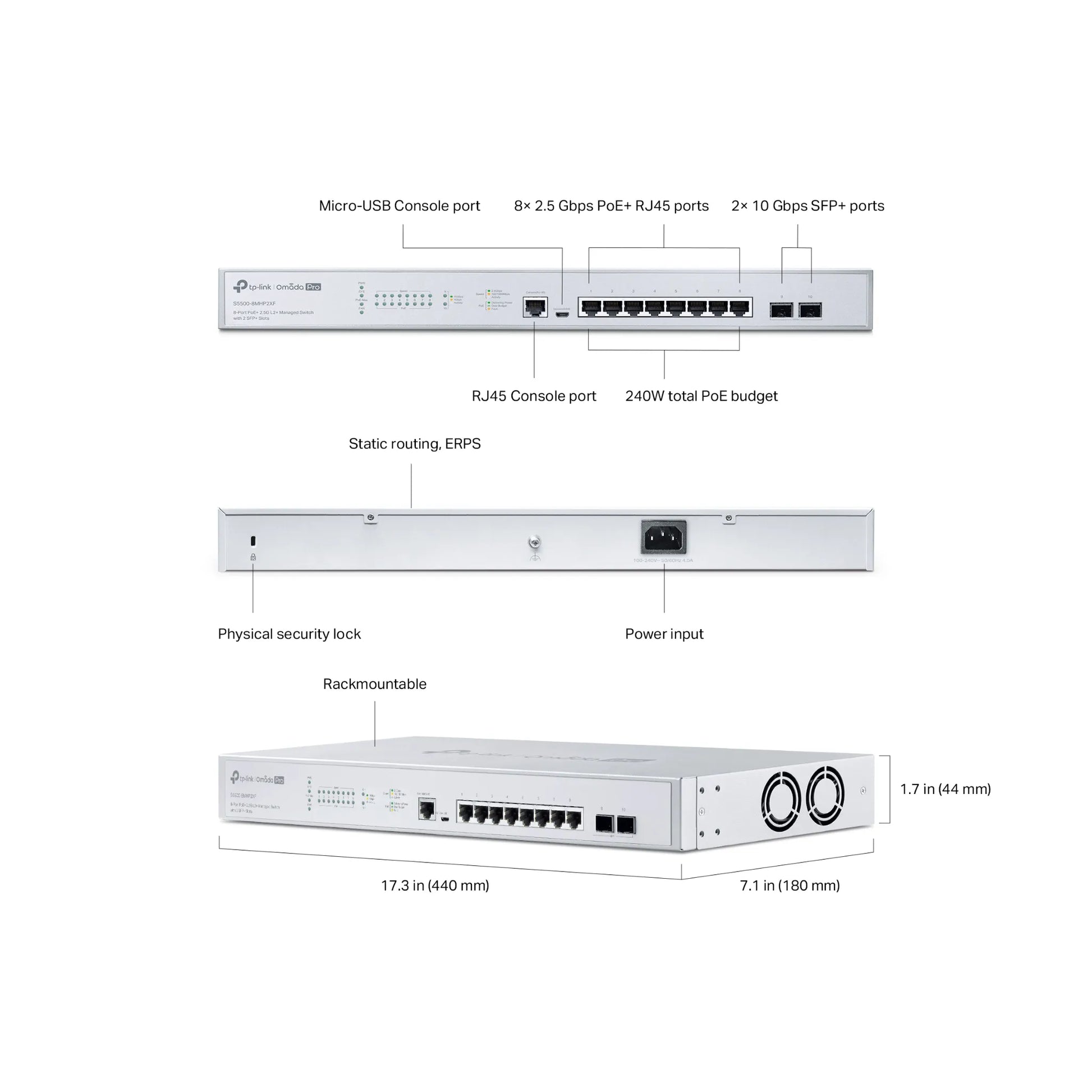

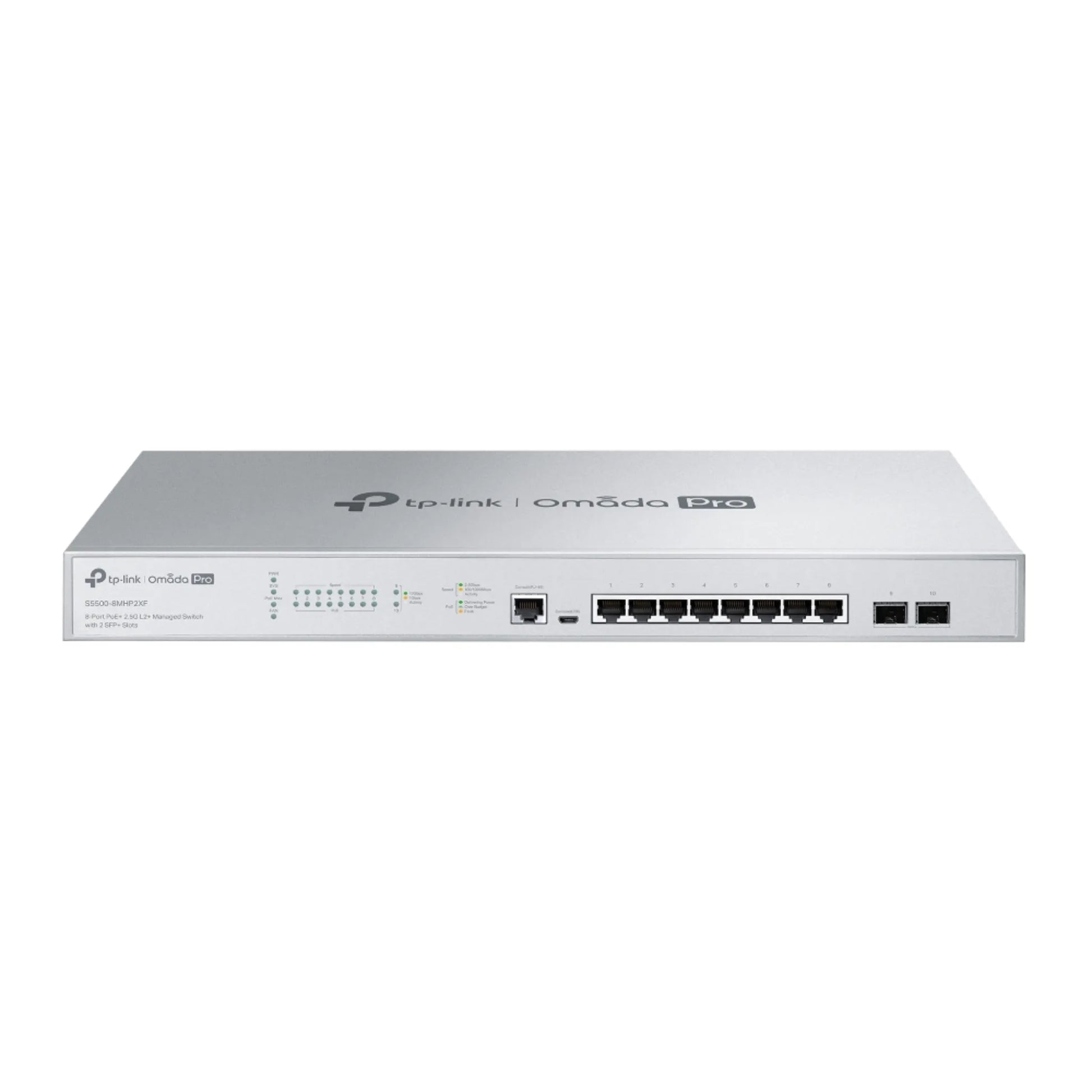

8× 100M/1G/2.5G RJ45 (PoE+) · 2× 10G SFP+ · 1× RJ45 Console · 1× Micro-USB Console
Fan Quantity
2
Power Supply
100~240VAC, 50/60Hz
PoE Ports / Budget
8× PoE+ Ports (802.3at/af) · 30W per port · 240W PoE Budget*
Dimensions (W x D x H)
17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting
Rackmountable
Max. Power Consumption
285.9 W (110V/60Hz with 240W PD)
Max. Heat Dissipation
975.54 BTU/hr (110V/60Hz with 240W PD)
Performance
Switching Capacity
80 Gbps
Packet Forwarding Rate
59.52 Mpps
MAC Address Table
16 K
Packet Buffer Memory
12 Mbit
Jumbo Frame
9 KB
QoS & L3 Features
Quality of Service
8 Queues · 802.1p CoS/DSCP · SP/WRR/SP+WRR · Bandwidth Control · Mirror/Redirect/Rate Limit/QoS Remark
L3 Features
32 IPv4/IPv6 Interfaces · Static Routing (48 routes) · Static ARP (128) · Proxy ARP · Gratuitous ARP · DHCP Server/Relay · DHCP L2 Relay
L2 & L2+ Features
Link Aggregation
Static · 802.3ad LACP · Up to 8 groups · 8 ports/group
Spanning Tree
802.1d STP · 802.1w RSTP · 802.1s MSTP · TC Protect · BPDU Filter/Protect · Root Protect · Loop Protect
Loopback / Flow / Mirror
Loopback Detection (Port/VLAN) · 802.3x Flow Control · HOL Blocking Prevention · Port/CPU Mirroring (1-to-1, Many-to-1, Tx/Rx/Both)
L2 Multicast
511 IGMP Groups · IGMP v1/v2/v3 Snooping · Fast Leave · Querier · Authentication · MVR · MLD v1/v2 Snooping · Multicast Filtering (256 profiles)
Advanced Features
ISP: 802.3ah OAM · L2PT · DLDP · PPPoE ID Insertion · DDM · ERPS · sFlow · Intelligent Anomaly Detection**
VLAN & ACL
VLAN
4K Groups · 802.1Q Tag · MAC VLAN (256) · Protocol VLAN · GVRP · Voice VLAN · QinQ (Mapping/Replace) · OUI-Based
Access Control List
MAC/IP/Combined/IPv6 ACL · Mirror/Redirect/Rate Limit/QoS Remark · Apply to Port/VLAN · Time-based ACL
Security
IP-MAC-Port Binding
512 Entries · DHCP Snooping · ARP Inspection · IPv4 Source Guard (100) · IPv6-MAC-Port Binding (512) · DHCPv6 Snooping · ND Detection · IPv6 Source Guard (100)
Security Features
DoS Defend · DHCP Filter · Port Security (64 MACs/port) · Storm Control · 802.1X (Port/MAC-based) · MAB · Guest VLAN · RADIUS · AAA (TACACS+) · Port Isolation · HTTPS/SSL · SSHv1/v2 · IP/Port/MAC Access Control
IPv6 & MIBs
IPv6 Features
Dual IPv4/IPv6 · MLD Snooping · IPv6 ACL/Interface · Static IPv6 Routing · ND · MTU Discovery · ICMPv6 · DHCPv6 Client · IPv6 Applications (Ping/Telnet/SSH/SSL/HTTP/HTTPS/TFTP)
MIBs
MIB II · Interface MIB · Ethernet Interface MIB · Bridge MIB · P/Q-Bridge MIB · RMON/RMON2 · RADIUS MIBs · Remote Ping/Traceroute MIB · TP-Link Private MIB
Management Features
Omada App & Controller
Omada App · Omada Pro Cloud/Software Controller · Cloud Access · Zero-Touch Provisioning
Management Interfaces
Web GUI · CLI (Console/Telnet) · SNMPv1/v2c/v3 · RMON · SDM Template · DHCP/BOOTP · LLDP/LLDP-MED · DHCP Auto Install · Dual Image/Config · CPU Monitoring · Cable Diagnostics · EEE · Password Recovery · SNTP · System Log · Remote Packet Capture
Others
Certification
CE, FCC, RoHS
Package Content
S5500-8MHP2XF · Power Cord · Installation Guide · Rackmount Kit · Rubber Feet
System Requirements
Windows XP/Vista/7/8/10/11 · macOS · NetWare · UNIX · Linux
Environment
Operating: 0–50°C (32–122°F) · Storage: -40–70°C (-40–158°F) · Humidity: 10–90% RH non-condensing
