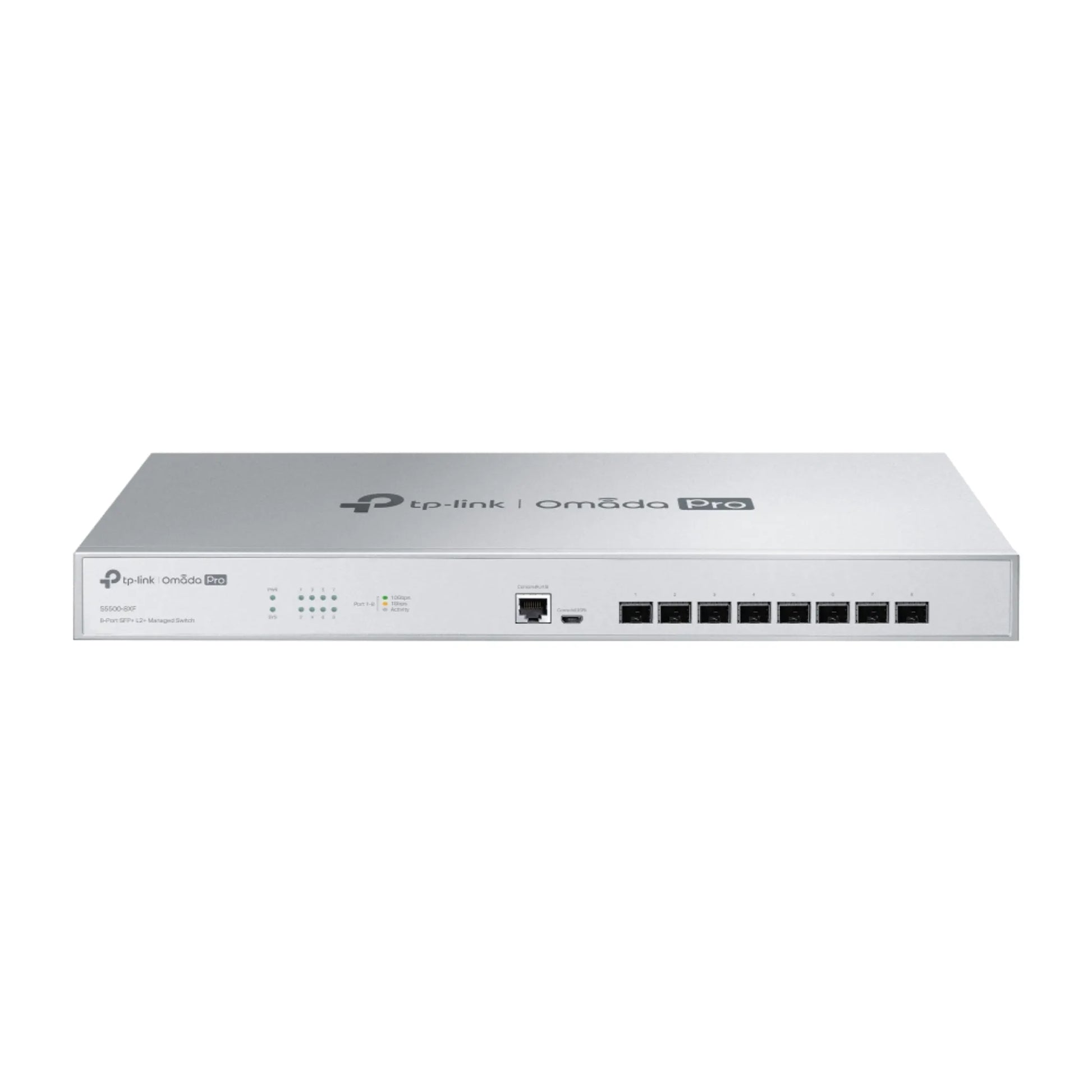

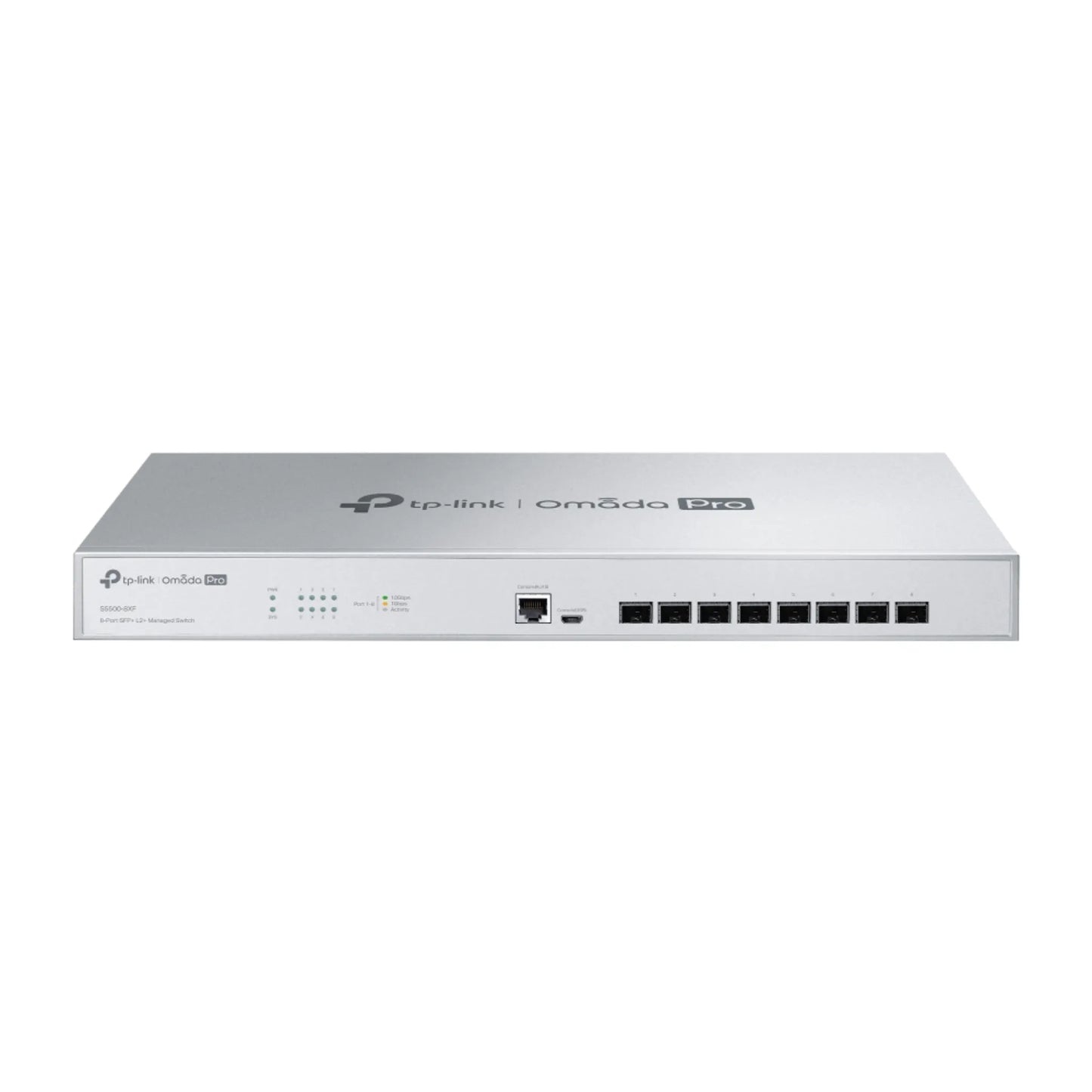

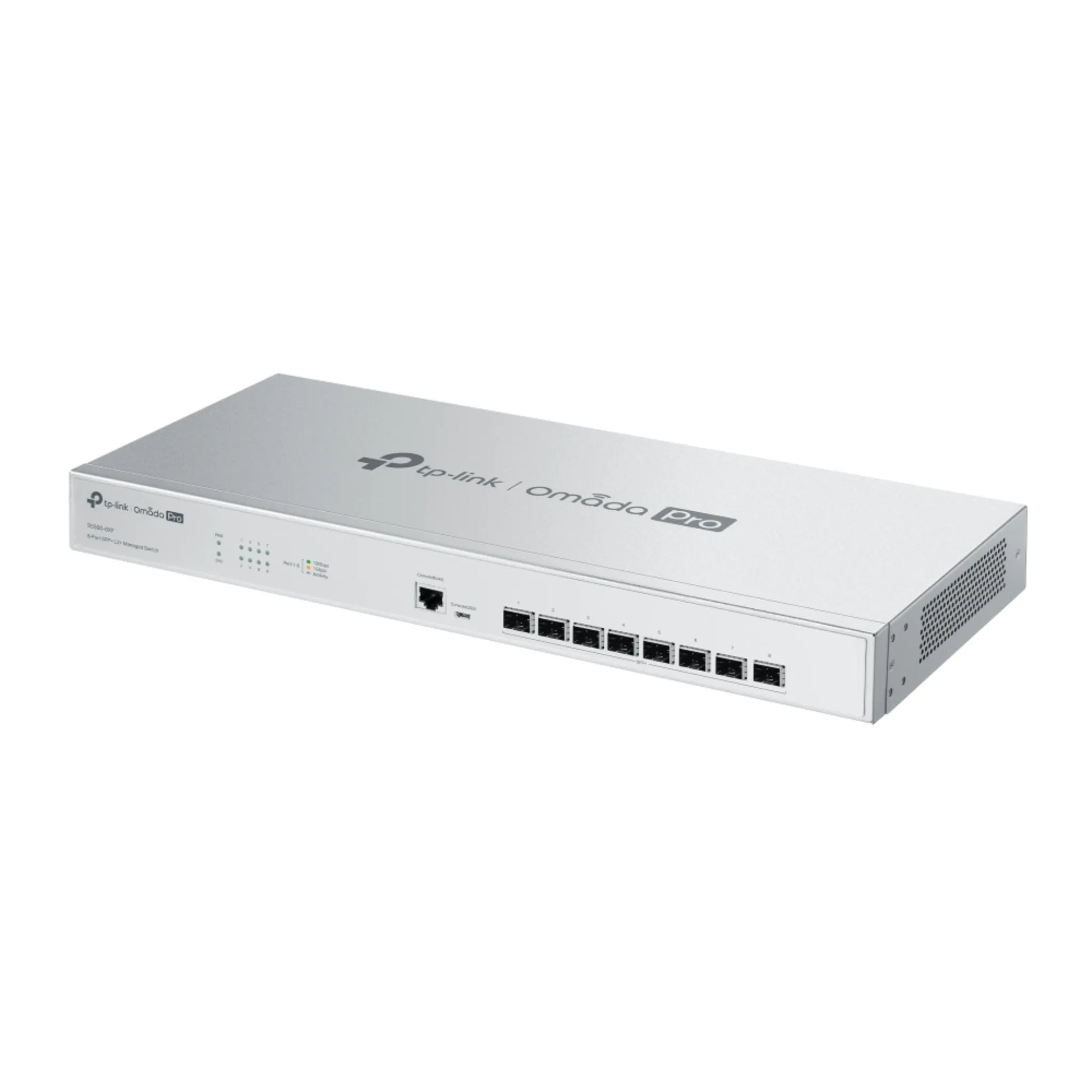

TP-Link Omada Pro S5500-8XF 8-Port 10G SFP+ Switch
TP-Link Omada Pro S5500-8XF 8-Port 10G SFP+ Switch
The TP-Link Omada Pro S5500-8XF is an enterprise 8-port 10G SFP+ L2+ Managed Switch featuring 8× full 10Gbps SFP+ slots and a 160Gbps switching capacity. Designed for high-bandwidth aggregation networks, it supports Omada Pro centralized cloud management, Zero-Touch Provisioning (ZTP), ERPS, static routing, QoS, IGMP Snooping, advanced network security, CLI, Web GUI, and SNMP management.
S5500-8XF
Omada Pro 8-Port SFP+ L2+ Managed Switch | 160 Gbps · Fanless · Advanced L3 Features
Hardware Features
Interface
8× 10GE SFP+ Slots · 1× RJ45 Console Port · 1× Micro-USB Console Port
Fan Quantity
Fanless
Power Supply
100-240 V AC~50/60 Hz
Dimensions (W x D x H)
17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting
Rack Mountable
Max. Power Consumption
15.46 W (220 V / 50 Hz)
Max. Heat Dissipation
52.75 BTU/hr (220 V / 50 Hz)
Performance
Switching Capacity
160 Gbps
Packet Forwarding Rate
119.04 Mpps
MAC Address Table
32 K
Packet Buffer Memory
16 Mbit
Jumbo Frame
9 KB
QoS & L3 Features
Quality of Service
8 Queues · 802.1p CoS/DSCP · SP/WRR/SP+WRR · Bandwidth Control · Mirror/Redirect/Rate Limit/QoS Remark
L3 Features
16 IPv4/IPv6 Interfaces · Static Routing (48 routes) · Static ARP (128 Entries) · Proxy/Gratuitous ARP · 512 ARP Entries · DHCP Server/Relay · DHCP L2 Relay
L2 & L2+ Features
Link Aggregation & STP
LACP (8 groups, 8 ports/group) · STP/RSTP/MSTP · STP Security (TC Protect, BPDU Filter, Root Protect)
Loopback & Flow Control
Loopback Detection (Port/VLAN based) · 802.3x Flow Control · HOL Blocking Prevention · Port/CPU Mirroring
L2 Multicast
IGMP v1/v2/v3 Snooping · Fast Leave · Querier · MVR · MLD v1/v2 Snooping · Multicast Filtering (256 profiles)
Advanced Features & VLAN
ISP Features
802.3ah Ethernet Link OAM · L2PT · DLDP · PPPoE ID Insertion · ERPS · sFlow · DDM · Intelligent Anomaly Detection*
VLAN
4K VLAN Groups · 802.1Q Tagged · MAC VLAN (30) · Protocol VLAN (16/12) · Private VLAN · GVRP · QinQ (Port/Selective) · Voice VLAN · OUI-Based
ACL & Security
Access Control List
Time-based · MAC/IP/IPv6 ACL · Combined ACL · Mirror/Redirect/Rate Limit/QoS Remark · Port/VLAN Apply
Security Features
IP-MAC-Port Binding (512) · DHCP Snooping · ARP Inspection · IPv4/IPv6 Source Guard · DoS Defend · DHCP Filter · Port Security (64 MACs/port) · Storm Control · 802.1X (Port/MAC-based) · MAB · Guest VLAN · RADIUS · AAA (TACACS+) · Port Isolation · HTTPS/SSL · SSHv1/v2 · IP/Port/MAC Access Control
IPv6 & Management
IPv6 Features
Dual IPv4/IPv6 · MLD Snooping · IPv6 ACL · IPv6 Interface · Static IPv6 Routing · ND · MTU Discovery · ICMPv6 · DHCPv6 Client · IPv6 Applications (Ping/Telnet/SNMP/SSH/SSL/HTTP/HTTPS/TFTP)
MIBs
MIB II (RFC1213) · Interface MIB · Ethernet Interface MIB · Bridge MIB · P/Q-Bridge MIB · RMON (1,2,3,9) · RMON2 · RADIUS MIBs · Remote Ping/Traceroute MIB · TP-Link Private MIB
Management Features
Omada App & Controller
Omada App · Omada Pro Cloud/Software Controller · Cloud Access · Zero-Touch Provisioning
Management Interfaces
Web GUI · CLI (Console/Telnet) · SNMPv1/v2c/v3 · RMON · SDM Template · DHCP/BOOTP · LLDP/LLDP-MED · DHCP Auto Install · Dual Image/Config · CPU Monitoring · Cable Diagnostics · Password Recovery · SNTP · System Log · Remote Packet Capture
Others
Certification
CE, FCC, RoHS

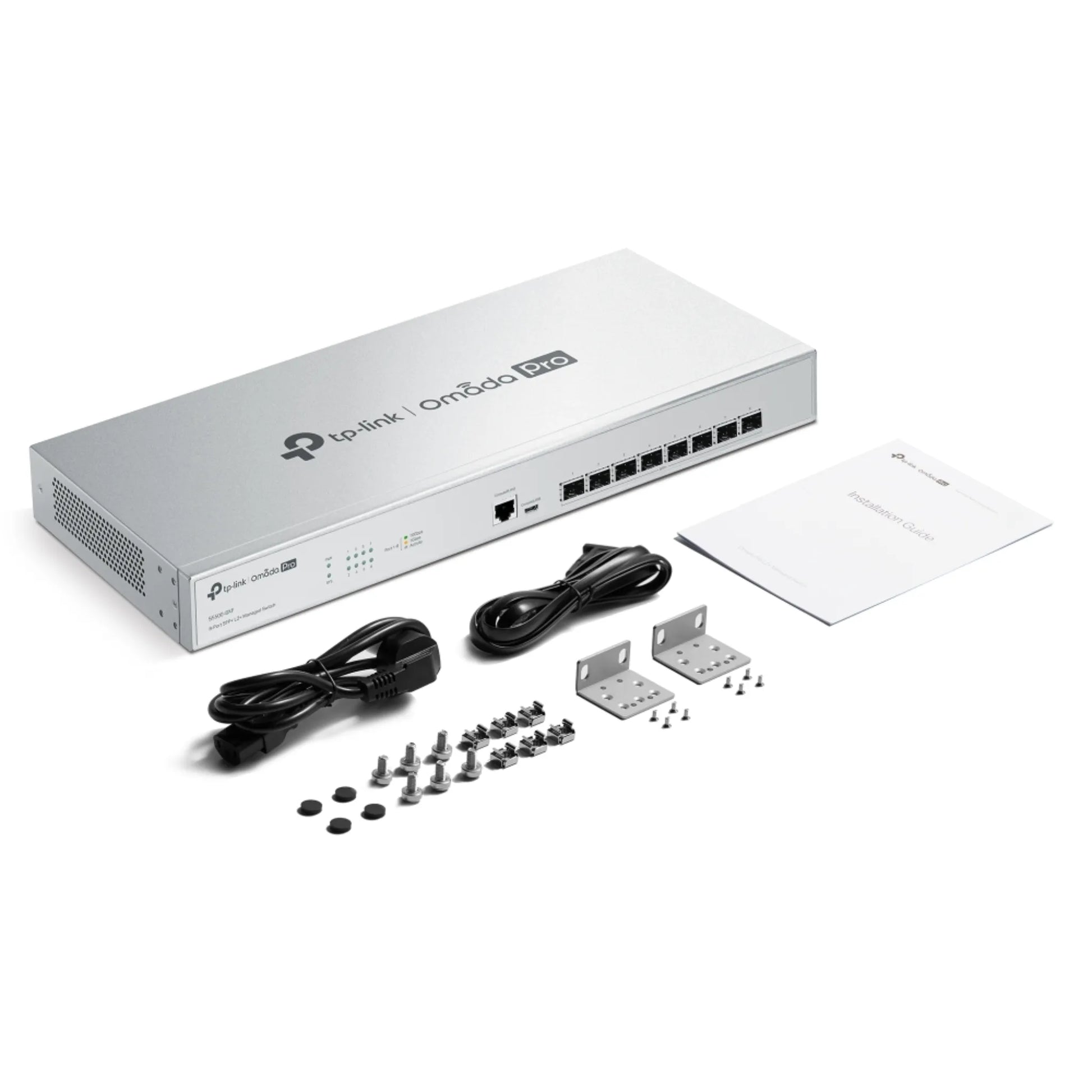

Package Content
S5500-8XF Switch · Power Cord · Quick Installation Guide · Rackmount Kit · Rubber Feet
System Requirements
Windows 98SE/NT/2000/XP/Vista/7/8/10/11 · macOS · NetWare · UNIX · Linux
Environment
Operating: 0–45°C (32–113°F) · Storage: -40–70°C (-40–158°F) · Humidity: 10–90% RH non-condensing
