TP-Link Omada Pro S6500-24G4XF L3 Stackable Switch
TP-Link Omada Pro S6500-24G4XF L3 Stackable Switch
The TP-Link Omada Pro S6500-24G4XF is an enterprise 24-port Gigabit stackable L3 Managed Switch featuring 24× Gigabit RJ45 ports and 4× 10Gbps SFP+ slots. Built for high-performance enterprise networks, it supports physical stacking, OSPF, BGP, IS-IS, VRRP, ECMP, PBR, ERPS, BFD, MACsec, NETCONF, and centralized Omada Pro cloud management, with dual internal power supplies for enhanced network reliability.
S6500-24G4XF
Omada Pro 24-Port Gigabit Stackable L3 Managed Switch with 4 10G Slots | 128 Gbps · Stacking · Advanced L3 Routing
Hardware Features
Interface
24× 10/100/1000 Mbps RJ45 · 4× 1/10Gbps SFP+ Slots* · 2× USB 2.0 · 1× RJ45 Console · 1× USB-C Console · 1× RJ45 Mgmt Port
Fan Quantity

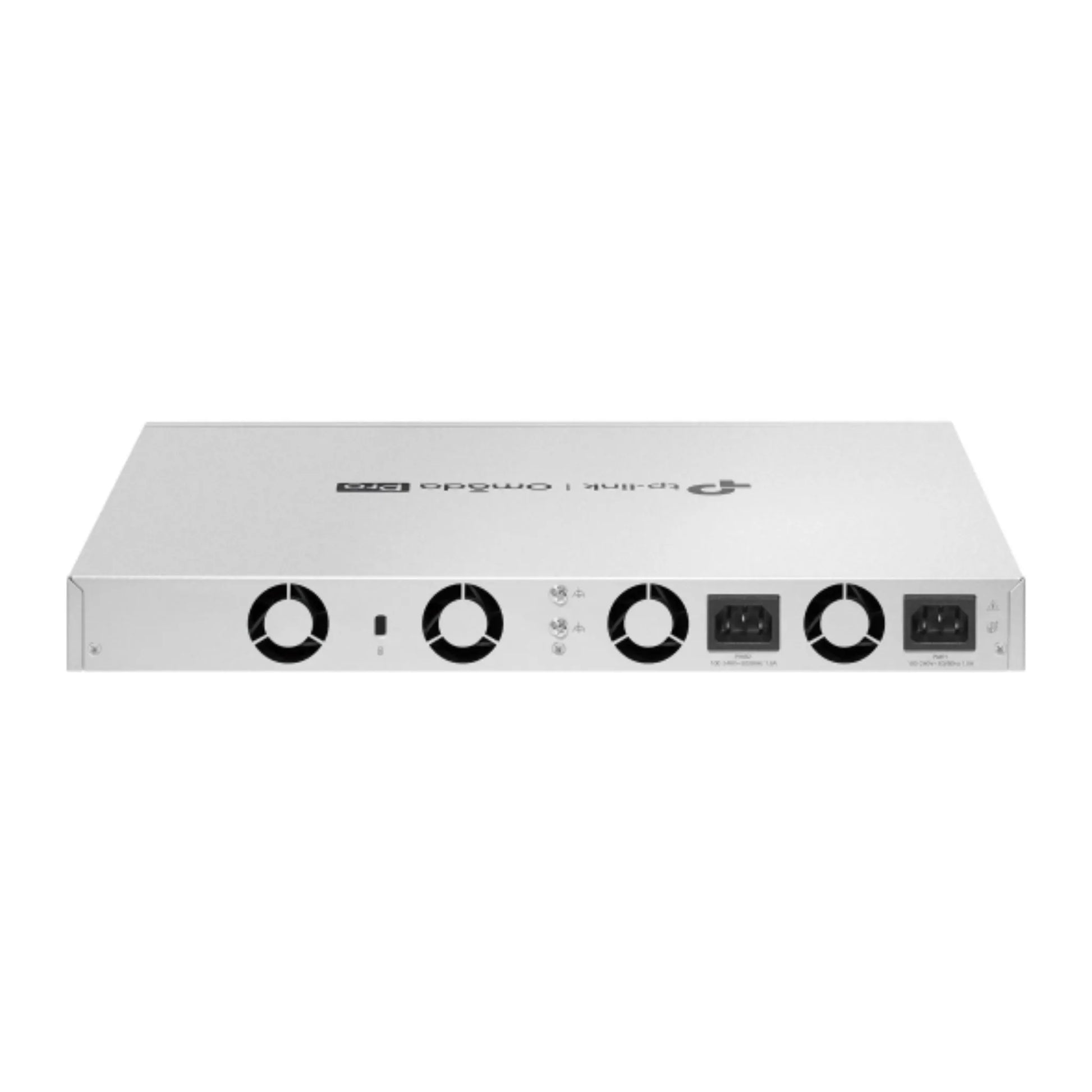

Four Internal Fixed Fans
Power Supply
Two Internal Fixed Modules (100–240 VAC, 50/60 Hz)
Dimensions (W x D x H)
17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
Mounting
Rackmountable
Max. Power Consumption
28.4 W (220 V/50 Hz)
Max. Heat Dissipation
96.91 BTU/hr (220 V/50 Hz)
Performance
Switching Capacity
128 Gbps per Unit
Packet Forwarding Rate
95.2 Mpps
MAC Address Table
32 K
Packet Buffer Memory
3 MB
Jumbo Frame
9 KB
Stacking
12 Units (standalone) · 10G SFP+ Slots** · Stack Bandwidth: Up to 80 Gbps
QoS & L3 Features
Quality of Service
8 Queues · CoS/DSCP · SP/WRR/SP+WRR · Bandwidth Control · Storm Control · Voice VLAN · WRED (16 profiles)
L3 Interfaces
256 IPv4/IPv6 Interfaces · Static Routes: 1,024 IPv4 / 512 IPv6 · ECMP (256 entries) · Static/Dynamic ARP · VRRP (64 instances) · DHCP Server/Relay
Routing Protocols
OSPFv2/v3 · RIPv1/v2/RIPng · IS-IS · BGP · PIM-DM/SM/SSM · IGMP v1/v2/v3 · BFD · PBR · uRPF
L2 & L2+ Features
L2 Features
Link Aggregation · STP/RSTP/MSTP · Loopback Detection · 802.3x Flow Control · ERPS · Port/CPU Mirroring · RSPAN · MAC Table · IGMP/MLD Snooping · MVR · Multicast Filtering
Advanced Features & VLAN
Advanced & ISP Features
Automatic Discovery† · Batch Config/Upgrade · Network Monitoring · Reboot Schedule · 802.3ah OAM · L2PT · DLDP · DDM · sFlow
VLAN
4K VLAN Groups · 802.1Q Tagged · MAC VLAN (200) · Multicast VLAN · Management VLAN · QinQ (256) · GVRP · Protocol VLAN · Voice VLAN · Private VLAN
Security
Security Features
Port Isolation · CPU-Defend · DoS Defend · IP-MAC-Port Binding (1,024) · DHCP Snooping · ARP Inspection · IPv4/IPv6 Source Guard · DHCP Filter · Port Security (64 MACs/port) · Storm Control · 802.1X (Port/MAC) · MAB · Guest VLAN · RADIUS · AAA (TACACS+) · HTTPS/SSL · SSHv2 · IP/Port/MAC Access Control · MACSec (-128, -256) · Secure Boot · RADSEC
Virtualization & IPv6
IP Tunnel
IPv6 over IPv4 · IPv6 over IPv4 GRE · IPv4 over IPv4 GRE · Tunnel entries: 100
IPv6 Features
Dual IPv4/IPv6 · MLD Snooping · IPv6 ACL · IPv6 Interface · Static IPv6 Routing · ND · MTU Discovery · ICMPv6 · DHCPv6 Client · IPv6 Applications
Management Features
Omada App & Controller
Omada App · Omada Pro Cloud/Hardware/Software Controller · Cloud Access · Zero-Touch Provisioning
Management Interfaces
Web GUI · CLI (Console/Telnet) · SNMPv1/v2c/v3 · RMON · SDM Template · DHCP/BOOTP · LLDP/LLDP-MED · DHCP Auto Install · Dual Image/Config · CPU Monitoring · Cable Diagnostics · Password Recovery · SNTP · System Log · EEE · Configuration Rollback · Hot Patching · NETCONF
Others
Package Content

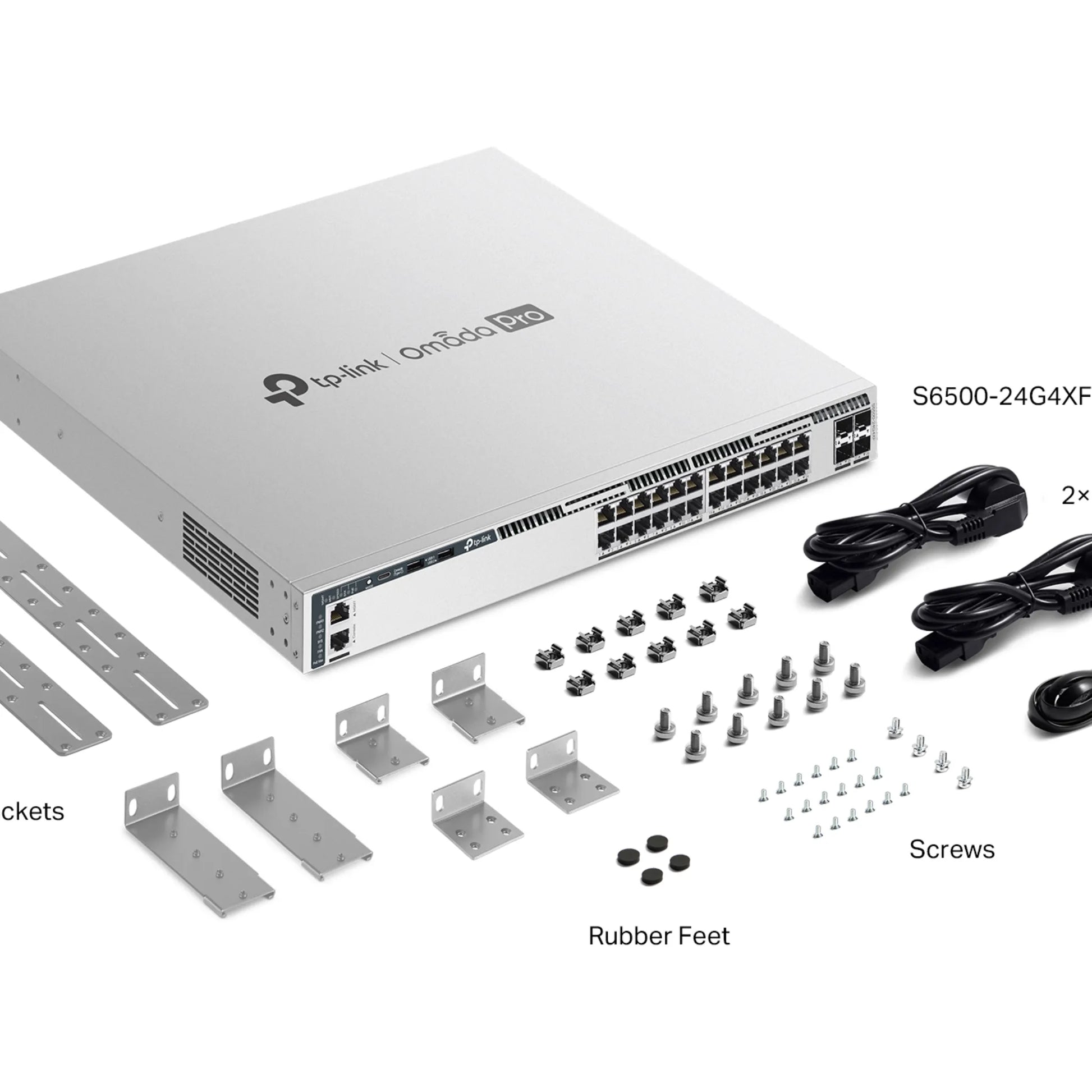

S6500-24G4XF Switch · 2× Power Cords · RJ45 Console Cable · Quick Installation Guide · Rackmount Kit · Rubber Feet
System Requirements
Windows 98SE/NT/2000/XP/Vista/7/8/10/11 · macOS · NetWare · UNIX · Linux
Environment
Operating: -5°C to 50°C (23–122°F) @ 300m · -5°C to 45°C (23–113°F) @ 2,000m · -5°C to 40°C (23–104°F) @ 3,000m · Storage: -40°C to 70°C (-40–158°F) · Humidity: 10–90% RH non-condensing
