TP-Link Omada Pro S6500-24GP4XF L3 PoE+ Switch
TP-Link Omada Pro S6500-24GP4XF L3 PoE+ Switch

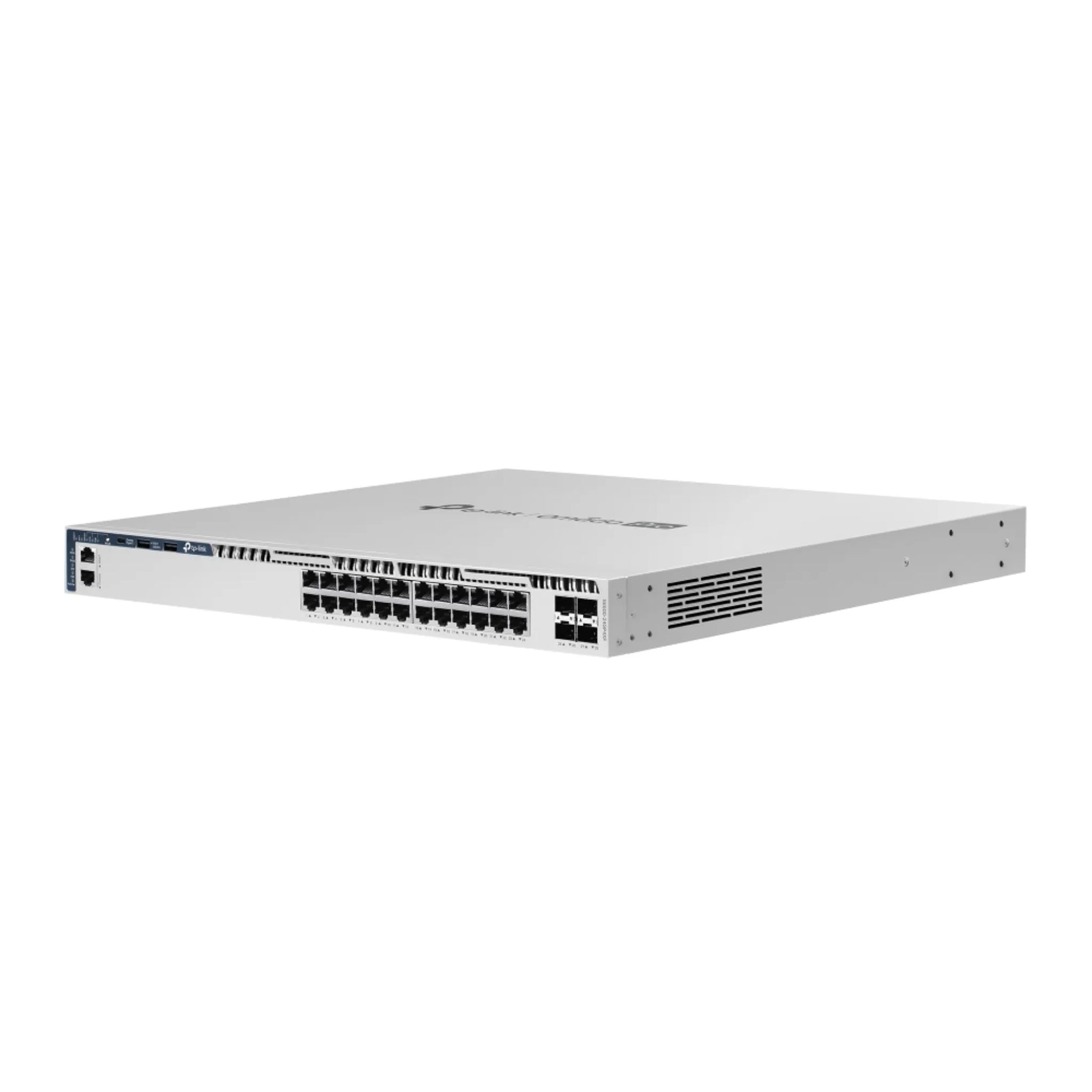

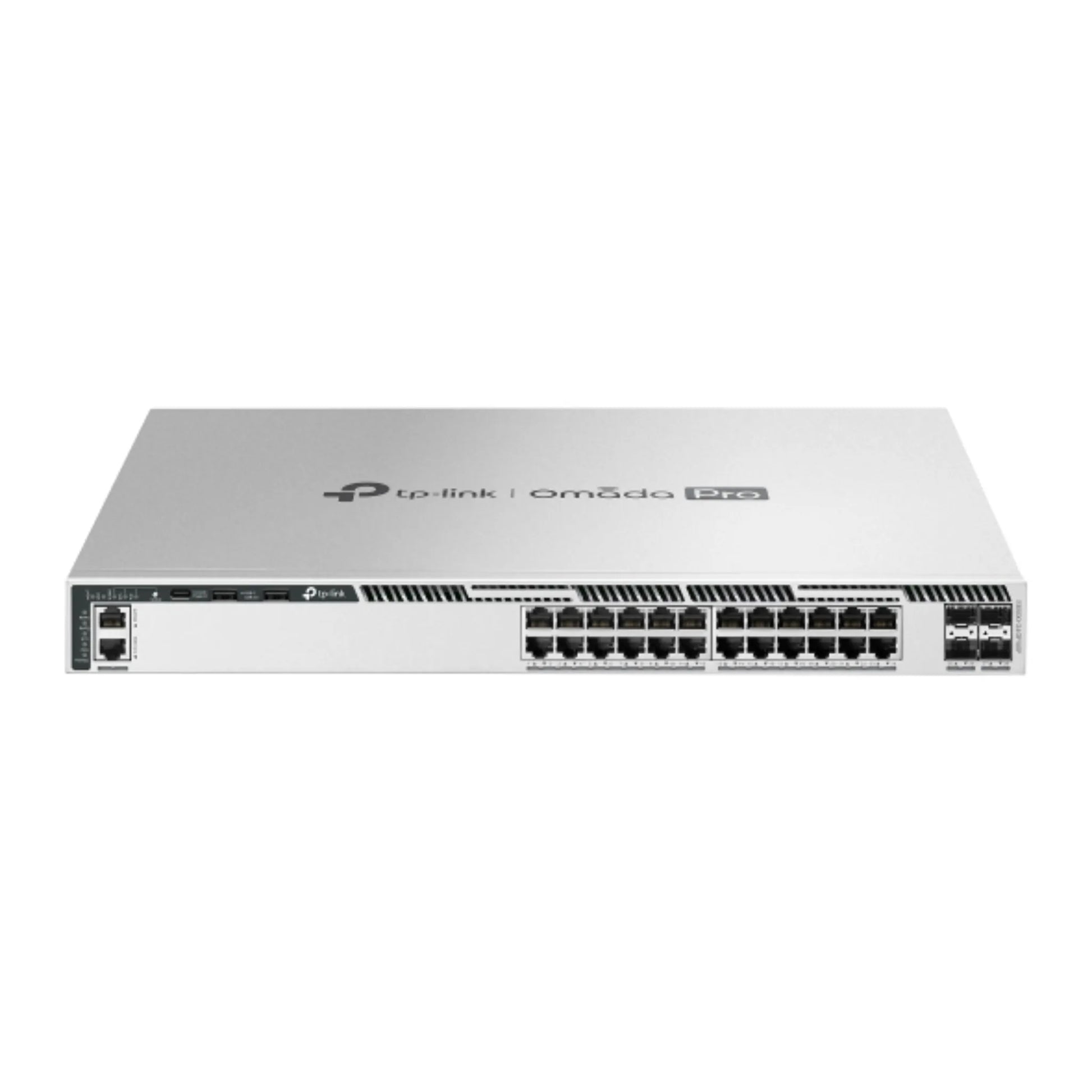

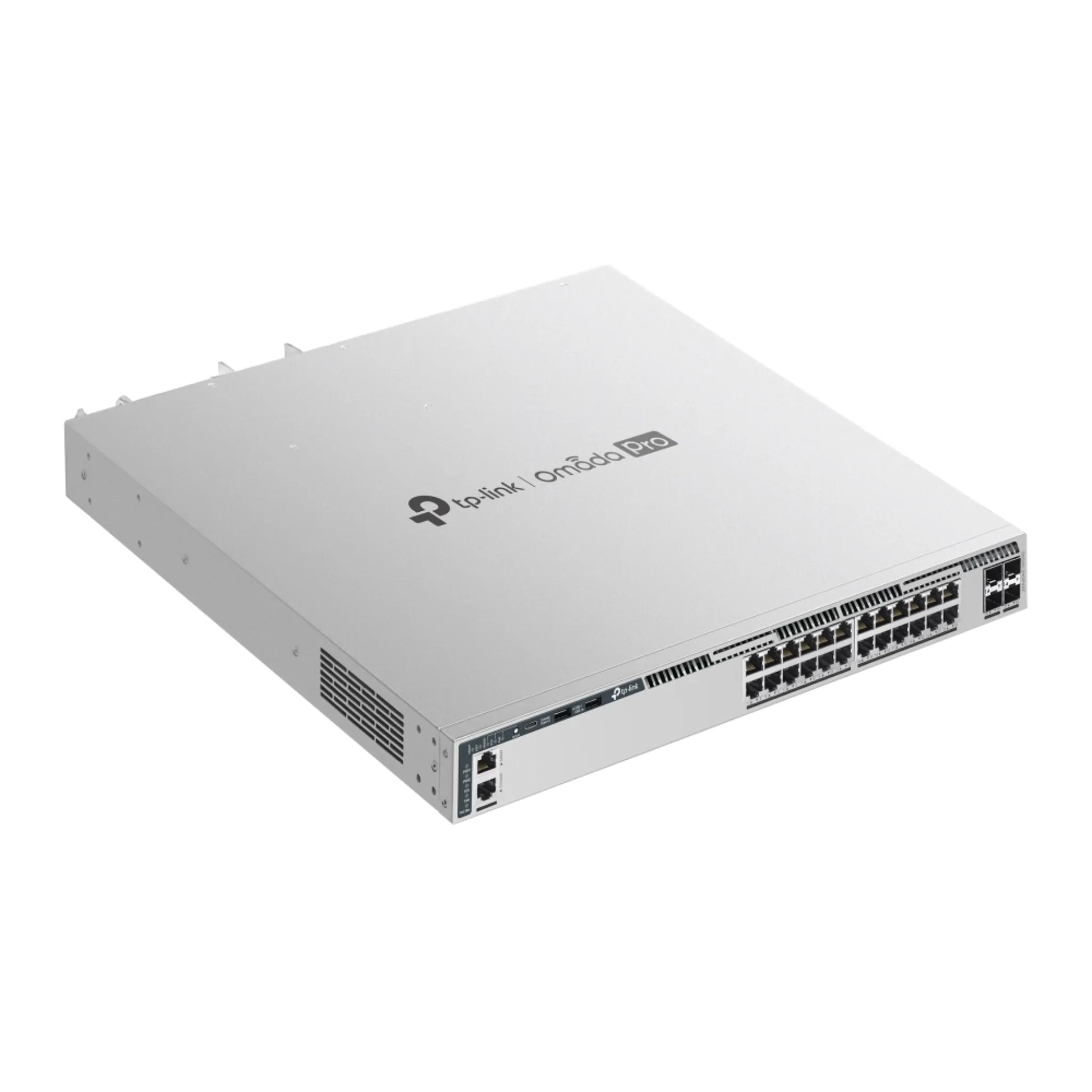

The TP-Link Omada Pro S6500-24GP4XF is an enterprise 24-port Gigabit stackable L3 Managed PoE+ Switch featuring 24× Gigabit PoE+ RJ45 ports, 4× 10Gbps SFP+ slots, and up to 720W total PoE budget. It supports physical stacking, OSPF, BGP, IS-IS, VRRP, ECMP, PBR, ERPS, BFD, MACsec, NETCONF, and centralized Omada Pro cloud management, with two field-replaceable power supplies for enhanced network availability.
S6500-24GP4XF
Omada Pro 24-Port Gigabit Stackable L3 Managed PoE+ Switch with 4 10G Slots | 720W PoE · Stackable · Advanced L3 & OSPF/BGP
Hardware Features
Interface

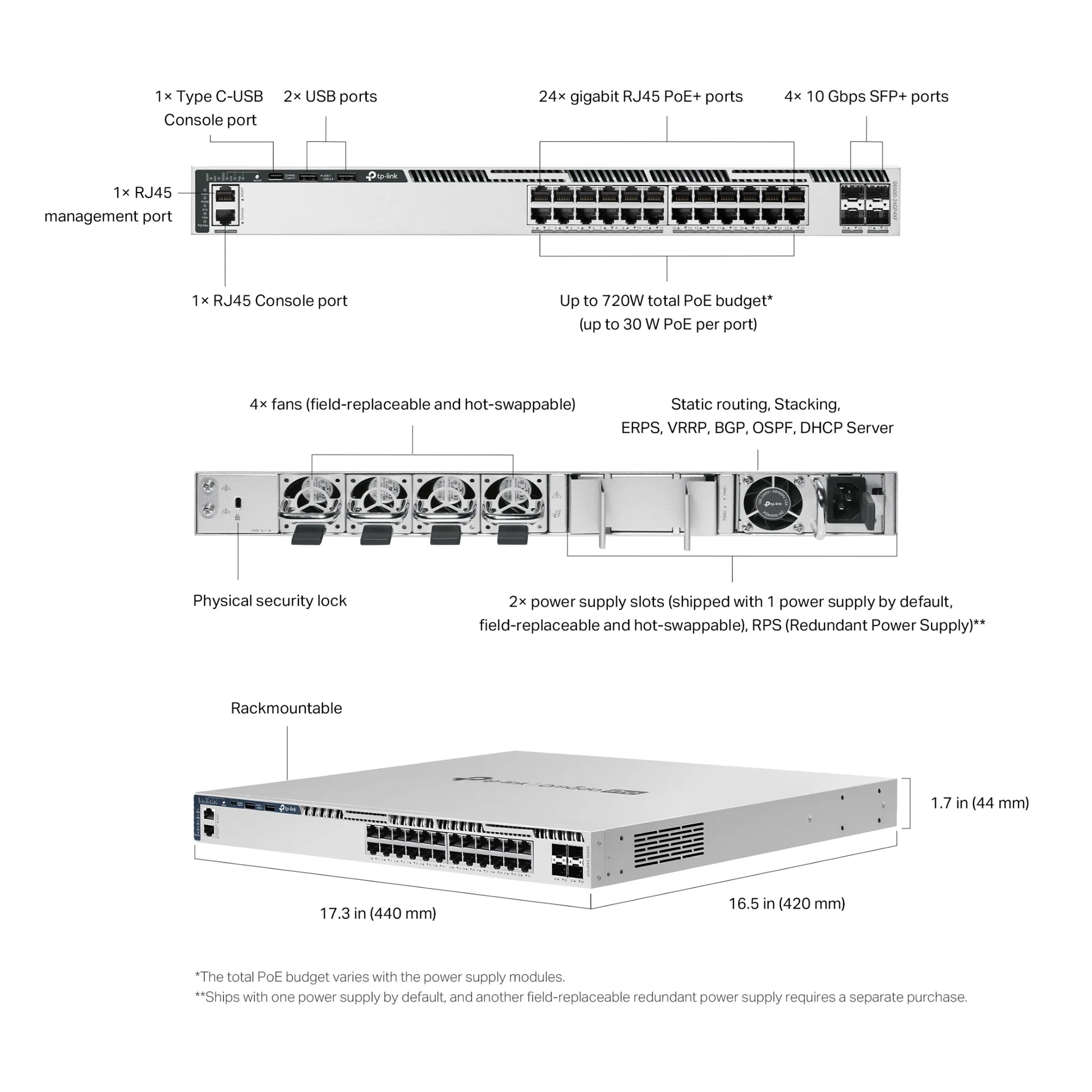

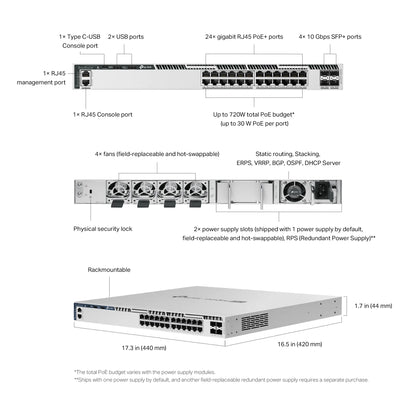

24× PoE+ RJ45 Ports · 4× 1/10G SFP+ Slots*** · 2× USB 2.0 · 1× RJ45 Console · 1× USB-C Console · 1× RJ45 Management Port
Fan Quantity

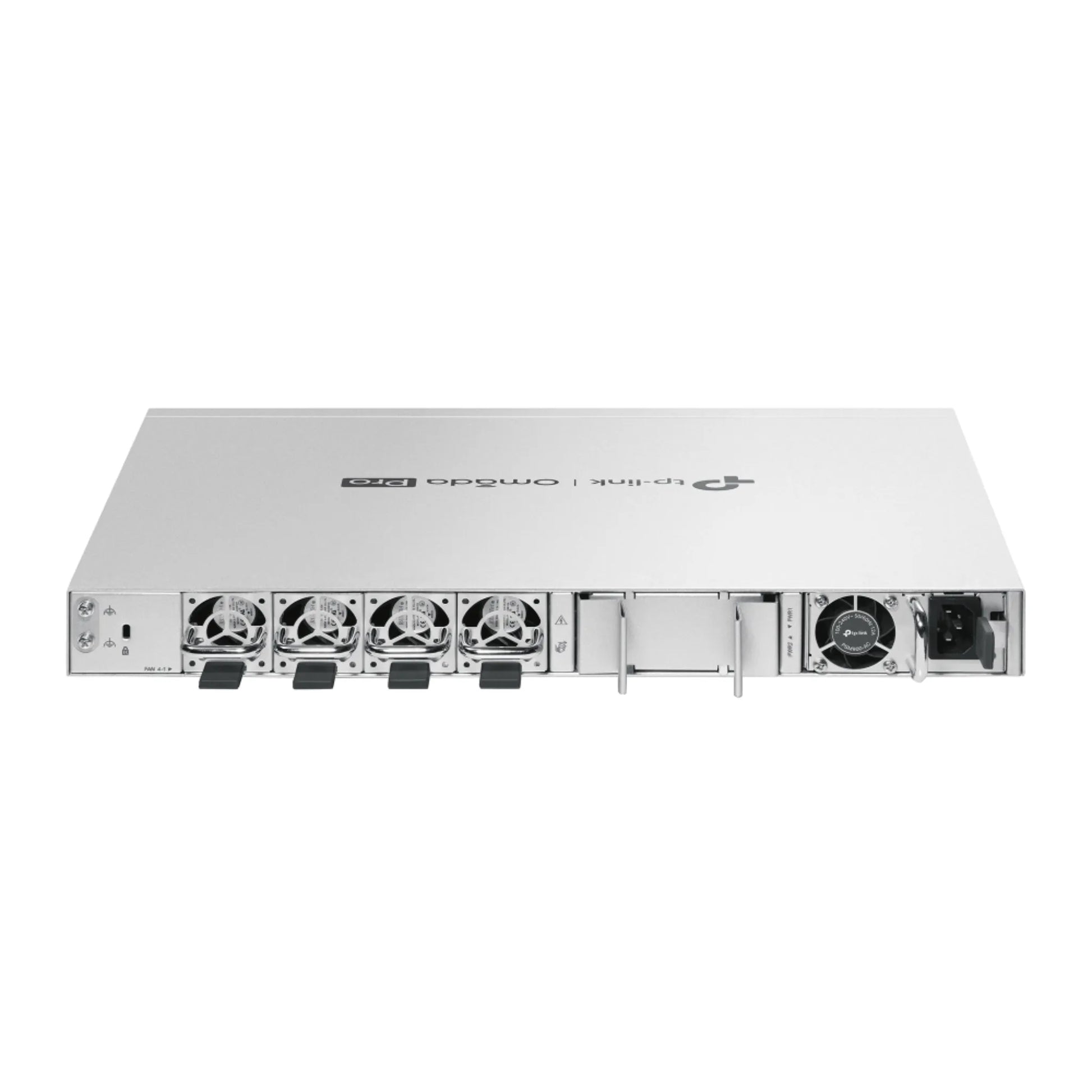

4 Field-replaceable & Hot-swappable Fans
Power Supply
2× Hot-swappable PSU (100-240VAC) · Ships with 1× PSM500-AC**
PoE Ports / Budget
24× PoE+ Ports (802.3at/af) · Up to 30W per port · 720W PoE Budget*
Dimensions (W x D x H)
17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm)
Mounting
Rackmountable
Max. Power Consumption
32.5W (no PD) · 916.6W (720W PD with 2× PSM500-AC)
Max. Heat Dissipation
110.82 BTU/hr (no PD) · 3,125.61 BTU/hr (720W PD with 2× PSM500-AC)
Performance
Switching Capacity
128 Gbps per Unit
Packet Forwarding Rate
95.2 Mpps
MAC Address Table
32 K
Packet Buffer Memory
3 MB
Jumbo Frame
9 KB
Stacking
Stacking Capability
12 Units (standalone) · 10G SFP+ Slots**** · Up to 80 Gbps Stack Bandwidth
L3 Features
L3 Interface & Routing
256 IPv4/IPv6 Interfaces · Static Routes (1,024/512) · Host Route Table: 6,100 · Network Router entries: 10,240/5,120 · ECMP (256 entries, 32 nexthops) · Static/Dynamic ARP (512/7,680) · ND: 7,680
Dynamic Routing
OSPFv2/v3 (16 instances) · RIPv1/v2/RIPng · IS-IS (IPv4/IPv6) · BGP (20 redistribute configs) · PIM-SM/DM/SSM · IGMP v1/v2/v3 · BFD · PBR · uRPF
DHCP & VRRP
DHCP Server (64 pools, 8,000 IPs) · DHCPv4/v6 Relay · VRRP v2/v3 (64 instances, 32 VIPs per instance)
QoS & L2 Features
Quality of Service
8 Queues · 802.1p/DSCP · SP/WRR/SP+WRR · Rate Limit · Storm Control · Voice VLAN · WRED (16 profiles) · QoS Remark (802.1P/DSCP)
L2 & L2+ Features
Link Aggregation (LACP) · STP/RSTP/MSTP · Loopback Detection · 802.3x Flow Control · ERPS · Mirroring · RSPAN · MAC Table · IGMP/MLD Snooping · MVR · Multicast Filtering
VLAN
4K VLAN Groups · 802.1Q Tagged · MAC VLAN (200) · Multicast VLAN · Management VLAN · QinQ (256 entries) · GVRP · Protocol VLAN (16/12) · Voice VLAN · Private VLAN
Advanced Features
ISP & Management Features
802.3ah Ethernet Link OAM · L2PT · DLDP · DDM · sFlow · Auto Discovery‡ · Batch Config/Firmware‡ · Network Monitoring‡ · Event Warnings‡ · Unified Config‡ · Reboot Schedule‡
Security
Security Features
Port Isolation · CPU-Defend · DoS Defend · IP-MAC-Port Binding (1,024) · IPv6-MAC-Port Binding (1,024) · DHCP Snooping · ARP Inspection · IPv4/IPv6 Source Guard · DHCP Filter · Port Security (64 MACs/port) · Storm Control · 802.1X (Port/MAC) · MAB · Guest VLAN · RADIUS · AAA (TACACS+) · HTTPS/SSL · SSHv2 · IP/Port/MAC Access Control · MACSec (-128, -256) · Secure Boot · RADSEC
Virtualization
IP Tunnel
IPv6 over IPv4 · IPv6 over IPv4 GRE · IPv4 over IPv4 GRE · Tunnel entries: 100
Management Features
Omada App & Controller
Omada App · Omada Pro Cloud/Software/Hardware Controller · Cloud Access · Zero-Touch Provisioning
Management Interfaces
Web GUI · CLI (Console/Telnet) · SNMPv1/v2c/v3 · RMON · SDM Template · DHCP/BOOTP · LLDP/LLDP-MED · DHCP Auto Install · Dual Image/Config · CPU Monitoring · Cable Diagnostics · Password Recovery · SNTP · System Log · IEEE 802.3az EEE
Others
Package Content

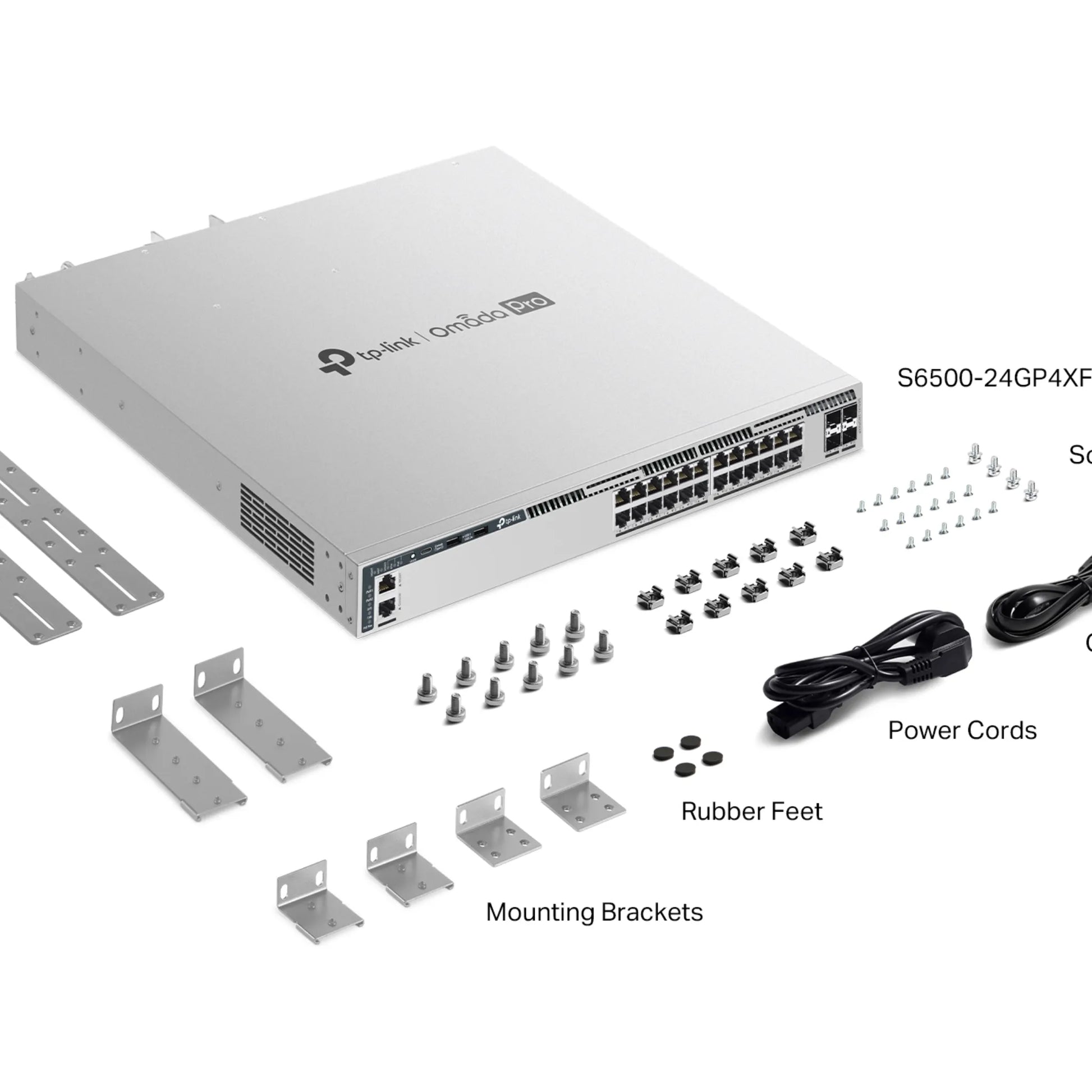

S6500-24GP4XF · Power Cords · RJ45 Console Cable · Quick Installation Guide · Rackmount Kit · Rubber Feet
System Requirements
Windows 98SE/NT/2000/XP/Vista/7/8/10/11 · macOS · NetWare · UNIX · Linux
Environment
Operating: -5 to 45°C (23-113°F) @ 2,000m · -5 to 40°C (23-104°F) @ 3,000m · Storage: -40 to 70°C · Humidity: 10-90% RH
