TP-Link Omada Pro S6500-24M4Y 2.5G L3 Switch
TP-Link Omada Pro S6500-24M4Y 2.5G L3 Switch

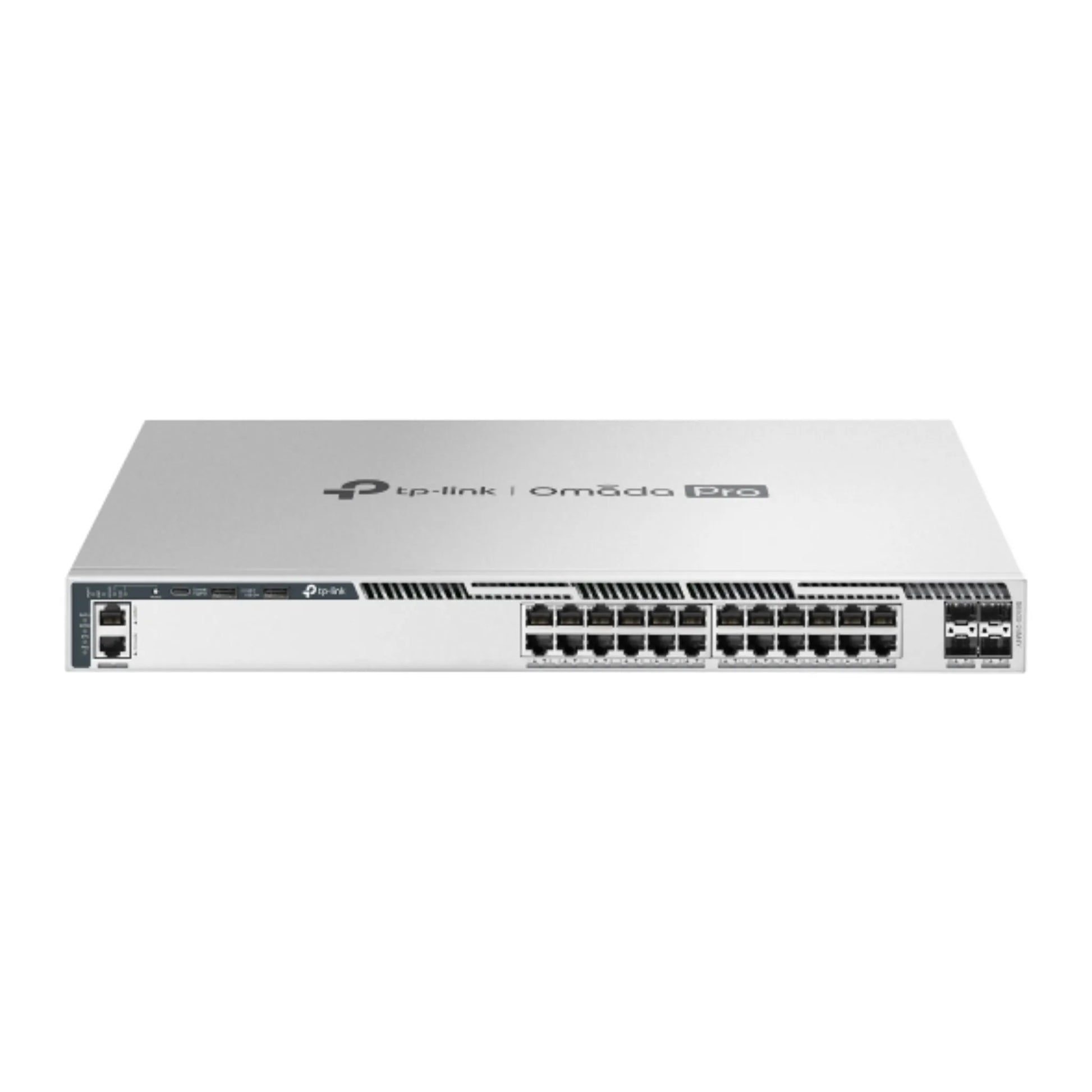

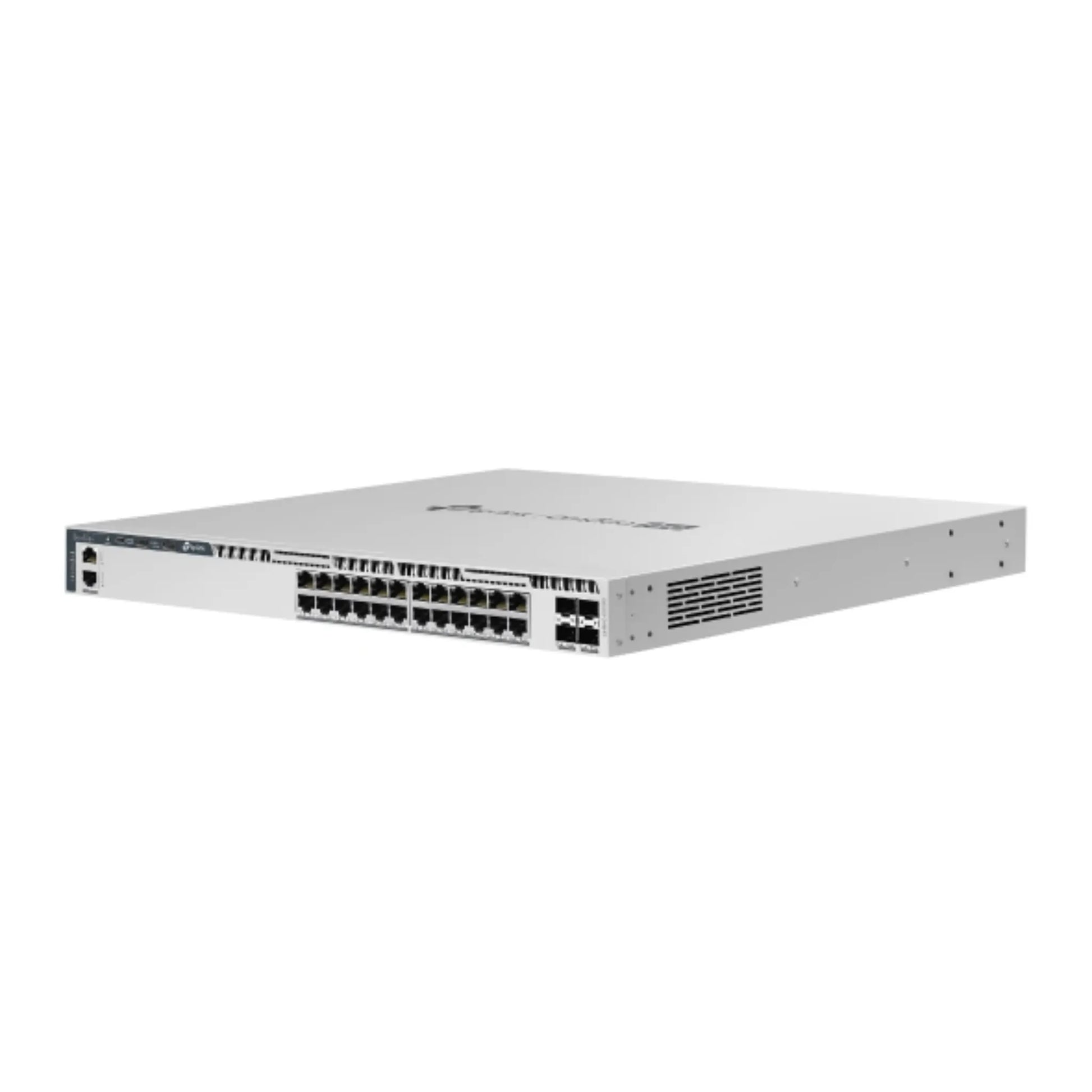

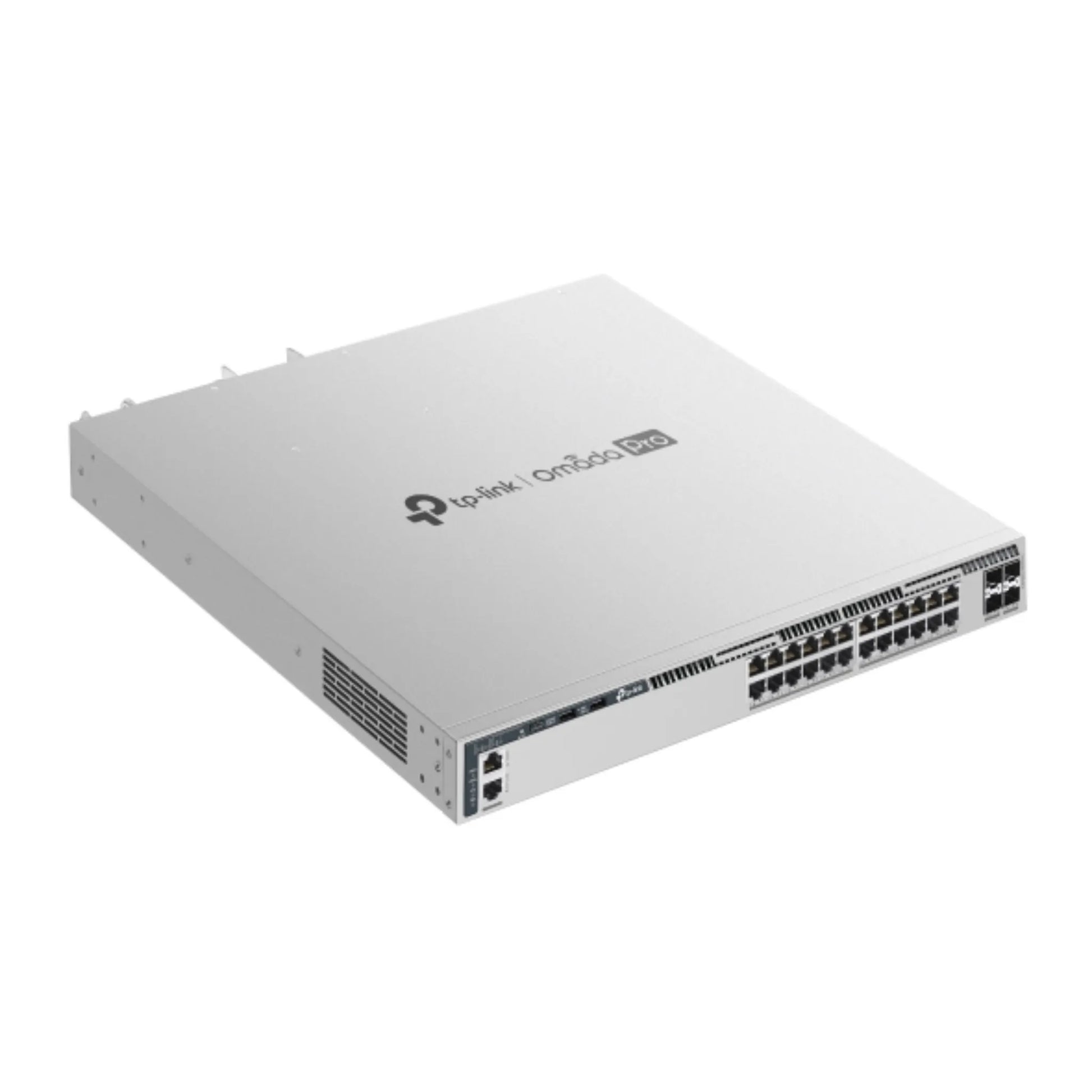

The TP-Link Omada Pro S6500-24M4Y is an enterprise 24-port 2.5G stackable L3 Managed Switch featuring 24× 2.5Gbps RJ45 ports and 4× 25Gbps SFP28 slots. Built for high-performance enterprise networks, it supports physical stacking, OSPF, BGP, IS-IS, VRRP, ECMP, PBR, ERPS, BFD, MACsec, NETCONF, advanced security, and centralized Omada Pro cloud management, with dual internal power supplies for enhanced network reliability.
S6500-24M4Y
Omada Pro 24-Port 2.5G Stackable L3 Managed Switch with 4 25G Slots | 320 Gbps · Stackable · Advanced L3 Routing
Hardware Features
Interface

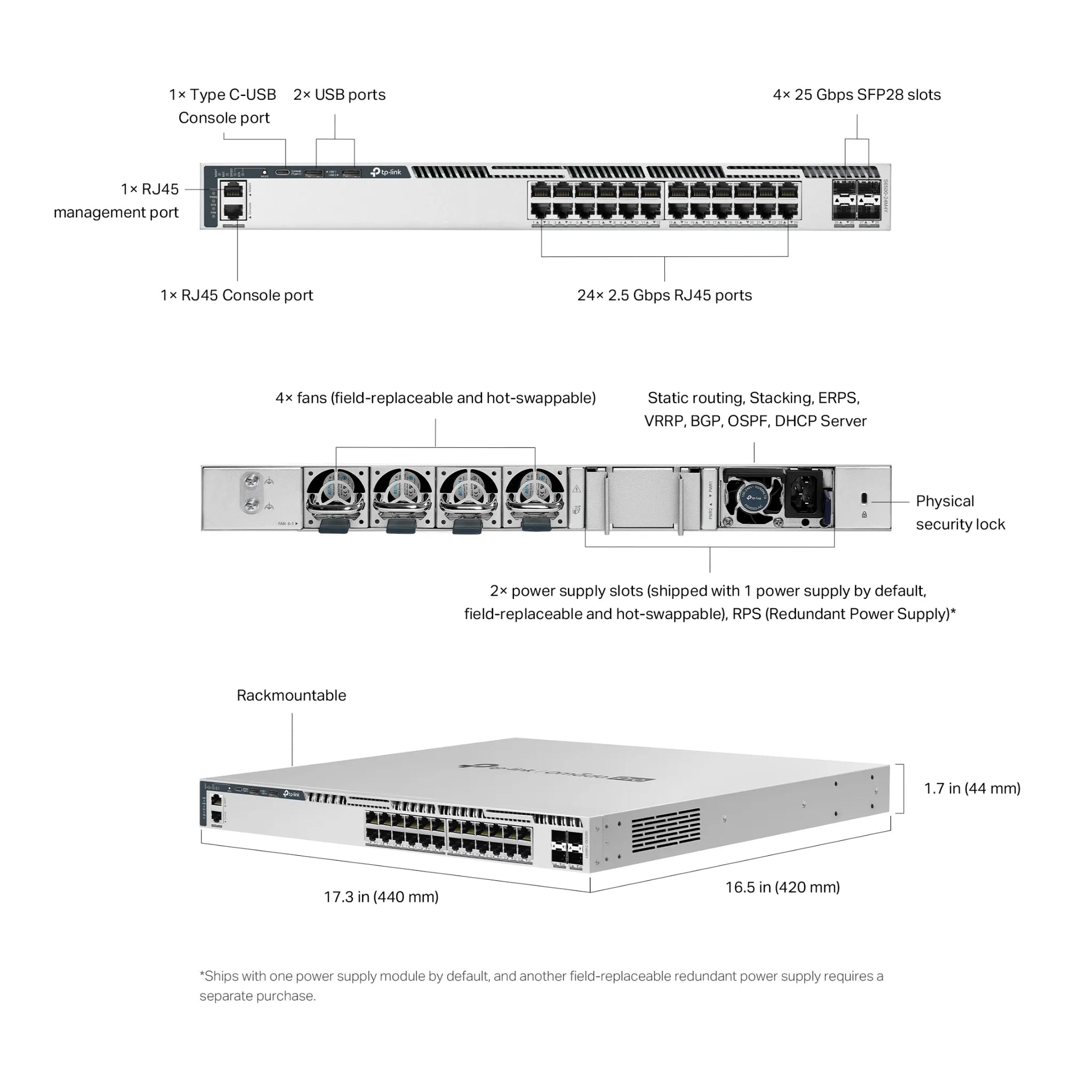

24× 100M/1G/2.5G RJ45 Ports · 4× 1/10/25G SFP28 Slots** · 2× USB 2.0 · 1× RJ45 Console · 1× USB-C Console · 1× RJ45 Management Port
Fan Quantity

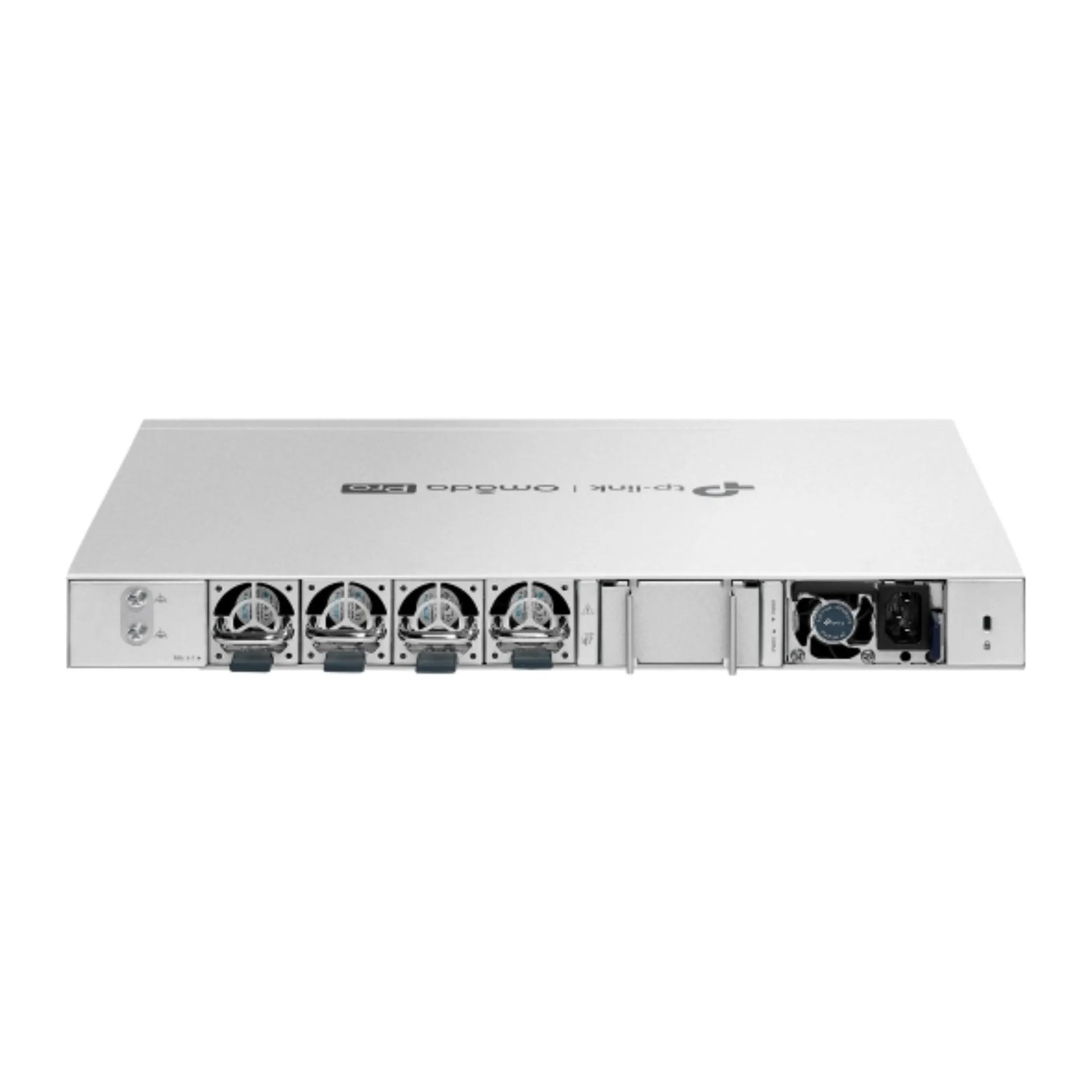

Four Field-replaceable & Hot-swappable Fans
Power Supply
Two Field-replaceable & Hot-swappable PSU Modules* (100–240 VAC, 50/60Hz) · Ships with one PSM550-AC module
Dimensions (W x D x H)
17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm)
Mounting
Rackmountable
Max. Power Consumption
72.5 W (110 V/60 Hz)
Max. Heat Dissipation
247.2 BTU/hr (110 V/60 Hz)
Performance
Switching Capacity
320 Gbps per Unit
Packet Forwarding Rate
238.1 Mpps
MAC Address Table
32 K
Packet Buffer Memory
3 MB
Jumbo Frame
9 KB
Stacking
Up to 12 Units · 25G SFP28 Stacking Ports · Up to 200 Gbps Stacking Bandwidth
QoS & L3 Features
Quality of Service
8 Queues · 802.1p CoS/DSCP · SP/WRR/SP+WRR · Bandwidth Control · Storm Control · Voice VLAN · WRED (16 profiles)
L3 Features
256 L3 Interfaces · 1,024 IPv4 / 512 IPv6 Static Routes · 6,100 Host Routes · 10,240 IPv4 Network Router Entries · ECMP (256 entries) · Static/Dynamic ARP · DHCP Server (8,000 Leases) · DHCPv4/v6 Relay · VRRP (64 instances) · OSPFv2/v3 · RIP/RIPng · IS-ISv4/v6 · BGPv4 · PIM-SM/DM/SSM · IGMP v1/v2/v3 · BFD · PBR · uRPF
L2 & L2+ Features
L2 Features
Link Aggregation (LACP) · STP/RSTP/MSTP · Loopback Detection · 802.3x Flow Control · ERPS · Port/CPU Mirroring · RSPAN · MAC Address Table
Multicast
IGMP Snooping v1/v2/v3 · MLD Snooping · MVR · 4K Multicast Groups · Fast Leave · Static Multicast Groups · Multicast Filtering · IGMP Authentication
Advanced Features & VLAN
Advanced Features
Auto Discovery† · Batch Config/Upgrade† · Network Monitoring† · Event Warnings† · Reboot Schedule† · 802.3ah Ethernet Link OAM · L2PT · DLDP · DDM · sFlow
VLAN
4K VLAN Groups · 802.1Q Tagged · MAC VLAN (200) · Multicast VLAN · Management VLAN · QinQ (256 entries) · GVRP · Protocol VLAN · Voice VLAN · Private VLAN
Security
Security Features
Port Isolation · CPU-Defend · DoS Defend · IP-MAC Binding (1,024) · DHCP Snooping · ARP Inspection · IPv4/IPv6 Source Guard · DHCP Filter · Port Security (64 MACs/port) · Storm Control · 802.1X (Port/MAC-based) · MAB · Guest VLAN · RADIUS · AAA (TACACS+) · HTTPS/SSL · SSHv2 · IP/Port/MAC Access Control · MACSec (gcm-aes-128/256) · Secure Boot · RADSEC
Management Features
Omada App & Controller
Omada App · Omada Pro Cloud/Software/Hardware Controller · Cloud Access · Zero-Touch Provisioning
Management Interfaces
Web GUI · CLI (Console/Telnet) · SNMPv1/v2c/v3 · RMON · SDM Template · DHCP/BOOTP · LLDP/LLDP-MED · DHCP Auto Install · Dual Image/Config · CPU Monitoring · Cable Diagnostics · Password Recovery · SNTP · System Log · EEE
Others
Package Content
S6500-24M4Y Switch · Power Cord · RJ45 Console Cable · Quick Installation Guide · Rackmount Kit · Rubber Feet
System Requirements
Windows 98SE/NT/2000/XP/Vista/7/8/10/11 · macOS · NetWare · UNIX · Linux
Environment
Operating: -5°C to 50°C (300m) · -5°C to 45°C (2,000m) · -5°C to 40°C (3,000m) · Storage: -40°C to 70°C · Humidity: 10–90% RH non-condensing
