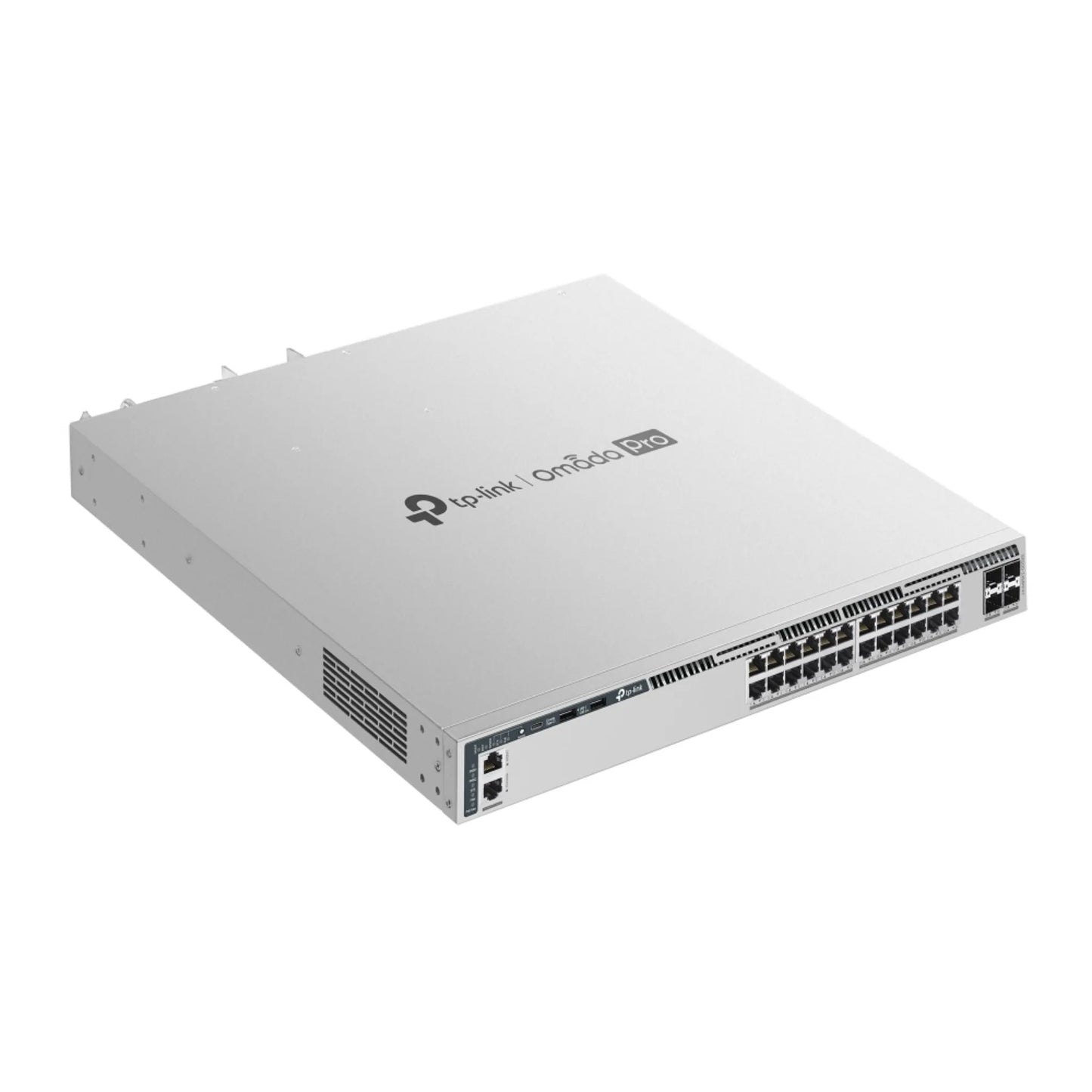

TP-Link Omada Pro S6500-24MPP4Y 2.5G PoE++ L3 Switch
TP-Link Omada Pro S6500-24MPP4Y 2.5G PoE++ L3 Switch
The TP-Link Omada Pro S6500-24MPP4Y is an enterprise 24-port 2.5G stackable L3 Managed PoE++ Switch featuring 24× 2.5Gbps PoE++ RJ45 ports with up to 60W output per port, 4× 25Gbps SFP28 slots, and up to 1440W total PoE budget. It supports physical stacking, OSPF, BGP, IS-IS, VRRP, ECMP, PBR, ERPS, BFD, MACsec, NETCONF, advanced security, and centralized Omada Pro cloud management, with two field-replaceable power supplies for enhanced network availability.
S6500-24MPP4Y
Omada Pro 24-Port 2.5G Stackable L3 Managed PoE++ Switch with 4 25G Slots — Enterprise-grade networking specifications

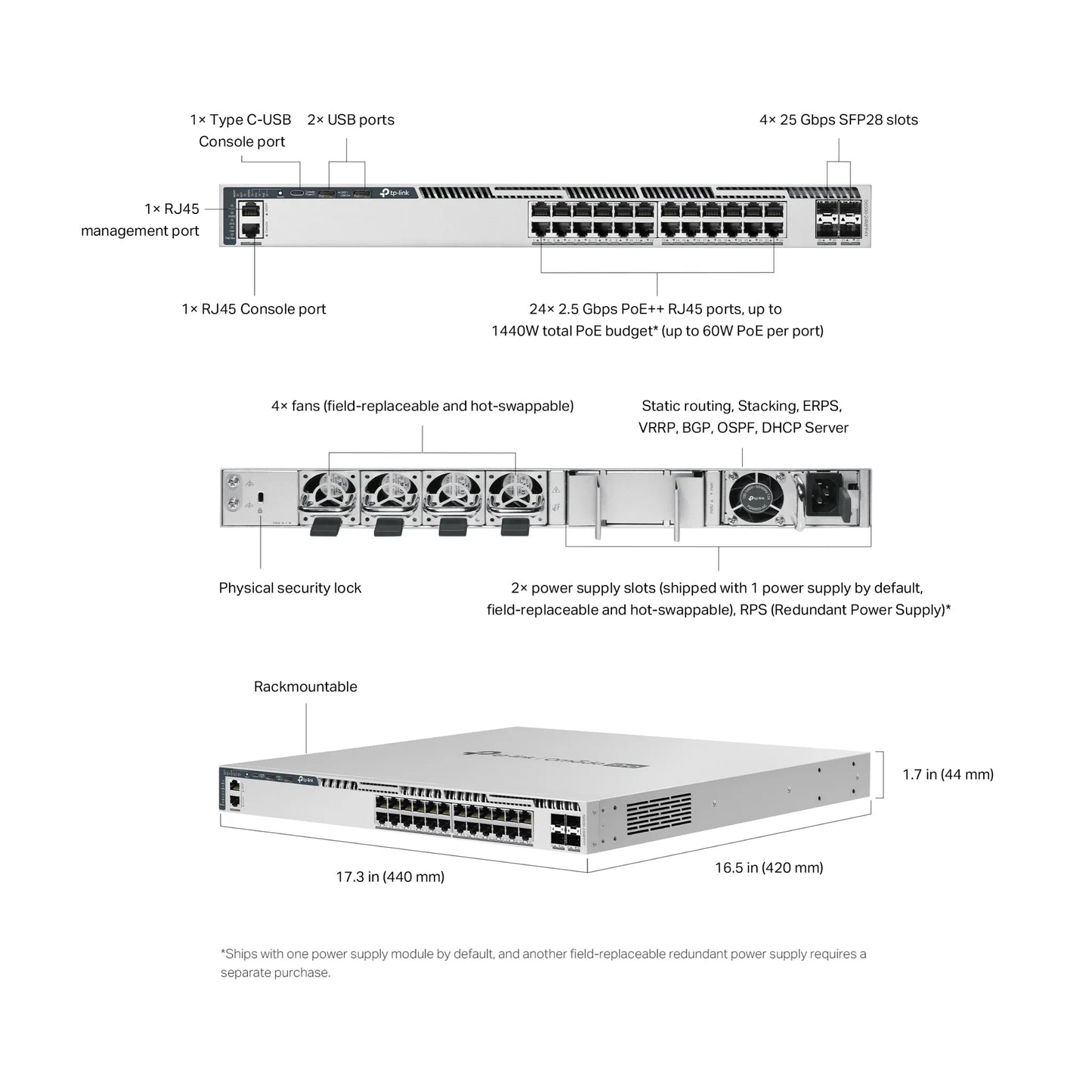

HARDWARE FEATURES
Interface
24× 100Mbps/1Gbps/2.5Gbps PoE++ RJ45 Ports
4× 1/10/25G SFP28 Slots***
2× USB 2.0 Ports
1× RJ45 Console Port
1× USB Type-C Console Port
1× RJ45 Management Port
4× 1/10/25G SFP28 Slots***
2× USB 2.0 Ports
1× RJ45 Console Port
1× USB Type-C Console Port
1× RJ45 Management Port

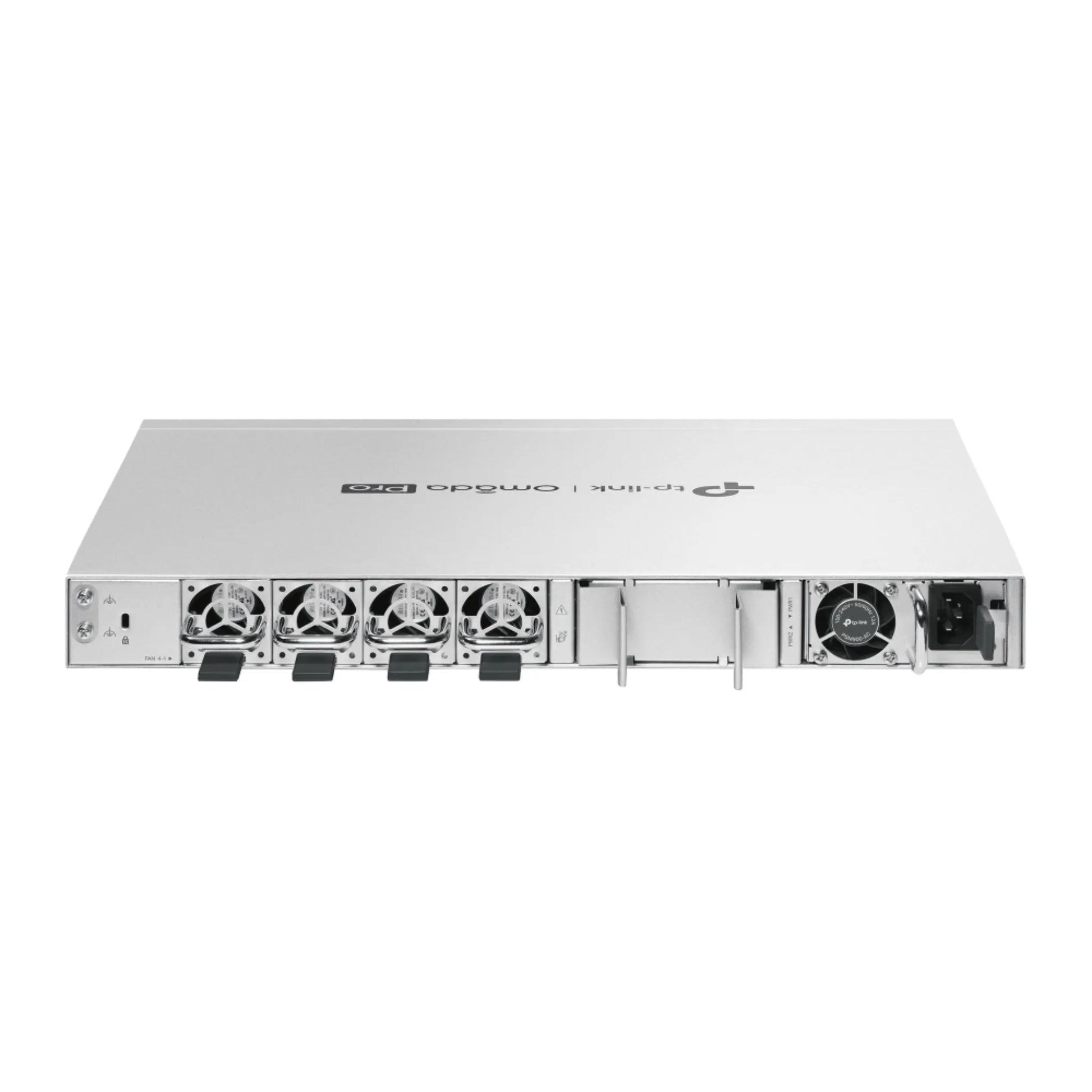

Fan Quantity
Four Field-replaceable and Hot-swappable Fans
Power Supply
Two Field-replaceable and Hot-swappable Power Supply Modules** (100–240 VAC, 50/60 Hz)
**Shipping with one PSM900-AC module by default, another redundant power supply requires separate purchase.
**Shipping with one PSM900-AC module by default, another redundant power supply requires separate purchase.
PoE Ports (RJ45)
• Standard: 802.3af/at/bt compliant
• PoE++ Ports: 24 Ports, up to 60 W per port
• PoE Power Budget: up to 1440W*
*Total PoE budget varies with power supply modules.
• PoE++ Ports: 24 Ports, up to 60 W per port
• PoE Power Budget: up to 1440W*
*Total PoE budget varies with power supply modules.
Dimensions (W x D x H)
17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm)
Mounting
Rackmountable
Max. Power Consumption
• 94.8 W (110 V/60 Hz) (No PD connected)
• 1,745.5 W (110 V/60 Hz) (With 1440W PD connected & powered by 2× PSM900-AC)
• 1,745.5 W (110 V/60 Hz) (With 1440W PD connected & powered by 2× PSM900-AC)
Max. Heat Dissipation
• 323.3 BTU/hr (110 V/60 Hz) (No PD connected)
• 5,952.2 BTU/hr (110 V/60 Hz) (With 1440W PD connected & powered by 2× PSM900-AC)
• 5,952.2 BTU/hr (110 V/60 Hz) (With 1440W PD connected & powered by 2× PSM900-AC)
PERFORMANCE
Switching Capacity
320 Gbps per Unit
Stacking
• Stacking Number: 12 (standalone mode)
• Stacking Port: 25G SFP28 Slot (all uplink ports can be used as stacking ports)****
• Stacking Bandwidth: Up to 200 Gbps (4 stacking ports)
△Supports 12 units physical stacking in standalone mode.
• Stacking Port: 25G SFP28 Slot (all uplink ports can be used as stacking ports)****
• Stacking Bandwidth: Up to 200 Gbps (4 stacking ports)
△Supports 12 units physical stacking in standalone mode.
Packet Forwarding Rate
238.1 Mpps
MAC Address Table
32 K
Packet Buffer Memory
3 MB
Jumbo Frame
9 KB
SOFTWARE FEATURES — QoS
Quality of Service
• Class of Service: 8 Queues Priority, Port Priority, IEEE 802.1p, DSCP/ToS, Queue Min-Bandwidth, Schedule Mode (SP, WRR, SP+WRR)
• Bandwidth Control: Rate Limit, Storm Control
• Voice VLAN, User-Defined OUI, Smoother Performance
• Flow Actions: QoS Remark (802.1P, DSCP)
• WRED profile: 16
• Bandwidth Control: Rate Limit, Storm Control
• Voice VLAN, User-Defined OUI, Smoother Performance
• Flow Actions: QoS Remark (802.1P, DSCP)
• WRED profile: 16
SOFTWARE FEATURES — L3 Features
L3 Interface
256 (IPv4, IPv6)
Static Route
1,024 IPv4 · 512 IPv6
Route Tables
• Host Route Table: Max 6,100 entries
• IPv4 Network Router: 10,240 (shared with IPv6)
• IPv6 Network Router: 5,120 (shared with IPv4)
• ECMP: 256 entries, max 32 Nexthops per Destination
• IPv4 Network Router: 10,240 (shared with IPv6)
• IPv6 Network Router: 5,120 (shared with IPv4)
• ECMP: 256 entries, max 32 Nexthops per Destination
ARP / ND
• Static ARP: 512 • Dynamic ARP: 12,288
• ND: 12,288
• ND: 12,288
DHCP Server
Max IP Pools: 64 · Max Leases: 8000
DHCPv4/v6 Relay
DHCPv4/v6 Relay
VRRP
Version v2/v3 · Max 64 instances · Max 32 Virtual IP per instance
Routing Protocols
OSPFv2 (16 processes), OSPFv3 (1 instance), RIPv1/v2, RIPng, IS-ISv4/v6, BGPv4, PIM-SM/DM/SSM
• BFD: 16 template numbers, 8 session numbers
• PBR, uRPF
• IGMP: v1/v2/v3, Max 2,048 multicast groups
• BFD: 16 template numbers, 8 session numbers
• PBR, uRPF
• IGMP: v1/v2/v3, Max 2,048 multicast groups
SOFTWARE FEATURES — L2, L2+, Advanced
L2 & L2+ Features
Link Aggregation, Spanning Tree Protocol, Port/VLAN Loopback Detection, 802.3x Flow Control, ERPS, Mirroring, RSPAN, MAC Address Table
Multicast: IGMP/MLD Snooping, MVR, Max 4K groups, Fast Leave, Static Groups, Filtering, Authentication
Multicast: IGMP/MLD Snooping, MVR, Max 4K groups, Fast Leave, Static Groups, Filtering, Authentication
Advanced Features
• Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule‡
‡Requires Omada Pro SDN Controller.
• ISP Features: 802.3ah Ethernet Link OAM, L2PT, DLDP, DDM, sFlow
‡Requires Omada Pro SDN Controller.
• ISP Features: 802.3ah Ethernet Link OAM, L2PT, DLDP, DDM, sFlow
VLAN
Max 4K VLAN Group (802.1q), 802.1Q Tagged VLAN, MAC VLAN (200 entries), Multicast VLAN, Management VLAN, VLAN VPN (QinQ: 256 entries), GVRP, Protocol VLAN (16 templates, 12 entries), Voice VLAN, Private VLAN
Security
Port Isolation, CPU-Defend, DoS Defend, IP-MAC Binding (1,024 entries), DHCP/ARP Snooping, IPv6-MAC Binding, ARP/ND Inspection, IPv4/IPv6 Source Guard, DHCP Filter, Static/Dynamic Port Security (64 MACs/port), Storm Control (kbps/ratio), 802.1X (Port/MAC/MAB/Guest VLAN/RADIUS), AAA (TACACS+), HTTPS/SSLv3/TLS1.2, SSHv2, IP/Port/MAC Access Control, MACSec (gcm-aes-128/256), Secure Boot, RADSEC
MANAGEMENT FEATURES
Omada App
Yes, through Omada Pro Controller
Centralized Management
• Omada Pro Cloud-Based Controller
• Omada Pro Hardware Controller
• Omada Pro Software Controller
• Omada Pro Hardware Controller
• Omada Pro Software Controller
Zero-Touch Provisioning
Yes. Requiring Omada Pro Cloud-Based Controller.
Management Features
Web GUI, CLI (console/telnet), SNMPv1/v2c/v3 (Trap/Inform/RMON 1,2,3,9), SDM Template, DHCP/BOOTP Client, 802.1ab LLDP/LLDP-MED, DHCP Auto Install, Dual Image/Configuration, CPU Monitoring, Cable Diagnostics, Password Recovery, SNTP, System Log, IEEE 802.3az EEE
OTHERS

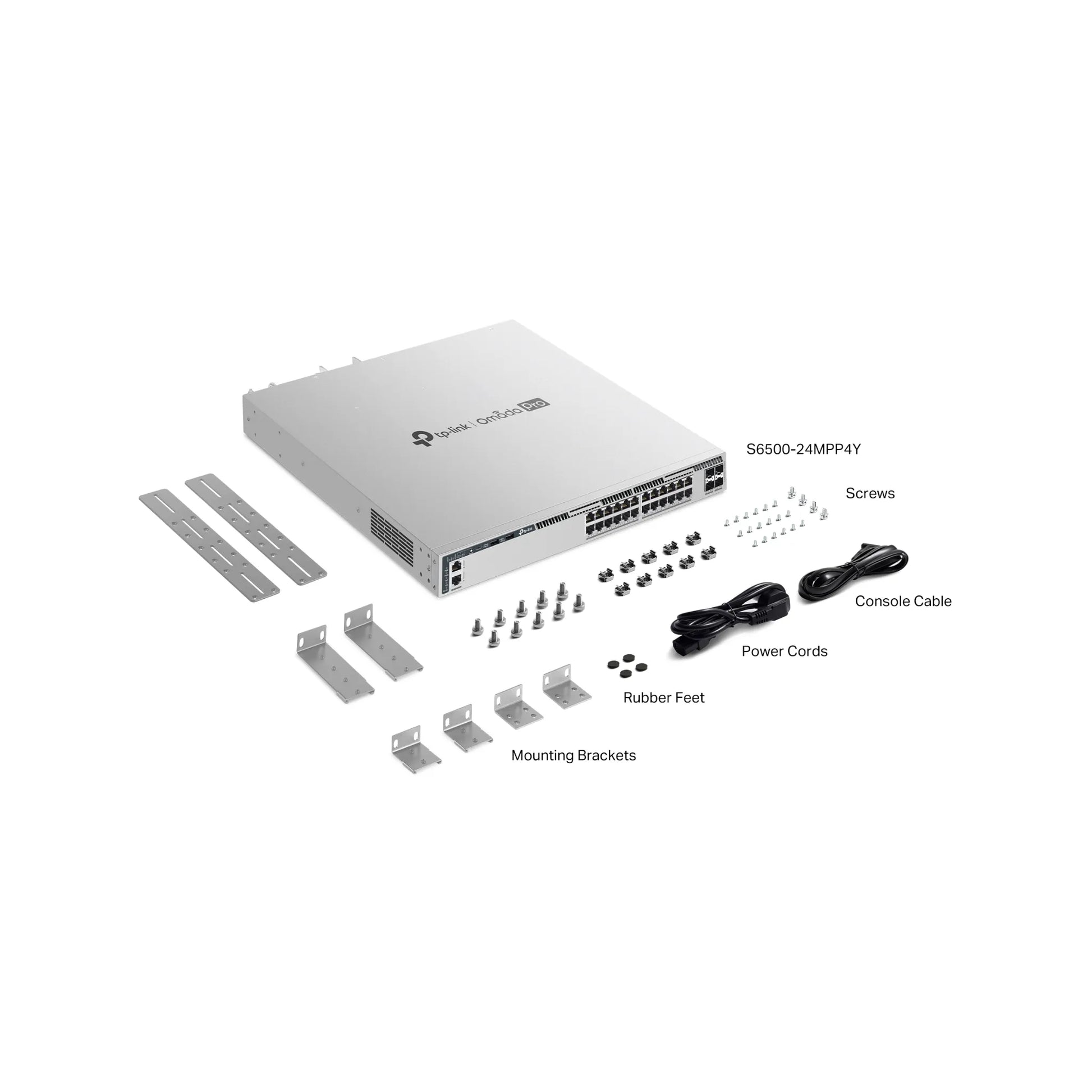

Package Content
S6500-24MPP4Y Switch, Power Cord, RJ45 Console Cable, Quick Installation Guide, Rackmount Kit, Rubber Feet
System Requirements
Windows 98SE/NT/2000/XP/Vista/7/8/10/11, macOS, NetWare, UNIX, Linux
Environment
• Operating Temperature: -5 °C to 45 °C @ 2,000m / -5 °C to 40 °C @ 3,000m
• Storage Temperature: -40 °C to 70 °C
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
• Storage Temperature: -40 °C to 70 °C
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
