TP-Link Omada Pro S6500-48G6XF L3 Stackable Switch
TP-Link Omada Pro S6500-48G6XF L3 Stackable Switch

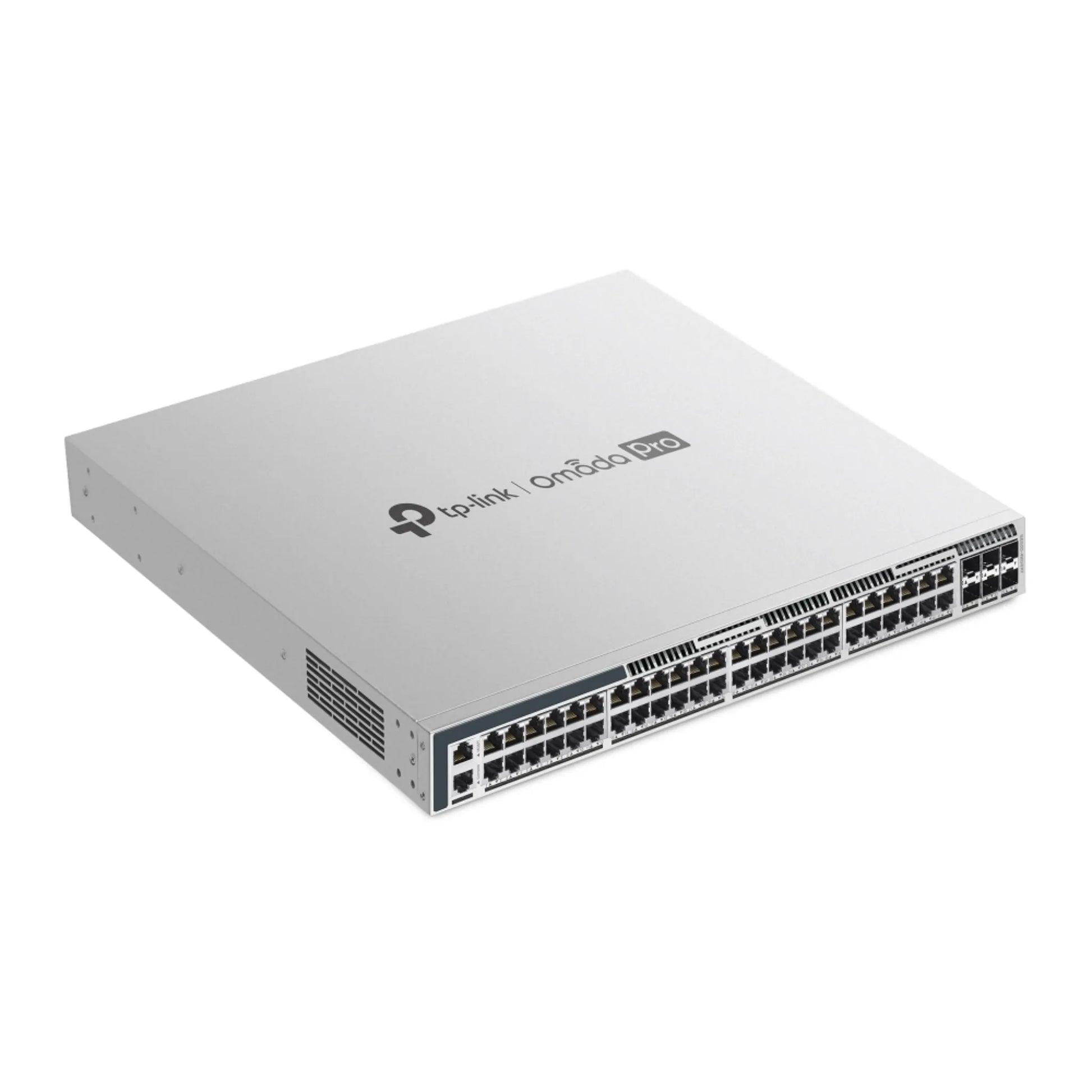

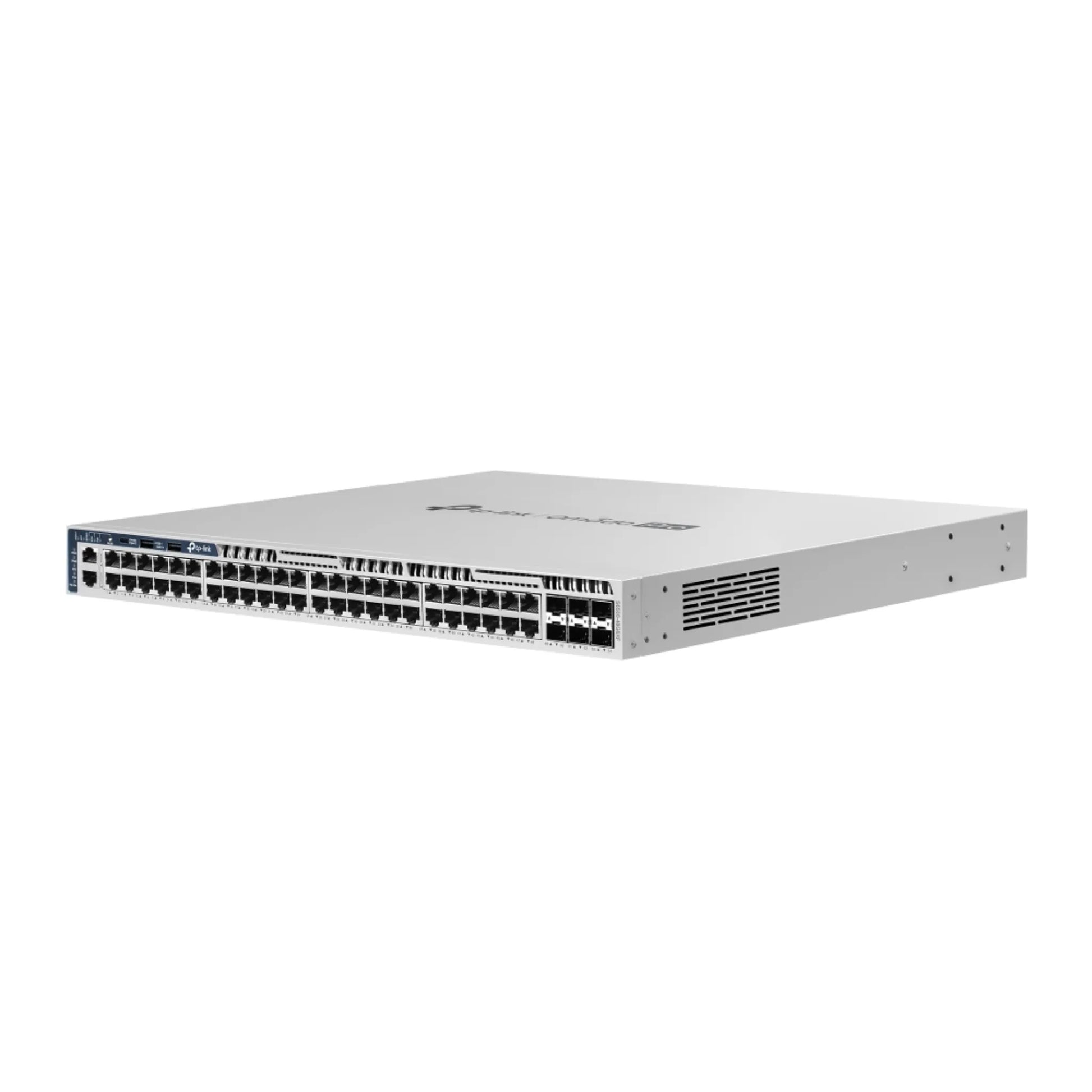

The TP-Link Omada Pro S6500-48G6XF is an enterprise 48-port Gigabit stackable L3 Managed Switch featuring 48× Gigabit RJ45 ports and 6× 10Gbps SFP+ slots. Built for high-performance enterprise networks, it supports physical stacking, OSPF, BGP, IS-IS, VRRP, ECMP, PBR, ERPS, BFD, MACsec, NETCONF, and centralized Omada Pro cloud management, with dual internal power supplies for enhanced network reliability.
S6500-48G6XF
Omada Pro 48-Port Gigabit Stackable L3 Managed Switch with 6 10G Slots | 216 Gbps · Stacking · Advanced L3 Routing
Hardware Features
Interface

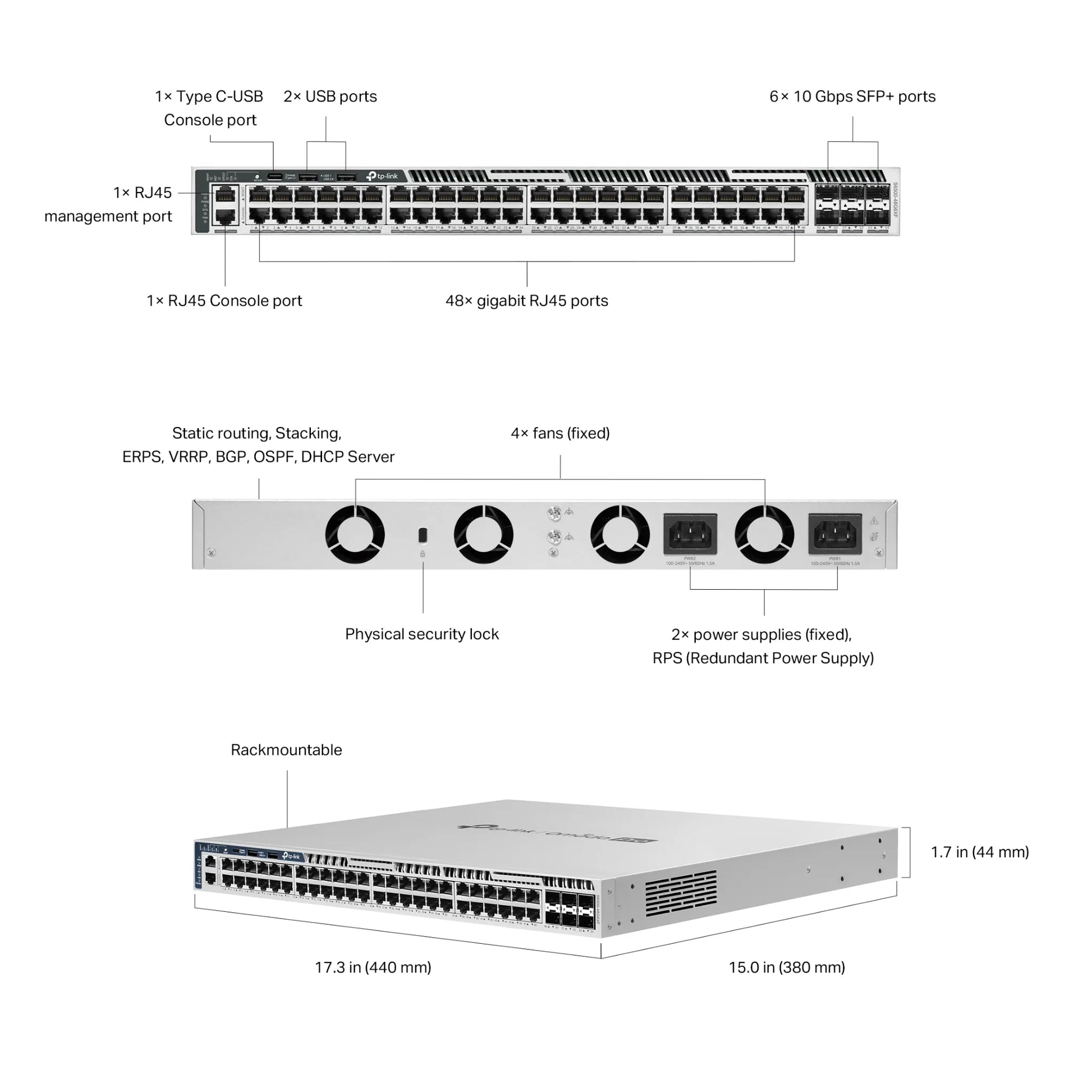

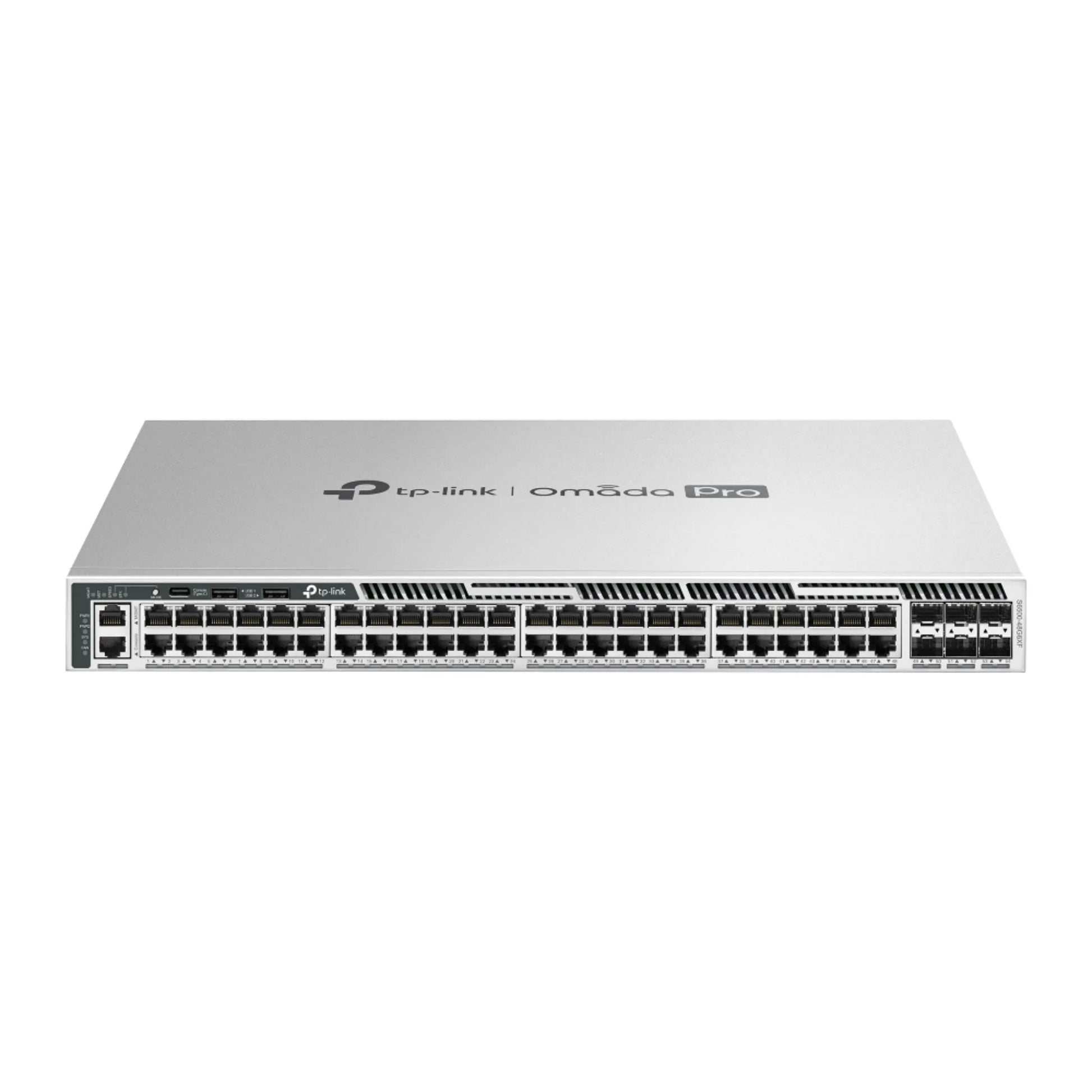

48× Gigabit RJ45 Ports · 6× 1/10G SFP+ Slots* · 2× USB 2.0 · RJ45/USB-C Console · RJ45 Management Port
Fan Quantity

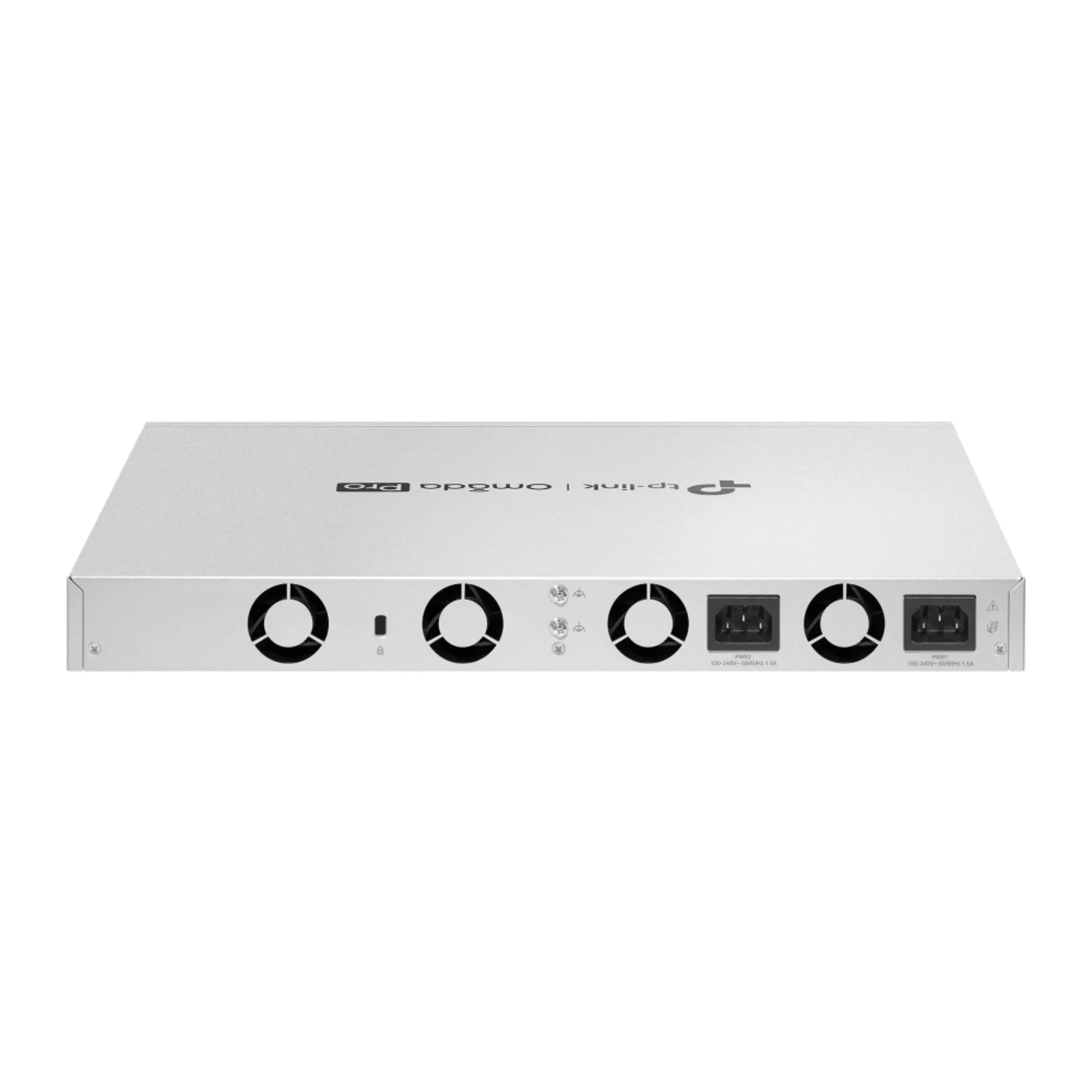

Four Internal Fixed Fans
Power Supply
Two Internal Fixed Modules (100–240 VAC, 50/60 Hz)
Dimensions (W x D x H)
17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
Mounting
Rackmountable
Max. Power Consumption
39.8 W (220 V/50 Hz)
Max. Heat Dissipation
135.81 BTU/hr (220 V/50 Hz)
Performance
Switching Capacity
216 Gbps per Unit
Packet Forwarding Rate
160.7 Mpps
MAC Address Table
32 K
Packet Buffer Memory
3 MB
Jumbo Frame
9 KB
Stacking
12 Units (standalone) · 10G SFP+ Stacking Ports · Up to 120 Gbps Stack Bandwidth
QoS & L3 Features
Quality of Service
8 Queues · 802.1p/DSCP · SP/WRR/SP+WRR · Rate Limit · Storm Control · Voice VLAN · WRED (16 profiles)
L3 Interface & Routing
256 L3 Interfaces · 1,024 IPv4 / 512 IPv6 Static Routes · ECMP (256 entries) · Static/Dynamic ARP · ND · DHCP Server (64 pools) · DHCPv4/v6 Relay
Dynamic Routing
OSPFv2/v3 · RIPv1/v2 · RIPng · IS-IS (IPv4/IPv6) · BGP · PIM-DM/SM/SSM · IGMP v1/v2/v3 · BFD · PBR · uRPF
L2 & Advanced Features
L2 & L2+ Features
Link Aggregation · STP/RSTP/MSTP · Loopback Detection · 802.3x Flow Control · ERPS · Mirroring · RSPAN · IGMP/MLD Snooping · MVR · Multicast Filtering
Advanced & ISP Features
Auto Discovery† · Batch Config/Upgrade · Intelligent Monitoring · Event Warnings · Reboot Schedule · 802.3ah OAM · L2PT · DLDP · DDM · sFlow
VLAN
4K VLAN Groups · 802.1Q Tagged · MAC VLAN (200) · Protocol VLAN · Private VLAN · QinQ (256 entries) · GVRP · Voice VLAN · Management VLAN
Security
Security Features
Port Isolation · CPU-Defend · ARP Inspection · DoS Defend · IP-MAC-Port Binding (1,024) · DHCP/ND Snooping · IPv4/IPv6 Source Guard · Port Security (64 MACs/port) · Storm Control · 802.1X (Port/MAC-based) · MAB · Guest VLAN · RADIUS · AAA (TACACS+) · HTTPS/SSL · SSHv2 · IP/Port/MAC Access Control · MACSec (-128, -256) · Secure Boot · RADSEC
Virtualization
IP Tunnel: IPv6 over IPv4 · IPv6 over IPv4 GRE · IPv4 over IPv4 GRE (100 entries)
Management Features
Omada App & Controller
Omada App · Omada Pro Cloud/Hardware/Software Controller · Cloud Access · Zero-Touch Provisioning
Management Interfaces
Web GUI · CLI (Console/Telnet) · SNMPv1/v2c/v3 · RMON · SDM Template · DHCP/BOOTP · LLDP/LLDP-MED · DHCP Auto Install · Dual Image/Config · CPU Monitoring · Cable Diagnostics · Password Recovery · SNTP · System Log · Remote Packet Capture · IEEE 802.3az EEE
Others
Certification
CE, FCC, RoHS
Package Content

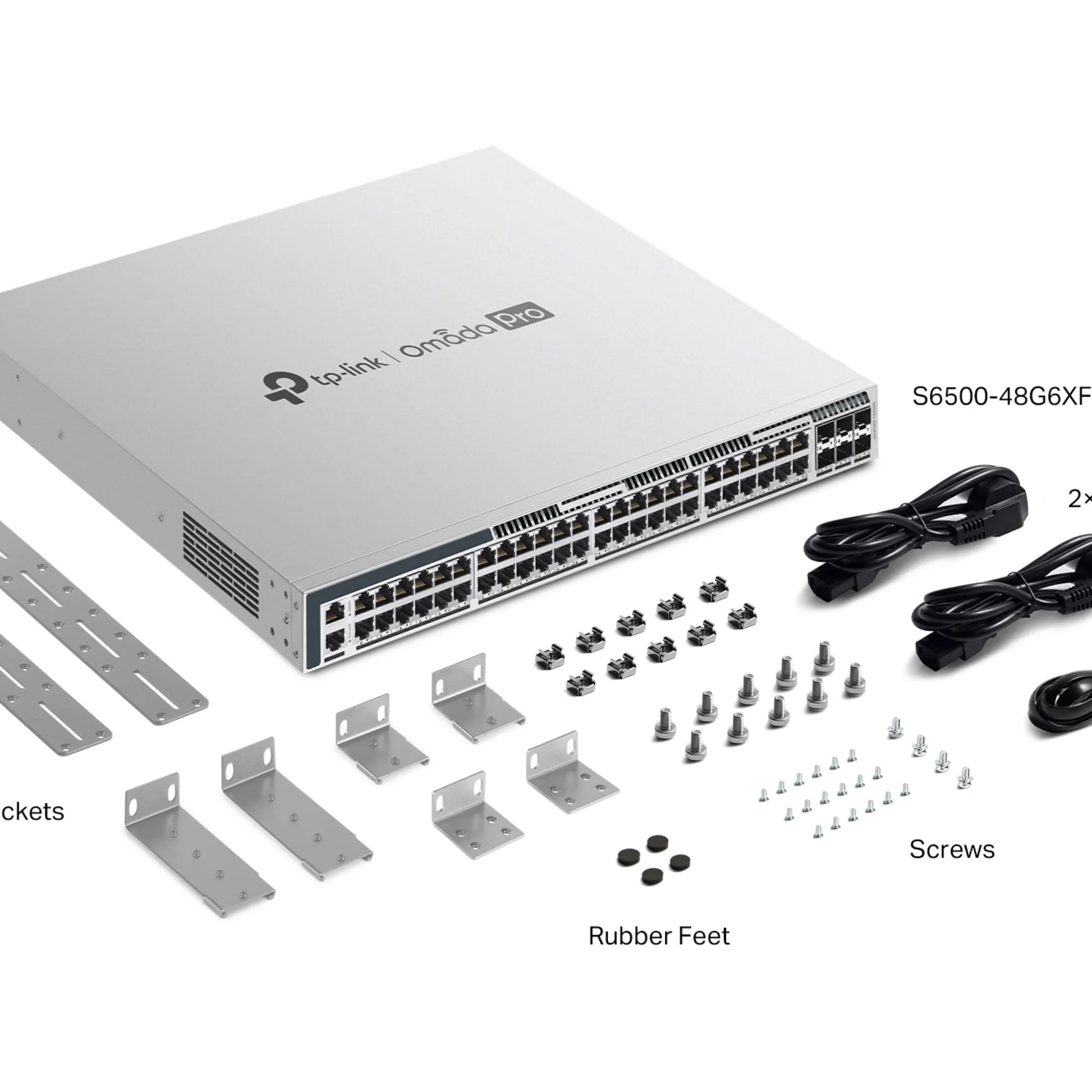

S6500-48G6XF Switch · 2× Power Cords · RJ45 Console Cable · Quick Installation Guide · Rackmount Kit · Rubber Feet
System Requirements
Windows 98SE/NT/2000/XP/Vista/7/8/10/11 · macOS · NetWare · UNIX · Linux
Environment
Operating: -5°C to 50°C (23–122°F) @ 300m · -5°C to 45°C @ 2,000m · -5°C to 40°C @ 3,000m · Storage: -40°C to 70°C · Humidity: 10–90% RH
