TP-Link Omada Pro S6500-48GP6XF L3 PoE+ Switch
TP-Link Omada Pro S6500-48GP6XF L3 PoE+ Switch
The TP-Link Omada Pro S6500-48GP6XF is an enterprise 48-port Gigabit stackable L3 Managed PoE+ Switch featuring 48× Gigabit PoE+ RJ45 ports, 6× 10Gbps SFP+ slots, and up to 1440W total PoE budget. It supports physical stacking, OSPF, BGP, IS-IS, VRRP, ECMP, PBR, ERPS, BFD, MACsec, NETCONF, and centralized Omada Pro cloud management, with two field-replaceable power supplies for enhanced network availability.
S6500-48GP6XF
Omada Pro 48-Port Gigabit Stackable L3 Managed PoE+ Switch with 6 10G Slots | 1440W PoE · Stacking · Advanced L3 Routing
Hardware Features
Interface

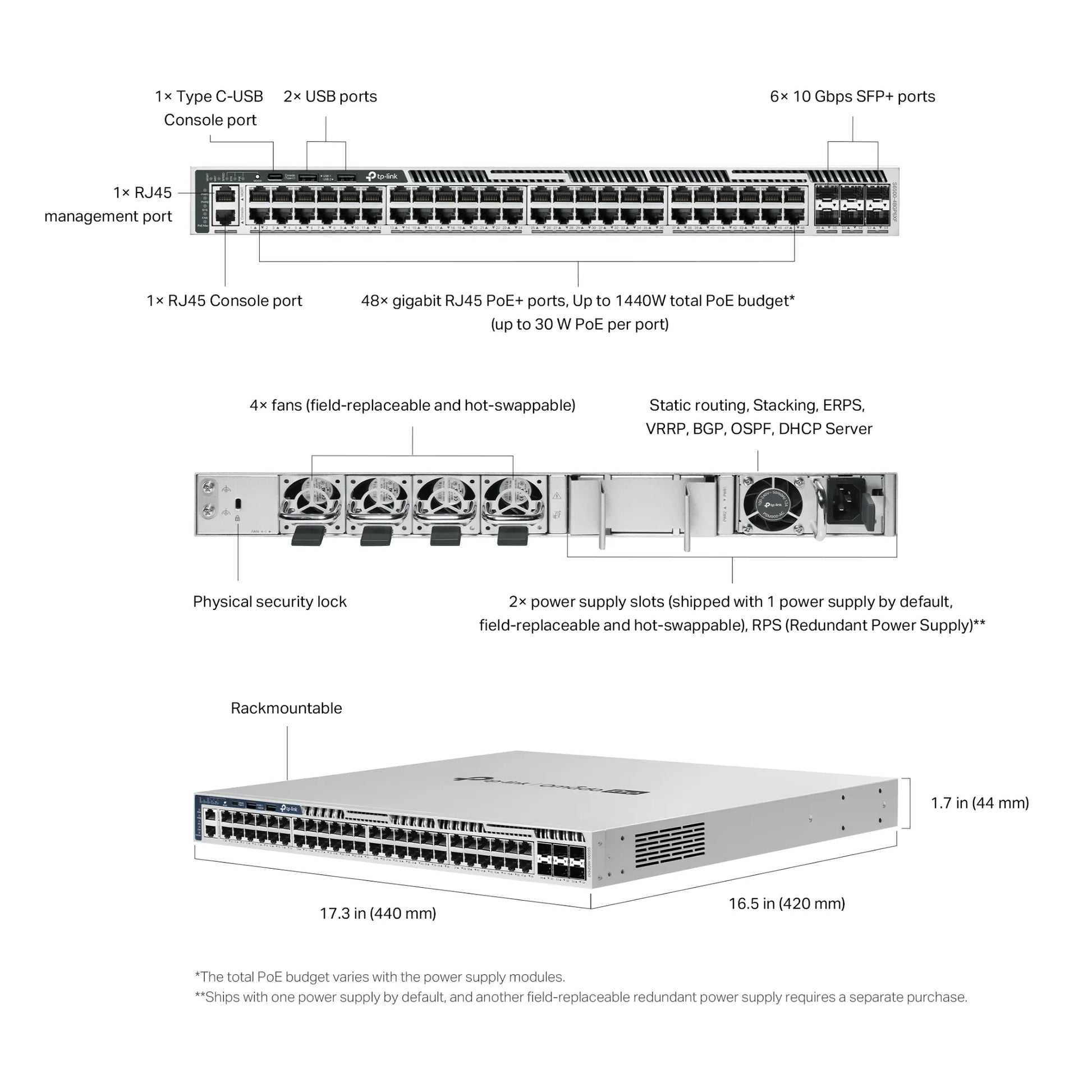

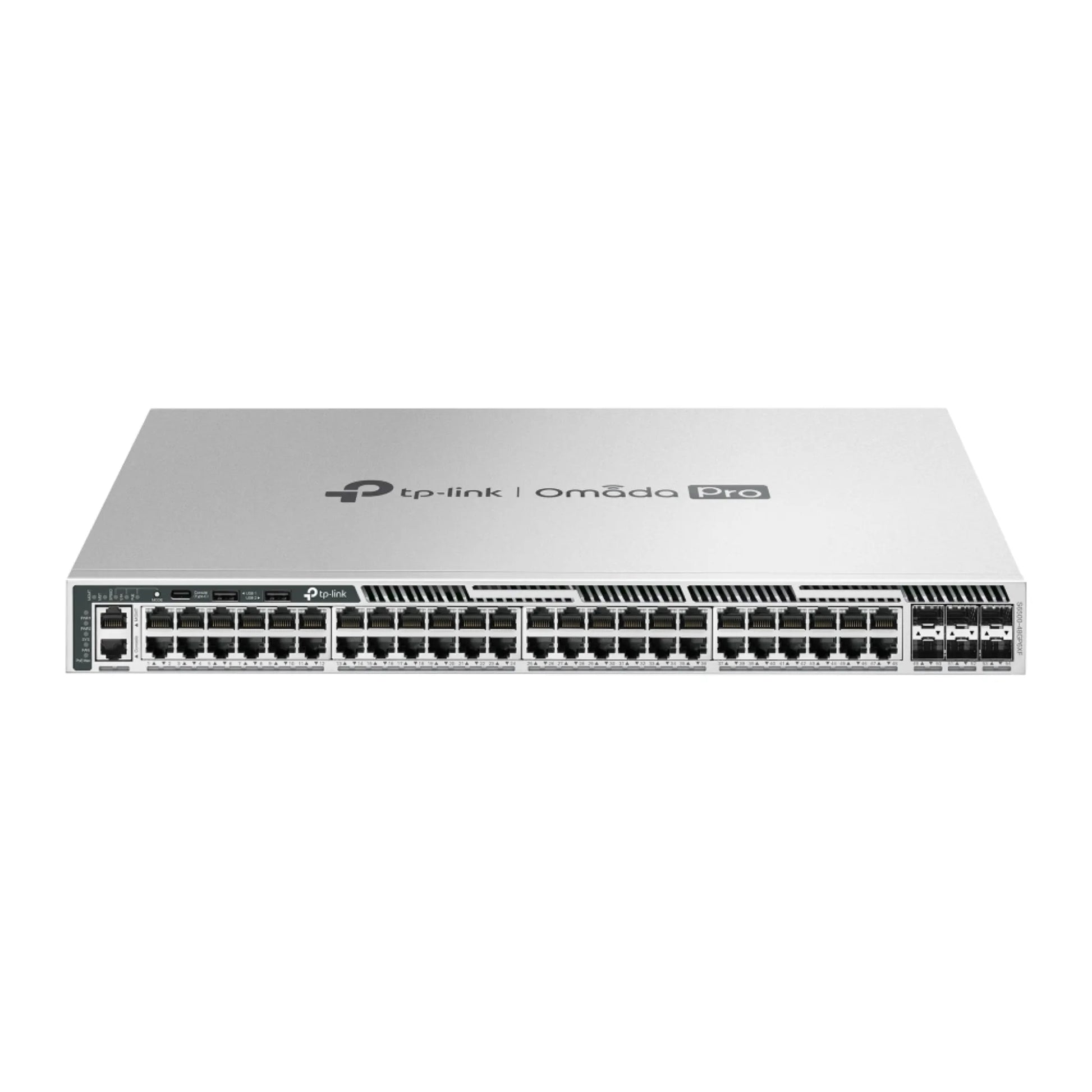

48× PoE+ RJ45 Ports · 6× 1/10G SFP+ Slots*** · 2× USB 2.0 · 1× RJ45 Console · 1× USB-C Console · 1× RJ45 Mgmt Port
Fan Quantity

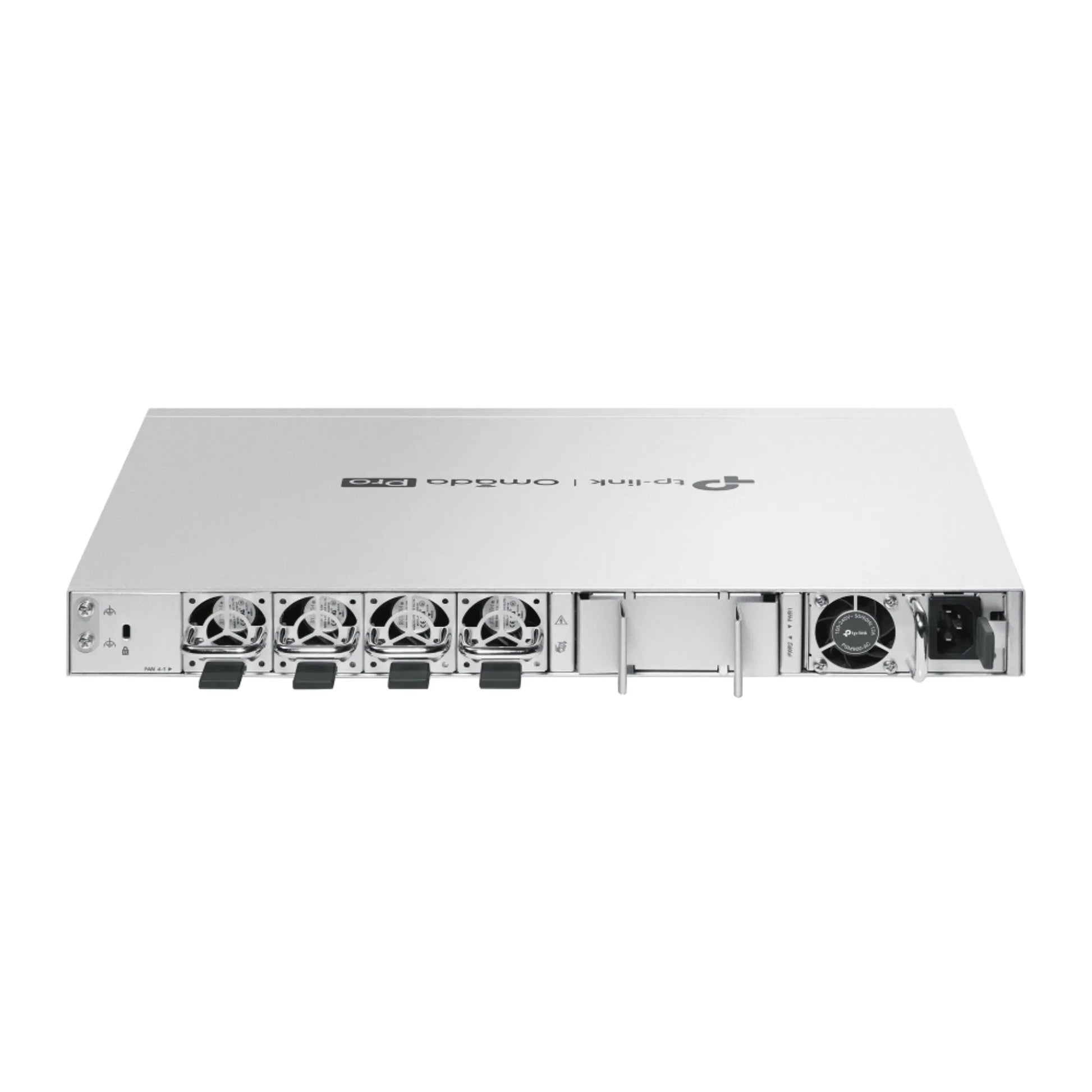

Four Field-replaceable & Hot-swappable Fans
Power Supply
Two Field-replaceable & Hot-swappable PSUs** (100–240VAC, 50/60Hz) · Ships with one PSM900-AC
PoE Ports / Budget
48× PoE+ (802.3at/af) · Up to 30W/port · PoE Budget: up to 1440W*
Dimensions (W x D x H)
17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm)
Mounting
Rackmountable
Max. Power Consumption
41.9W (no PD) · 1767.7W (1440W PD with 2× PSM900-AC)
Max. Heat Dissipation
142.88 BTU/hr (no PD) · 6,027.86 BTU/hr (1440W PD with 2× PSM900-AC)
Performance
Switching Capacity
216 Gbps per Unit
Packet Forwarding Rate
160.7 Mpps
MAC Address Table
32 K
Packet Buffer Memory
3 MB
Jumbo Frame
9 KB
Stacking
12 Units (standalone) · 10G SFP+ Slots · Stack Bandwidth: up to 120 Gbps
QoS & L3 Features
Quality of Service
8 Queues · Port/802.1p/DSCP Priority · SP/WRR/SP+WRR · Rate Limit · Storm Control · Voice VLAN · WRED (16 profiles)
L3 Features (IPv4/IPv6)
256 L3 Interfaces · 1,024/512 Static Routes · 6,100 Host Routes · ECMP (256 entries) · Static/Dynamic ARP · DHCP Server/Relay · VRRP (64 instances) · OSPFv2/v3 · RIP v1/v2/ng · IS-IS · BGP · PIM-SM/DM/SSM · IGMP v1/v2/v3 · BFD · PBR · uRPF
L2 & L2+ Features
L2 & L2+ Features
Link Aggregation · STP/RSTP/MSTP · Loopback Detection (Port/VLAN) · 802.3x Flow Control · ERPS · Mirroring · RSPAN · MAC Address Table · IGMP/MLD Snooping · MVR · Multicast Filtering
Advanced Features & VLAN
Advanced & ISP Features
Auto Discovery‡ · Batch Config/Upgrade‡ · Network Monitoring‡ · Event Warnings‡ · 802.3ah OAM · L2PT · DLDP · DDM · sFlow
VLAN
4K VLAN Groups · 802.1Q Tagged · MAC VLAN (200) · Multicast VLAN · Management VLAN · QinQ (256) · GVRP · Protocol VLAN · Voice VLAN · Private VLAN
Security
ACL & Security
Port Isolation · CPU-Defend · ARP Inspection · DoS Defend · IP-MAC-Port Binding (1,024) · DHCP Snooping · IPv4/IPv6 Source Guard · DHCP Filter · Port Security (64 MACs/port) · Storm Control · 802.1X (Port/MAC-based) · MAB · Guest VLAN · RADIUS · AAA (TACACS+) · HTTPS/SSL · SSHv2 · IP/Port/MAC Access Control · MACSec (-128, -256) · Secure Boot · RADSEC
Virtualization & IPv6
IP Tunnel
IPv6 over IPv4 · IPv6 over IPv4 GRE · IPv4 over IPv4 GRE · Tunnel entries: 100
IPv6 Features
Dual IPv4/IPv6 · MLD Snooping · IPv6 ACL · IPv6 Interface · Static IPv6 Routing · ND · MTU Discovery · ICMPv6 · DHCPv6 Client · IPv6 Applications
Management Features
Omada App & Controller
Omada App · Omada Pro Cloud/Hardware/Software Controller · Cloud Access · Zero-Touch Provisioning
Management Interfaces
Web GUI · CLI (Console/Telnet) · SNMPv1/v2c/v3 · RMON · SDM Template · DHCP/BOOTP · LLDP/LLDP-MED · DHCP Auto Install · Dual Image/Config · CPU Monitoring · Cable Diagnostics · Password Recovery · SNTP · System Log · Remote Packet Capture · IEEE 802.3az EEE
Others
Package Content

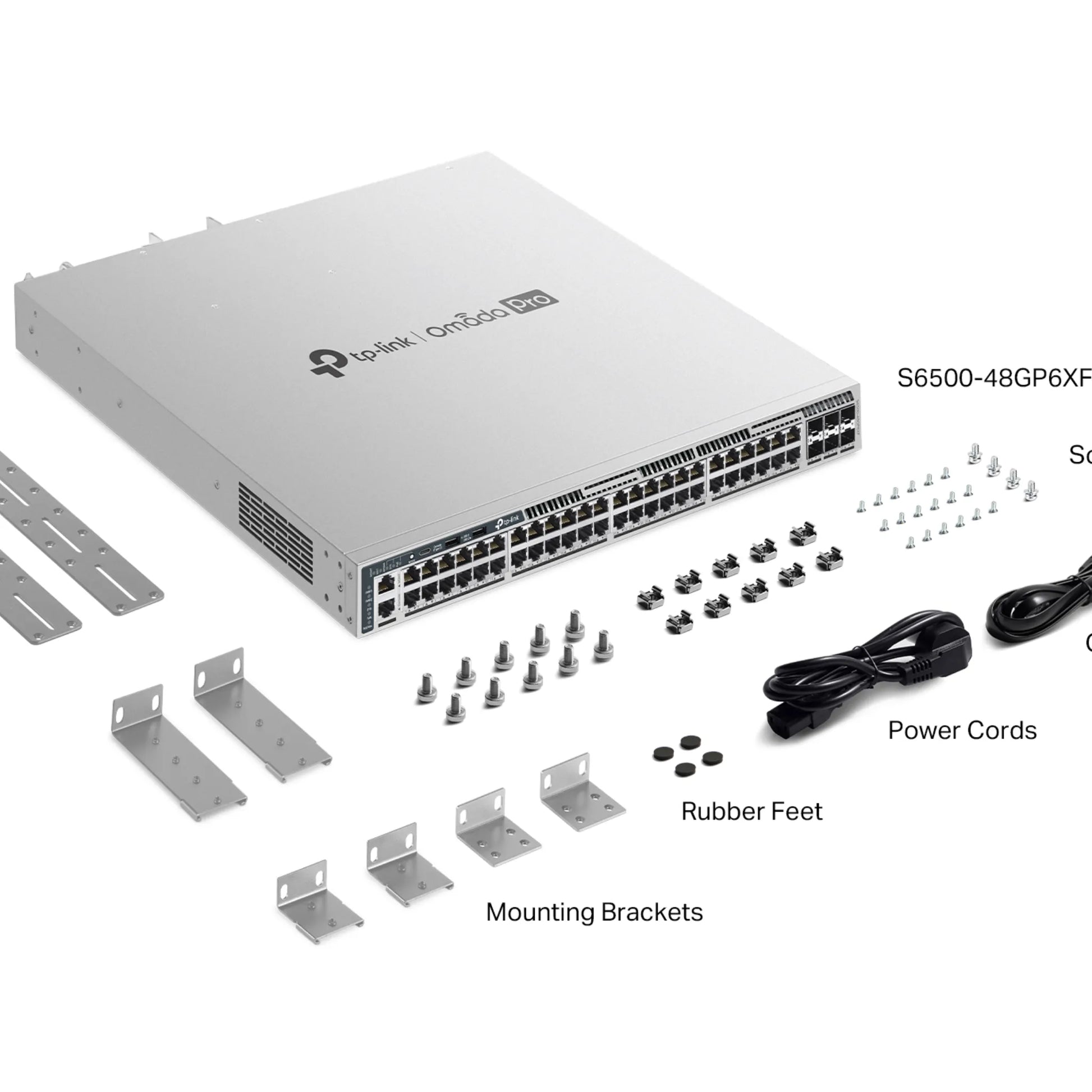

S6500-48GP6XF Switch · Power Cords · RJ45 Console Cable · Quick Installation Guide · Rackmount Kit · Rubber Feet
System Requirements
Windows 98SE/NT/2000/XP/Vista/7/8/10/11 · macOS · NetWare · UNIX · Linux
Environment
Operating: -5°C to 45°C (23–113°F) @ 2,000m · -5°C to 40°C (23–104°F) @ 3,000m · Storage: -40°C to 70°C (-40–158°F) · Humidity: 10–90% RH non-condensing
