TP-Link Omada Pro S6500-48MPP6Y 2.5G PoE++ L3 Switch
TP-Link Omada Pro S6500-48MPP6Y 2.5G PoE++ L3 Switch
The TP-Link Omada Pro S6500-48MPP6Y is an enterprise 48-port 2.5G stackable L3 Managed PoE++ Switch featuring 48× 2.5Gbps PoE++ RJ45 ports with up to 60W output per port, 6× 25Gbps SFP28 slots, and up to 1484W total PoE budget. It supports physical stacking, OSPF, BGP, IS-IS, VRRP, ECMP, PBR, ERPS, BFD, MACsec, NETCONF, advanced security, and centralized Omada Pro cloud management, with two field-replaceable power supplies for enhanced network availability.
S6500-48MPP6Y
Omada Pro 48-Port 2.5G Stackable L3 Managed PoE++ Switch with 6 25G Slots — Enterprise-grade network switch specifications
Hardware Features

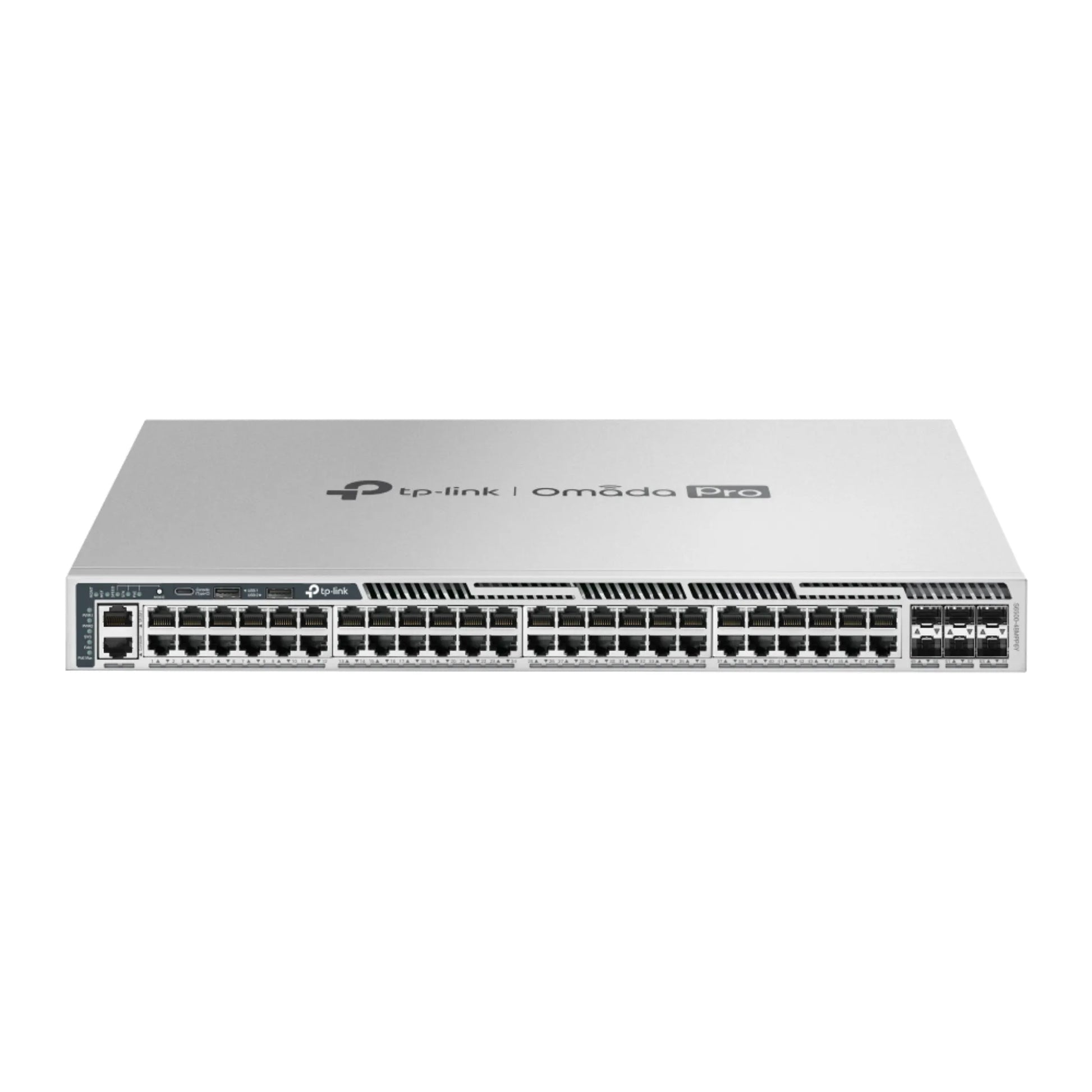

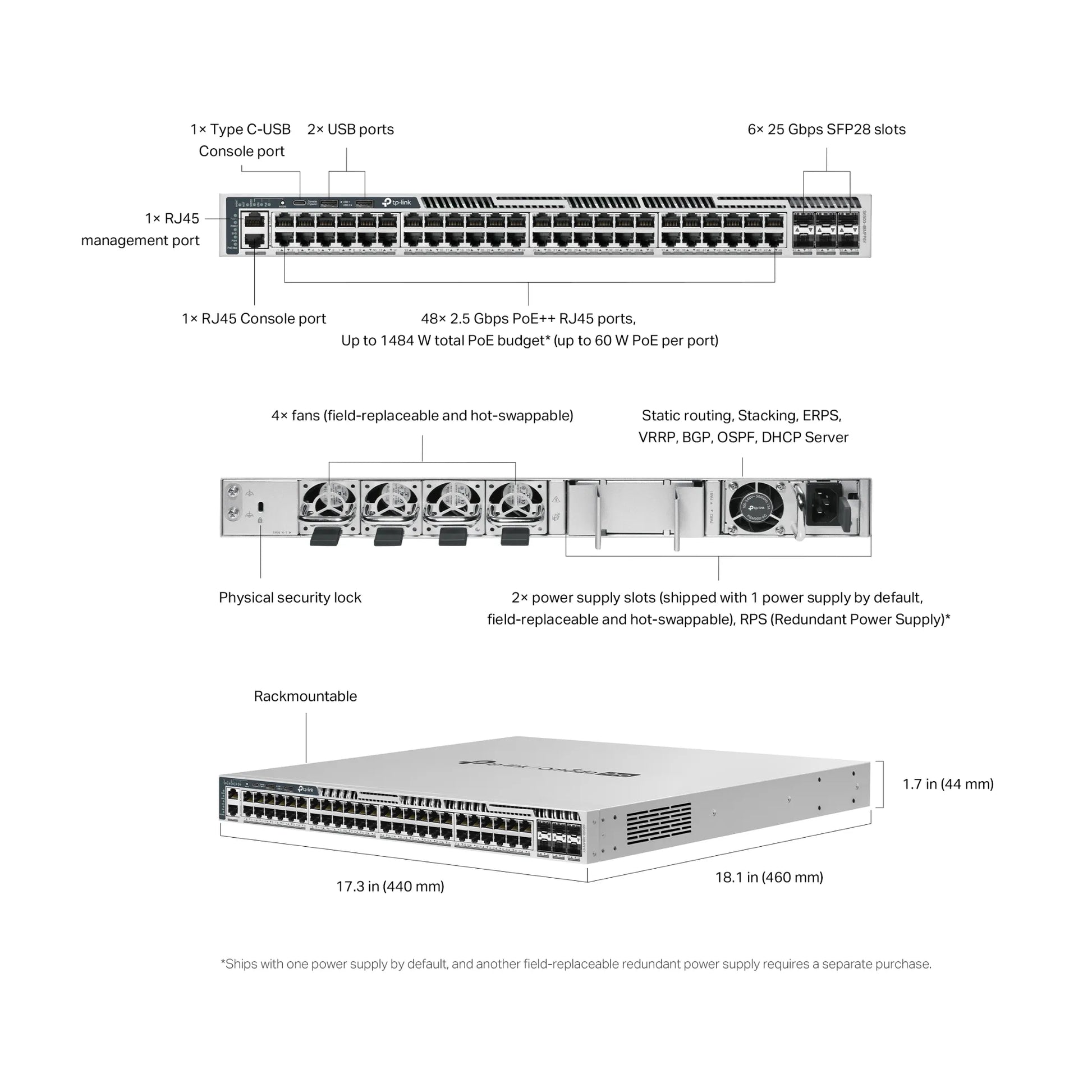

Interface
48× 2.5G PoE++ RJ45 Ports
6× 1/10/25G SFP28 Slots***
2× USB 2.0 Ports
1× RJ45 Console Port
1× USB Type-C Console Port
1× RJ45 Management Port
6× 1/10/25G SFP28 Slots***
2× USB 2.0 Ports
1× RJ45 Console Port
1× USB Type-C Console Port
1× RJ45 Management Port

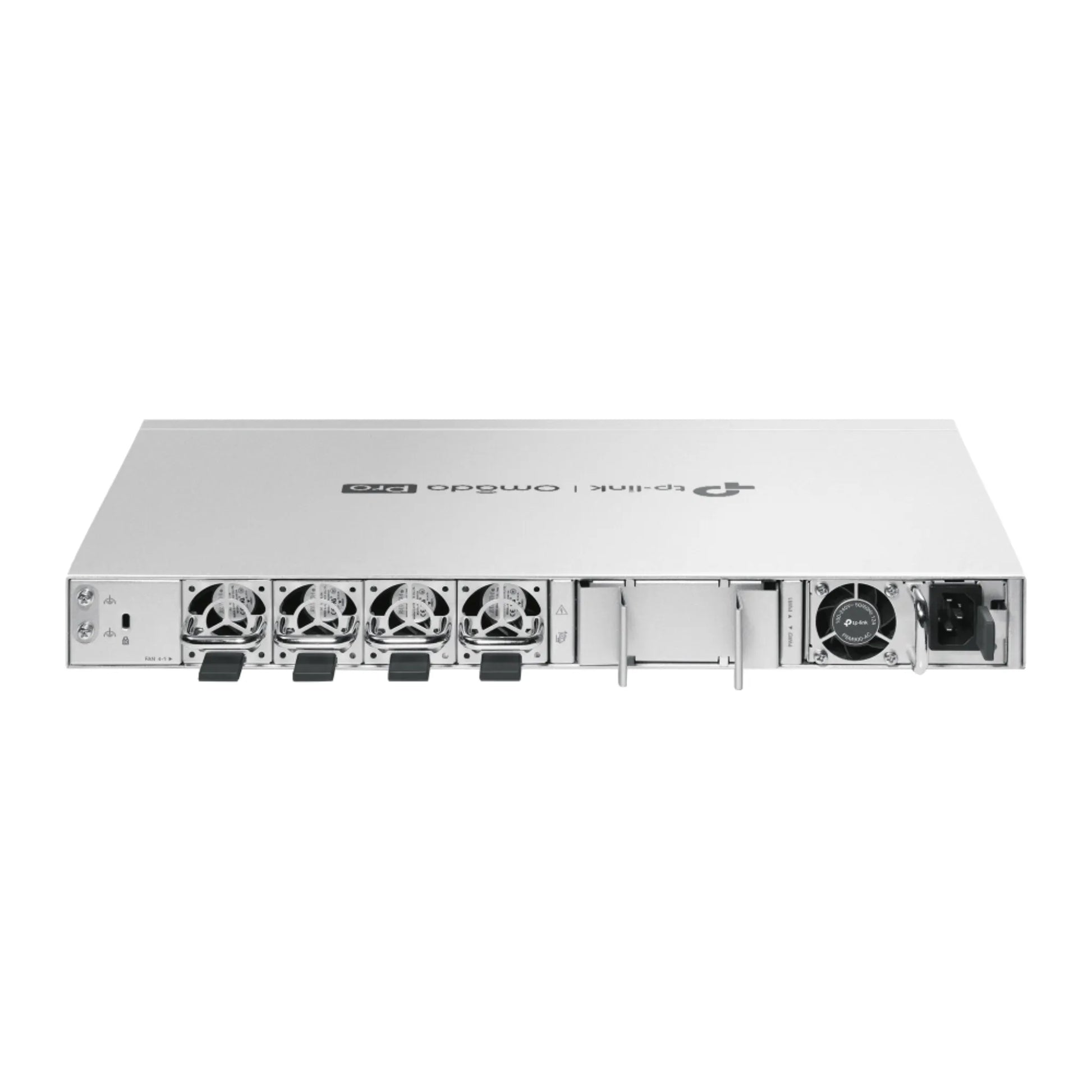

Fan Quantity
Four Field-replaceable and Hot-swappable Fans
Power Supply
Two Field-replaceable and Hot-swappable Power Supply Modules** (100–240 VAC, 50/60 Hz)
PoE Ports (RJ45)
Standard: 802.3at/af/bt compliant
PoE+ Ports: 48 Ports, up to 60 W per port
PoE Power Budget: up to 1484 W*
PoE+ Ports: 48 Ports, up to 60 W per port
PoE Power Budget: up to 1484 W*
Dimensions (W x D x H)
17.3 × 18.1 × 1.7 in (440 × 460 × 44 mm)
Mounting
Rackmountable
Max. Power Consumption
• 142.2 W (110 V/60 Hz) (With no PD connected)
• 1,887.4 W (110 V/60 Hz) (With 1484 W PD connected and powered by 2× PSM900-AC)
• 1,887.4 W (110 V/60 Hz) (With 1484 W PD connected and powered by 2× PSM900-AC)
Max. Heat Dissipation
• 484.9 BTU/hr (110 V/60 Hz) (With no PD connected)
• 6,436.03 BTU/hr (110 V/60 Hz) (With 1484 W PD connected and powered by 2× PSM900-AC)
• 6,436.03 BTU/hr (110 V/60 Hz) (With 1484 W PD connected and powered by 2× PSM900-AC)
Performance
Switching Capacity
540 Gbps per Unit
Stacking
• Stacking Number: 12 (standalone mode)
• Stacking Port: 25G SFP28 Slot (all uplink ports can be used as stacking ports)****
• Stack Bandwidth: Up to 300 Gbps (6 stacking ports)
• Stacking Port: 25G SFP28 Slot (all uplink ports can be used as stacking ports)****
• Stack Bandwidth: Up to 300 Gbps (6 stacking ports)
Packet Forwarding Rate
401.7 Mpps
MAC Address Table
32 K
Packet Buffer Memory
3 MB
Jumbo Frame
9 KB
Software Features
Quality of Service
• Class of Service: 8 Queues, Port Priority, IEEE 802.1p, DSCP, WRED
• Bandwidth Control, Voice VLAN, QoS Remark
• Bandwidth Control, Voice VLAN, QoS Remark
L3 Features
• L3 Interface: 256 (IPv4, IPv6)
• Static Route: 1,024 IPv4, 512 IPv6
• OSPFv2/v3, RIPv1/v2, RIPng, IS-IS, BGP
• VRRP, PIM-SM/DM/SSM, IGMP, BFD, PBR, uRPF
• Static Route: 1,024 IPv4, 512 IPv6
• OSPFv2/v3, RIPv1/v2, RIPng, IS-IS, BGP
• VRRP, PIM-SM/DM/SSM, IGMP, BFD, PBR, uRPF
L2 and L2+ Features
• Link Aggregation, Spanning Tree, ERPS, Mirroring
• IGMP/MLD Snooping, Multicast VLAN, RSPAN
• IGMP/MLD Snooping, Multicast VLAN, RSPAN
Security
• IP-MAC-Port Binding, DHCP Snooping, ARP Inspection
• 802.1X, AAA (TACACS+), MACSec, Secure Boot, RADSEC
• 802.1X, AAA (TACACS+), MACSec, Secure Boot, RADSEC
VLAN
• Max 4K VLAN Groups, 802.1Q Tagged VLAN
• MAC VLAN, Multicast VLAN, Private VLAN, QinQ
• MAC VLAN, Multicast VLAN, Private VLAN, QinQ
Management Features
• Omada Pro Cloud/Software/Hardware Controller
• Zero-Touch Provisioning, Web GUI, CLI, SNMP
• Dual Image, Dual Configuration, DHCP Auto Install
• 802.3az Energy Efficient Ethernet (EEE)
• Zero-Touch Provisioning, Web GUI, CLI, SNMP
• Dual Image, Dual Configuration, DHCP Auto Install
• 802.3az Energy Efficient Ethernet (EEE)
Others

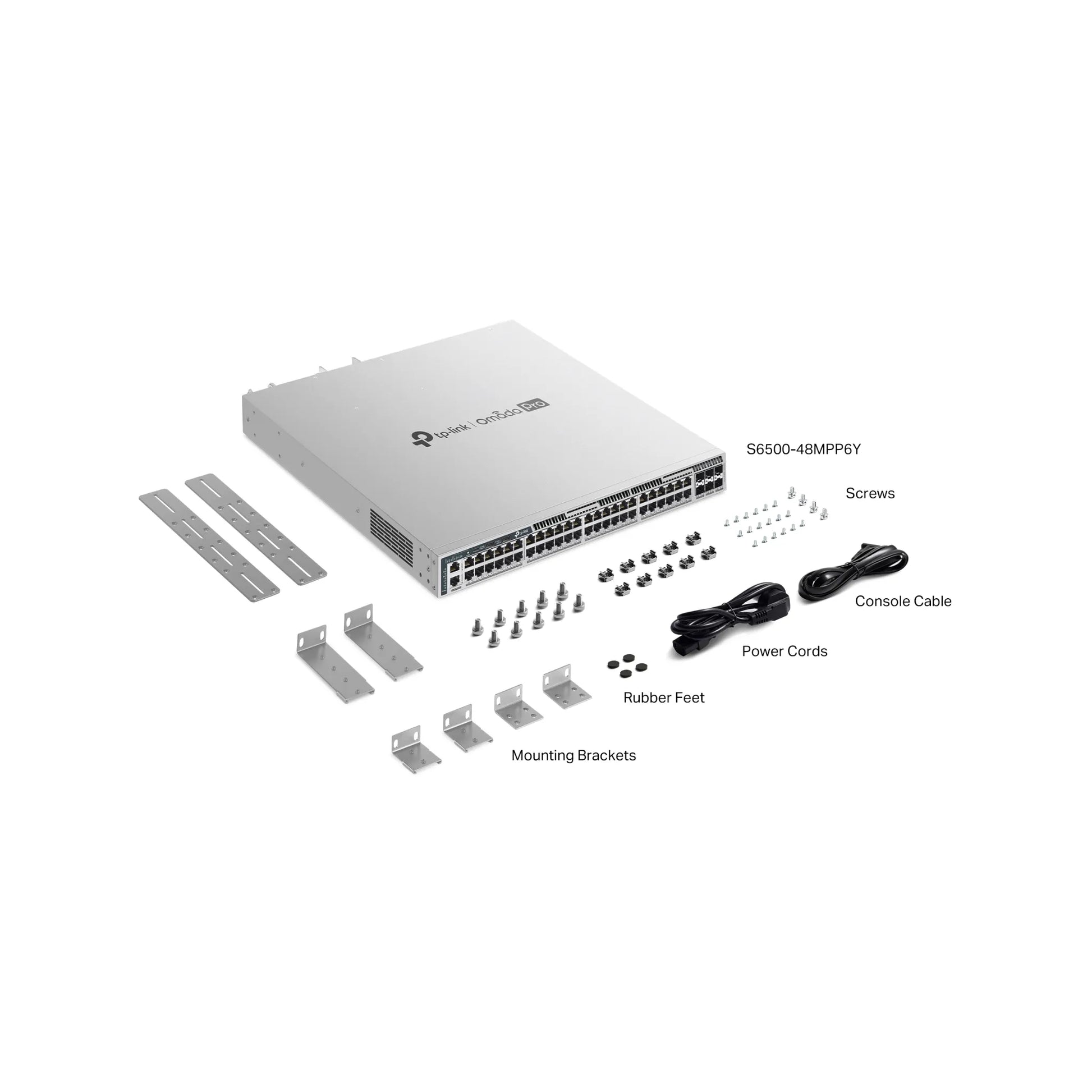

Package Content
• S6500-48MPP6Y Switch
• Power Cords
• RJ45 Console Cable
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
• Power Cords
• RJ45 Console Cable
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment
• Operating Temp: -5 °C to 45 °C (23 °F to 113 °F) @ 2,000m
• Storage Temp: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Temp: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10–90% RH non-condensing
