TP-Link Omada Pro S7500-48XF4C 10G L3 Aggregation Switch
TP-Link Omada Pro S7500-48XF4C 10G L3 Aggregation Switch

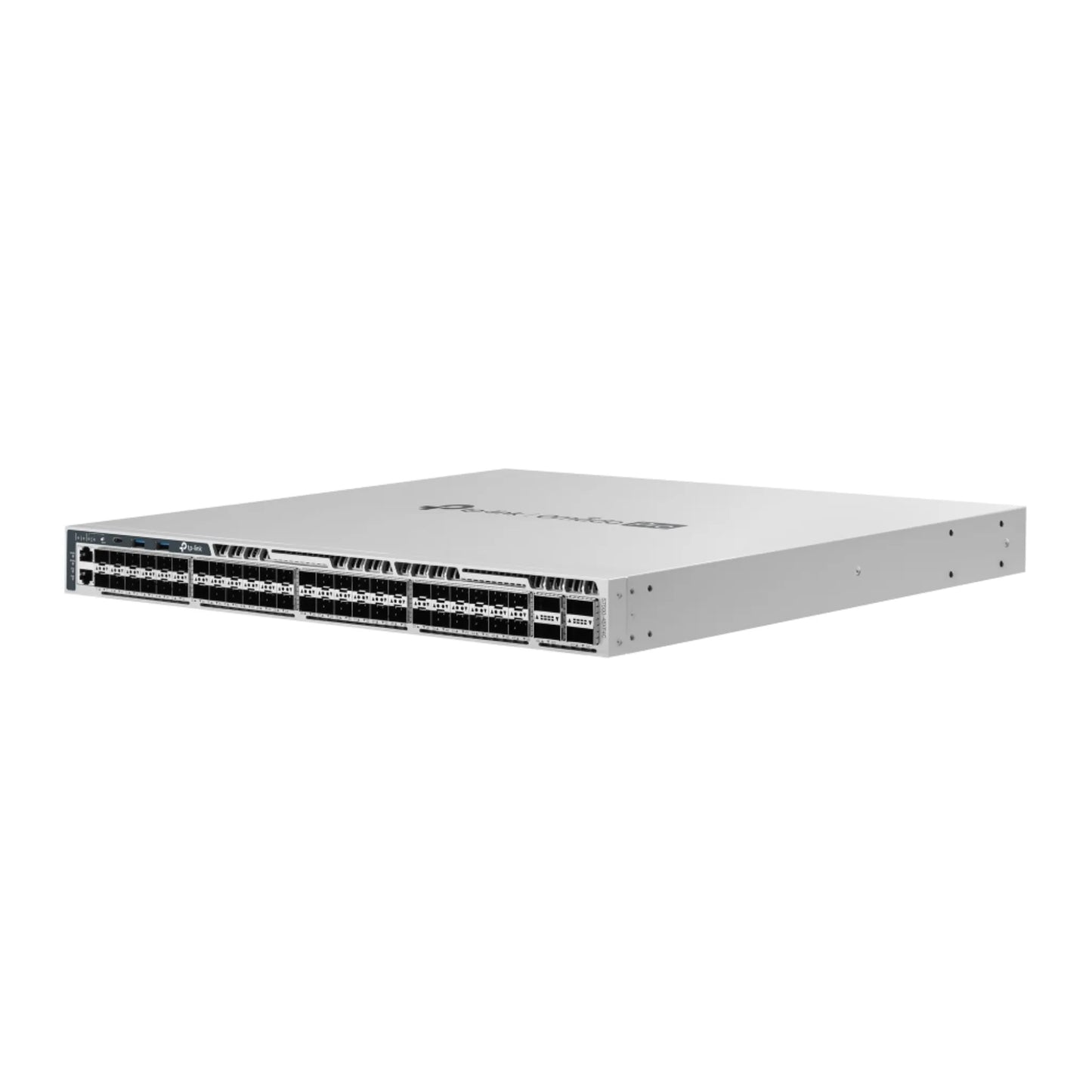

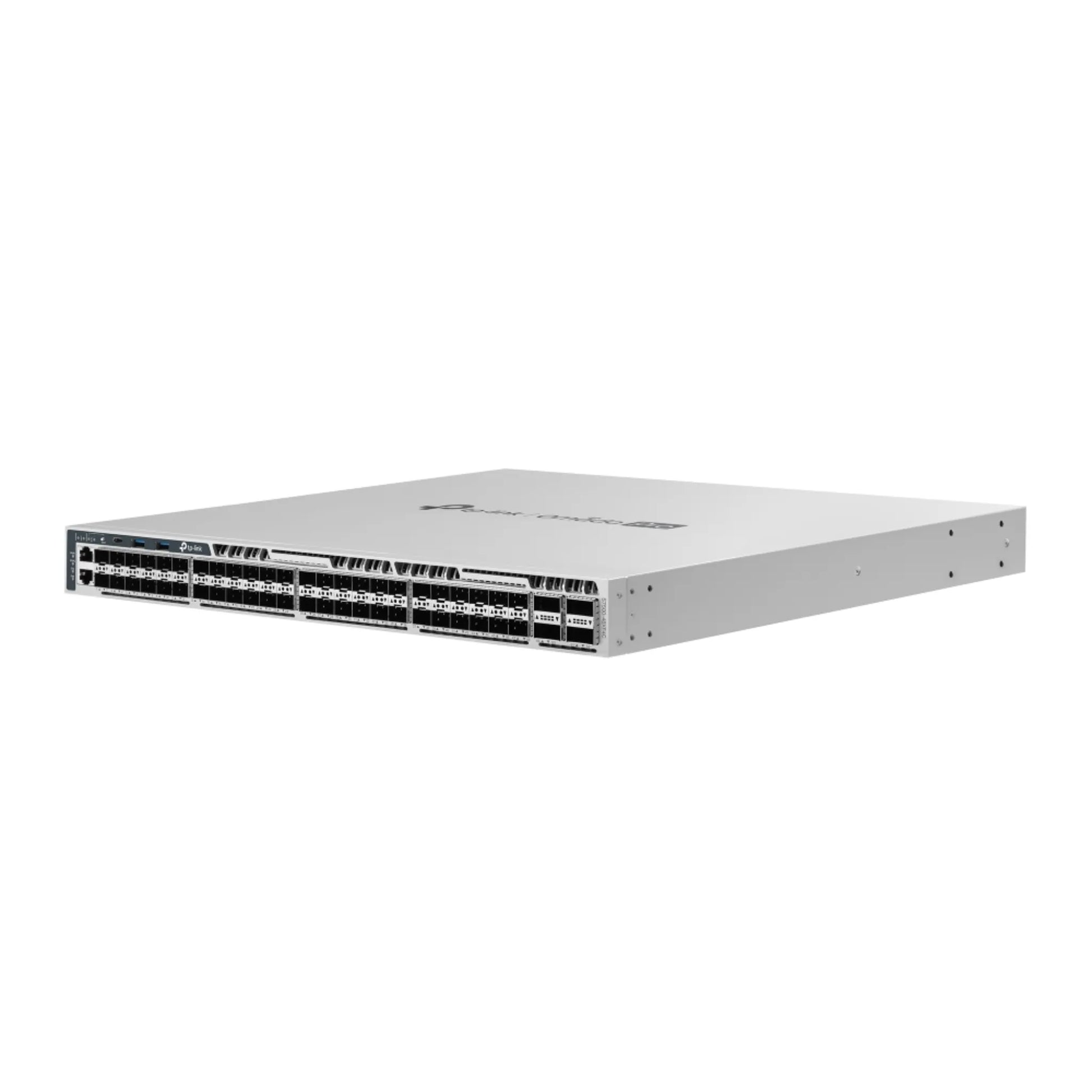

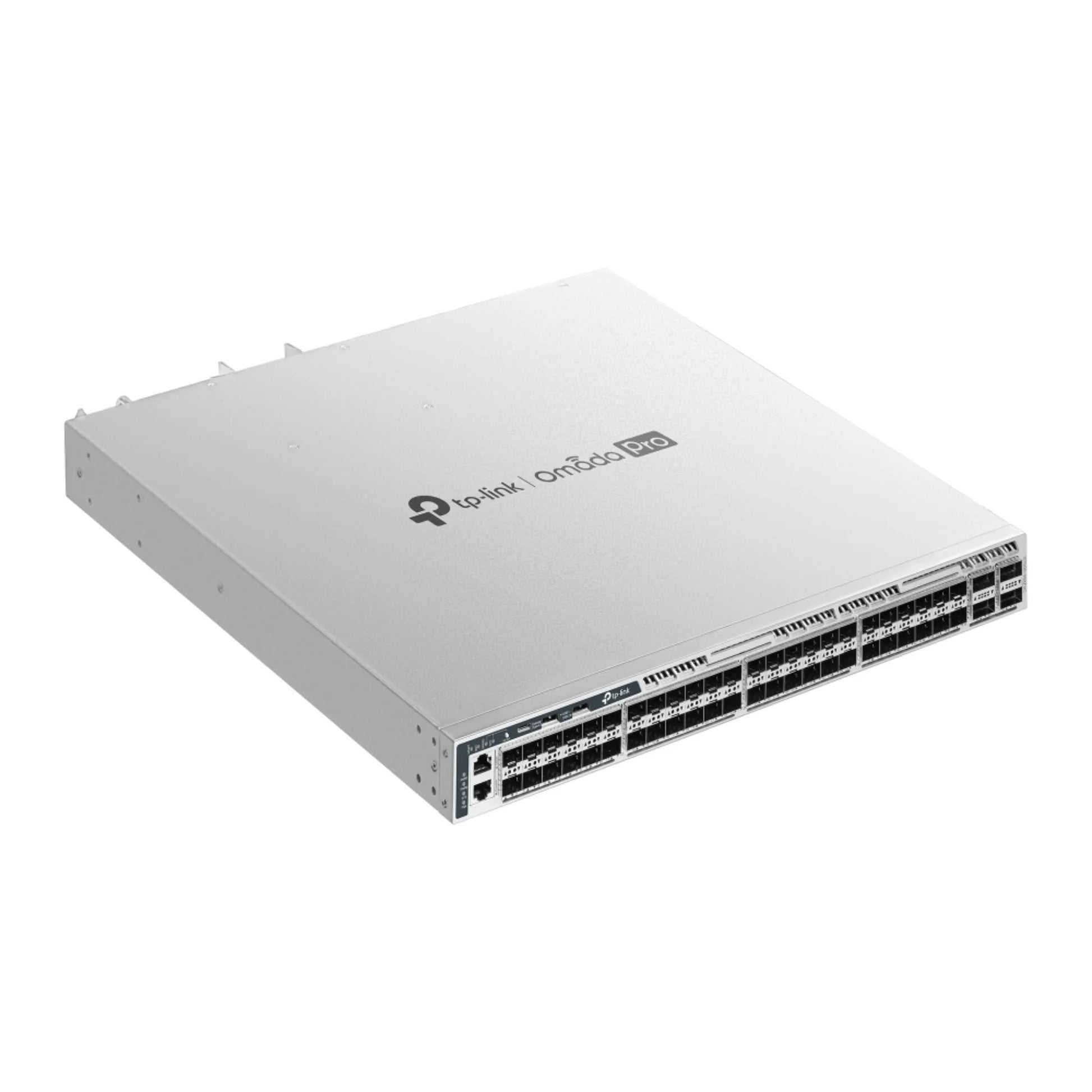

The TP-Link Omada Pro S7500-48XF4C is an enterprise 48-port 10G stackable L3 Managed Aggregation Switch featuring 48× 10Gbps SFP+ slots and 4× 100Gbps QSFP28 slots. Designed for high-performance enterprise aggregation networks, it supports physical stacking, OSPF, BGP, IS-IS, VRRP, ECMP, PBR, ERPS, BFD, NETCONF, advanced security, and centralized Omada Pro cloud management, with two field-replaceable power supplies for enhanced network availability.
S7500-48XF4C
Omada Pro 48-Port 10G Stackable L3 Managed Aggregation Switch with 4 100G Slots — Detailed technical specifications
Hardware Features

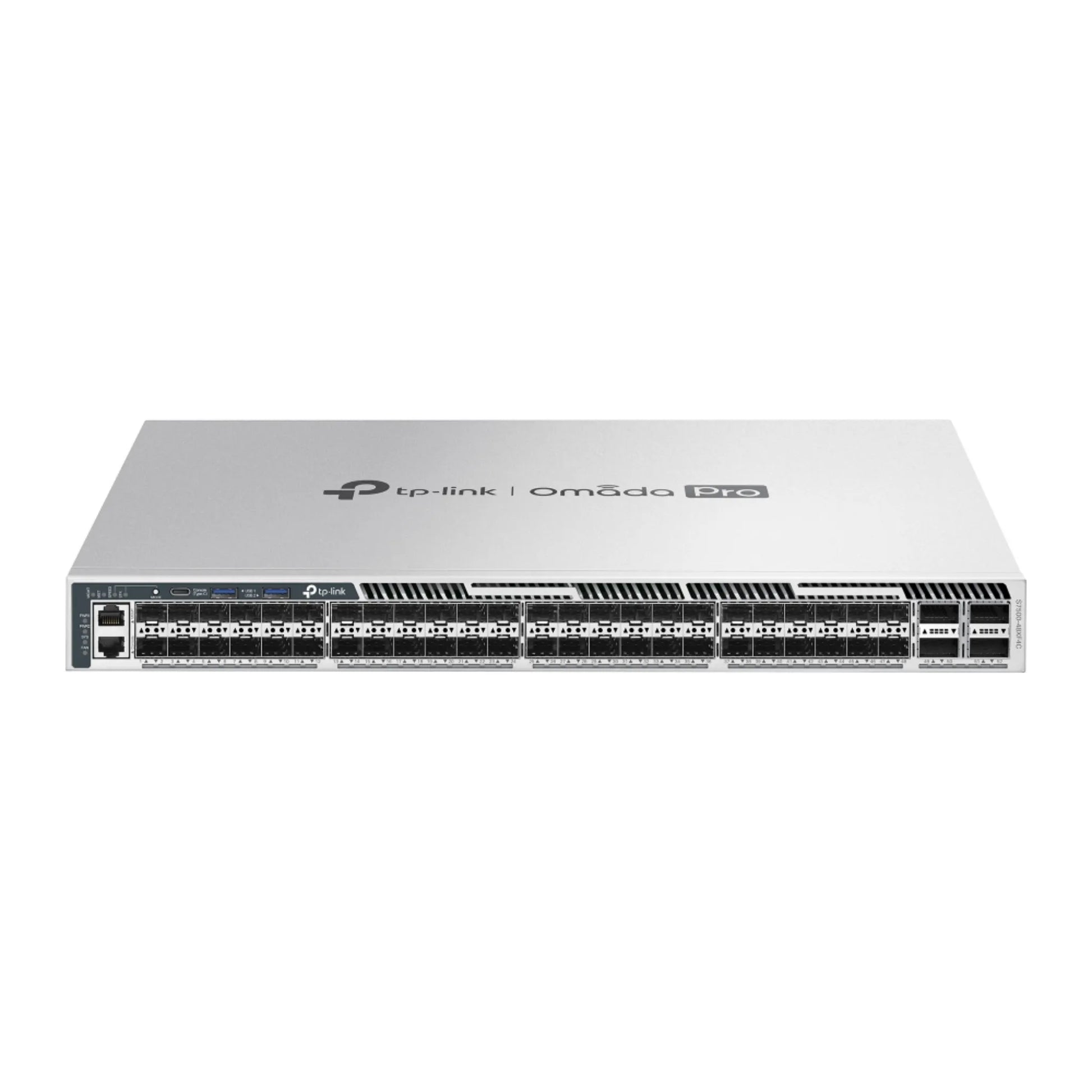

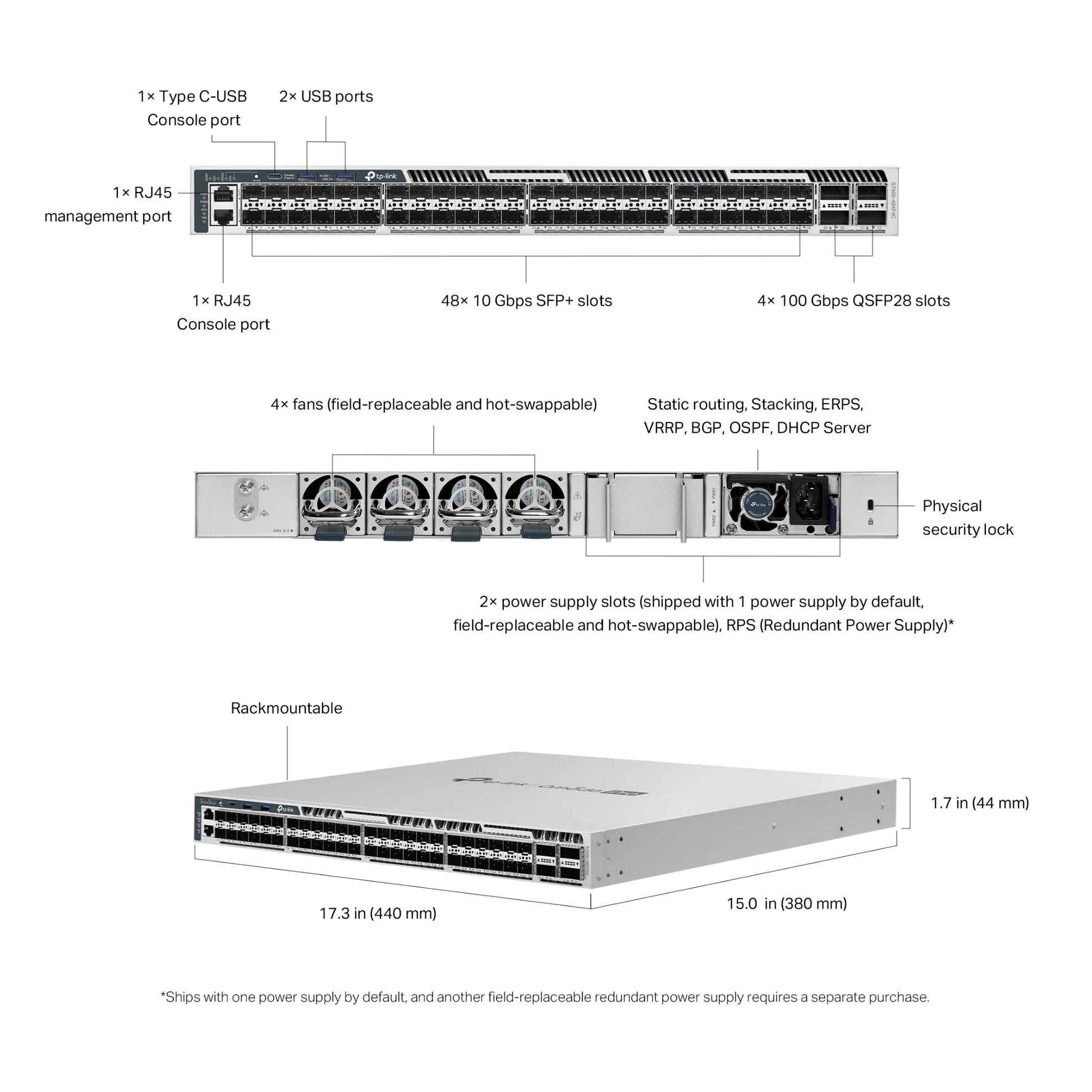

Interface
• 48× 1/10Gbps SFP+ Slots**
• 4× 40/100Gbps QSFP28 Slots
• 2× USB 3.0 Ports
• 1× RJ45 Console Port
• 1× USB Type-C Console Port
• 1× RJ45 Management Port
• 4× 40/100Gbps QSFP28 Slots
• 2× USB 3.0 Ports
• 1× RJ45 Console Port
• 1× USB Type-C Console Port
• 1× RJ45 Management Port

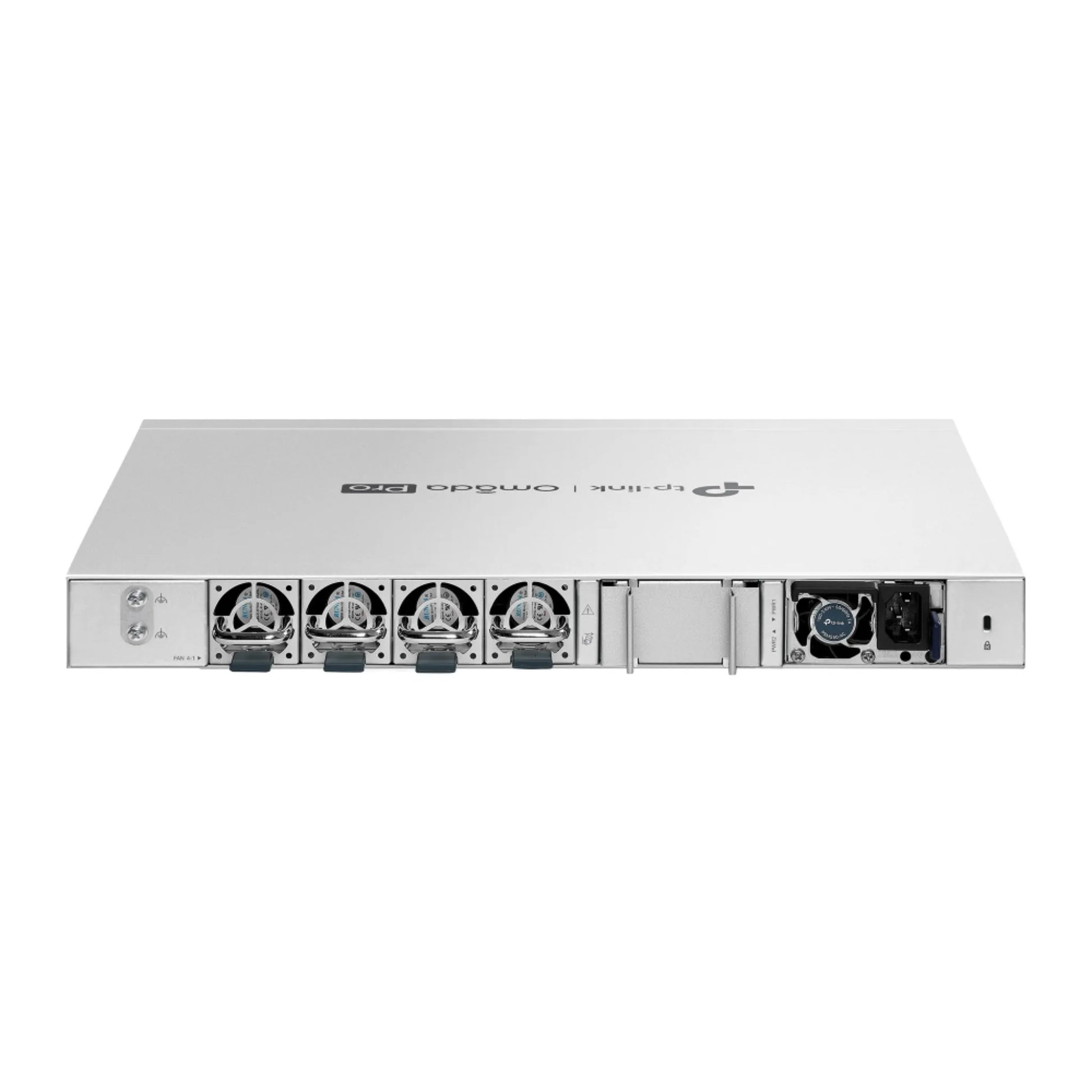

Fan Quantity
Four Field-replaceable and Hot-swappable Fans
Power Supply
Two Field-replaceable and Hot-swappable Power Supply Modules (100–240 VAC, 50/60 Hz)
*Shipping with one PSM550-AC module by default, and another field-replaceable redundant power supply requires purchasing separately.
*Shipping with one PSM550-AC module by default, and another field-replaceable redundant power supply requires purchasing separately.
Dimensions (W x D x H)
17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
Mounting
Rackmountable
Max. Power Consumption
105.7 W (110 V/60 Hz)
109.3 W (220 V/50 Hz)
109.3 W (220 V/50 Hz)
Max. Heat Dissipation
360.7 BTU/hr (110 V/60 Hz)
372.9 BTU/hr (220 V/50 Hz)
372.9 BTU/hr (220 V/50 Hz)
Performance
Switching Capacity
1760 Gbps per Unit
Stacking
• Stacking Number: 12 (standalone mode)
• Stacking Port: 100G QSFP28 Slot (all uplink ports can be used as stacking ports)***
• Stacking Bandwidth: Up to 800 Gbps (4 stacking ports)
• Stacking Port: 100G QSFP28 Slot (all uplink ports can be used as stacking ports)***
• Stacking Bandwidth: Up to 800 Gbps (4 stacking ports)
Packet Forwarding Rate
600 Mpps
MAC Address Table
128 K
Packet Buffer Memory
10 MB
Jumbo Frame
9 KB
Software Features
Quality of Service
• Class of Service: 8 Queues, Port Priority, IEEE 802.1p, DSCP Priority, Queue Min-Bandwidth, Schedule Mode (SP, WRR, SP+WRR)
• Bandwidth Control: Rate Limit, Storm Control
• Voice VLAN, User-Defined OUI, QoS Remark
• Bandwidth Control: Rate Limit, Storm Control
• Voice VLAN, User-Defined OUI, QoS Remark
L3 Features
• L3 Interface: 256 (IPv4, IPv6)
• Static Route: 2,048 IPv4, 1,024 IPv6
• ECMP: 768 entries, max 32 Nexthops
• VRRP v2/v3, Max 64 instances
• OSPFv2/v3, RIPv1/v2, RIPng, IS-IS, BGP, PIM-SM/DM/SSM, IGMP v1/v2/v3, BFD, PBR, uRPF
• Static Route: 2,048 IPv4, 1,024 IPv6
• ECMP: 768 entries, max 32 Nexthops
• VRRP v2/v3, Max 64 instances
• OSPFv2/v3, RIPv1/v2, RIPng, IS-IS, BGP, PIM-SM/DM/SSM, IGMP v1/v2/v3, BFD, PBR, uRPF
L2 and L2+ Features
• Link Aggregation, Spanning Tree Protocol
• 802.3x Flow Control, ERPS, Mirroring, RSPAN
• IGMP Snooping, MLD Snooping, MVR
• Max Multicast Table: 4K (IPv4, IPv6)
• 802.3x Flow Control, ERPS, Mirroring, RSPAN
• IGMP Snooping, MLD Snooping, MVR
• Max Multicast Table: 4K (IPv4, IPv6)
Advanced Features
• Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule
• ISP: 802.3ah OAM, L2PT, DLDP, DDM, sFlow
• ISP: 802.3ah OAM, L2PT, DLDP, DDM, sFlow
VLAN
• Max 4K VLAN Group (802.1q)
• MAC VLAN: 200 entries
• VLAN VPN (QinQ): Max 256 entries
• GVRP, Protocol VLAN, Voice VLAN, Private VLAN
• MAC VLAN: 200 entries
• VLAN VPN (QinQ): Max 256 entries
• GVRP, Protocol VLAN, Voice VLAN, Private VLAN
Security
• Port Isolation, CPU-Defend, DoS Defend
• IP-MAC-Port Binding: 1,024 Entries
• IPv6-MAC-Port Binding: 1,024 Entries
• 802.1X, AAA (TACACS+), HTTPS, SSHv2, Secure Boot, RADSEC
• IP-MAC-Port Binding: 1,024 Entries
• IPv6-MAC-Port Binding: 1,024 Entries
• 802.1X, AAA (TACACS+), HTTPS, SSHv2, Secure Boot, RADSEC
Management & Others
Omada App
Yes, through Omada Pro Controller
Centralized Management
• Omada Pro Cloud-Based Controller
• Omada Pro Hardware Controller
• Omada Pro Software Controller
• Omada Pro Hardware Controller
• Omada Pro Software Controller
Zero-Touch Provisioning
Yes. Requiring the use of Omada Pro Cloud-Based Controller.
Management Features
• Web-based GUI, CLI, SNMPv1/v2c/v3
• RMON (1, 2, 3, 9 groups)
• SDM Template, DHCP/BOOTP Client, LLDP/LLDP-MED
• Dual Image, Dual Configuration, CPU Monitoring, SNTP, System Log
• RMON (1, 2, 3, 9 groups)
• SDM Template, DHCP/BOOTP Client, LLDP/LLDP-MED
• Dual Image, Dual Configuration, CPU Monitoring, SNTP, System Log
Package Content
• S7500-48XF4C Switch
• Power Cord
• RJ45 Console Cable
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
• Power Cord
• RJ45 Console Cable
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment
• Operating Temperature: -5 °C to 50 °C @ 300m / -5 °C to 45 °C @ 2,000m / -5 °C to 40 °C @ 3,000m
• Storage Temperature: -40 °C to 70 °C
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
• Storage Temperature: -40 °C to 70 °C
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
