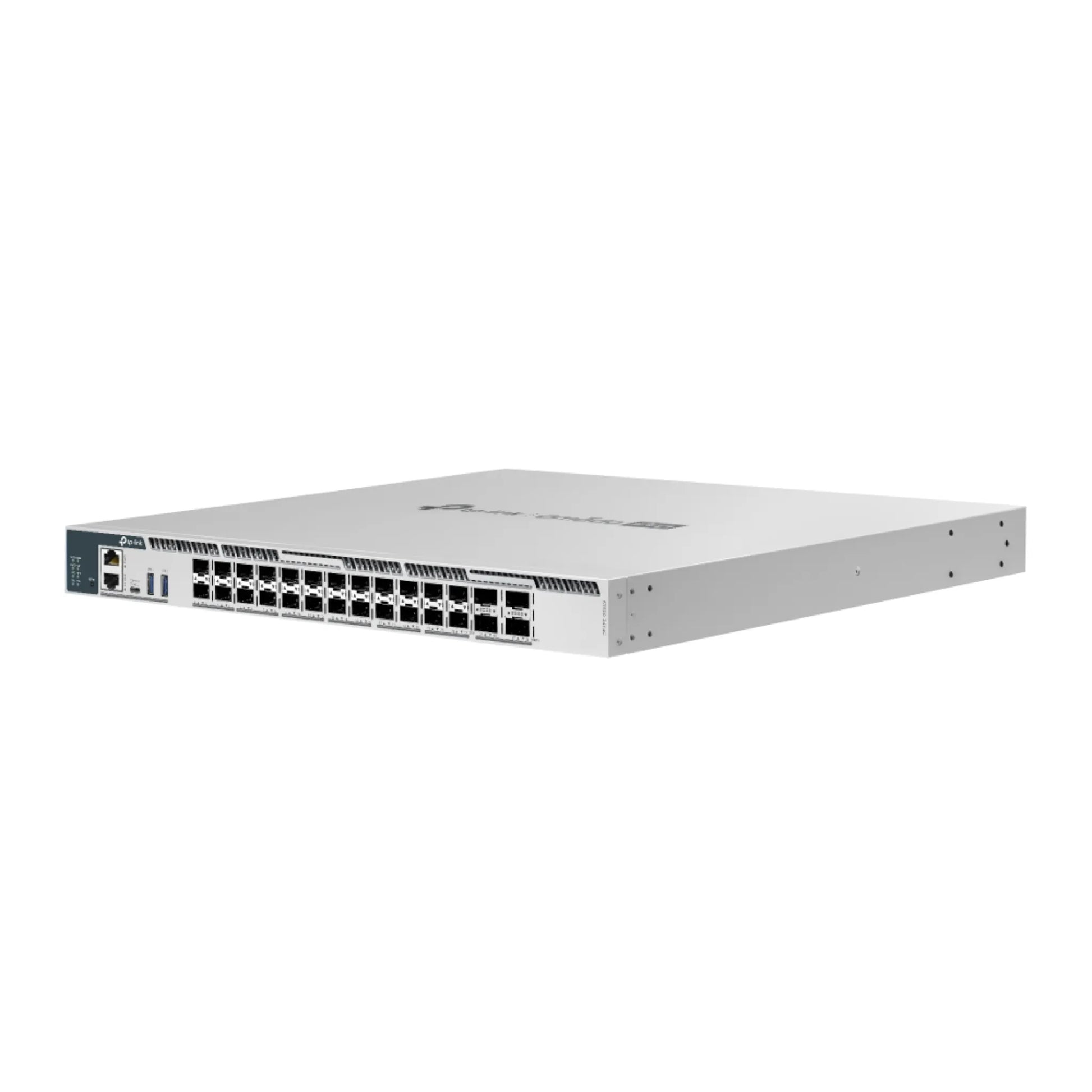

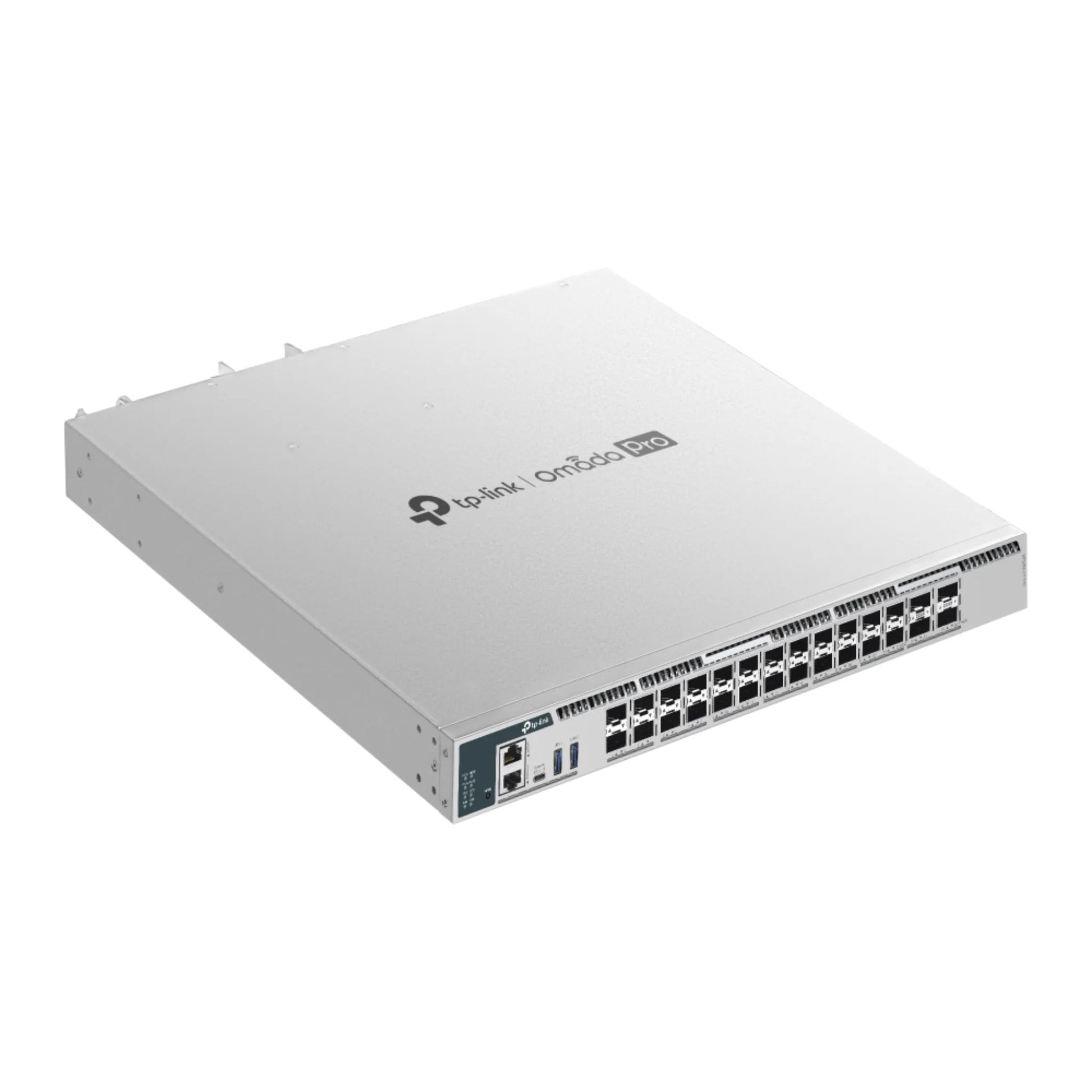

TP-Link Omada Pro S7500-24Y4C 25G L3 Core Switch
TP-Link Omada Pro S7500-24Y4C 25G L3 Core Switch
The TP-Link Omada Pro S7500-24Y4C is an enterprise 24-port 25G stackable L3 Managed Aggregation/Core Switch featuring 24× 25Gbps SFP28 slots and 4× 100Gbps QSFP28 slots. Designed for high-performance enterprise core and aggregation networks, it supports physical stacking, OSPF, BGP, IS-IS, VRRP, ECMP, PBR, ERPS, BFD, NETCONF, advanced security, and centralized Omada Pro cloud management, with two field-replaceable power supplies for enhanced network availability.
S7500-24Y4C
Omada Pro 24-Port 25G Stackable L3 Managed Aggregation/Core Switch with 4 100G Slots — Enterprise-grade technical specifications

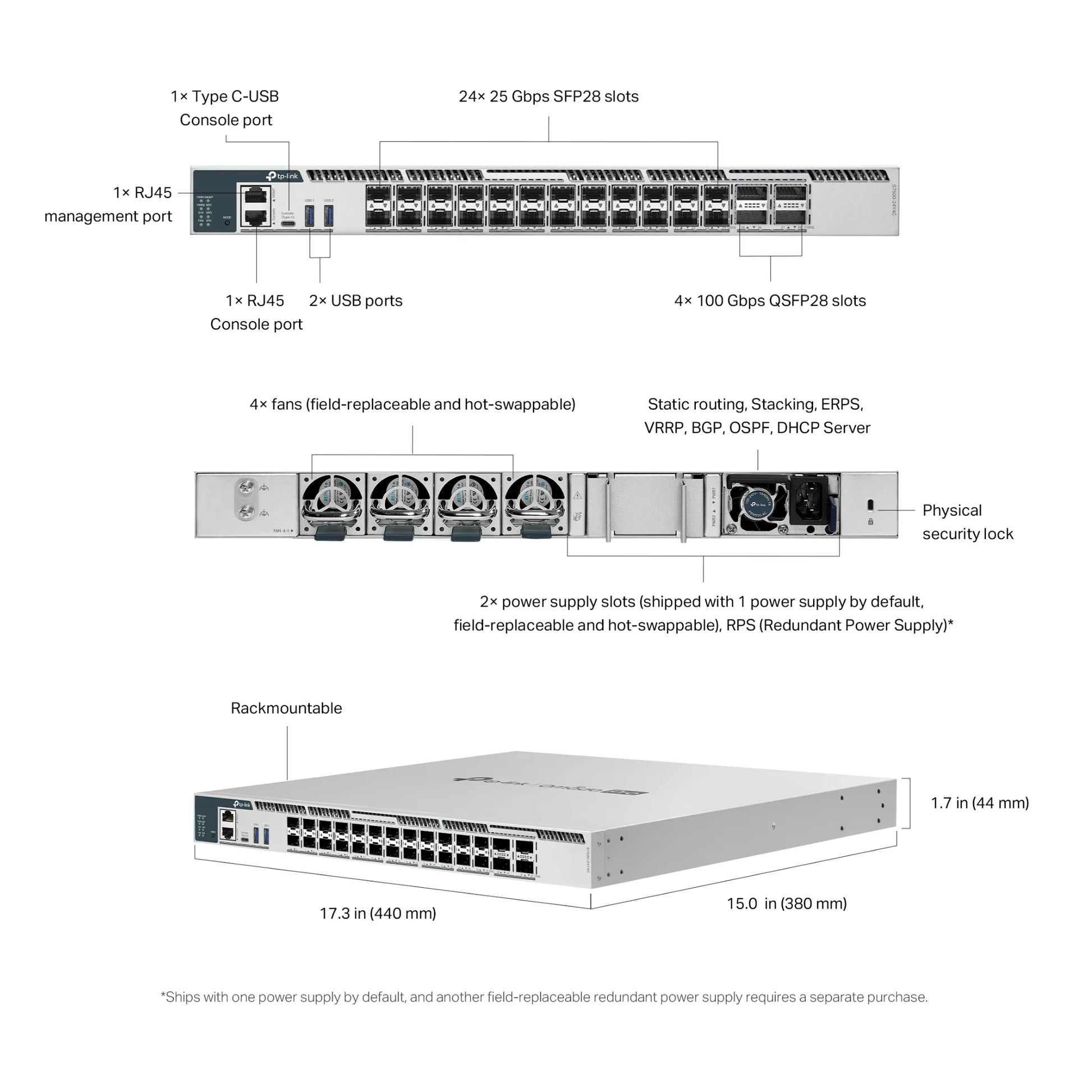

Hardware Features

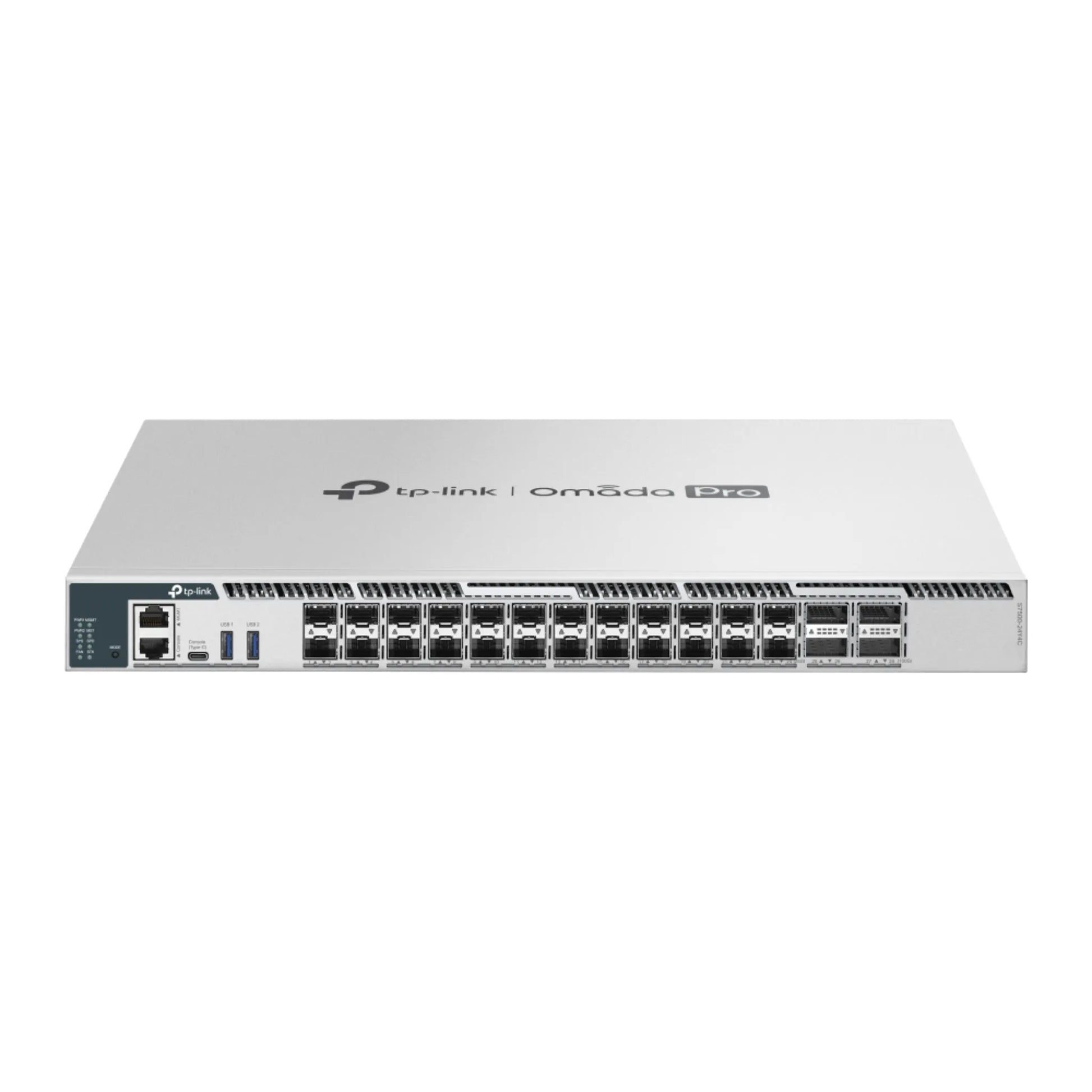

Interface
• 24× 1/10/25G SFP28 Slots
• 4× 40/100G QSFP28 Slots
• 2× USB 3.0 Ports
• 1× RJ45 Console Port
• 1× USB Type-C Console Port
• 1× RJ45 Management Port
• 4× 40/100G QSFP28 Slots
• 2× USB 3.0 Ports
• 1× RJ45 Console Port
• 1× USB Type-C Console Port
• 1× RJ45 Management Port

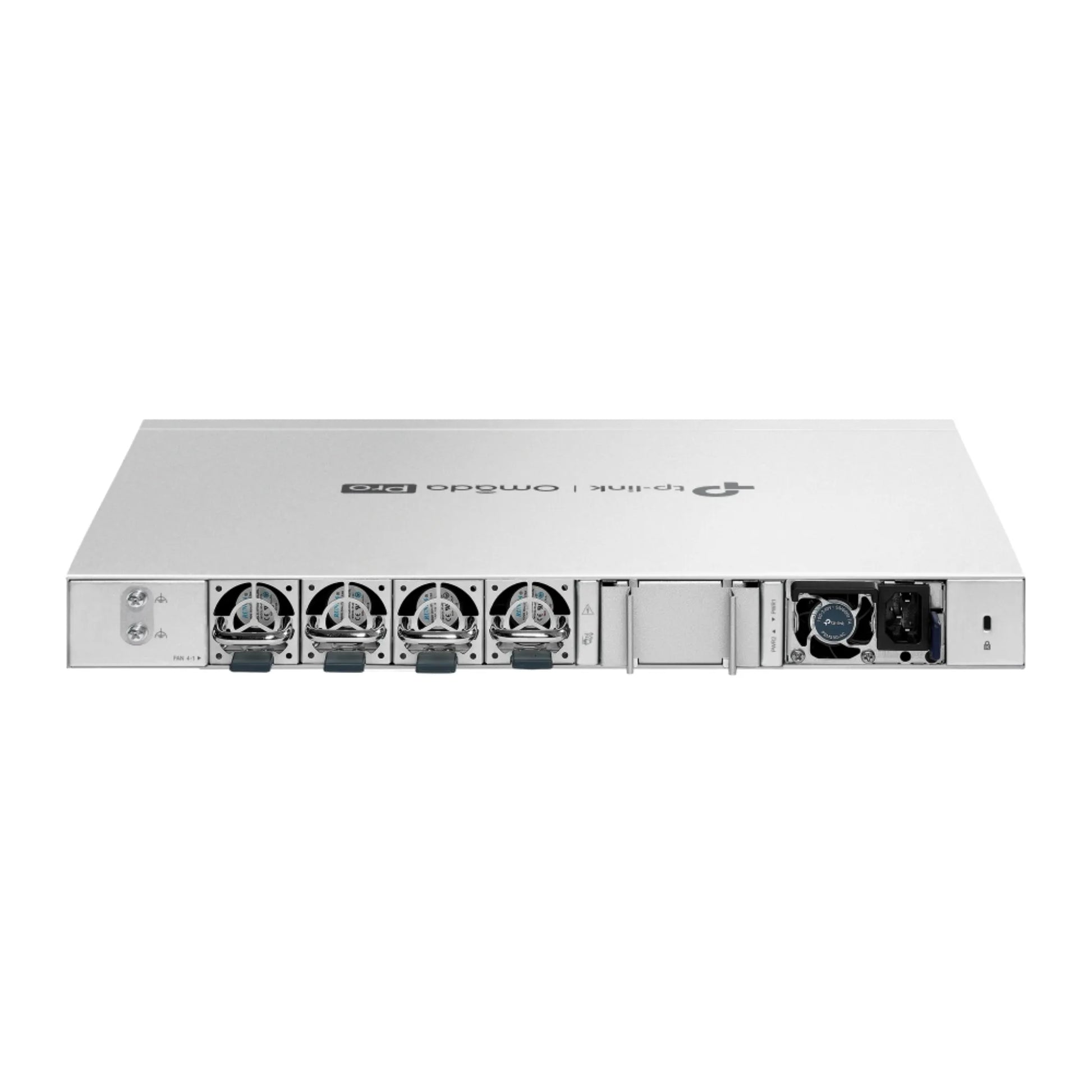

Fan Quantity
Four Field-replaceable and Hot-swappable Fans
Power Supply
Two Field-replaceable and Hot-swappable Power Supply Modules (100–240 VAC, 50/60 Hz)
*Shipping with one PSM550-AC module by default, another requires separate purchase.
*Shipping with one PSM550-AC module by default, another requires separate purchase.
Dimensions (W x D x H)
17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
Mounting
Rackmountable
Max. Power Consumption
137.63W (220 V/50 Hz)
Max. Heat Dissipation
469.6 BTU/hr (220 V/50 Hz)
Performance
Packet Buffer Memory
8 MB
Jumbo Frame
9 KB
Stacking
• Stacking Number: 12 (standalone mode)
• Stacking Port: 100G QSFP28 Slot (all uplink ports can be used as stacking ports)
• Stack Bandwidth: Up to 800 Gbps (4 stacking ports)
• Stacking Port: 100G QSFP28 Slot (all uplink ports can be used as stacking ports)
• Stack Bandwidth: Up to 800 Gbps (4 stacking ports)
Switching Capacity
2000 Gbps per Unit
Packet Forwarding Rate
810 Mpps
MAC Address Table
128 K
Software Features — QoS & L3
Quality of Service
• 8 Queues of Priority
• Port Priority / IEEE 802.1p / DSCP Priority
• Queue Min-Bandwidth
• Schedule Mode (SP, WRR, SP+WRR)
• Rate Limit & Storm Control
• Voice VLAN, User-Defined OUI
• WRED profile: 64
• Port Priority / IEEE 802.1p / DSCP Priority
• Queue Min-Bandwidth
• Schedule Mode (SP, WRR, SP+WRR)
• Rate Limit & Storm Control
• Voice VLAN, User-Defined OUI
• WRED profile: 64
L3 Features (IPv4/IPv6)
• L3 Interface: 256
• Static Route: 2,048 IPv4 / 1,024 IPv6
• Host Route Table: 15,300 entries
• Network Router entries: 102,400 (IPv4) / 51,200 (IPv6)
• ECMP: 256 entries, max 32 Nexthops
• Static ARP: 1,024 / Dynamic ARP: 24,576
• ND: 24576
• DHCP Server: 64 IP pools, 8,000 IP entries
• DHCPv4/v6 Relay
• VRRP v2/v3: 64 instances, 32 Virtual IP per instance
• OSPFv2/v3, RIPv1/v2, RIPng, IS-IS, BGP, PIM-SM/DM/SSM, IGMP v1/v2/v3, BFD, PBR, uRPF
• Static Route: 2,048 IPv4 / 1,024 IPv6
• Host Route Table: 15,300 entries
• Network Router entries: 102,400 (IPv4) / 51,200 (IPv6)
• ECMP: 256 entries, max 32 Nexthops
• Static ARP: 1,024 / Dynamic ARP: 24,576
• ND: 24576
• DHCP Server: 64 IP pools, 8,000 IP entries
• DHCPv4/v6 Relay
• VRRP v2/v3: 64 instances, 32 Virtual IP per instance
• OSPFv2/v3, RIPv1/v2, RIPng, IS-IS, BGP, PIM-SM/DM/SSM, IGMP v1/v2/v3, BFD, PBR, uRPF
Software Features — L2 / L2+ & Advanced
L2 and L2+ Features
• Link Aggregation
• Spanning Tree Protocol
• Port-based and VLAN-based Loopback Detection
• 802.3x Flow Control
• ERPS, Mirroring, RSPAN
• MAC Address Table
• Multicast: IGMP/MLD Snooping, MVR, Fast Leave, Static Groups, Filtering, Authentication
• Spanning Tree Protocol
• Port-based and VLAN-based Loopback Detection
• 802.3x Flow Control
• ERPS, Mirroring, RSPAN
• MAC Address Table
• Multicast: IGMP/MLD Snooping, MVR, Fast Leave, Static Groups, Filtering, Authentication
Advanced & ISP Features
• Automatic Device Discovery, Batch Config, Batch Firmware Upgrading
• Intelligent Network Monitoring, Abnormal Event Warnings
• Unified Configuration, Reboot Schedule
• 802.3ah Ethernet Link OAM, L2PT, DLDP, DDM, sFlow
• Intelligent Network Monitoring, Abnormal Event Warnings
• Unified Configuration, Reboot Schedule
• 802.3ah Ethernet Link OAM, L2PT, DLDP, DDM, sFlow
VLAN
• Max 4K VLAN Group (802.1q)
• 802.1Q Tagged VLAN, MAC VLAN (200 entries)
• Multicast VLAN, Management VLAN
• VLAN VPN (QinQ): 256 entries
• GVRP, Protocol VLAN, Voice VLAN, Private VLAN
• 802.1Q Tagged VLAN, MAC VLAN (200 entries)
• Multicast VLAN, Management VLAN
• VLAN VPN (QinQ): 256 entries
• GVRP, Protocol VLAN, Voice VLAN, Private VLAN
Security
• Port Isolation, CPU-Defend, DoS Defend
• IP-MAC-Port Binding (1,024 entries) + IPv6-MAC-Port Binding
• DHCP Snooping, ARP Inspection, IPv4/IPv6 Source Guard
• Static/Dynamic Port Security (64 MAC per port)
• Storm Control (kbps/ratio)
• 802.1X, MAB, Guest VLAN, RADIUS, TACACS+
• HTTPS/SSLv3/TLS 1.2, SSHv2, Secure Boot, RADSEC
• IP-MAC-Port Binding (1,024 entries) + IPv6-MAC-Port Binding
• DHCP Snooping, ARP Inspection, IPv4/IPv6 Source Guard
• Static/Dynamic Port Security (64 MAC per port)
• Storm Control (kbps/ratio)
• 802.1X, MAB, Guest VLAN, RADIUS, TACACS+
• HTTPS/SSLv3/TLS 1.2, SSHv2, Secure Boot, RADSEC
Management & Others
Omada App & Centralized Management
• Omada Pro Cloud-Based / Hardware / Software Controller
• Cloud Access & Zero-Touch Provisioning (requires Omada Pro Cloud-Based Controller)
• Cloud Access & Zero-Touch Provisioning (requires Omada Pro Cloud-Based Controller)
Management Features
• Web-based GUI, CLI (console, telnet)
• SNMPv1/v2c/v3, RMON (1,2,3,9)
• SDM Template, DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED, DHCP Auto Install
• Dual Image, Dual Configuration, CPU Monitoring
• Cable Diagnostics, Password Recovery, SNTP, System Log
• SNMPv1/v2c/v3, RMON (1,2,3,9)
• SDM Template, DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED, DHCP Auto Install
• Dual Image, Dual Configuration, CPU Monitoring
• Cable Diagnostics, Password Recovery, SNTP, System Log

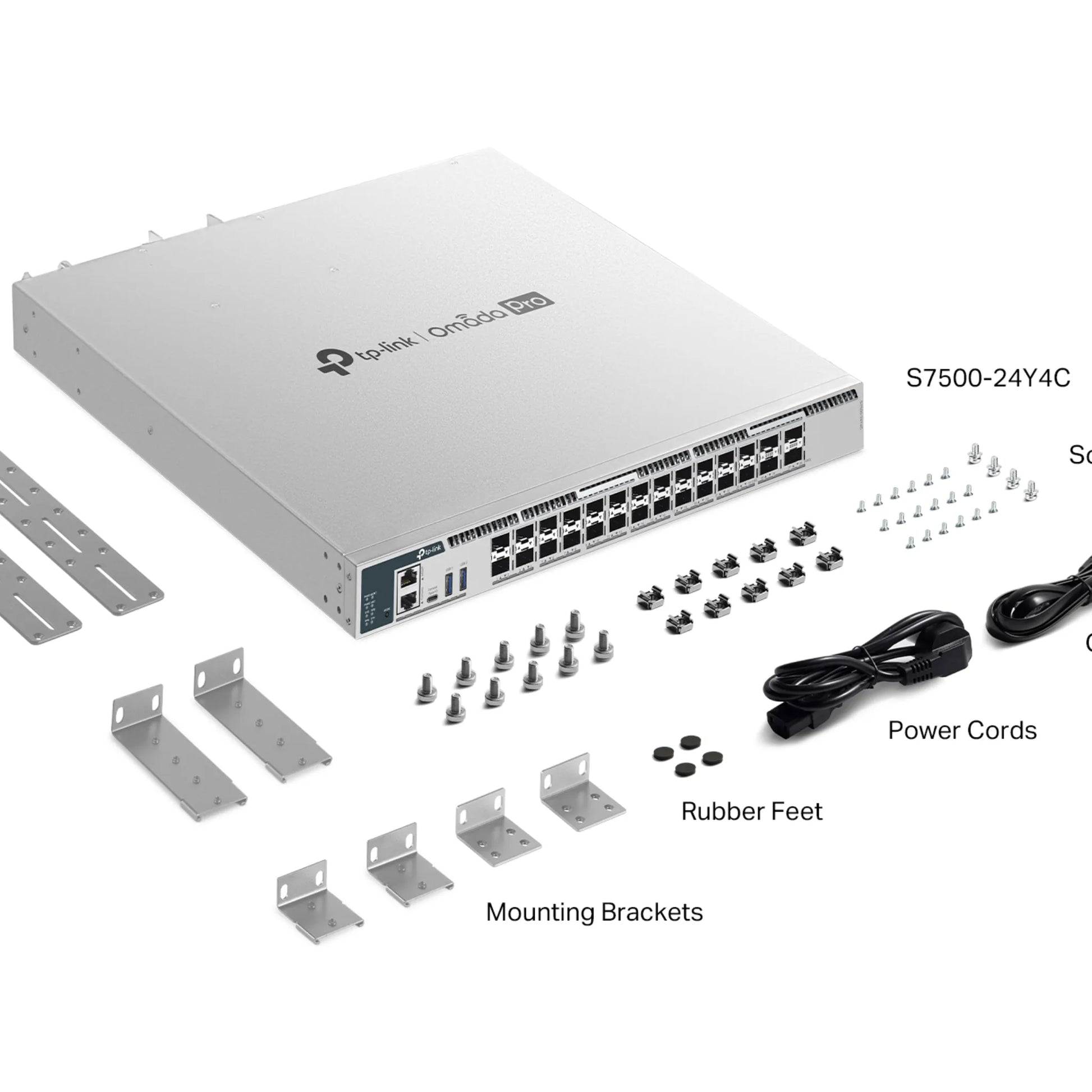

Package Content
• S7500-24Y4C Switch
• Power Cord
• RJ45 Console Cable
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
• Power Cord
• RJ45 Console Cable
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment
• Operating Temp: -5 °C to 50 °C (300m) / -5 °C to 45 °C (2000m) / -5 °C to 40 °C (3000m)
• Storage Temp: -40 °C to 70 °C
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
• Storage Temp: -40 °C to 70 °C
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
