TP-Link Omada Pro S7500-26XF6Y 10G L3 Aggregation Switch
TP-Link Omada Pro S7500-26XF6Y 10G L3 Aggregation Switch

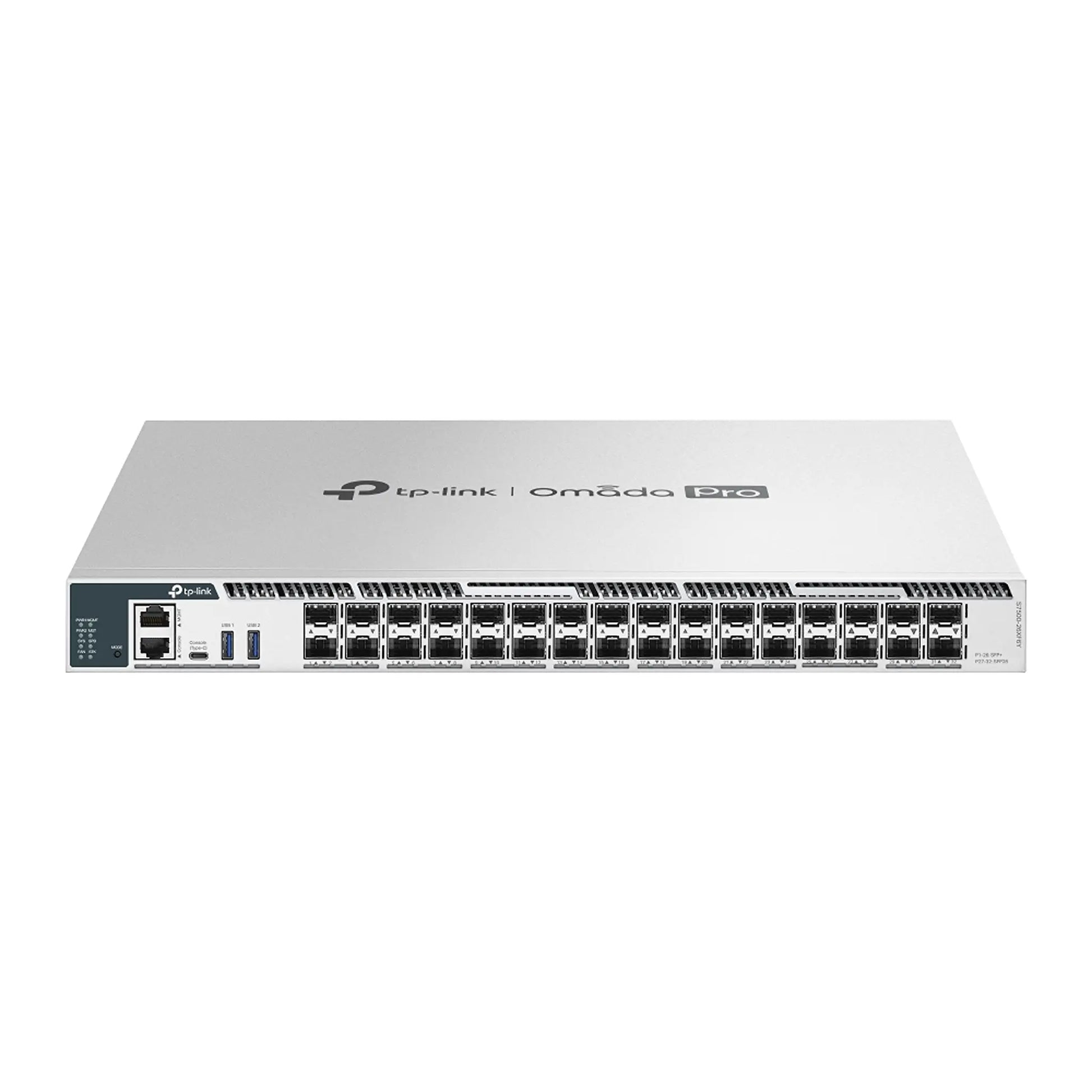

The TP-Link Omada Pro S7500-26XF6Y is an enterprise 26-port 10G stackable L3 Managed Aggregation Switch featuring 26× 10Gbps SFP+ slots and 6× 25Gbps SFP28 slots. Designed for high-performance enterprise aggregation networks, it supports physical stacking, OSPF, BGP, IS-IS, VRRP, ECMP, PBR, ERPS, BFD, NETCONF, advanced security, and centralized Omada Pro cloud management, with two field-replaceable power supplies for enhanced network availability.
S7500-26XF6Y
6× 1/10/25Gbps SFP28 Slots
2× USB 3.0 Ports
1× RJ45 Console Port
1× USB Type-C Console Port
1× RJ45 Management Port
(100–240 VAC, 50/60 Hz)

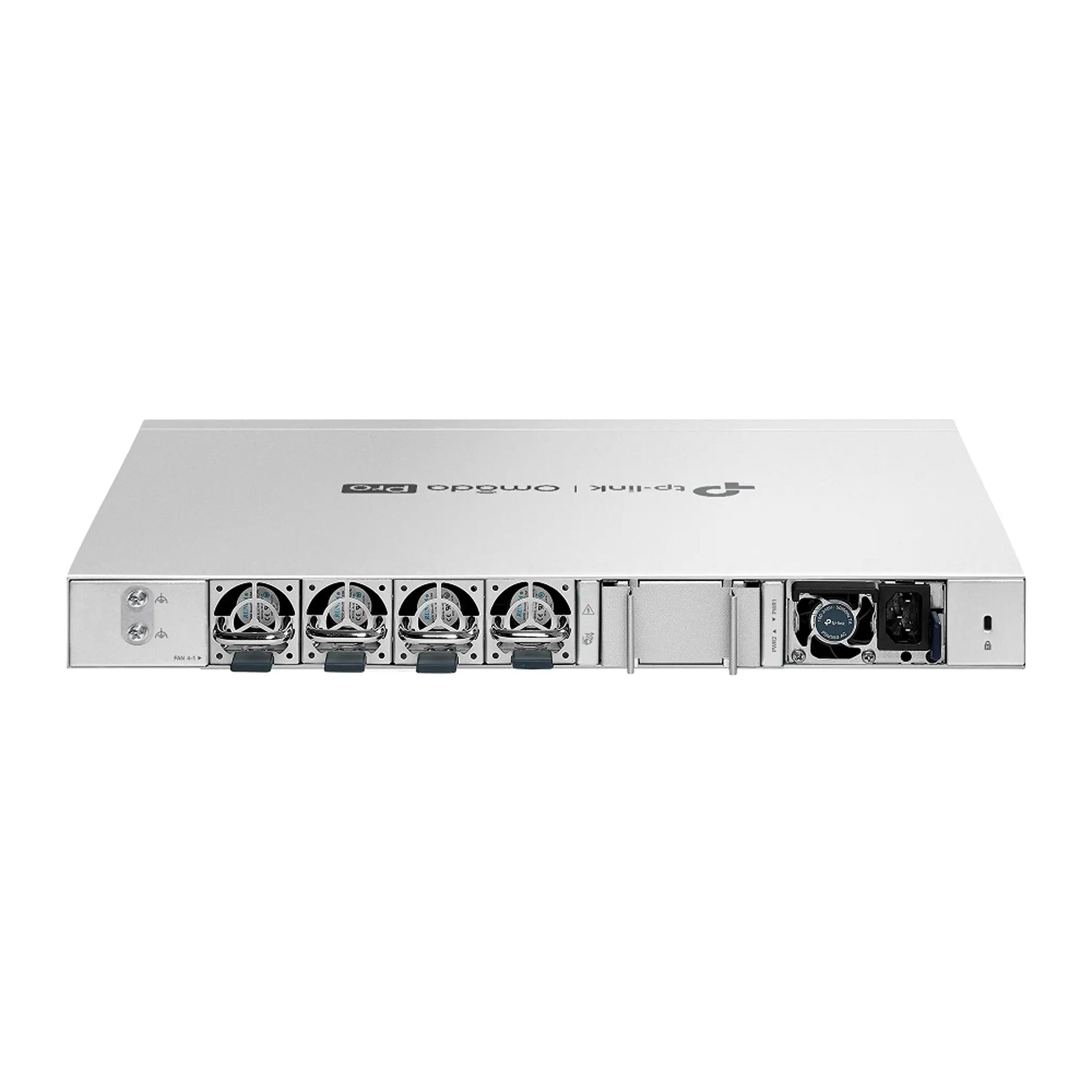

*Shipping with one PSM550-AC module by default, and another field-replaceable redundant power supply requires purchasing separately.
• Stacking Port: 25G SFP28 Slot (all uplink ports can be used as stacking ports)***
• Stack Bandwidth: Up to 300 Gbps (6 stacking ports)
• Bandwidth Control: Rate Limit, Storm Control
• Voice VLAN, User-Defined OUI
• WRED profile: 64
• Static Route: 2,048 IPv4, 1,024 IPv6
• ECMP: 256 entries, max 32 Nexthops
• DHCP Server: Max 64 pools, 8,000 IP entries
• VRRP: v2/v3, Max 64 instances
• OSPFv2/v3, RIPv1/v2, RIPng, IS-IS, BGP
• PIM-SM/DM/SSM, IGMP v1/v2/v3
• ERPS, Mirroring, RSPAN
• IGMP Snooping, MLD Snooping, MVR
• Max Multicast Table: 4K (IPv4, IPv6)
• Batch Configuration‡
• Batch Firmware Upgrading‡
• Intelligent Network Monitoring‡
• ISP: 802.3ah, L2PT, DLDP, DDM, sFlow
• MAC VLAN, Multicast VLAN, Management VLAN
• VLAN VPN (QinQ): Max 256 entries
• Protocol VLAN, Voice VLAN, Private VLAN
• ARP Inspection, DoS Defend
• IP-MAC-Port Binding: 1,024 Entries
• 802.1X (Port/MAC base, VLAN Assignment, MAB)
• AAA (TACACS+), HTTPS/SSL, SSHv2
• Secure Boot, RADSEC
• Omada Pro Hardware Controller
• Omada Pro Software Controller
• SNMPv1/v2c/v3, RMON (1,2,3,9)
• SDM Template, DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED, DHCP Auto Install
• Dual Image, Dual Configuration
• Cable Diagnostics, SNTP, System Log
• Power Cord
• RJ45 Console Cable
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
-5 °C to 50 °C (23 °F to 122 °F) @ 300 meters
-5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters
-5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters
Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Notes:
*Ships with one PSM550-AC module by default, and another field-replaceable redundant power supply requires a separate purchase.
‡These functions require the use of the Omada Pro SDN Controller. Zero-Touch Provisioning requires the use of the Omada Pro Cloud-Based Controller.
△Supports 12 units of physical stacking in standalone mode.
**No more than 6× 10G RJ45 SFP+ modules (SM5310-T) are supported. And it is recommended to have one column interval between every two 10G RJ45 SFP+ modules.
***The 25G SFP28 slots support stacking only through 25G DAC/25G SFP28 modules rather than 10G DAC/10G SFP+ modules.
