TP-Link

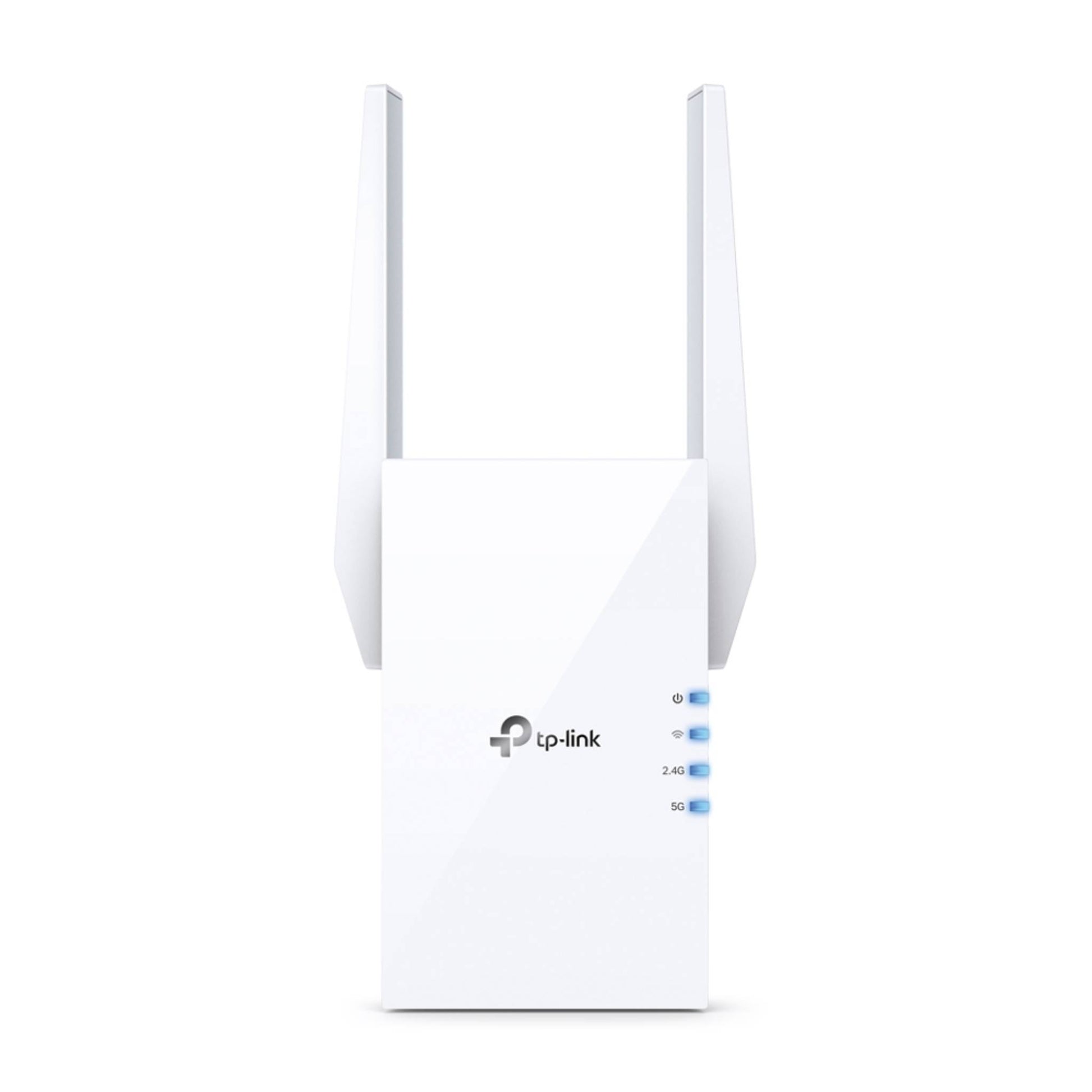

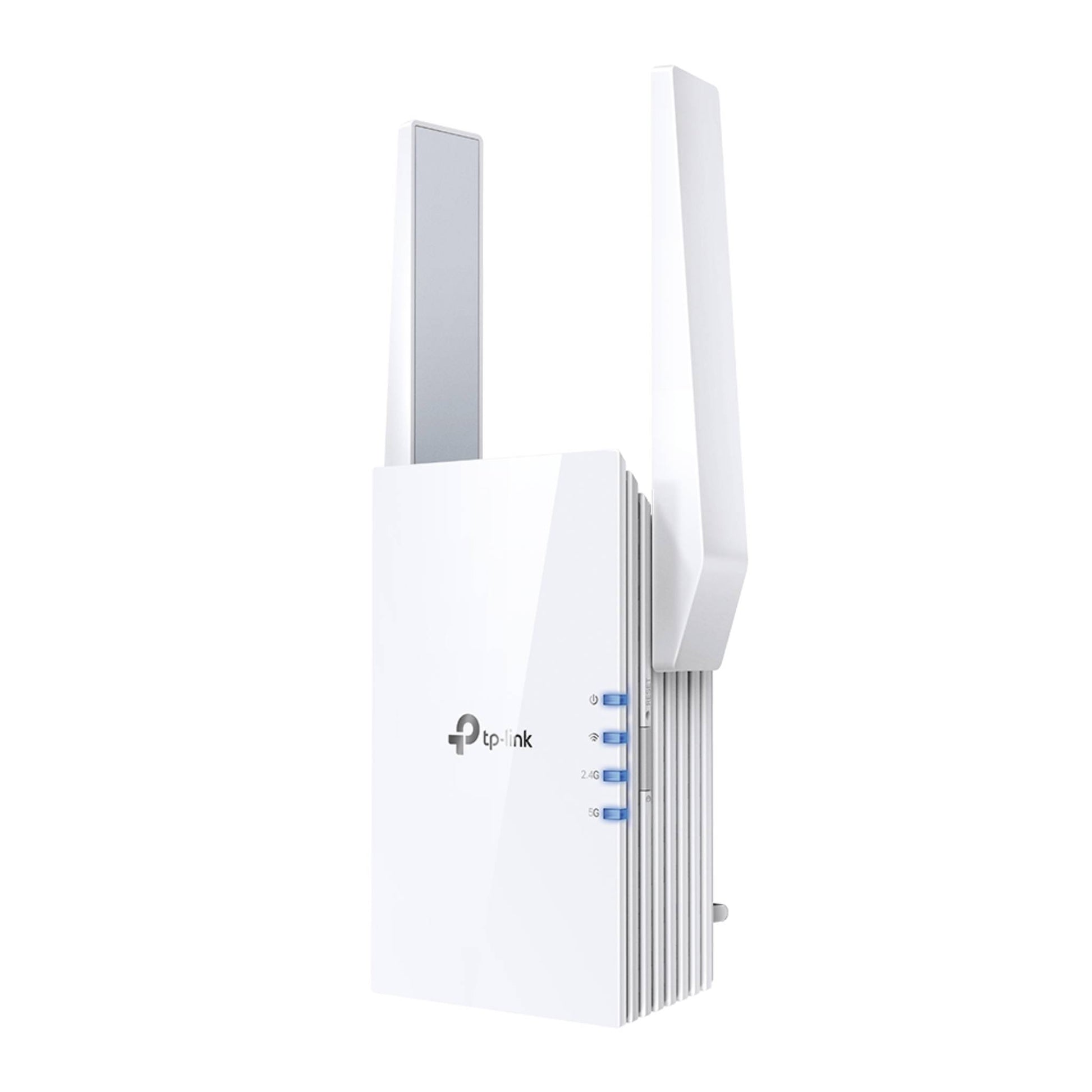

TP-Link RE505X AX1500 Wi-Fi 6 Range Extender | OneMesh, Gigabit Port
TP-Link RE505X AX1500 Wi-Fi 6 Range Extender | OneMesh, Gigabit Port
Regular price
18.000 BHD
Regular price
Sale price
18.000 BHD
Shipping calculated at checkout.

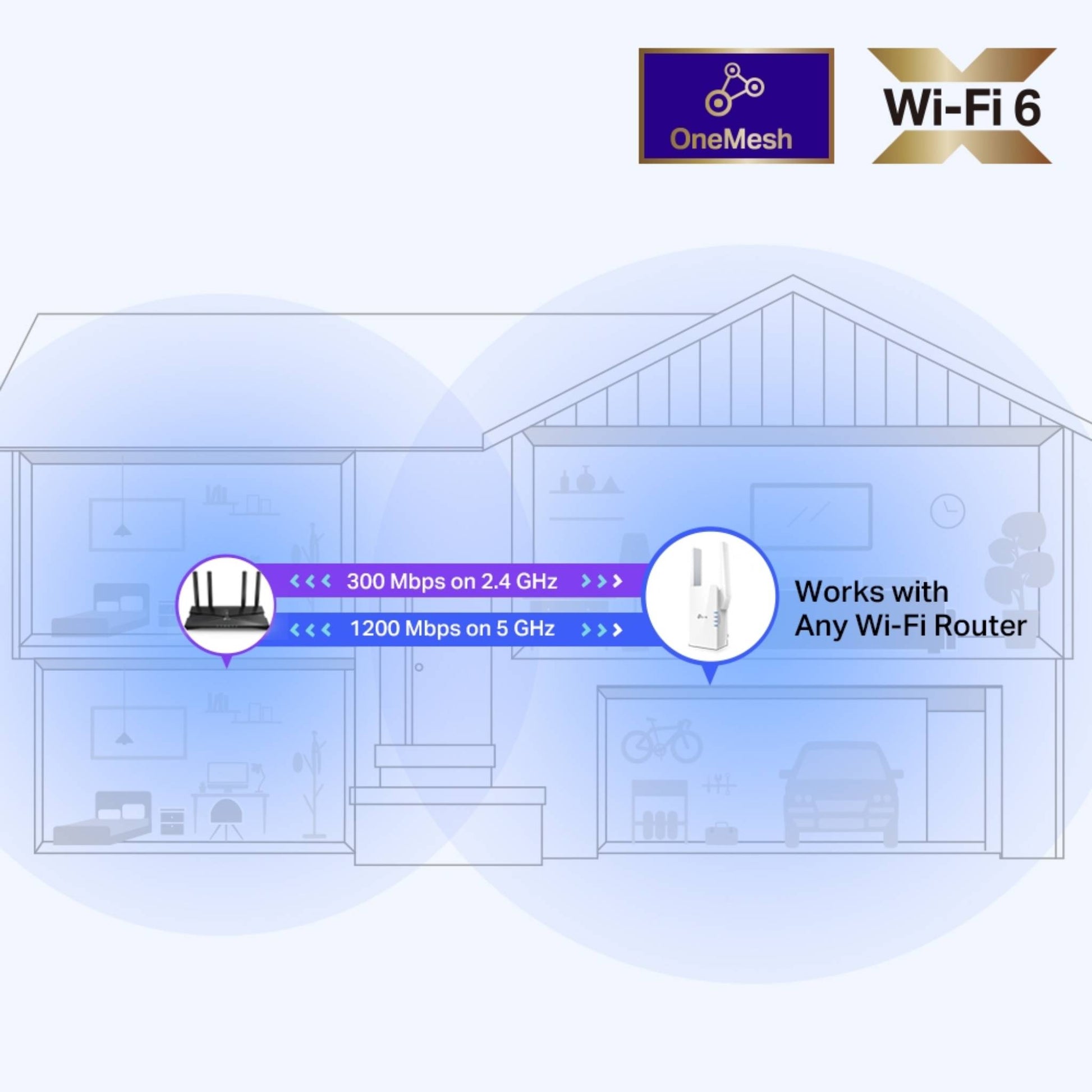

The TP-Link RE505X AX1500 Wi-Fi 6 Range Extender delivers faster speeds, wider coverage, and reduced network congestion. Featuring Wi-Fi 6, OneMesh™ support, a Gigabit Ethernet port, AP mode, and intelligent signal light, it ensures seamless whole-home connectivity and compatibility with any router.
Quantity
Couldn't load pickup availability
Wireless
📡 Working Modes
Range Extender, Access Point
Hardware Features
🔌 Interface

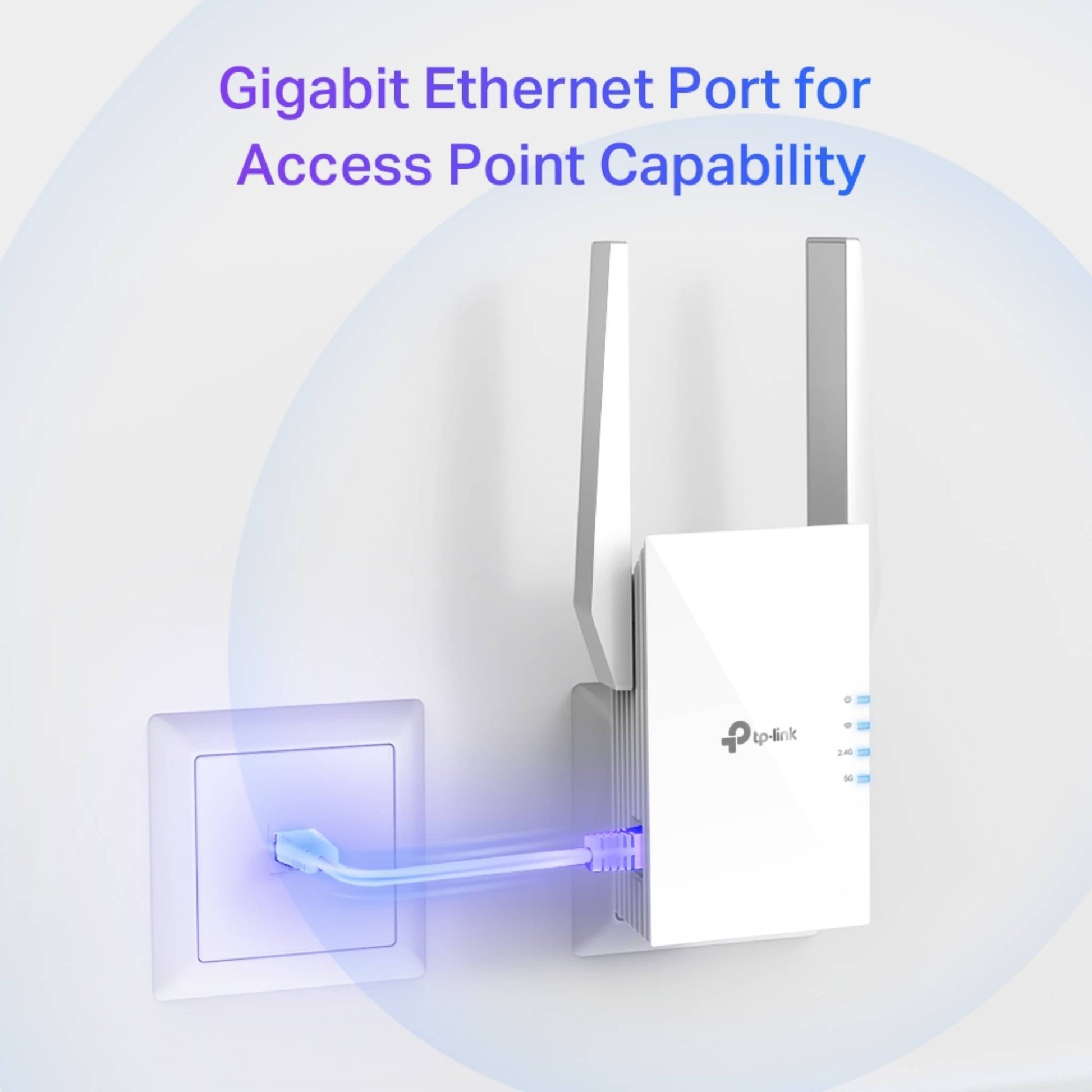

1 × Gigabit Ethernet Port
🔘 Buttons
WPS Button, Reset Button
⚡ Input Power
100–240V ~ 50/60Hz
🔋 Max Power Consumption
10W
📏 Dimensions (W × D × H)
2.9 × 1.8 × 4.9 in
(74.0 × 46 × 124.8 mm)
(74.0 × 46 × 124.8 mm)
📶 Antenna
2 External Antennas
Wireless Features
📡 Wireless Standards
IEEE 802.11a/n/ac/ax (5GHz)
IEEE 802.11b/g/n (2.4GHz)
IEEE 802.11b/g/n (2.4GHz)
📶 Frequency
2.4GHz & 5GHz
🚀 Signal Rate
300 Mbps @ 2.4GHz
1200 Mbps @ 5GHz
1200 Mbps @ 5GHz
🔁 Working Modes
Range Extender, Access Point
📥 Reception Sensitivity (5GHz)
11a 6Mbps: -93 dBm
11a 54Mbps: -75 dBm
11ac HT20 MCS0: -92 dBm
11ac HT20 MCS8: -70 dBm
11ac HT40 MCS0: -90 dBm
11ac HT40 MCS9: -66 dBm
11ac HT80 MCS0: -87 dBm
11ac HT80 MCS9: -62 dBm
11a 54Mbps: -75 dBm
11ac HT20 MCS0: -92 dBm
11ac HT20 MCS8: -70 dBm
11ac HT40 MCS0: -90 dBm
11ac HT40 MCS9: -66 dBm
11ac HT80 MCS0: -87 dBm
11ac HT80 MCS9: -62 dBm
📥 Reception Sensitivity (2.4GHz)
11g 54Mbps: -77 dBm
11n HT20 MCS7: -75 dBm
11n HT40 MCS7: -72 dBm
11n HT20 MCS7: -75 dBm
11n HT40 MCS7: -72 dBm
🛠️ Wireless Functions
Enable/Disable Wireless Radio,
Wireless Statistics
Wireless Statistics
🔐 Wireless Security
64/128-bit WEP,
WPA/WPA2-PSK Encryptions
WPA/WPA2-PSK Encryptions
📡 Transmission Power
CE: 2.4GHz ≤20 dBm
CE: 5GHz ≤30 dBm
CE: 5GHz ≤30 dBm
Others
📜 Certification
FCC, RoHS
📦 Package Contents
Wi-Fi Range Extender RE505X
Quick Installation Guide
Quick Installation Guide
💻 System Requirements
Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10
macOS, NetWare, UNIX or Linux
IE 11, Firefox 12+, Chrome 20+, Safari 4+
macOS, NetWare, UNIX or Linux
IE 11, Firefox 12+, Chrome 20+, Safari 4+
🌡️ Environment
Operating: 0°C ~ 40°C (32°F ~ 104°F)
Storage: -40°C ~ 70°C (-40°F ~ 158°F)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
Storage: -40°C ~ 70°C (-40°F ~ 158°F)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
