TP-Link TL-MR105 300Mbps 4G LTE Wireless N Router | SIM WiFi Router
TP-Link TL-MR105 300Mbps 4G LTE Wireless N Router | SIM WiFi Router
Regular price
17.100 BHD
Regular price
Sale price
17.100 BHD
Shipping calculated at checkout.
The TP-Link TL-MR105 300Mbps Wireless N 4G LTE Router delivers fast and stable internet with plug-and-play SIM card support. Share 4G LTE connectivity with up to 32 devices or use Wi-Fi router mode via Ethernet for flexible network access—perfect for homes, offices, and remote locations.
Quantity
Couldn't load pickup availability
TP-Link TL-MR105 300Mbps Wireless N 4G LTE Router Specifications
Detailed technical specifications and features
Hardware Features

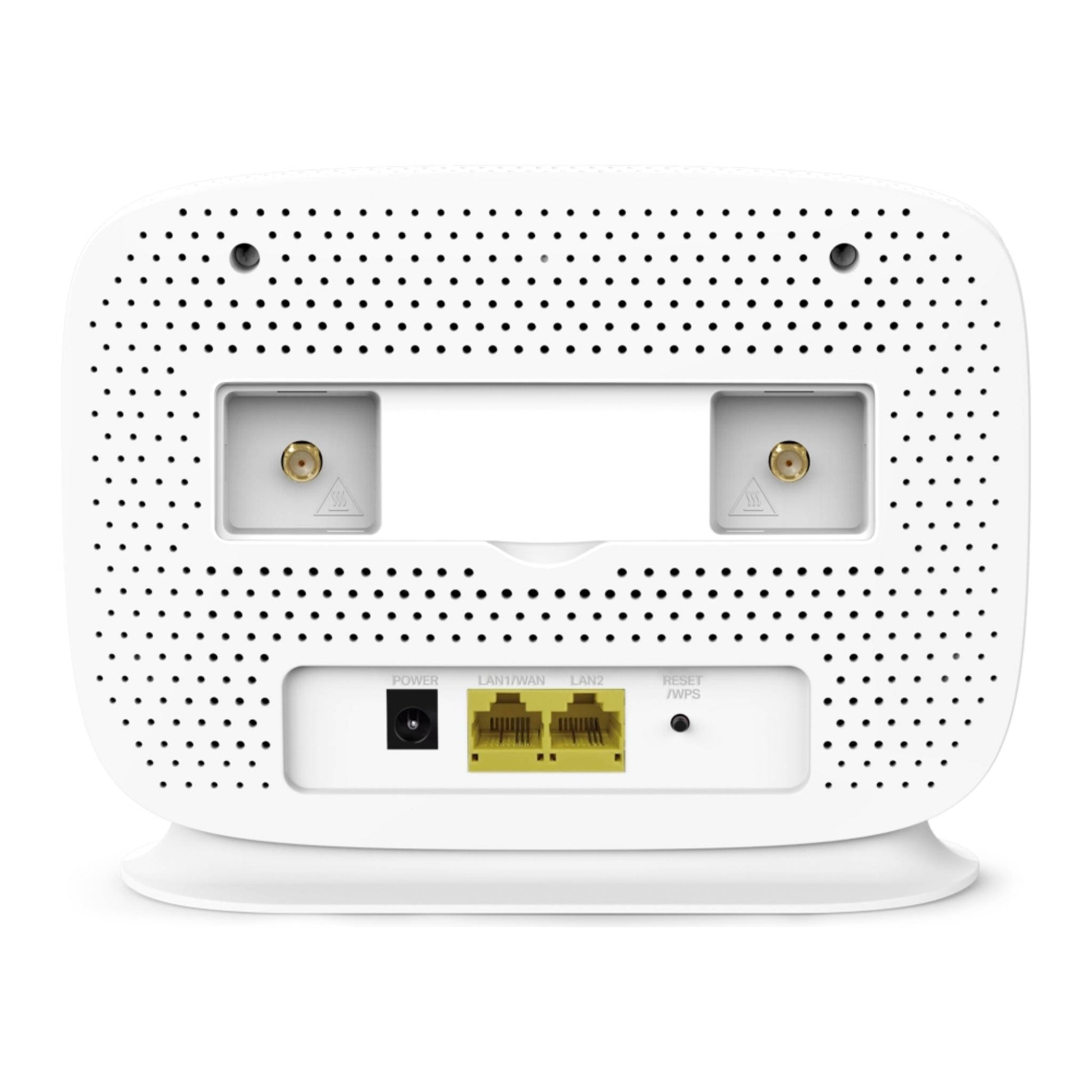

Interface
1 × 10/100Mbps LAN Port
1 × 10/100Mbps LAN/WAN Port
1 × Nano SIM Card Slot
1 × 10/100Mbps LAN/WAN Port
1 × Nano SIM Card Slot
Button
Reset/WPS Button
External Power Supply
9V / 0.85A (EU)
Dimensions
6.85 × 5.12 × 2.36 in
(174 × 130 × 60 mm)
(174 × 130 × 60 mm)
Antenna
2 × Internal 4G/3G Antennas
2 × Internal Wi-Fi Antennas
2 × External 4G/3G Antenna Ports
2 × Internal Wi-Fi Antennas
2 × External 4G/3G Antenna Ports
Wireless Features
Wireless Standards
IEEE 802.11b/g/n
Frequency
2.4 GHz
Signal Rate
300 Mbps
Reception Sensitivity
11g 54M: -74dBm
11n HT20: -73dBm
11n HT40: -70dBm
11n HT20: -73dBm
11n HT40: -70dBm
Wireless Functions
Enable/Disable Wireless Radio
Wireless Schedule, WMM
Wireless Statistics
Wireless Schedule, WMM
Wireless Statistics
WAN Failover
Yes
Wireless Security
64/128-bit WEP
WPA/WPA2
WPA-PSK/WPA2-PSK encryptions
WPA/WPA2
WPA-PSK/WPA2-PSK encryptions
Transmission Power
< 20 dBm (2.4 GHz)
Network Type
4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28
TDD-LTE: B38/B40/B41
3G: DC-HSPA+/HSPA/UMTS: B1/B5/B8
TDD-LTE: B38/B40/B41
3G: DC-HSPA+/HSPA/UMTS: B1/B5/B8
Software Features
Security
IPv4 SPI Firewall
IP and MAC Address Binding
IP and MAC Address Binding
Operating Modes
3G/4G Router
Wireless Router
Wireless Router
WAN Type
Dynamic IP / Static IP / PPPoE
PPTP (Dual Access)
L2TP (Dual Access)
PPTP (Dual Access)
L2TP (Dual Access)
Management Features
Local Management
Remote Management
Remote Management
DHCP
Server, DHCP Client List
Address Reservation
Address Reservation
Port Forwarding
ALG, Virtual Server
Port Triggering, UPnP, DMZ
Port Triggering, UPnP, DMZ
Dynamic DNS
TP-Link, DynDns, NO-IP
Protocols
IPv4, IPv6
Guest Network
2.4 GHz Guest Network
Administration
Upgrade Firmware
Factory Default
System Log
Diagnostic Tools
Factory Default
System Log
Diagnostic Tools
Network Services (Enabled by Default)
Web Server
HTTP/HTTPS management
Port: 80/443 (TCP)
Port: 80/443 (TCP)
DHCP Server
IP address assignment
Port: 67 (UDP)
Port: 67 (UDP)
DNS
Port: 53 (TCP)
App Management
Port: 22 (TCP)
Port: 20002 (TCP)
Port: 20002 (TCP)
CWMP
CPE WAN Management Protocol
Port: 7547 (TCP)
Port: 7547 (TCP)
Other Specifications
Certification
CE
RoHS
Package Content
TL-MR105 Router
1.5m Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
1.5m Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Requirements
IE 11+, Firefox 12.0+
Chrome 20.0+, Safari 4.0+
Nano SIM Card
Chrome 20.0+, Safari 4.0+
Nano SIM Card
Environment
Operating: 0℃~40℃ (32℉~104℉)
Operating Humidity: 10%~90%
Storage Humidity: 5%~90%
Operating Humidity: 10%~90%
Storage Humidity: 5%~90%
